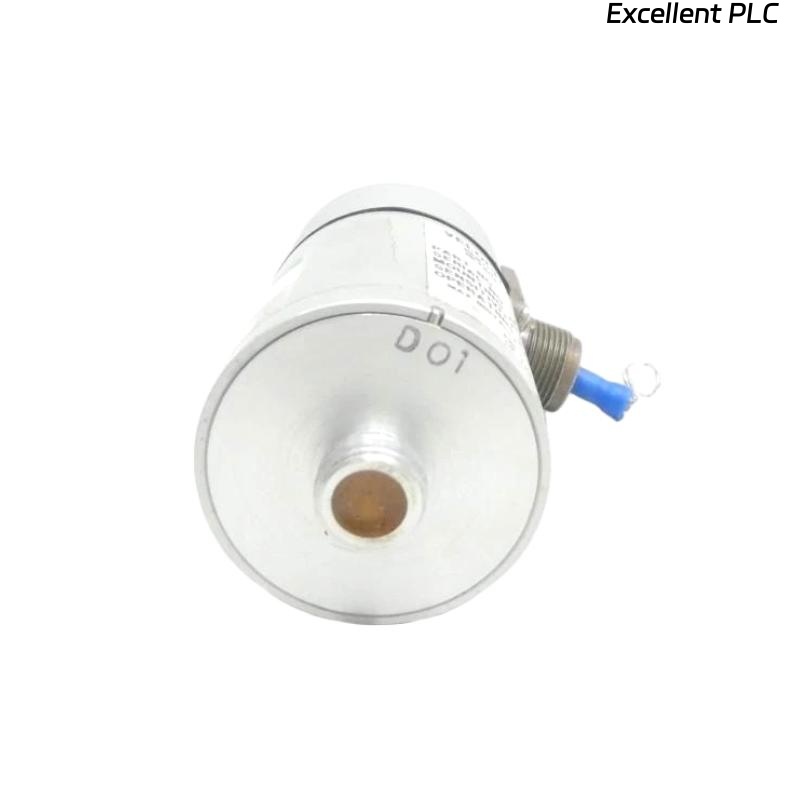

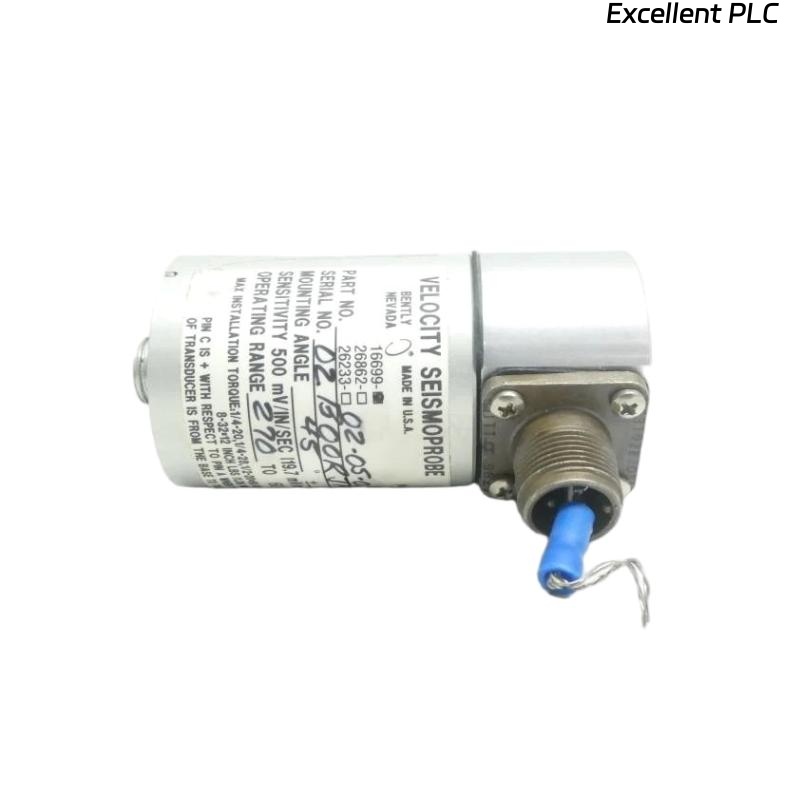

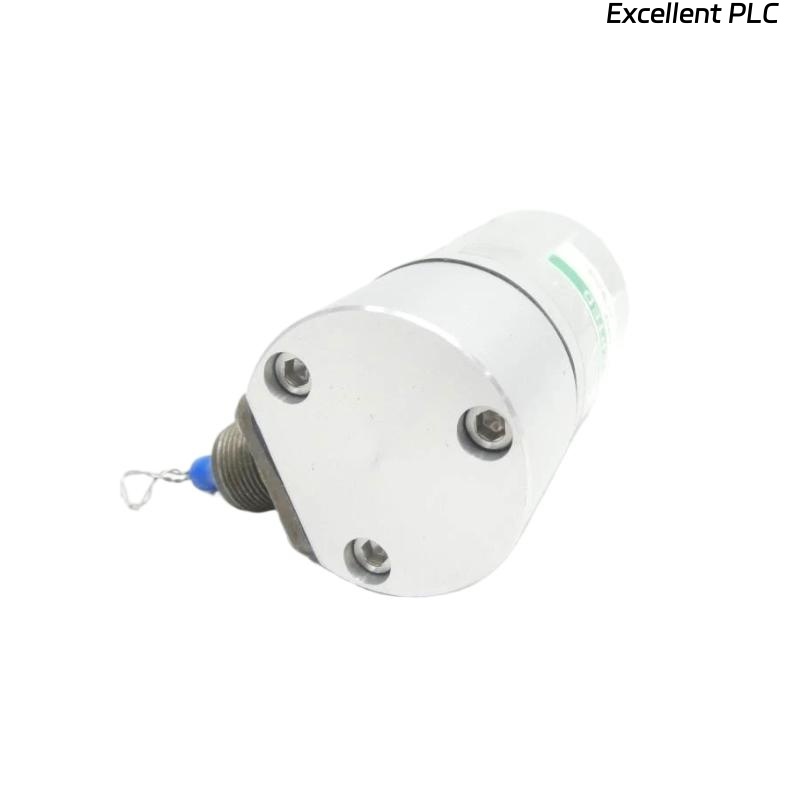

The Bently Nevada 16699-03-05-03 Velocity Seismoprobe is a high-performance seismic velocity transducer specifically designed for industrial machinery vibration monitoring. It converts mechanical vibration into a proportional electrical signal, making it a critical component in predictive maintenance and machinery protection systems.
Unlike proximity probes, which measure displacement, this seismoprobe is optimized to capture low-to-medium frequency velocity vibrations, which are particularly important in monitoring bearings, turbines, compressors, and gearboxes. With its rugged construction, the 16699-03-05-03 is engineered to withstand harsh industrial environments while maintaining high accuracy and long-term stability.
The device is frequently used with Bently Nevada 3300, 3500, and other condition monitoring systems, providing reliable input for both protection and diagnostic purposes. It is widely trusted across industries such as oil and gas, power generation, petrochemical, and heavy manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | 16699-03-05-03 |
| Type | Velocity Seismoprobe Transducer |
| Sensing Principle | Electromagnetic velocity sensor |
| Frequency Response | 10 Hz to 1,000 Hz (±3 dB) |
| Sensitivity | 20 mV/mm/s (±5%) |
| Amplitude Range | ±127 mm/s peak |
| Transverse Sensitivity | <5% of axial sensitivity |
| Output | Voltage, proportional to vibration velocity |
| Connector Type | 2-pin MIL-C-5015 |
| Operating Temperature | -29°C to +93°C |
| Storage Temperature | -40°C to +100°C |
| Shock Limit | 500 g peak |
| Mounting | Rigid base mount (preferred) |
| Housing Material | Stainless steel |
| Diameter | 41.4 mm |
| Weight | 0.32 kg |
| Certifications | CE, CSA, ATEX Zone 2 certified |
Product Applications
-
Bearing Vibration Monitoring – Measures velocity to detect developing bearing faults.
-
Turbine and Compressor Protection – Used in steam, gas, and hydro turbines to monitor vibration severity.
-
Gearbox Condition Monitoring – Captures early signs of gear wear and misalignment.
-
Industrial Rotating Machinery – Applicable in pumps, motors, and fans where velocity measurement is essential.
-
Condition Monitoring Systems – Integrates seamlessly with Bently Nevada 3500 and System 1 for diagnostic and trending analysis.
-
Field Deployments – Suitable for harsh industrial conditions such as offshore oil rigs, refineries, and power plants.
Product Advantages
-
Proven Technology – Electromagnetic sensing for reliable velocity measurements.
-
High Sensitivity – Provides accurate vibration readings even in lower frequency ranges.
-
Wide Frequency Response – Covers critical machinery vibration bands.
-
Industrial Ruggedness – Stainless steel housing for durability in harsh environments.
-
Excellent Compatibility – Works with 3300, 3500, and other Bently Nevada monitoring platforms.
-
Low Transverse Sensitivity – Ensures accurate axial vibration measurement.
-
Stable Output – High linearity and minimal signal distortion.
-
Easy Integration – Standard connector and mounting options simplify installation.
-
Global Certifications – Suitable for use in hazardous and regulated industrial areas.
-
Trusted Worldwide – Field-proven across critical industries for decades.
FAQ
-
What type of vibration does the 16699-03-05-03 Seismoprobe measure?
It measures vibration velocity, optimized for low-to-medium frequency ranges. -
What is the standard sensitivity rating of this seismoprobe?
The sensitivity is 20 mV per mm/s (±5%). -
Can the probe be directly interfaced with a Bently Nevada 3500 rack?
Yes, it is fully compatible with 3500 monitoring systems. -
What is the usable frequency response range?
It has a frequency response of 10 Hz to 1,000 Hz (±3 dB). -
How does the sensor output signal behave under vibration?
It generates a voltage output proportional to vibration velocity. -
Is transverse sensitivity controlled in this design?
Yes, it is limited to less than 5% of axial sensitivity. -
What is the shock resistance of this unit?
It can withstand up to 500 g peak shock levels. -
Can it be mounted in any orientation?
While orientation is flexible, rigid base mounting is recommended for best accuracy. -
Does it require external power supply?
No, being an electromagnetic velocity sensor, it is self-powered. -
Is it suitable for hazardous area installations?
Yes, it is certified for ATEX Zone 2 and other industrial safety standards.
