Product Introduction

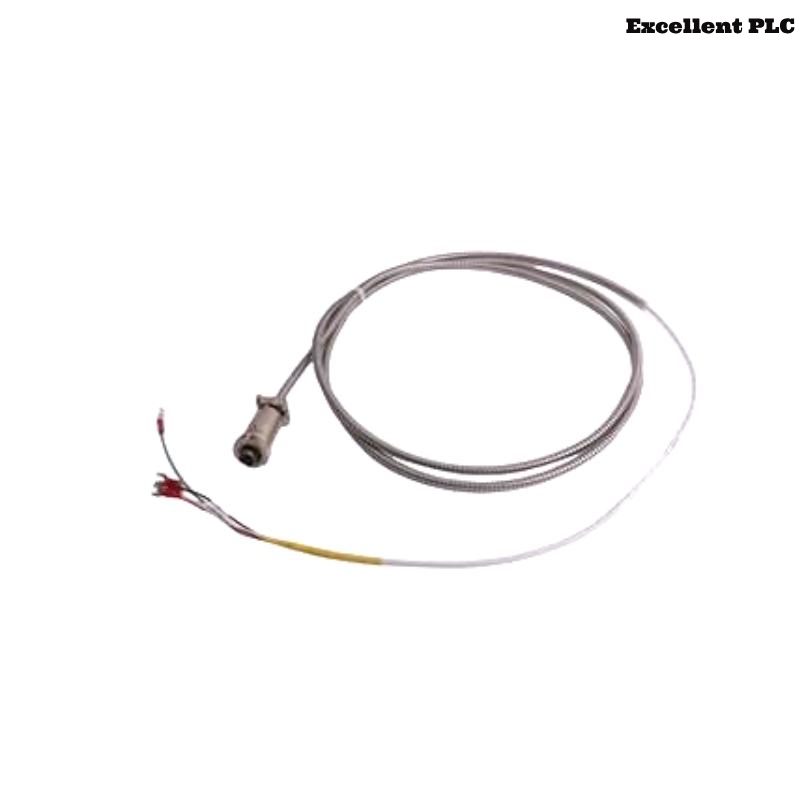

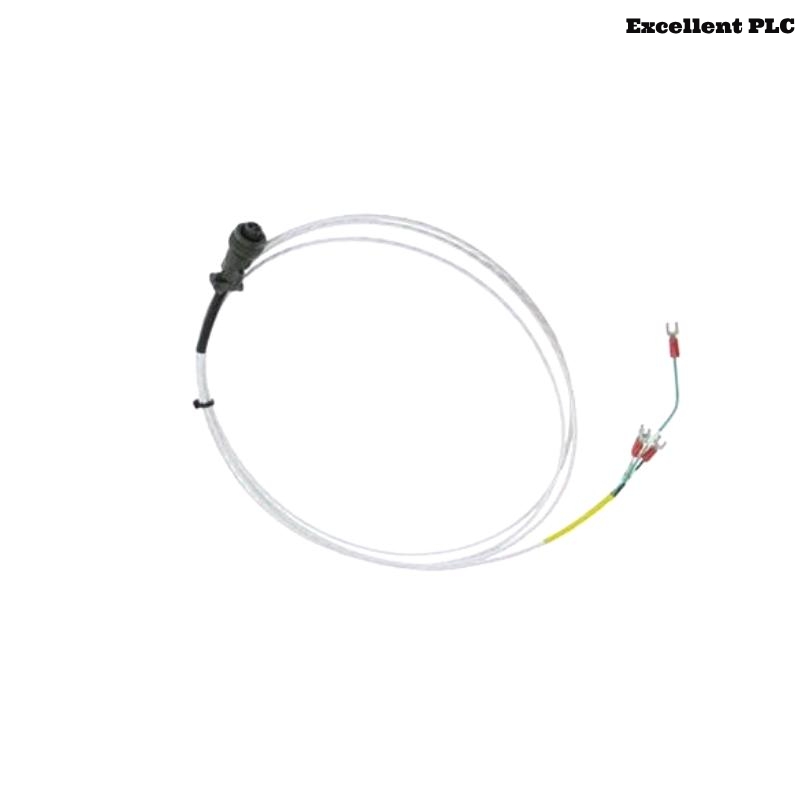

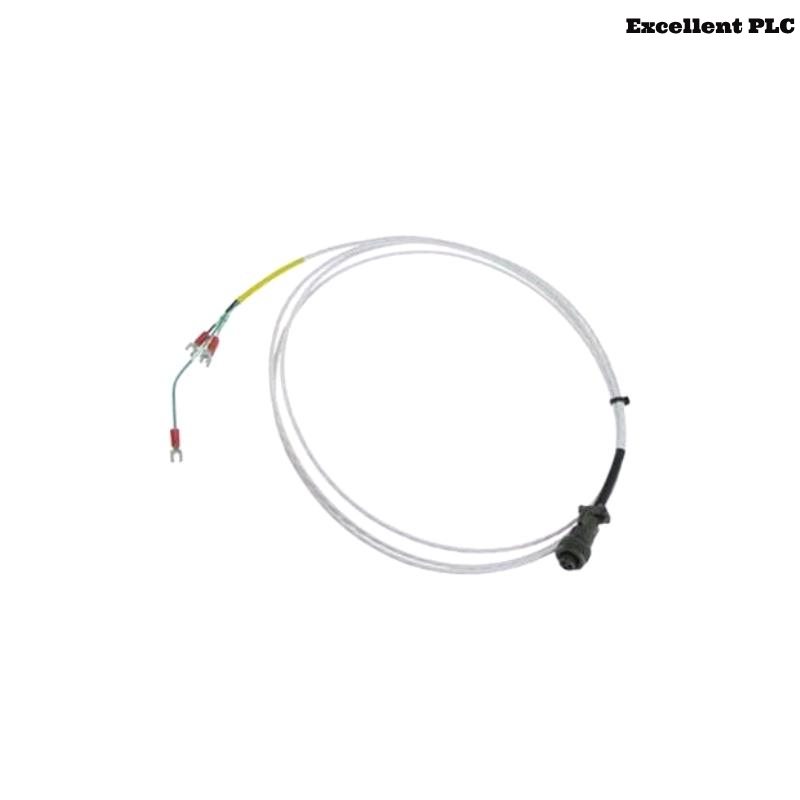

The Bently Nevada 16710-21 Interconnect Cable is a high-quality, industrial-grade cable designed for reliable signal transmission in machinery monitoring systems. As part of the 16710 series, this cable is engineered to connect vibration sensors, such as the 330400 and 330425 accelerometers, to monitoring equipment, ensuring accurate data collection for machinery diagnostics. Its robust construction makes it suitable for use in harsh industrial environments where durability and signal integrity are paramount.
Product Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model Number | 16710-21 |
| Product Type | Interconnect Cable |
| Cable Length | 21 feet (6.4 meters) |
| Conductor Type | 3-conductor shielded 22 AWG (0.5 mm²) armored cable |
| Connector Type | 3-socket plug at one end, terminal lugs at the other end |
| Operating Temperature Range | -40°C to +85°C |
| Voltage Rating | 600 V |
| Shielding | Shielded twisted pair (STP) |
| Cable Construction | Durable, flexible, high-quality shielding |
| Applications | Vibration and condition monitoring systems, machinery protection |
| Weight | 1.8 kg (3.97 lbs) |
| Dimensions (L x W x H) | 21 feet length (6.4 meters), diameter 0.5 inches (1.27 cm) |
| Environmental Protection | Suitable for harsh industrial environments |
| Operating Voltage | 24 V DC |
Applications
The Bently Nevada 16710-21 Interconnect Cable is utilized in various industrial applications, including:
-
Vibration Monitoring Systems: Connecting vibration sensors to monitoring equipment for real-time machinery health assessment.
-
Condition Monitoring Systems: Facilitating continuous data transmission from sensors to control systems for predictive maintenance.
-
Power Generation: Monitoring turbines and generators to detect anomalies and prevent failures.
-
Oil & Gas Industry: Ensuring the integrity of pumps and motors in extraction and processing operations.
-
Industrial Manufacturing: Monitoring motors, conveyors, and automated equipment to enhance production efficiency.
Advantages
-
High Durability: Constructed with robust materials to withstand mechanical stress and environmental hazards.
-
Reliable Data Transmission: Shielded twisted pair design minimizes electromagnetic interference, ensuring accurate signal transmission.
-
Flexible Design: Easy installation in confined spaces due to its flexible construction.
-
Long Lifespan: Engineered for longevity, reducing the need for frequent replacements.
-
Easy Integration: Compatible with various Bently Nevada systems, facilitating seamless integration.
-
Safe Operation: Rated for 600V, suitable for high-voltage industrial environments.
Frequently Asked Questions (FAQ)
-
What is the primary use of the Bently Nevada 16710-21 Interconnect Cable?
It connects vibration sensors to monitoring equipment in industrial machinery.
-
What is the length of the 16710-21 cable?
21 feet (6.4 meters).
-
What type of connectors does it have?
A 3-socket plug at one end and terminal lugs at the other.
-
Is it suitable for high-temperature environments?
Yes, it operates between -40°C and +85°C.
-
What is the voltage rating?
600 V.
-
Is the cable shielded?
Yes, it features a shielded twisted pair design.
-
What is the weight of the cable?
1.8 kg (3.97 lbs).
-
Can it be used in harsh industrial environments?
Yes, it’s designed for durability in demanding settings.
-
Is it compatible with other Bently Nevada products?
Yes, it’s designed for seamless integration with Bently Nevada systems.
-
What is the conductor size?
22 AWG (0.5 mm²).
Related Models (Same Series or Functionality)
| Model Number | Product Name | Description |
|---|---|---|
| 16710-10 | Interconnect Cable | 10-feet version for shorter distances |
| 16710-14 | Interconnect Cable | 14-feet version for medium-range connections |
| 16710-20 | Interconnect Cable | 20-feet version for standard installations |
| 16710-27 | Interconnect Cable | 27-feet version for extended reach |
| 16710-30 | Interconnect Cable | 30-feet version for large-scale setups |
| 16710-33 | Interconnect Cable | 33-feet version for extensive industrial applications |
