Product Description

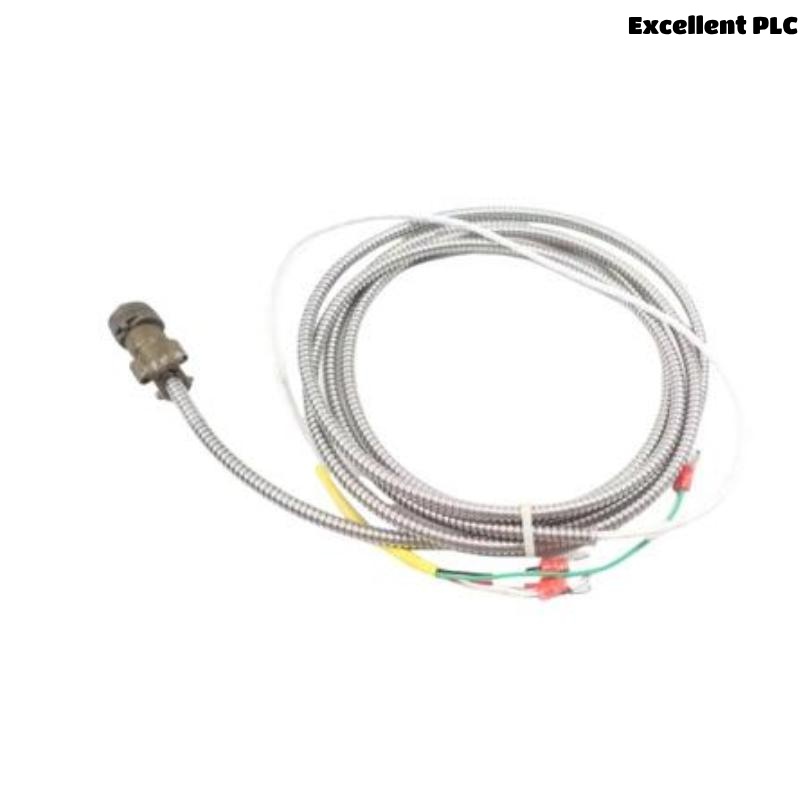

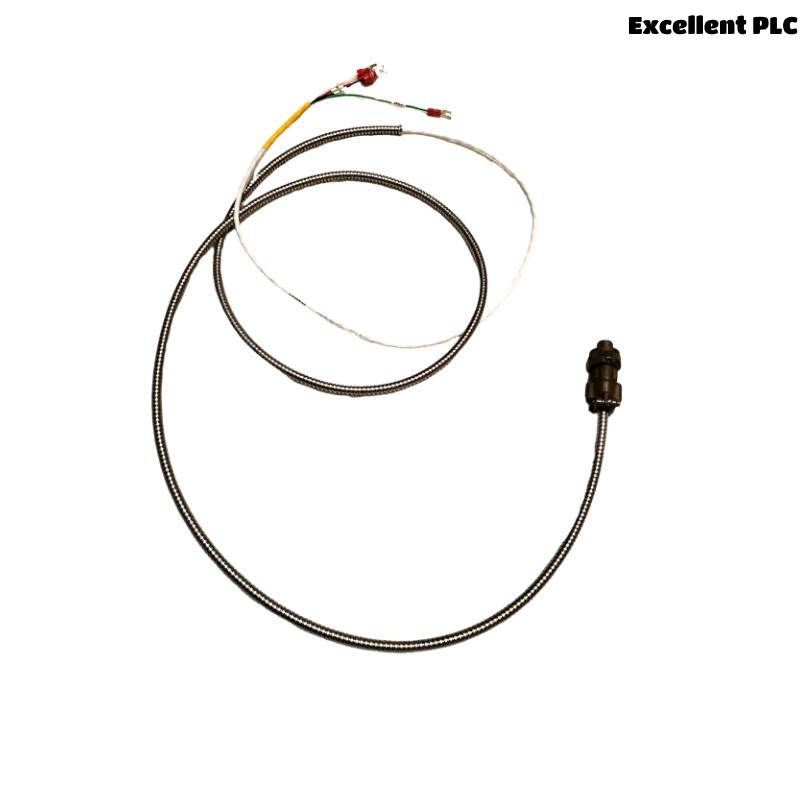

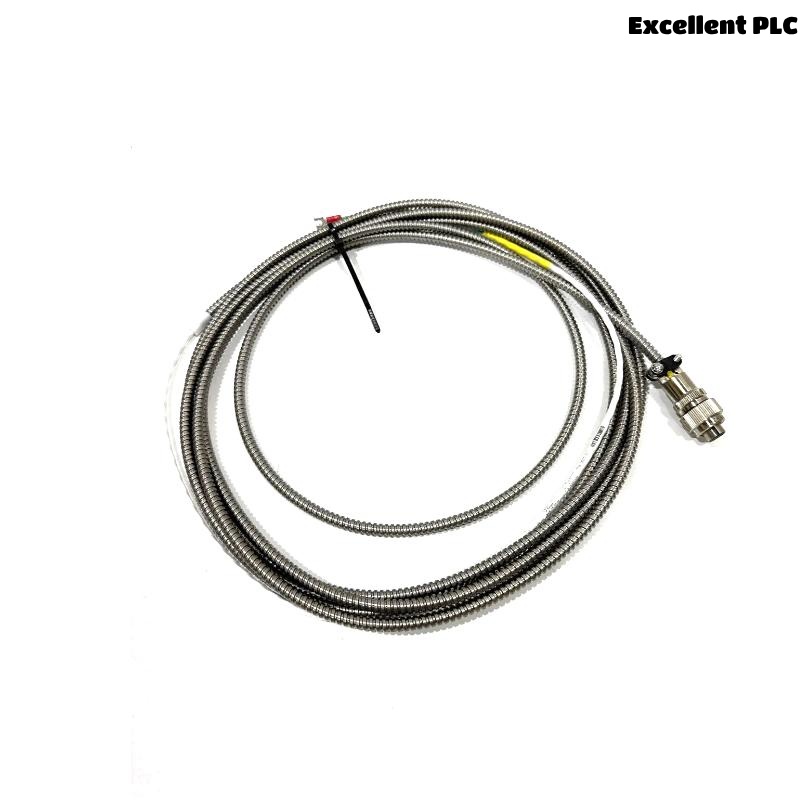

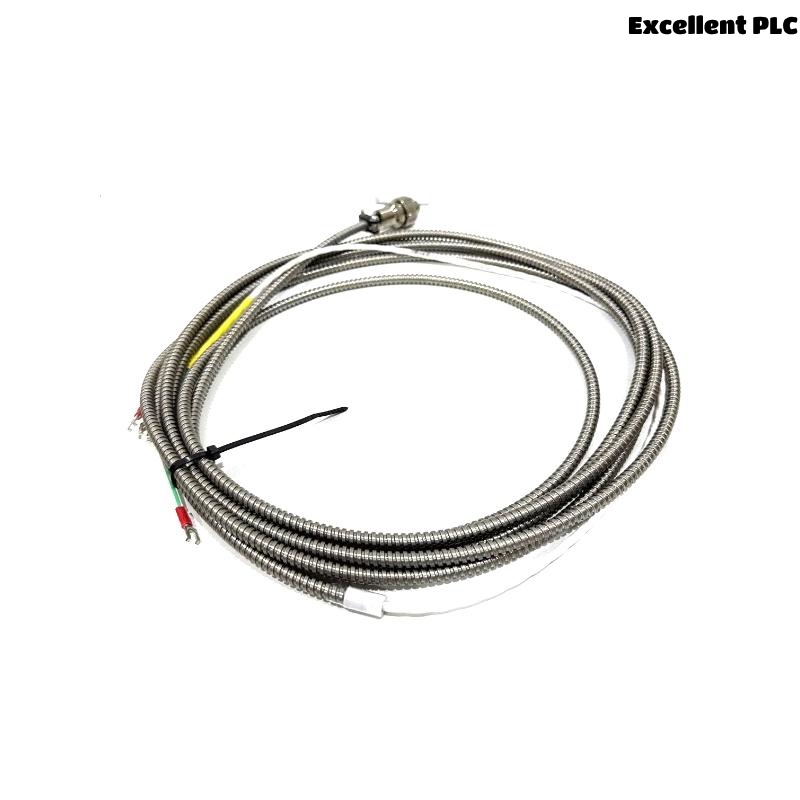

The Bently Nevada 16710-23 Interconnect Cable is a rugged, armored, shielded 3-conductor cable designed for use with Bently Nevada vibration monitoring systems. Featuring a 23-foot length, it offers secure connections between sensors and monitoring equipment in harsh industrial environments. One end is equipped with a 3-socket plug, and the other with terminal lugs for easy installation.
Technical Specifications
Parameter | Value |
---|---|
Cable Type | 3-conductor shielded, armored |
Conductor Size | 22 AWG (0.5 mm²) |
Plug | 3-socket connector (one end) |
Termination | Terminal lugs (other end) |
Cable Length | 23 ft (7.01 m) |
Shipping Weight | Approx. 3 kg |
Minimum Length | 3 ft (0.9 m) |
Maximum Length | 99 ft (30 m) |
Applications
-
Machinery condition monitoring
-
Vibration monitoring systems
-
Power plants and refineries
-
Offshore and onshore oil & gas platforms
-
Heavy industrial environments requiring armored cables
Product Advantages
-
Armored construction for mechanical protection
-
Shielded design ensures signal integrity in high EMI areas
-
Pre-terminated ends simplify installation
-
Suitable for long cable runs (up to 99 ft)
-
Proven reliability in harsh environments
Frequently Asked Questions (FAQ)
Q1: What is the maximum supported length of the 16710 cable?
A1: The maximum supported length is 99 feet (30 meters).
Q2: Is the cable suitable for hazardous environments?
A2: Yes, its armored and shielded construction makes it robust for industrial use, though certification depends on the complete system installation.
Q3: Does the cable support high-frequency signals?
A3: Yes, it is designed for vibration monitoring applications, transmitting signals effectively.
Q4: Can I cut the cable to a custom length?
A4: It is recommended to order the correct length during purchase to ensure integrity of terminations.
Q5: Are both ends of the cable pre-terminated?
A5: Yes, one end has a 3-socket plug and the other has terminal lugs.
Q6: What is the cable’s diameter?
A6: The document does not specify diameter, but it is comparable to standard armored 22 AWG cables.
Q7: Does it require special tools for installation?
A7: Standard tools for connecting plugs and lugs are sufficient; no proprietary tools are required.
Q8: Is this cable compatible with all Bently Nevada sensors?
A8: It is compatible with most Bently Nevada accelerometers and monitoring systems that use 3-conductor connections.
Q9: Can this cable be used outdoors?
A9: Yes, it is armored and shielded for use in tough outdoor environments.
Q10: Does the cable have a specific bending radius?
A10: As with all armored cables, avoid sharp bends to maintain signal integrity and physical durability.
Recommended Related Models
Model Number | Cable Type | Length | Weight |
---|---|---|---|
16710-50 | Armored Interconnect Cable | 50 ft | ~6 kg |
16710-10 | Armored Interconnect Cable | 10 ft | ~1.5 kg |
16710-99 | Armored Interconnect Cable | 99 ft | ~12 kg |
16925-20 | Shielded Non-armored Cable | 20 ft | ~2 kg |
130539-15 | Heavy-duty Shielded Cable | 15 ft | ~2.5 kg |
16710-6 | Armored Interconnect Cable | 6 ft | ~1 kg |
