Product Overview

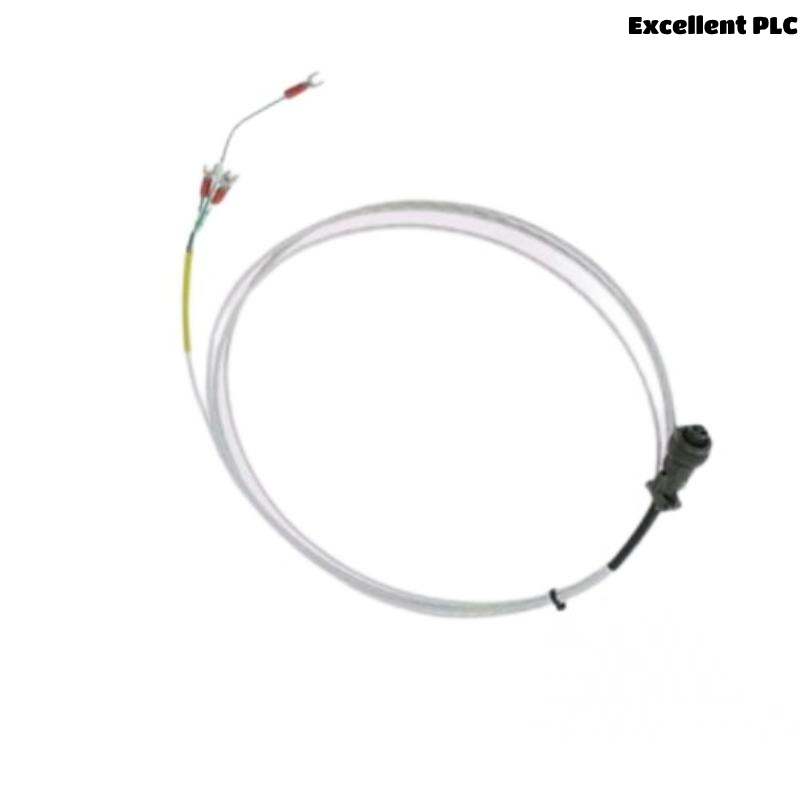

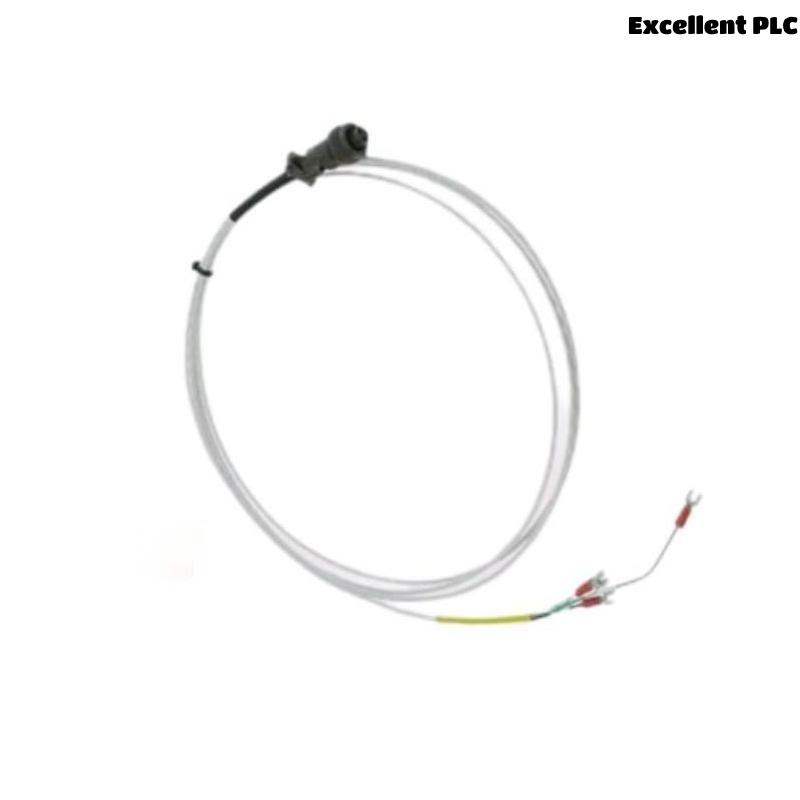

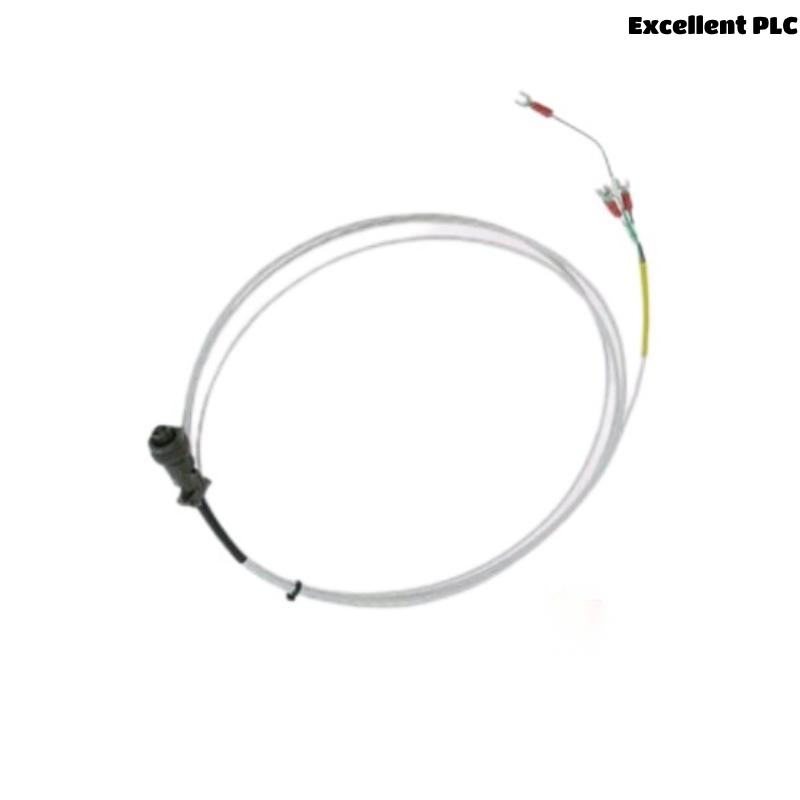

The Bently Nevada 16710-25 is an interconnect cable specifically designed for use with Bently Nevada’s 16710-series monitoring systems, often deployed in advanced machinery protection and condition monitoring applications. This cable ensures robust and noise-immune signal transmission between monitoring modules, transducers, and system interfaces. The “-25” suffix typically indicates the cable length in feet — 25 feet — suitable for medium-range signal runs in control cabinets or across equipment panels.
Engineered to meet industrial standards, the 16710-25 cable features high shielding efficiency, rugged insulation, and compatibility with the connectors and signal levels used in Bently Nevada systems.
Key Features
-
Designed for the 16710 series Bently Nevada monitoring systems
-
High-integrity signal transmission over 25 feet
-
Industrial-grade shielding to minimize EMI/RFI interference
-
Durable cable jacket for harsh environments
-
Factory-terminated ends with compatible connectors
-
Plug-and-play with 16710-series rack modules
-
Flexible construction for easy cable routing
-
Color-coded or labeled ends for correct installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | Shielded twisted-pair or multi-conductor signal cable |
| Application | Interconnection within 16710-series vibration monitoring systems |
| Compatible Systems | Bently Nevada 16710 series, including transducers and monitors |
| Length | Cable Length：25 ft |
| Conductor Material | Copper, tinned or silver-plated |
| Insulation Material | Thermoplastic or thermoset (varies by version) |
| Shielding | Braided or foil shield with drain wire |
| Jacket Material | PVC or Low-Smoke Zero Halogen (depending on system version) |
| Operating Temperature | -20°C to +80°C |
| Connector Type | Factory-terminated with keyed connectors (specific to 16710 units) |
| Color Code | Industry standard or Bently-specific markings |
| Dimensions | Cable Length：25 ft |
| Weight | Shipping weight 3kg |
| Compliance | RoHS, CE (depending on manufacturing revision) |
Product Advantages
-
Signal Integrity: Provides clean, uninterrupted signal transfer in high-noise environments.
-
System Compatibility: Fully compatible with 16710 monitoring modules and associated hardware.
-
Durability: Resistant to abrasion, temperature fluctuations, and physical wear.
-
Pre-Terminated Ends: Reduces installation time and prevents wiring errors.
-
Reduced Maintenance: High-quality shielding reduces susceptibility to faults and ground loops.
-
Flexible Routing: Supports tight-bend radii and long-distance runs in control enclosures.
Industry Applications
-
Turbomachinery Monitoring: Interconnects probes and modules for steam/gas turbines.
-
Rotating Equipment Protection: Used in compressors, pumps, motors, and generators.
-
Oil & Gas Facilities: Transfers critical vibration signals in offshore/onshore plants.
-
Power Generation: Applied in coal, hydro, nuclear, and combined cycle power stations.
-
Heavy Industries: Suitable for steel, pulp & paper, chemical processing, and mining.
-
Aerospace Test Beds: Used in high-vibration environments for data acquisition systems.
Frequently Asked Questions (FAQ)
-
Q: What does “16710-25” signify?
A: It refers to the 16710-series interconnect cable with a length of 25 feet. -
Q: Can this cable be used with other Bently Nevada systems?
A: It is optimized for the 16710-series but may work with other systems if connector and pinout match. -
Q: Are the connectors pre-installed?
A: Yes, cables are factory-terminated with system-compatible connectors. -
Q: Is the cable shielded?
A: Yes, it features full shielding to protect against EMI/RFI interference. -
Q: Can the cable be ordered in other lengths?
A: Yes, Bently Nevada provides custom lengths such as 10, 25, 50, or 100 feet. -
Q: What is the typical application of the 16710-25 cable?
A: For signal interconnection in vibration and condition monitoring systems. -
Q: What is the outer jacket made from?
A: Typically industrial-grade PVC or LSZH, depending on specification. -
Q: Can the cable be run outdoors?
A: It is generally intended for indoor industrial use; outdoor applications require additional protection. -
Q: Is this cable UL listed?
A: Compliance depends on the revision; most are RoHS and CE compliant, UL availability varies. -
Q: How should this cable be routed?
A: It should be routed separately from power cables to prevent interference.
Related or Compatible Models (Same Series or Function)
| Model | Description |
|---|---|
| 16710-10 | 10 ft version of the interconnect cable |
| 16710-50 | 50 ft version for longer runs |
| 16710-100 | 100 ft long interconnect cable |
| 330130-085-00-05 | 3300 XL Standard Extension Cable, compatible with vibration systems |
| 330180-91-00 | Proximitor Sensor signal cable for Bently transducers |
| 330195-01-00 | Extension cable for 3300 XL NSv systems |
