Product Introduction

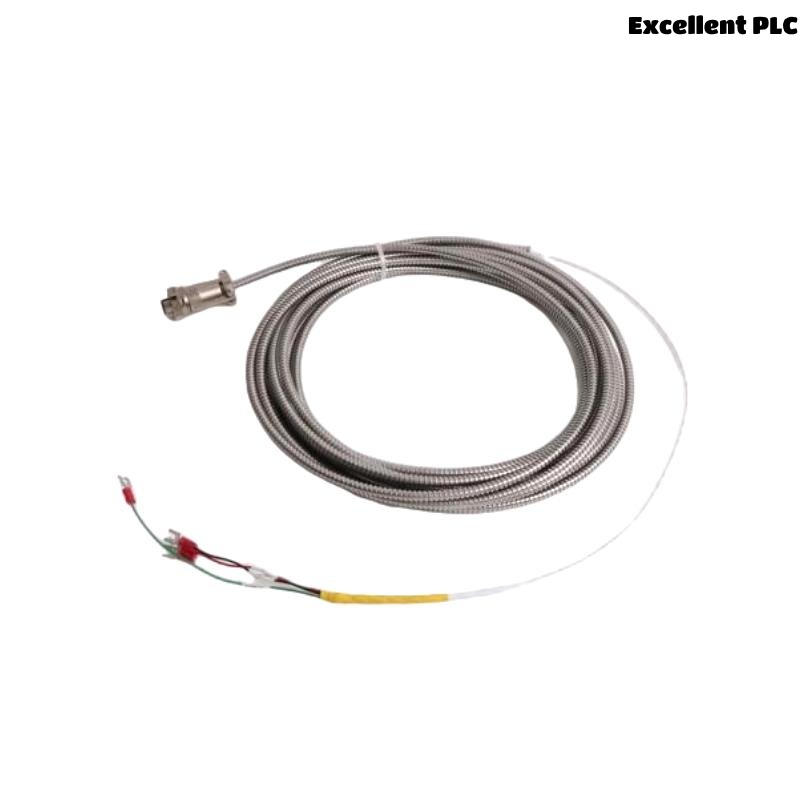

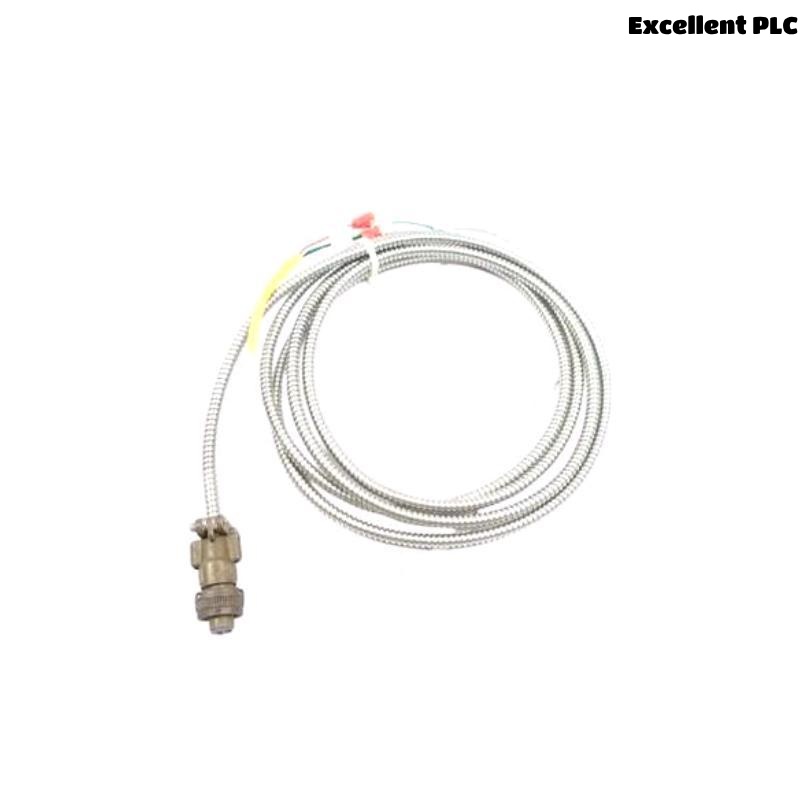

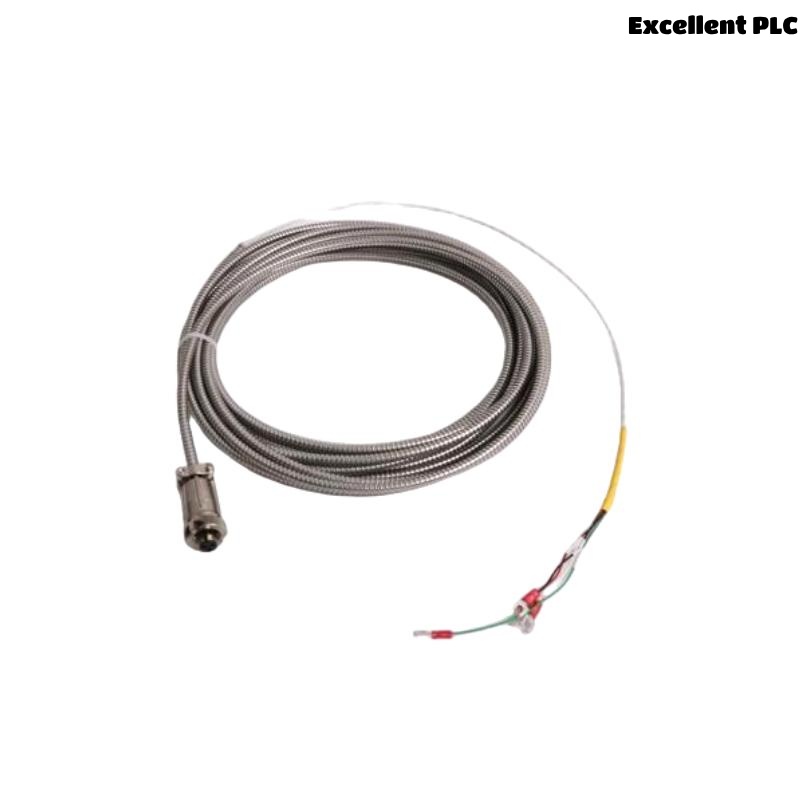

The Bently Nevada 16710-26 Interconnect Cable is a high-quality industrial-grade cable designed to provide a reliable electrical connection between proximity probe systems and monitoring instruments. As part of Bently Nevada’s trusted lineup of condition monitoring hardware, the 16710-26 plays a critical role in transferring precise sensor data in vibration and position monitoring applications.
Engineered with precision and durability in mind, this interconnect cable ensures signal integrity, electromagnetic interference (EMI) protection, and long-term stability in harsh industrial environments. It is commonly used in conjunction with Bently Nevada proximity transducers and monitors such as the 3300 or 3500 series, making it a vital component in predictive maintenance and machine protection systems.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | 16710-26 |
| Product Type | Interconnect Cable |
| Brand | Bently Nevada (a Baker Hughes business) |
| Cable Length | 26 feet |
| Connector Type | Special BNC/Micro Dot or MIL-style connectors |
| Cable Type | Coaxial, low-noise shielded cable |
| Shielding | Double shielded with braided and foil EMI protection |
| Outer Jacket Material | PVC or FEP (Fluoropolymer), depending on configuration |
| Temperature Range | -40°C to +125°C |
| Bend Radius | Minimum 2 inches (50.8 mm) |
| Compatibility | Bently Nevada 3300, 3300 XL, and 3500 series proximity systems |
| Environmental Rating | Industrial, vibration-resistant |
| Certifications | CE, RoHS, and ISO 9001 manufacturing compliance |
Product Applications
The Bently Nevada 16710-26 Interconnect Cable is used across a wide array of industrial sectors where continuous monitoring of rotating machinery is essential. Typical applications include:
-
Turbomachinery Monitoring: Transfers vibration and axial displacement data from probes to monitors.
-
Power Generation: Used in turbines, generators, and gearboxes to maintain operational integrity.
-
Oil and Gas: Installed in compressors and pumps to detect shaft misalignment or imbalance.
-
Petrochemical: Enables proactive monitoring in hazardous process environments.
-
Manufacturing: Critical for precision equipment like CNC machines and rotating kilns.
-
Aerospace and Defense: Supports high-reliability environments for engines and turbines.
Product Advantages
-
Signal Integrity: High-performance shielding reduces electromagnetic noise and distortion.
-
Reliability: Designed for rugged environments—resistant to oil, moisture, chemicals, and vibration.
-
Compatibility: Fully compatible with Bently Nevada 3300 and 3500 series monitoring systems.
-
Ease of Installation: Pre-configured length and connectors simplify setup and reduce wiring errors.
-
Flexibility: Durable insulation and flexible design support installation in confined spaces.
-
Stable Performance: Maintains high data fidelity across long cable runs.
-
Industrial Grade Build: Manufactured under ISO 9001 conditions to ensure high quality and consistency.
-
Maintenance-Friendly: Clear identification and connector reliability simplify maintenance cycles.
-
Temperature Tolerance: Operates effectively in extreme temperatures typical in rotating machinery enclosures.
-
Extended Lifecycle: Engineered for long-term reliability, reducing replacement frequency and cost.
Frequently Asked Questions (FAQ)
-
Q: What systems is the 16710-26 cable compatible with?
A: It is compatible with Bently Nevada 3300, 3300 XL, and 3500 series systems. -
Q: What is the length of the cable?
A: The 16710-26 has a standard length of 26 feet (7.92 meters). -
Q: Can this cable be used in high-temperature environments?
A: Yes, it is rated for operation from -40°C to +125°C. -
Q: What kind of connectors does it use?
A: It typically uses MIL-style or Micro Dot connectors, depending on system requirements. -
Q: Is the cable shielded?
A: Yes, it is double-shielded for excellent EMI protection. -
Q: Can it be used outdoors?
A: While primarily designed for indoor, industrial use, it can be used in sheltered outdoor environments if properly protected. -
Q: How flexible is the cable for routing through tight spaces?
A: The cable has a small bend radius and flexible insulation, allowing for tight installation paths. -
Q: Is the 16710-26 resistant to oil and chemicals?
A: Yes, the outer jacket material provides resistance to oils, fuels, and industrial chemicals. -
Q: Can I customize the cable length?
A: Bently Nevada offers various cable lengths; check for model variants like 16710-10, 16710-30, etc. -
Q: Is this cable RoHS compliant?
A: Yes, it complies with RoHS directives for hazardous substance restrictions.
Recommended Related Models (Same Series or Functionality)
| Model Number | Description | Length | Application |
|---|---|---|---|
| 16710-10 | Interconnect Cable | 10 feet | Short-distance sensor connection |
| 16710-15 | Interconnect Cable | 15 feet | Medium sensor-to-monitor connection |
| 16710-30 | Interconnect Cable | 30 feet | Longer range cabling |
| 330130-040-00-00 | Extension Cable for Proximity Sensors | 4 meters | 3300 XL series extension applications |
| 330180-51-00 | Cable Assembly, Dual Connector | Custom | Dual sensor configurations |
| 330105-02-12-10-02-00 | Probe Extension Cable | 2 meters | Connects probe to extension cable |
