Product Description

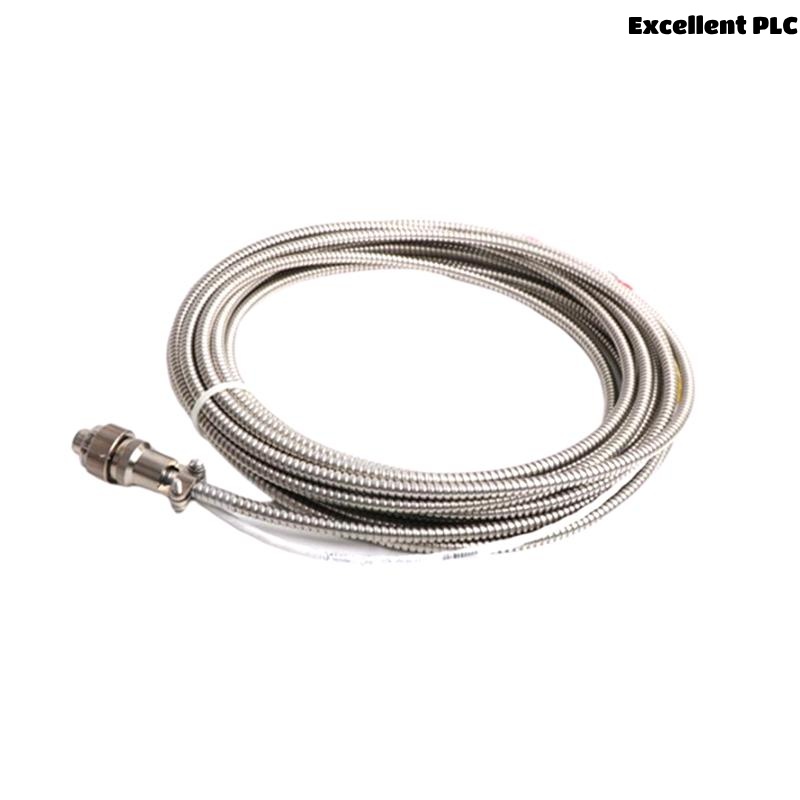

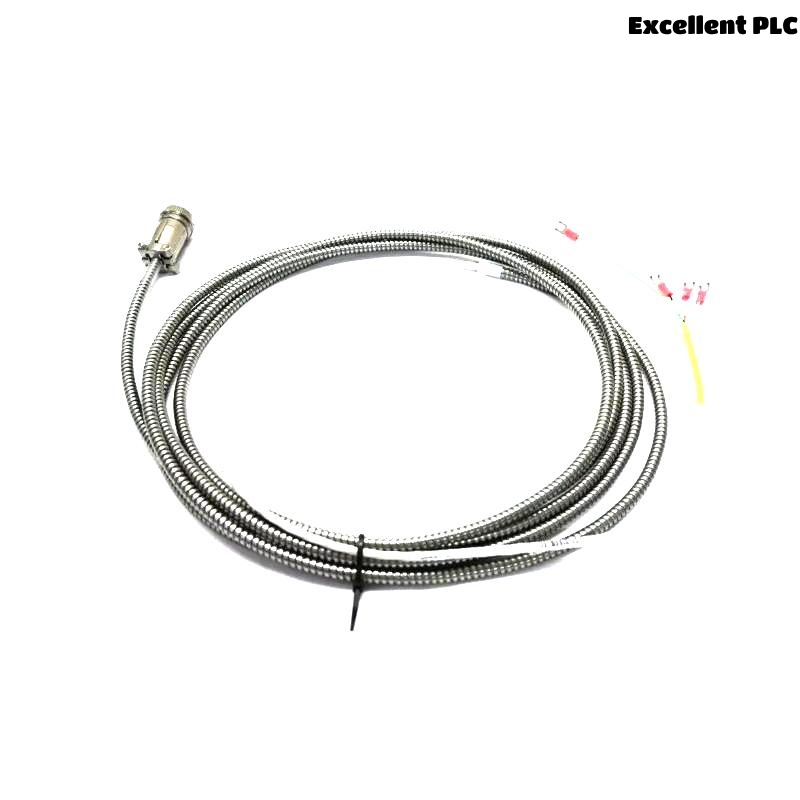

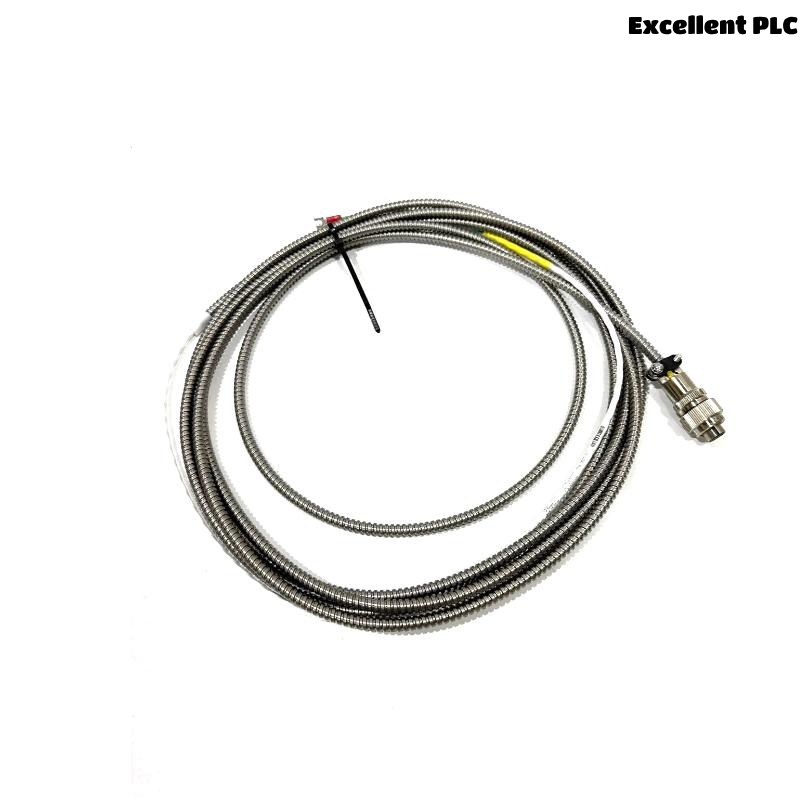

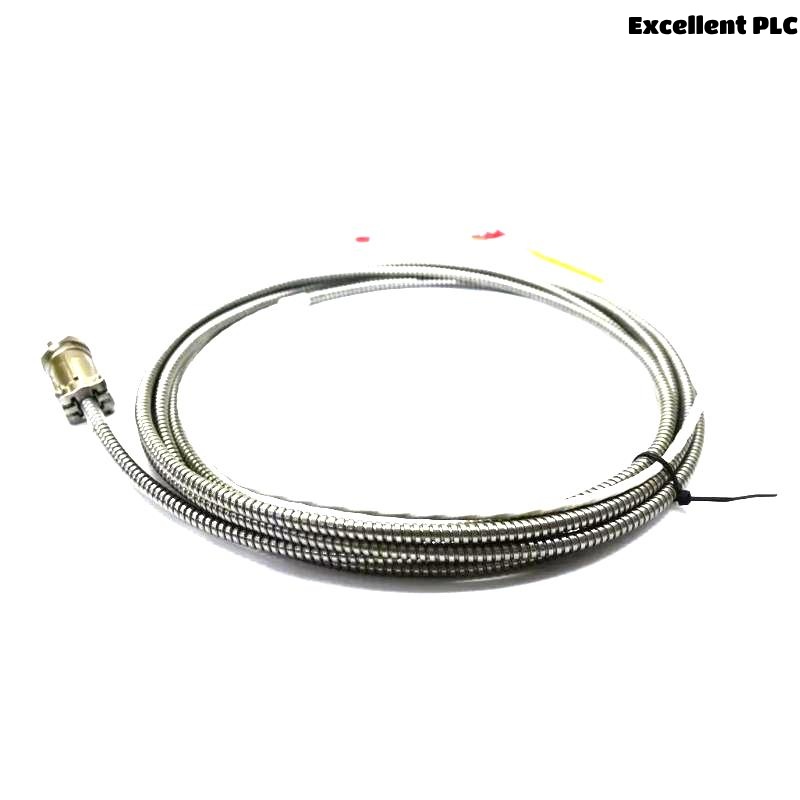

The Bently Nevada 16710-66 Interconnect Cable is a high-quality, armored, 3-conductor shielded cable designed for reliable signal transmission between accelerometers and monitoring systems. It comes with a 3-socket plug on one end and terminal lugs on the other, ensuring secure connections in industrial environments. This 66-foot cable is especially suited for harsh conditions where mechanical protection and signal integrity are critical.
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Type | Armored, 3-conductor, shielded |
| Conductor Size | 22 AWG (0.5 mm²) |
| Connector (one end) | 3-socket plug |
| Connector (other end) | Terminal lugs |
| Length | 66 ft (20.12 m) |
| Shipping Weight | 3 kg |
| Minimum Length | 3 ft (0.9 m) |
| Maximum Length | 99 ft (30 m) |
Applications
-
Connection between Bently Nevada accelerometers and monitoring equipment.
-
Suitable for harsh industrial environments with high vibration and mechanical stress.
-
Used in oil & gas, power generation, and heavy machinery monitoring systems.
Advantages
-
Armored construction for superior mechanical protection.
-
Shielded design minimizes electromagnetic interference.
-
Easy-to-install with pre-terminated connectors.
-
Supports long cable runs without signal degradation.
Frequently Asked Questions (FAQ)
Q1: What is the length of the Bently Nevada 16710-66 cable?
A1: The cable is 66 feet (20.12 meters) long.
Q2: What is the weight of the 16710-66 cable?
A2: The shipping weight is approximately 3 kg.
Q3: What type of conductors does the cable use?
A3: It uses 22 AWG (0.5 mm²) shielded, 3-conductor wires.
Q4: Is the cable armored?
A4: Yes, it has an armored construction for mechanical protection.
Q5: What are the connectors at each end?
A5: One end has a 3-socket plug, and the other has terminal lugs.
Q6: Can the cable be ordered in different lengths?
A6: Yes, custom lengths between 3 ft and 99 ft are available.
Q7: What environments is this cable suitable for?
A7: It is designed for industrial environments with high vibration and potential mechanical impact.
Q8: Does the cable protect against electromagnetic interference?
A8: Yes, the shielded construction helps reduce EMI.
Q9: Which accelerometers is this cable compatible with?
A9: It is commonly used with Bently Nevada 330400 and 330425 accelerometers.
Q10: Is the cable easy to install?
A10: Yes, thanks to its pre-terminated connectors and flexible armored design.
