Product Introduction

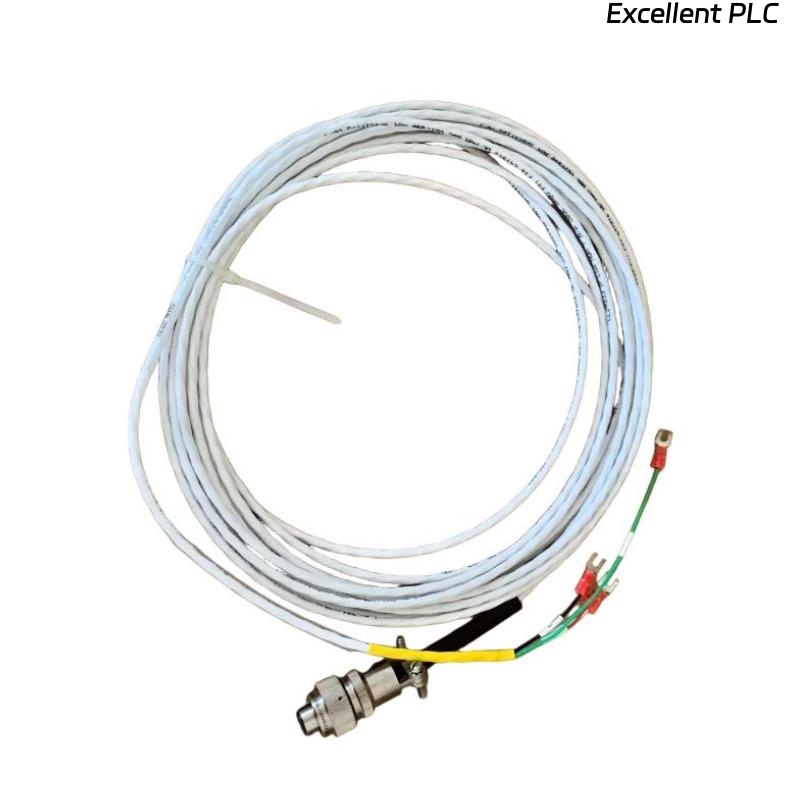

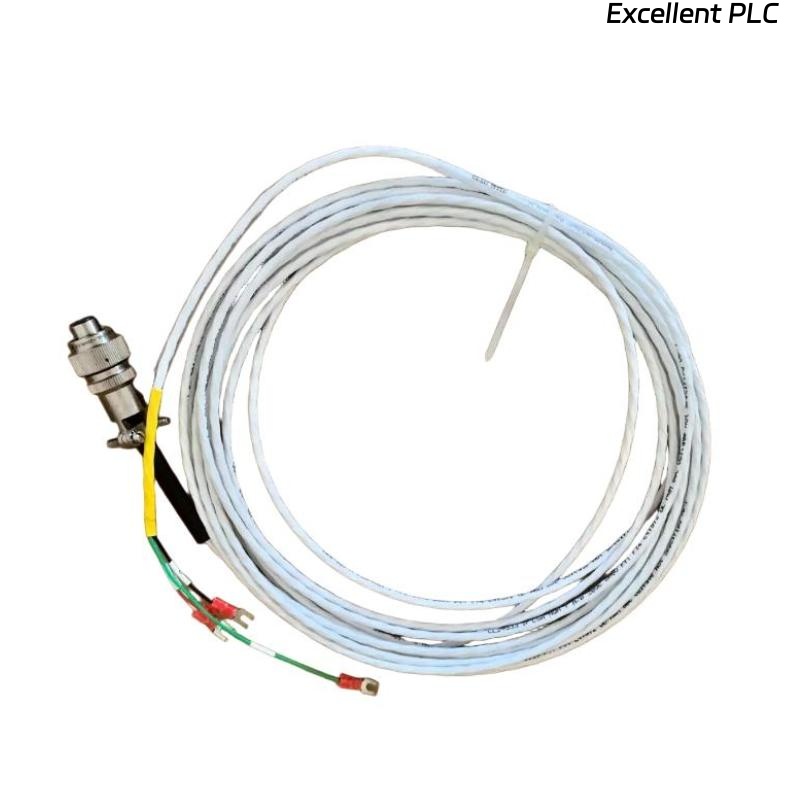

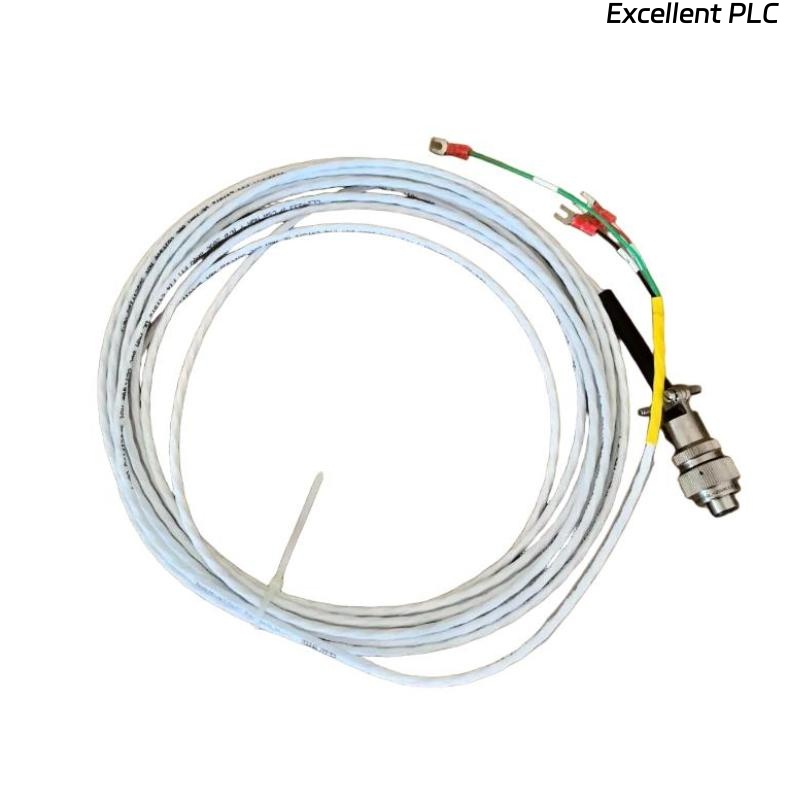

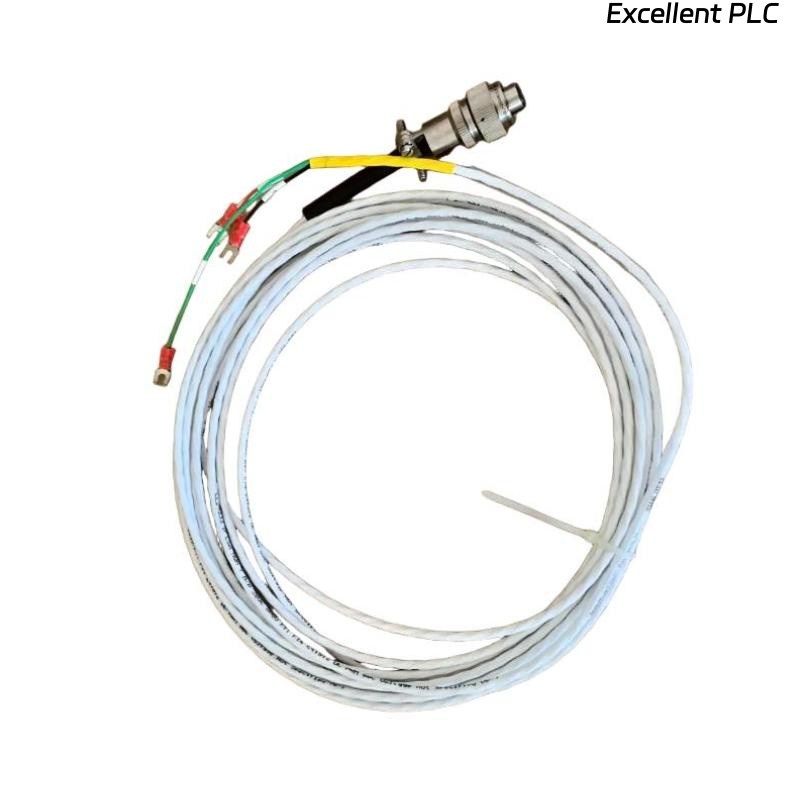

The Bently Nevada 16925-32 Interconnect Cable is a high-performance industrial cable specifically designed to provide reliable interconnection between monitoring modules, sensors, and transducers within the Bently Nevada machinery protection systems. With a total length of 32 feet, this cable is engineered for signal integrity, durability, and long-term stability in harsh industrial environments.
It ensures low-noise signal transmission and high resistance to electromagnetic interference (EMI), which is essential for maintaining accuracy in vibration, speed, and position measurements. The 16925-32 cable plays a critical role in connecting Proximitor sensors, monitoring modules, and rack systems within the Bently Nevada 3300 and 3500 series architecture.
Manufactured with premium insulation materials and shielded conductors, this interconnect cable offers dependable operation across a wide range of environmental and electrical conditions. Its rugged design and precise manufacturing make it a trusted component in turbomachinery monitoring systems, power plants, petrochemical refineries, and offshore facilities.
Technical Specifications
Parameter | Description |
---|---|
Model Number | 16925-32 |
Product Type | Interconnect Cable |
Cable Length | 32 ft (9.75 m) |
Cable Type | Shielded multi-core industrial signal cable |
Conductor Type | Twisted pair copper conductors |
Connector Type | Pre-molded circular connectors (male-female) |
Number of Conductors | 4 pairs (8 total conductors) |
Conductor Gauge | 22 AWG stranded copper |
Insulation Material | PTFE (Teflon) for high-temperature resistance |
Shielding Type | 100% foil shield with tinned copper braid coverage (≥85%) |
Jacket Material | PVC or FEP industrial-grade outer jacket |
Operating Voltage | 24 VDC (nominal signal transmission) |
Signal Resistance | < 1.2 Ω per 100 m |
Capacitance Between Conductors | 45 pF/ft typical |
Characteristic Impedance | 50 Ω ±10% |
Maximum Current Carrying Capacity | 1.0 A per conductor |
Operating Temperature Range | -40°C to +105°C |
Storage Temperature Range | -55°C to +125°C |
Environmental Protection | Resistant to oil, moisture, and mechanical abrasion |
Flame Retardancy | Meets UL VW-1 and IEC 60332-1 standards |
EMI/RFI Shielding Performance | ≥ 90 dB attenuation across operating frequencies |
Flexibility Radius | Minimum bend radius 10× cable diameter |
Color | Gray with printed identification markings |
Connector Material | Nickel-plated brass housing |
Connector Contact Resistance | ≤ 10 mΩ |
Mounting Compatibility | 3300/3500 series modules and Proximitor connectors |
Safety Certifications | CE, RoHS, UL Listed |
Shipping Weight | 3 kg |
Product Applications
The Bently Nevada 16925-32 Interconnect Cable is widely applied in industrial systems requiring secure and stable data transmission between vibration monitoring components. It ensures high-fidelity communication between proximity probes, Proximitor sensors, and the central monitoring rack.
Typical Applications Include:
-
Power Generation Systems: Used to connect turbine vibration probes to 3500 rack monitoring modules for continuous protection.
-
Oil and Gas Facilities: Provides reliable communication links for compressors, pumps, and turbines in hazardous and remote environments.
-
Petrochemical Plants: Transmits condition monitoring data with minimal interference in areas with strong electromagnetic fields.
-
Marine and Offshore Equipment: Designed for robust performance in environments exposed to vibration, salt mist, and humidity.
-
Industrial Automation Systems: Serves as a signal transmission path in vibration analysis and protection systems.
-
Pipeline Monitoring: Connects transducer assemblies to control cabinets for real-time fault detection and diagnostics.
By ensuring uninterrupted and precise signal transmission, the cable supports critical predictive maintenance and machine protection operations in all these industries.
Product Advantages
-
High Signal Integrity: Excellent shielding design minimizes noise, distortion, and cross-talk in high-interference environments.
-
Durable Construction: Built to withstand mechanical stress, heat, oil, and chemical exposure common in industrial sites.
-
Stable Electrical Performance: Low resistance and capacitance characteristics maintain consistent signal accuracy.
-
Plug-and-Play Compatibility: Factory-terminated connectors ensure quick installation and reliable connection to Bently Nevada modules.
-
Enhanced Flexibility: Rugged yet flexible jacket allows easy cable routing in confined or complex layouts.
-
Temperature and Flame Resistant: Operates under a wide thermal range and meets flame-retardant safety standards.
-
Corrosion Protection: Nickel-plated connectors resist corrosion from industrial atmospheres and moisture.
-
Long-Term Reliability: High-quality materials extend service life and minimize the need for maintenance.
-
Consistent Performance: Designed to deliver stable signal characteristics over its entire length.
-
Full System Integration: Fully compatible with Bently Nevada 3300 and 3500 series proximity monitoring systems.
FAQ
-
What is the main function of the 16925-32 Interconnect Cable?
It serves as a signal transmission cable between Bently Nevada proximity probes, Proximitor sensors, and monitoring modules. -
Is the cable shielded against electromagnetic interference?
Yes, it includes both foil and braided copper shields for high EMI/RFI attenuation. -
What type of conductors does the cable use?
The cable uses twisted pair, stranded copper conductors for superior flexibility and signal quality. -
Can this cable be used in high-temperature environments?
Yes, it operates reliably from -40°C up to +105°C, with insulation rated for industrial temperature ranges. -
What type of connectors are used on each end?
It features factory-molded circular connectors with nickel-plated brass shells and low-resistance contacts. -
Is the cable compatible with all Bently Nevada proximity systems?
It is compatible with 3300 and 3500 series Proximitor and monitoring modules. -
How does the cable ensure signal accuracy over long distances?
Through low capacitance, low resistance, and excellent shielding to prevent signal degradation. -
Can the cable be used in outdoor or offshore environments?
Yes, it is constructed to resist moisture, salt corrosion, and mechanical stress for marine and offshore use. -
What voltage level does the cable typically handle?
The cable supports low-voltage signal transmission at around 24 VDC nominal. -
How is the cable tested for performance quality?
Each unit undergoes insulation resistance, continuity, and EMI attenuation testing before shipment.
