Product Introduction

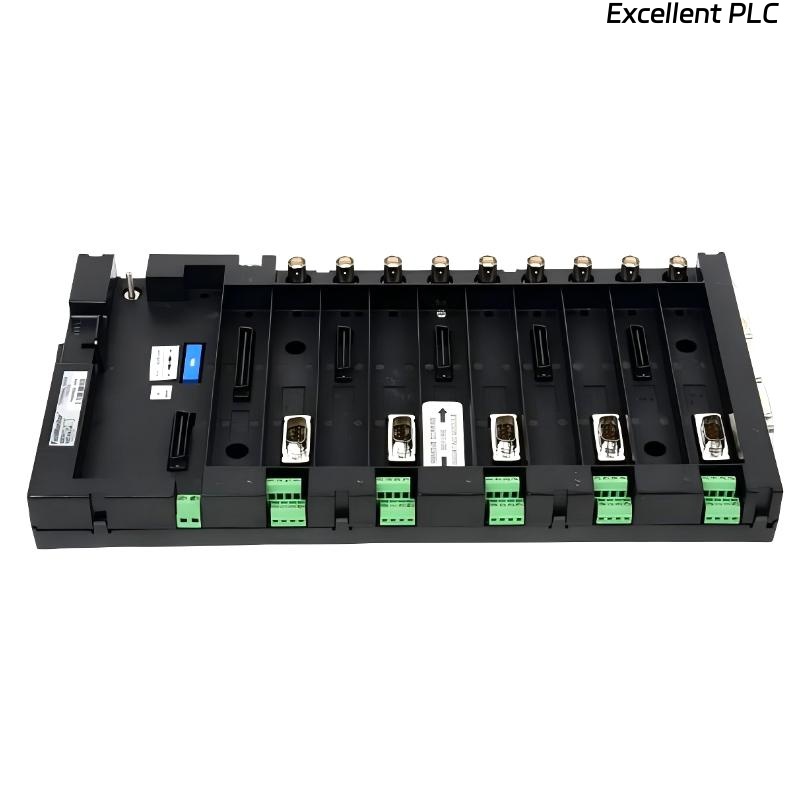

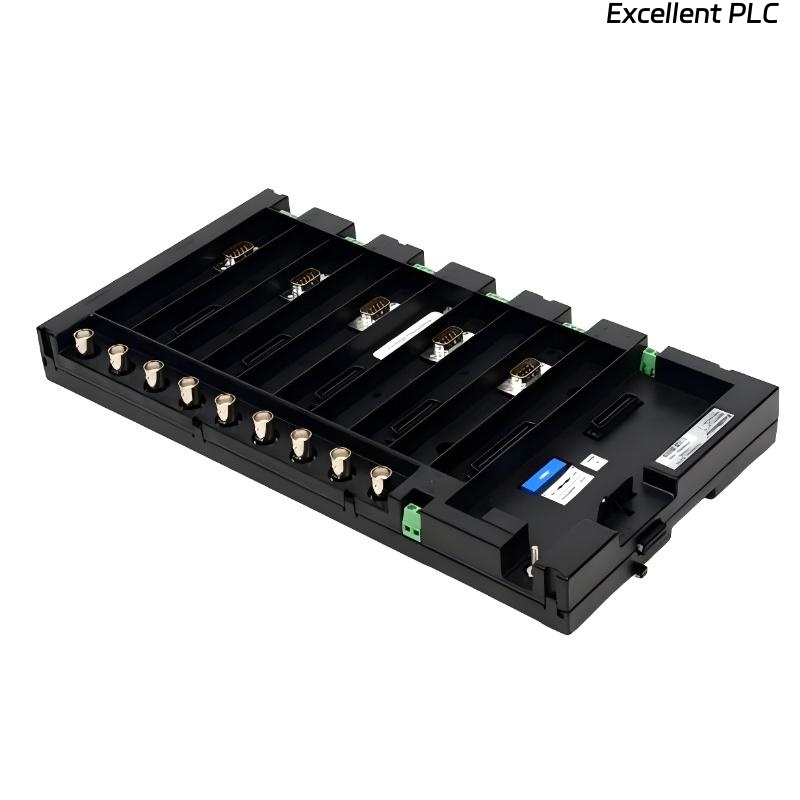

The Bently Nevada 1701/05 (1034549-6) FieldMonitor Terminal Base is a key component designed to serve as the mounting and interface platform for the Bently Nevada FieldMonitor system. It is primarily used in industrial environments where vibration, pressure, and speed transducers are installed in non-hazardous areas or zones with appropriate safety barriers. The terminal base functions as the central connection hub for various modules, providing both mechanical support and electrical interconnection for the monitoring system.
This terminal base supports multiple module slots for power supplies, vibration monitors, Proximitor* I/O modules, and Keyphasor* inputs. Its integrated design allows for flexible system configuration and scalability, enabling users to adapt the monitoring system to diverse rotating machinery applications. The 1701-05 ensures reliable signal integrity, simplified wiring, and efficient installation within the FieldMonitor framework.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | Bently Nevada 1701/05 (1034549-6) |
| Product Type | FieldMonitor Terminal Base |
| Module Slots | 1 Power Supply Slot, 4 Dual-Channel Vibration Monitor Slots, 4 Internal Proximitor or Transducer I/O Slots |
| Keyphasor Input | 1 Slot for Internal Proximitor or I/O Module for Keyphasor Input (Channel A) |
| Management Interface Slot | 1 Slot for 1701/22 FieldMonitor Management Interface Module |
| External Transducer Terminations | I/O Terminals for up to 9 Externally Wired Transducers |
| Flexbus Connection | Compatible with Allen-Bradley® 1794 Flex™ I/O or Network Adapter |
| Buffered Signal Outputs | Individual Buffered Dynamic Signal Connectors for All Channels (Including Keyphasor) |
| Multi-Channel Output | Buffered Dynamic Signal Port for Multi-Channel Cable Connection |
| Electrical Isolation | Galvanically Isolated Channels for Noise Suppression |
| Operating Temperature | 0°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Power Requirement | Supplied via Connected Power Supply Module |
| Material | Industrial-grade Aluminum Alloy Chassis |
| Dimensions | 336.55 x 172.72 x 31.75 mm |
| Weight | 1.1 kg |
Product Applications
The Bently Nevada 1701/05 FieldMonitor Terminal Base is designed for use in machinery condition monitoring and protection systems. It serves as the backbone of the FieldMonitor architecture, enabling the connection and communication between transducers, monitoring modules, and management interfaces.
Typical applications include:
-
Rotating Machinery Monitoring — such as turbines, compressors, motors, and pumps.
-
Process Equipment Diagnostics — for tracking vibration, position, and Keyphasor signals in real time.
-
Plant Condition Monitoring Systems — used in power generation, petrochemical, and gas compression facilities.
-
Predictive Maintenance Integration — enabling continuous monitoring and data acquisition to predict mechanical failures before they occur.
By offering a modular, scalable platform, the 1701-05 helps engineers build customized monitoring configurations tailored to specific industrial needs.
Product Advantages
-
Highly Modular Design
Supports multiple module slots for vibration, proximity, and Keyphasor monitoring, allowing flexible configuration. -
Robust Electrical Connectivity
Provides high-quality signal transmission through isolated channels and buffered outputs to maintain data accuracy. -
Simplified Installation
Designed for fast system assembly using Flexbus connections compatible with Allen-Bradley® 1794 Flex™ I/O products. -
Enhanced Diagnostic Capability
Offers individual and multi-channel buffered outputs for dynamic signal analysis without interrupting operation. -
Reliable System Integration
Fully compatible with other Bently Nevada FieldMonitor and 3500 series monitoring components. -
High Environmental Endurance
Withstands industrial temperature ranges and electromagnetic interference conditions. -
Efficient Space Utilization
Compact terminal layout reduces cabinet space requirements while maintaining accessibility for wiring and maintenance.
FAQ
1. What modules can be installed on the 1701/05 Terminal Base?
It supports a power supply module, dual-channel vibration monitors, Proximitor or transducer I/O modules, and one Keyphasor input module.
2. How many external transducers can be connected?
The terminal base provides I/O terminations for up to nine externally wired transducers.
3. What is the purpose of the Keyphasor input slot?
The Keyphasor input slot allows the connection of a Keyphasor transducer to measure shaft rotational speed and phase reference.
4. Can the terminal base be connected to a network adapter?
Yes, it includes Flexbus connections compatible with Allen-Bradley® 1794 Flex™ I/O or a network adapter for data communication.
5. Does it provide buffered dynamic signal outputs?
Yes, individual buffered outputs are available for each channel, including Keyphasor signals, ensuring signal accessibility for analysis.
6. Is it necessary to use a separate terminal base for each Keyphasor transducer?
Yes, each terminal base can accommodate only one Keyphasor input, so separate bases are required for different shaft speeds.
7. What kind of protection does it offer against electrical interference?
It includes galvanically isolated signal channels to minimize noise and protect sensitive measurement circuits.
8. How is the 1701/05 powered?
The power is supplied through a dedicated power supply module that occupies one of the terminal slots.
9. Can it handle both internal and external sensor signals?
Yes, it supports connections for both internal Proximitor modules and up to nine externally wired transducers.
10. Is dynamic data available for real-time analysis?
Yes, buffered dynamic signal connectors provide continuous access to live vibration and Keyphasor signals for advanced diagnostics.
