Product Overview

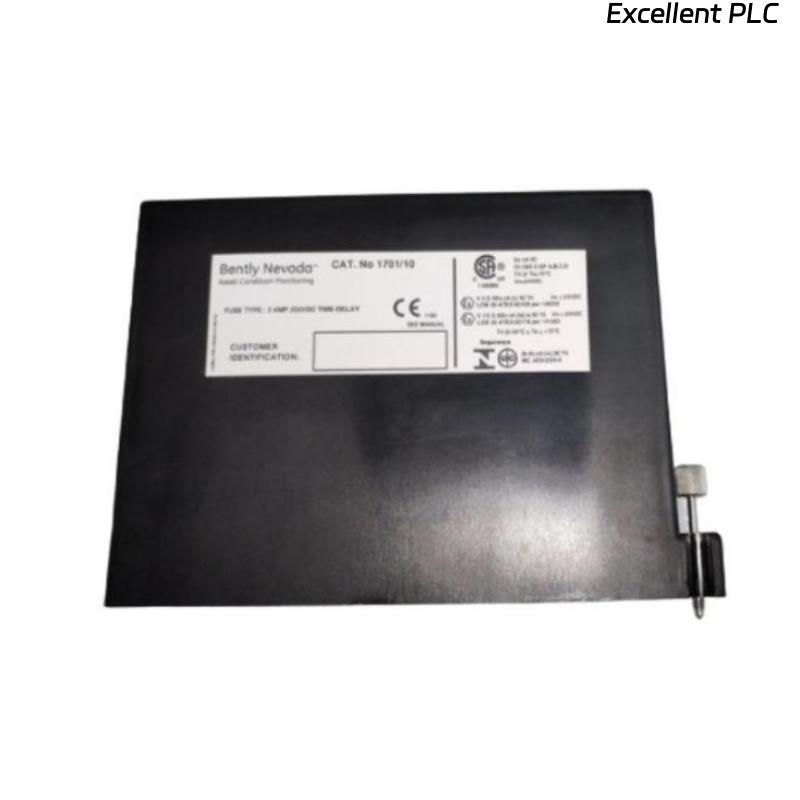

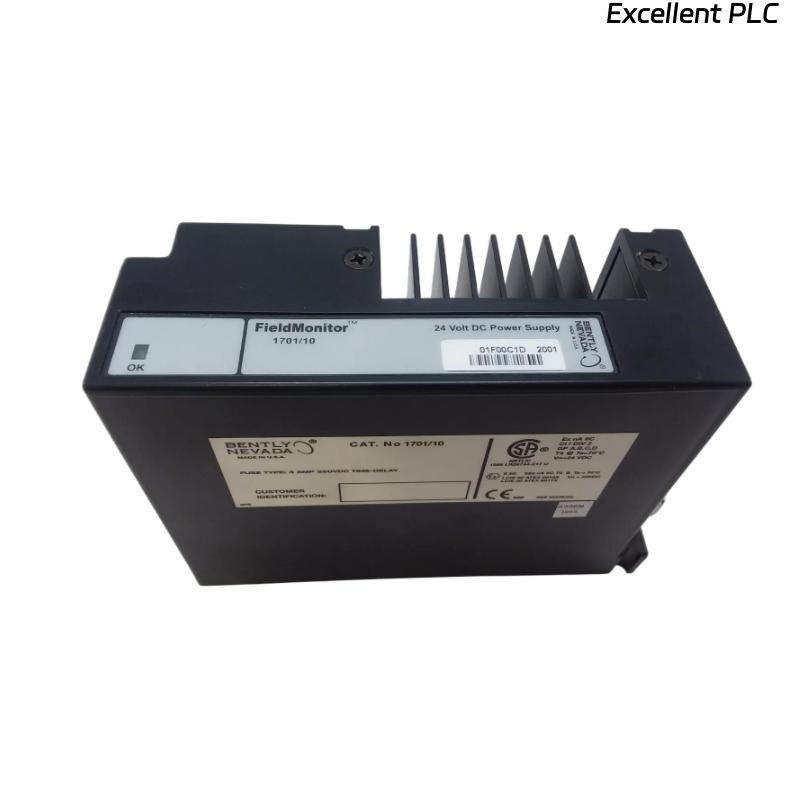

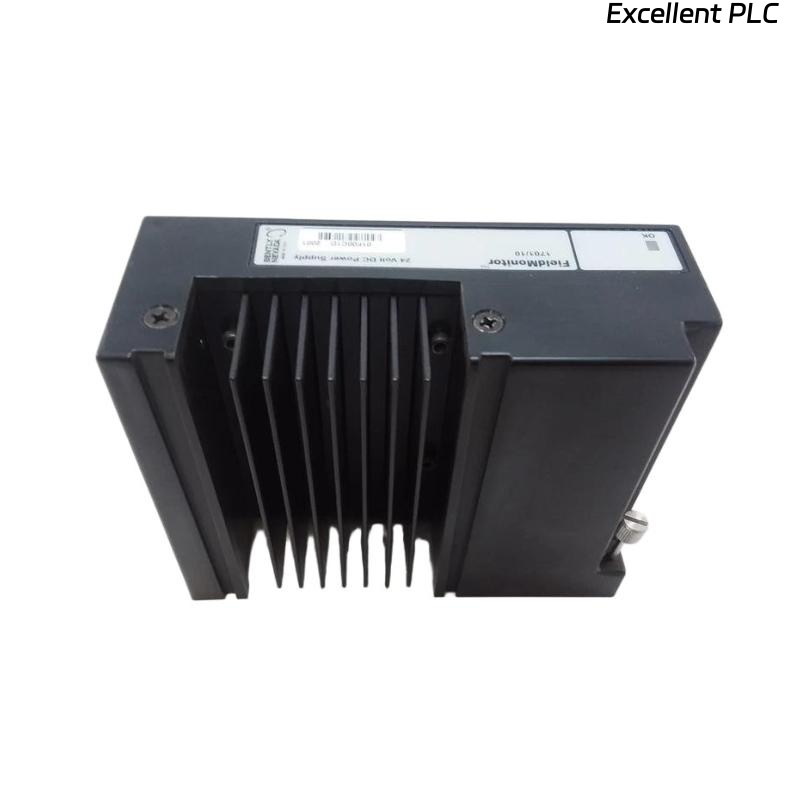

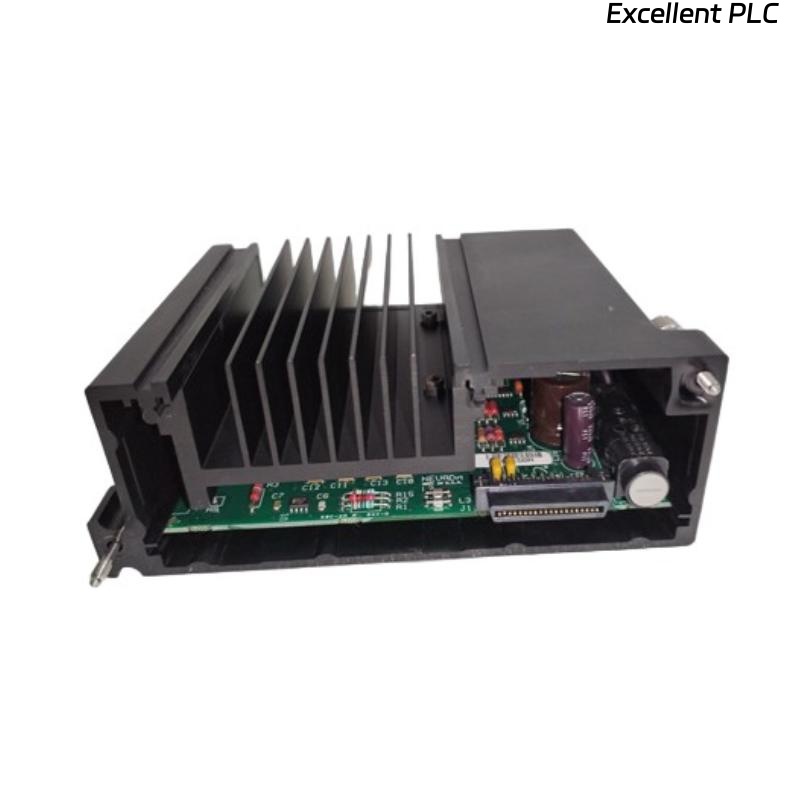

The Bently Nevada 1701/10-01 24 V DC Power Supply is a dedicated module designed to deliver stable and reliable DC power to Bently Nevada 1701 and related machinery monitoring systems. Built with industrial-grade reliability, it ensures consistent power delivery to sensitive monitoring and protection equipment, supporting continuous machinery health monitoring in critical applications. With integrated protection features and robust environmental tolerance, the 1701/10-01 power supply is an essential component in maintaining system uptime and equipment safety.
Key Features
-
Provides regulated 24 V DC output for monitoring and protection systems
-
Specifically designed for Bently Nevada 1701 systems
-
High reliability for continuous, mission-critical operation
-
Integrated protection against overload, short circuit, and overvoltage
-
Rugged design suited for harsh industrial environments
-
Compact form factor for easy panel or rack installation
-
LED indicators for power and operational status
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | DC Power Supply |
| Model Number | 1701/10-01 |
| Output Voltage | 24 V DC (regulated) |
| Output Power | System-dependent, optimized for 1701 modules |
| Input Voltage | Standard industrial AC/DC supply (system dependent) |
| Protection Features | Overvoltage, overload, and short-circuit protection |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 150 x 105 x 56 mm |
| Weight | 0.57 kg |
| Indicators | Power and status LEDs |
Industry Applications
-
Oil & Gas – Powering turbine, compressor, and pump monitoring equipment
-
Power Generation – Ensuring uninterrupted supply to monitoring and relay systems
-
Chemical & Petrochemical – Reliable operation in process-intensive environments
-
Mining & Metals – Powering monitoring equipment in heavy-duty machinery operations
-
Marine & Offshore – Supporting monitoring systems for vessels and offshore platforms
-
Pulp & Paper – Providing stable DC power for process and machinery health monitoring
Frequently Asked Questions (FAQ)
Q1: What is the function of the 1701/10-01 power supply?
It provides regulated 24 V DC output to power Bently Nevada 1701 monitoring modules.
Q2: How does it differ from the 1701/10 version?
The -01 variant is a configuration option tailored for specific system requirements within the 1701 series.
Q3: What protection features are included?
It has built-in overvoltage, overload, and short-circuit protection.
Q4: What is the output voltage?
It delivers a regulated 24 V DC output.
Q5: What are the operating temperature limits?
The operating range is -20°C to +70°C.
Q6: What are the physical dimensions?
The dimensions are 150 mm x 105 mm x 56 mm.
Q7: How much does it weigh?
Approximately 0.57 kg.
Q8: Are there status indicators?
Yes, LED indicators show power and operational status.
Q9: Can it be used in harsh environments?
Yes, it is designed to operate in rugged industrial and offshore conditions.
Q10: Is it fully compatible with Bently Nevada 1701 systems?
Yes, it is specifically designed for integration with 1701 monitoring solutions.
Related Models
| Model Number | Description |
|---|---|
| 1701/10 | 24 V DC Power Supply |
| 1701/10-01 | 24 V DC Power Supply (variant) |
| 3500/15 125840-01 | High Voltage AC Power Input Module |
| 3500/15 125840-02 | Low Voltage AC Power Input Module |
| 3500/05 125736-01 | System Rack, 19-inch |
| 3500/20 125744-02 | Rack Interface Module |
