Product Overview

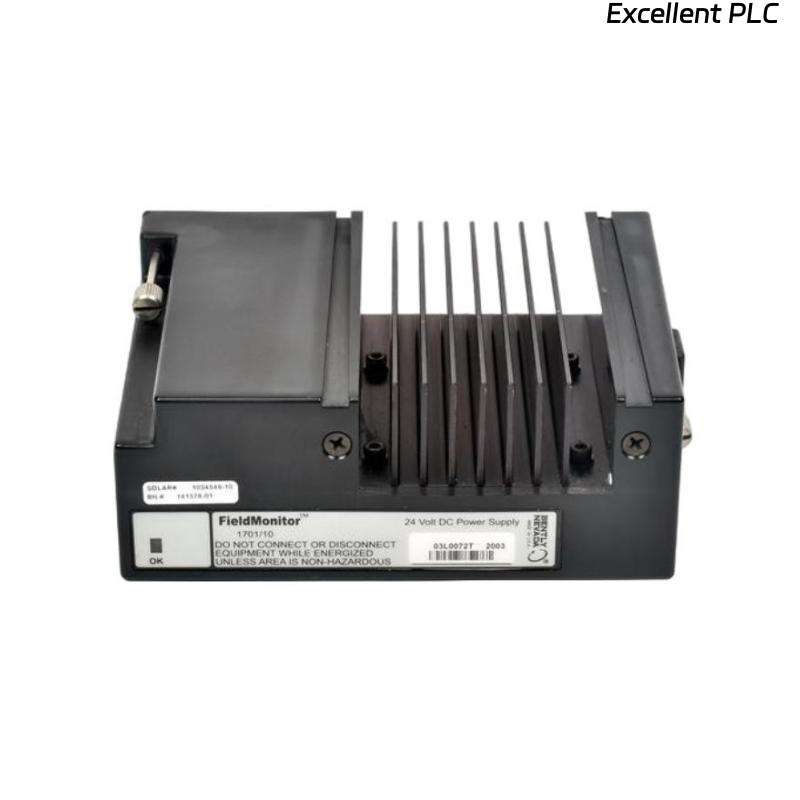

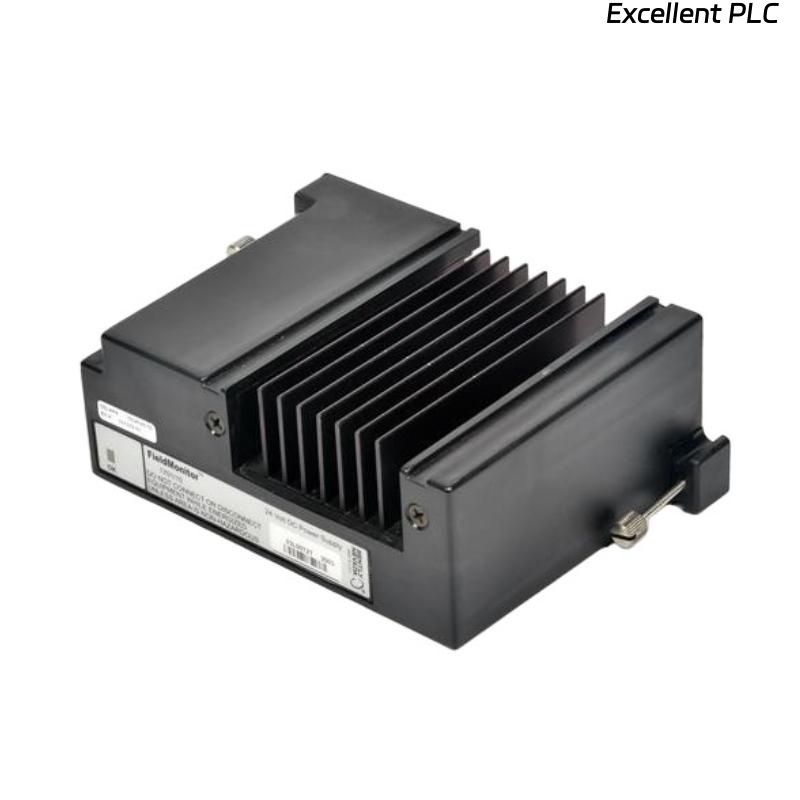

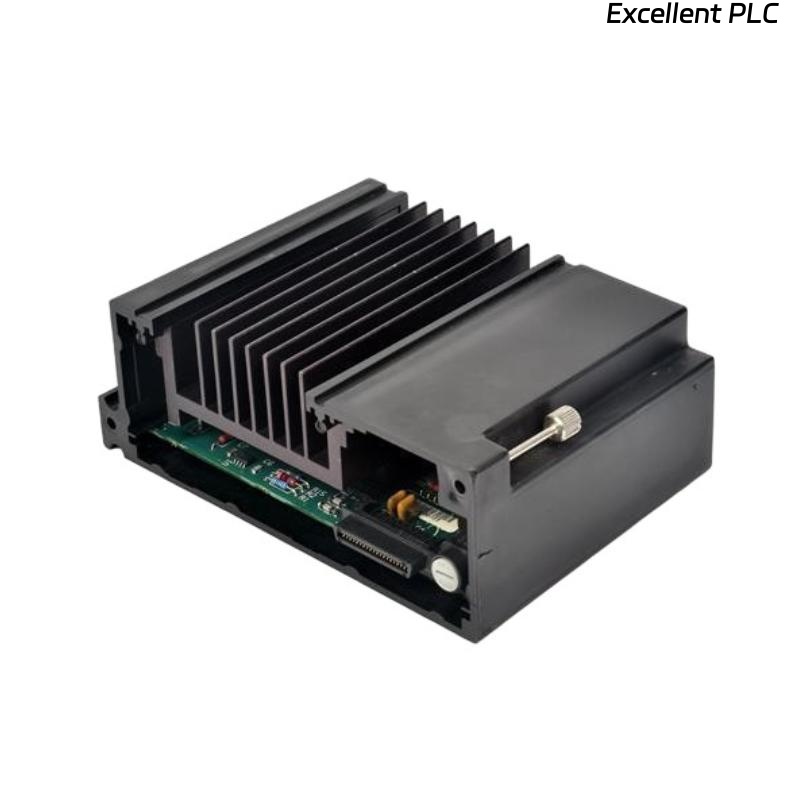

The Bently Nevada 1701/10 24 V DC Power Supply is a robust and reliable module designed to provide stable DC power for Bently Nevada machinery protection and monitoring systems. Specifically engineered to meet the stringent requirements of industrial applications, it delivers continuous and regulated 24 V DC output, ensuring optimal operation of connected monitoring devices. With its rugged construction, wide environmental tolerance, and integrated safety features, the 1701/10 is ideally suited for use in critical environments where uninterrupted power is essential.
Key Features
-
Provides regulated 24 V DC output for reliable system operation
-
Designed for Bently Nevada monitoring and protection systems
-
High reliability for continuous industrial operation
-
Built-in protection against overvoltage, overload, and short circuits
-
Wide operating temperature range for harsh conditions
-
Compact and durable design for easy installation in control panels
-
Ensures uninterrupted power for critical monitoring applications
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | DC Power Supply |
| Model Number | 1701/10 |
| Output Voltage | 24 V DC (regulated) |
| Output Power | System-dependent, designed for Bently Nevada modules |
| Input Voltage | Standard industrial AC/DC supply (system dependent) |
| Protection Features | Overvoltage, overload, and short-circuit protection |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 150 x 105 x 56 mm |
| Weight | 0.57 kg |
| Indicators | Power and status LEDs |
Industry Applications
-
Oil & Gas – Provides stable DC power for monitoring turbines, compressors, and pumps
-
Power Generation – Supplies regulated voltage for protective relays and monitoring equipment
-
Chemical & Petrochemical – Reliable operation in hazardous and process-intensive environments
-
Mining & Metals – Ensures uninterrupted power to monitoring systems in heavy-duty operations
-
Marine & Offshore – Supports monitoring and safety systems in offshore rigs and vessels
-
Pulp & Paper – Supplies stable power for machinery health monitoring systems
Frequently Asked Questions (FAQ)
Q1: What is the function of the Bently Nevada 1701/10 power supply?
It provides regulated 24 V DC output to power Bently Nevada monitoring and protection modules.
Q2: What is the output voltage rating?
The module delivers a stable 24 V DC output.
Q3: What protection features does the 1701/10 include?
It includes overvoltage, overload, and short-circuit protection.
Q4: What is the operating temperature range?
The operating range is -20°C to +70°C.
Q5: What are the module’s physical dimensions?
150 mm x 105 mm x 56 mm.
Q6: How much does the 1701/10 weigh?
Approximately 0.57 kg.
Q7: Can it be integrated into all Bently Nevada monitoring systems?
Yes, it is fully compatible with the Bently Nevada 1701 and related monitoring solutions.
Q8: Are there LED indicators for status monitoring?
Yes, it includes LED indicators for power and operational status.
Q9: Is it suitable for harsh industrial environments?
Yes, its rugged design supports use in challenging industrial and offshore conditions.
Q10: Does it require special installation?
No, it is designed for standard panel mounting and easy integration.
