Product Overview

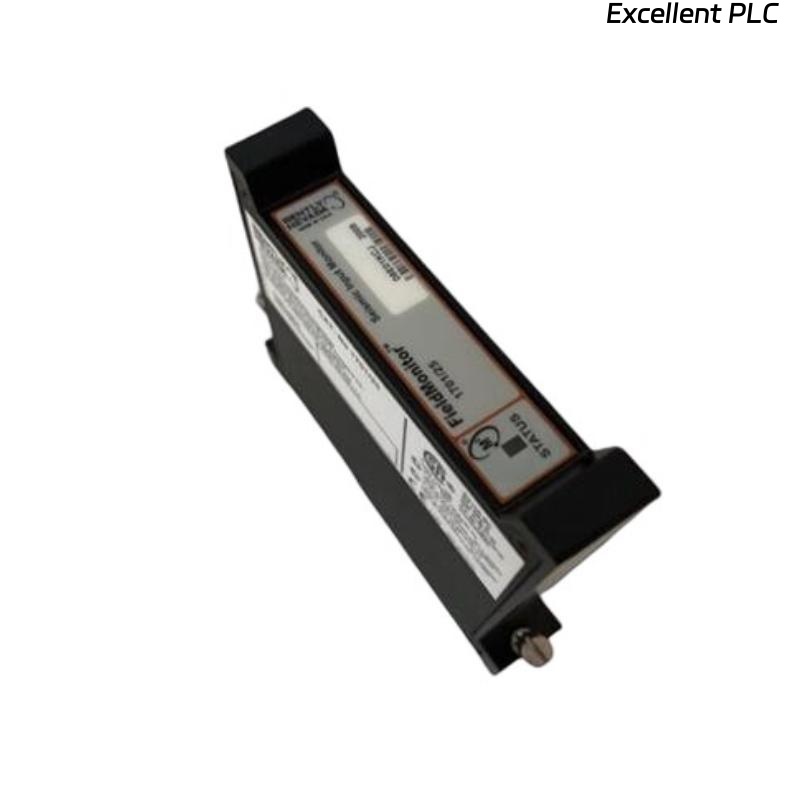

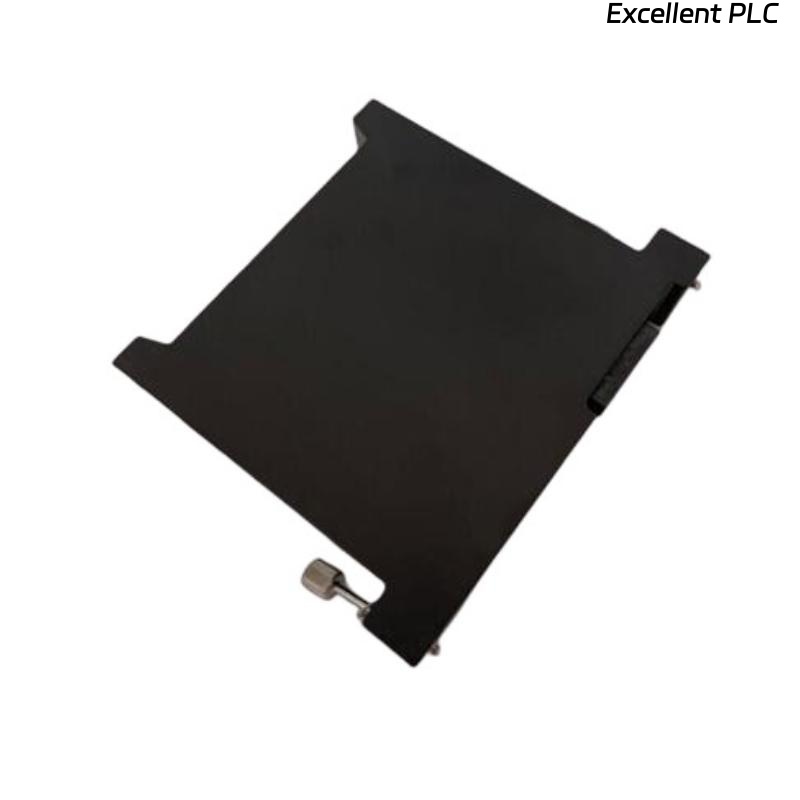

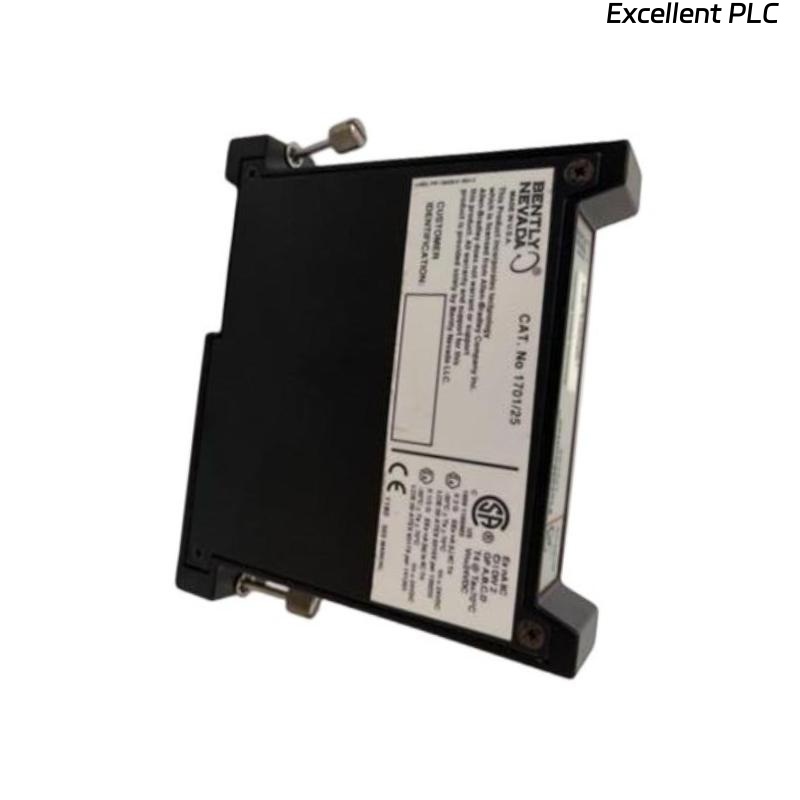

The Bently Nevada 1701/25-01 Field Monitor Preamplifier Input Monitor is an advanced monitoring module designed as part of the Bently Nevada 1701 series. This unit provides a stable and reliable interface for preamplifier signals, ensuring that vibration, displacement, and other machinery health data are accurately processed and transmitted to the monitoring system.
As a refined variant of the 1701/25, the 1701/25-01 delivers enhanced compatibility and configuration options, offering greater flexibility for integration into machinery protection and condition monitoring architectures. With robust construction and dependable signal conditioning, it is ideal for critical industrial environments where equipment protection is essential.
Key Features
-
Dedicated preamplifier input monitoring for the 1701 system
-
Enhanced variant (-01) for expanded configuration options
-
Provides signal conditioning and reliable integration into monitoring workflows
-
LED indicators for power and status diagnostics
-
Rugged industrial design for long-term reliability in harsh conditions
-
Fully compatible with Bently Nevada 1701 monitoring system
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Preamplifier Input Monitor |
| Model Number | 1701/25-01 |
| System Compatibility | Bently Nevada 1701 Field Monitor System |
| Input Type | Preamplifier and field device signals |
| Signal Processing | Signal conditioning and monitoring |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 127 x 21.6 x 105 mm |
| Weight | 0.314 kg |
| Indicators | Power and status LEDs |
Industry Applications
-
Oil & Gas – Critical monitoring of turbines, pumps, and compressors
-
Power Generation – Reliable monitoring for steam, hydro, and gas turbines
-
Petrochemical & Chemical – Condition monitoring of rotating machinery
-
Metals & Mining – Heavy-duty machinery health monitoring for mills and crushers
-
Marine & Offshore – Continuous monitoring of offshore and marine equipment
-
Pulp & Paper – Ensures uptime of process-critical rotating assets
Frequently Asked Questions (FAQ)
Q1: What is the difference between 1701/25 and 1701/25-01?
The 1701/25-01 is a variant that offers refined compatibility and system integration options compared to the standard 1701/25.
Q2: What type of signals does this module handle?
It processes signals from preamplifiers and field devices used for vibration and machinery monitoring.
Q3: Can this module be used with older Bently Nevada systems?
It is designed specifically for the Bently Nevada 1701 system and should be used within that platform.
Q4: What is the operating temperature range?
-20°C to +70°C.
Q5: What is the storage temperature range?
-40°C to +85°C.
Q6: Does it provide visual indicators?
Yes, it includes power and status LED indicators.
Q7: How durable is the 1701/25-01?
It is engineered for long-term operation in rugged industrial environments.
Q8: What are the module’s physical dimensions?
127 mm x 21.6 mm x 105 mm.
Q9: How much does it weigh?
Approximately 0.314 kg.
Q10: What industries benefit most from using this module?
Oil & gas, power generation, petrochemical, mining, marine, and paper industries.
Related Models
| Model Number | Description |
|---|---|
| 1701/10 | 24 V DC Power Supply |
| 1701/10-01 | 24 V DC Power Supply (variant) |
| 1701/15 | Field Monitor Preamplifier Input Monitor |
| 1701/15-01 | Field Monitor Preamplifier Input Monitor (variant) |
| 1701/25 | Field Monitor Preamplifier Input Monitor |
| 1701/25-01 | Field Monitor Preamplifier Input Monitor (variant) |
