Product Overview

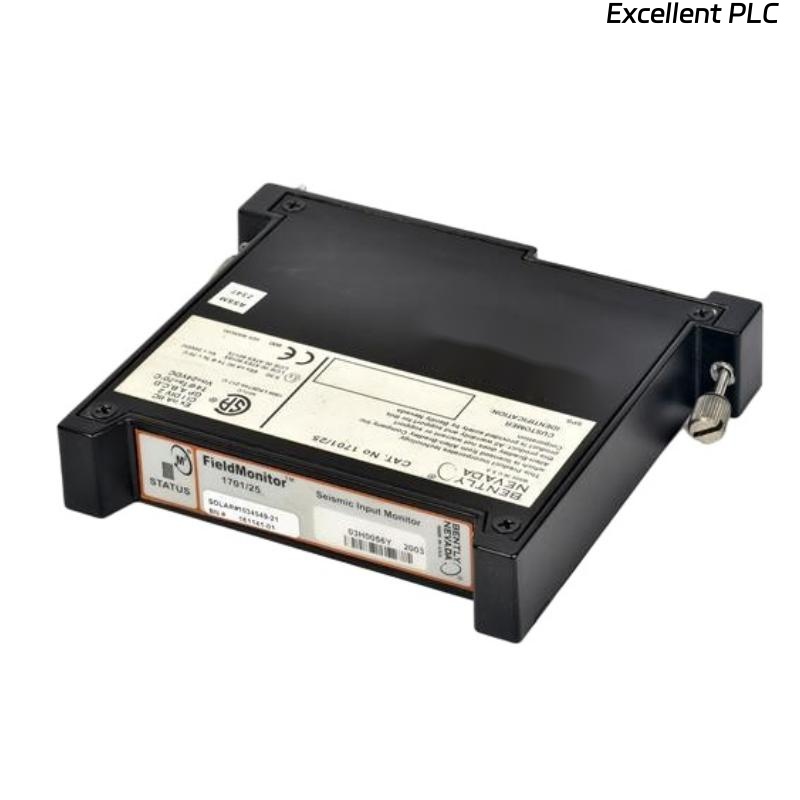

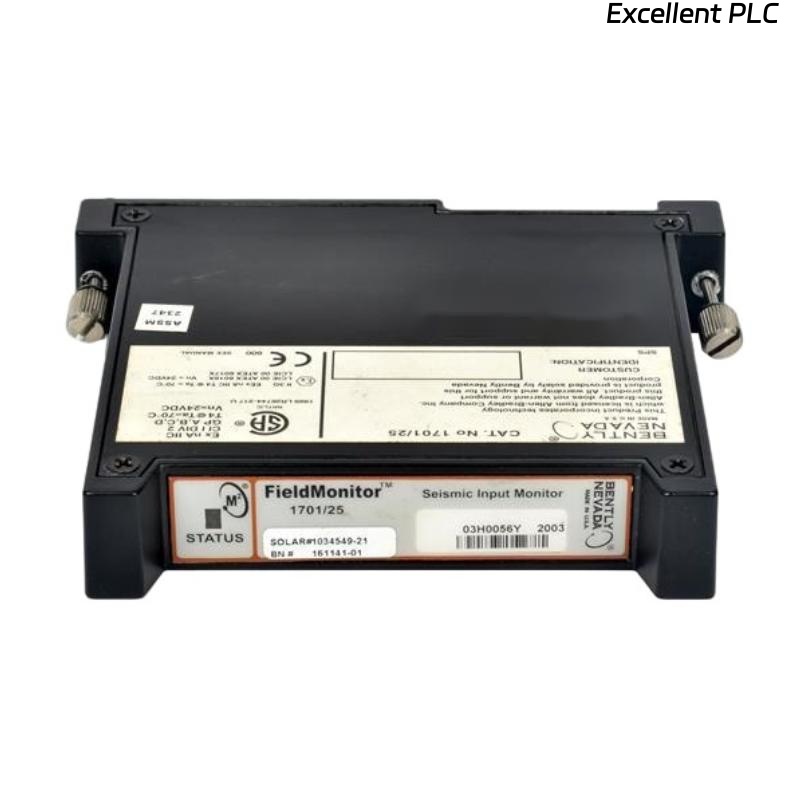

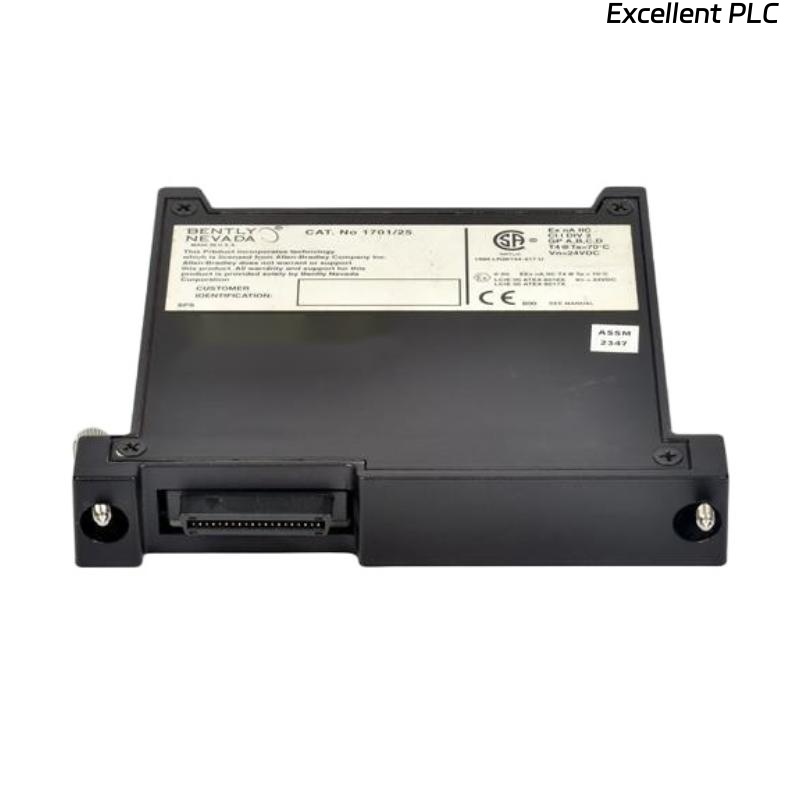

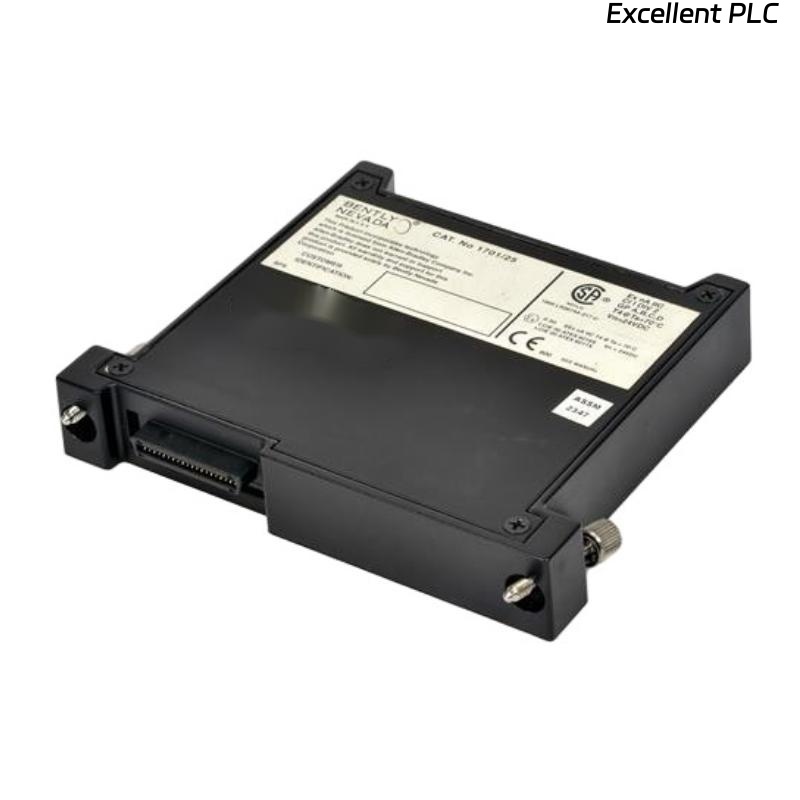

The Bently Nevada 1701/25 Field Monitor Preamplifier Input Monitor is a specialized module within the Bently Nevada 1701 machinery monitoring platform. Designed to interface with preamplifiers and other field devices, it ensures that critical vibration and machinery health signals are accurately conditioned, transmitted, and processed by the monitoring system.
The 1701/25 enhances the reliability of machinery protection and diagnostics by providing a stable interface for sensor signals in demanding environments. Built with industrial-grade durability and precision engineering, it is widely used across multiple heavy industries where uninterrupted monitoring and protection are essential.
Key Features
-
Dedicated preamplifier input monitoring functionality
-
Provides accurate signal conditioning and integration into the 1701 system
-
Rugged design suitable for harsh operating environments
-
Status indicators for quick diagnostics and monitoring
-
Full compatibility with the Bently Nevada 1701 monitoring platform
-
Compact and robust mechanical structure for long-term reliability
Technical Specifications
| Item | Specification |
|---|---|
| Module Type | Preamplifier Input Monitor |
| Model Number | 1701/25 |
| System Compatibility | Bently Nevada 1701 Field Monitor System |
| Input Type | Preamplifier and field device signals |
| Signal Processing | Signal conditioning and monitoring |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions | 127 x 21.6 x 105 mm |
| Weight | 0.314 kg |
| Indicators | Power and status LEDs |
Industry Applications
-
Oil & Gas – Monitoring compressor, turbine, and pump machinery health
-
Power Generation – Reliable interface for vibration monitoring of turbines and generators
-
Petrochemical & Chemical – Protecting mission-critical rotating machinery
-
Mining & Metals – Heavy-duty monitoring of mills, crushers, and conveyors
-
Marine & Offshore – Vibration and signal monitoring for offshore machinery systems
-
Pulp & Paper – Continuous monitoring of rotating and process equipment
Frequently Asked Questions (FAQ)
Q1: What does the 1701/25 module do?
It conditions and monitors signals from preamplifiers and field devices for processing by the Bently Nevada 1701 system.
Q2: Is the 1701/25 interchangeable with the 1701/15?
It serves a similar role but is a distinct variant designed for different monitoring configurations.
Q3: Which monitoring platform is it used with?
It is fully compatible with the Bently Nevada 1701 Field Monitor System.
Q4: What types of input signals can it accept?
It accepts machinery health and vibration signals transmitted through preamplifiers.
Q5: What is the recommended operating temperature range?
-20°C to +70°C.
Q6: Can it be stored in low-temperature environments?
Yes, the storage range is -40°C to +85°C.
Q7: Does it provide visual diagnostics?
Yes, the module includes power and status LED indicators.
Q8: What are the physical dimensions of the module?
127 mm x 21.6 mm x 105 mm.
Q9: How much does the module weigh?
Approximately 0.314 kg.
Q10: Can it withstand harsh industrial environments?
Yes, it is designed for reliable operation in rugged industrial applications.
