Product Overview

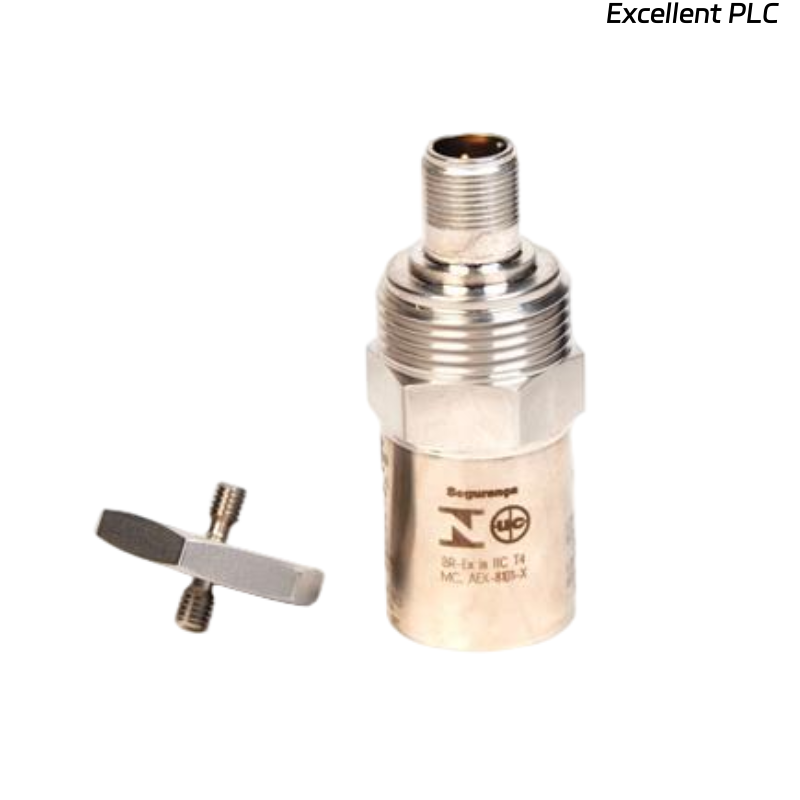

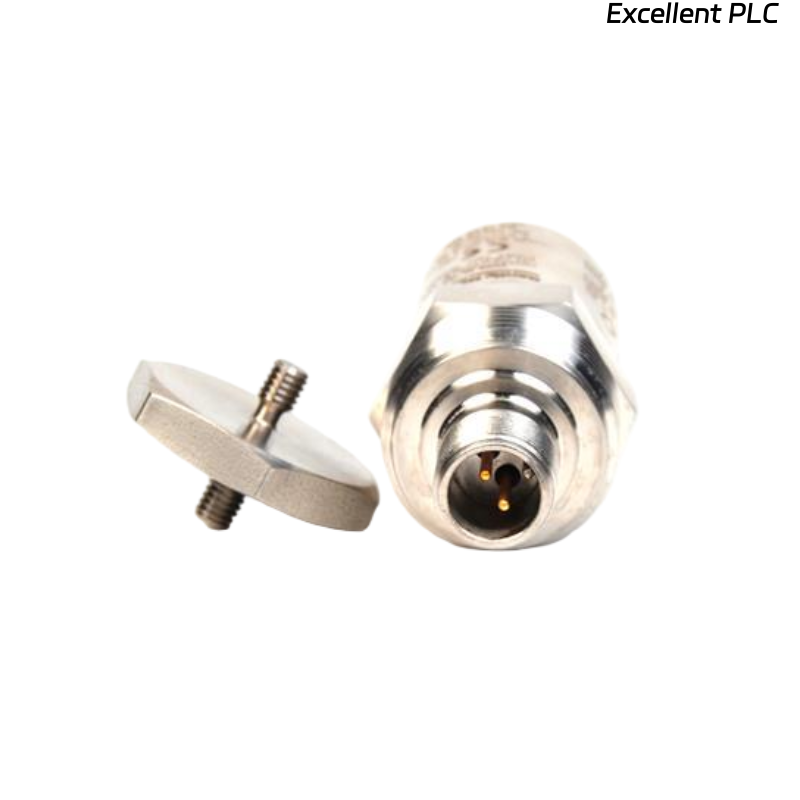

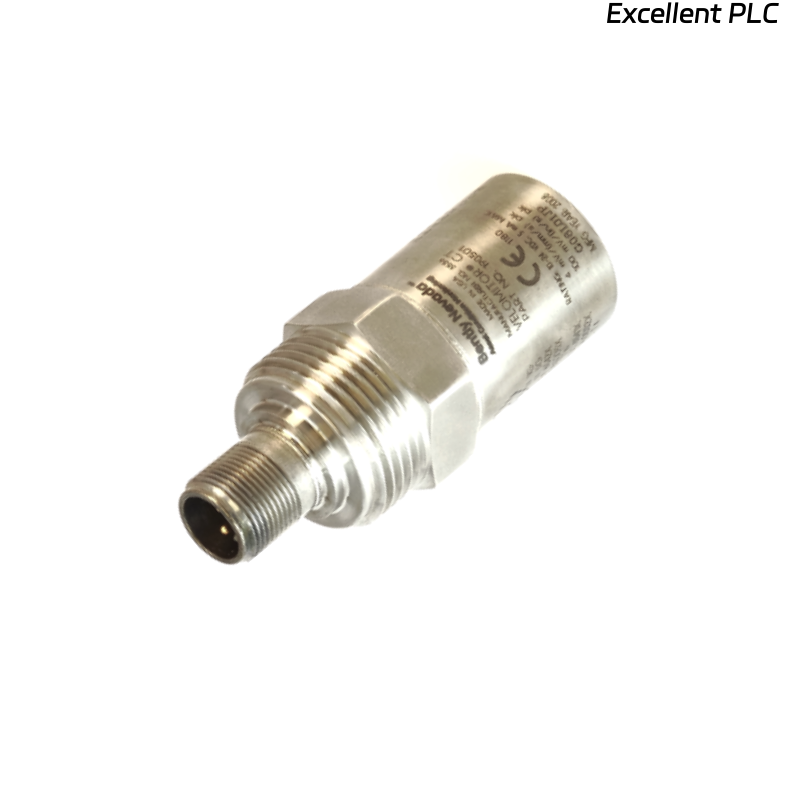

The Bently Nevada 190501-00-00-00 Velomitor CT Velocity Sensor is a high-performance velocity transducer designed for machinery condition monitoring. It converts mechanical vibration into a proportional voltage signal, enabling reliable measurement of casing vibration across a wide range of rotating equipment. As part of the renowned Bently Nevada 1900 series, this sensor provides excellent sensitivity, rugged design, and stable operation, making it ideal for industrial environments where machinery protection and predictive maintenance are critical.
Key Features
-
Direct velocity measurement for accurate machinery vibration monitoring
-
Wide dynamic range with excellent frequency response
-
Rugged design for industrial environments and continuous operation
-
Compact construction for easy installation on machinery casing
-
Compatible with Bently Nevada monitoring systems for seamless integration
-
Ensures improved reliability and reduced downtime of rotating machinery
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 190501-00-00-00 |
| Product Type | Velomitor CT Velocity Sensor |
| Measurement Range | 0–50 mm/s (typical, dependent on system configuration) |
| Frequency Response | 4.5 Hz to 5 kHz |
| Sensitivity | 20 mV/mm/s ±5% |
| Transducer Type | Piezoelectric velocity transducer |
| Mounting | Stud mount |
| Output Signal | Voltage proportional to velocity |
| Power Requirement | Supplied through monitoring system |
| Operating Temperature | -29 °C to +100 °C |
| Dimensions | Sensor diameter 33 mm |
| Weight | 0.297 kg |
Industry Applications
-
Steam turbines
-
Gas turbines
-
Centrifugal compressors
-
Reciprocating compressors
-
Pumps and fans
-
Industrial motors and gearboxes
Advantages
-
Provides direct velocity signal, reducing the need for signal integration
-
High durability and long service life in harsh conditions
-
Seamless compatibility with Bently Nevada 3500 and 1900 series monitors
-
Enhances machinery protection and reliability programs
-
Minimizes unplanned downtime with predictive maintenance data
Frequently Asked Questions (FAQ)
Q1: What does the Bently Nevada 190501-00-00-00 measure?
It measures casing vibration velocity directly, providing a proportional voltage output.
Q2: Is the sensor compatible with the Bently Nevada 3500 monitoring system?
Yes, it integrates seamlessly with Bently Nevada 3500 and 1900 series monitors.
Q3: Can this sensor be used in high-temperature environments?
It operates reliably between -29 °C and +100 °C.
Q4: What is the sensitivity rating of this sensor?
It has a sensitivity of 20 mV/mm/s ±5%.
Q5: What is the frequency response range?
The frequency response is 4.5 Hz to 5 kHz.
Q6: How is the sensor mounted?
It uses a stud mounting method for secure attachment to machine casings.
Q7: Does it require external power supply?
No, it is powered through the monitoring system interface.
Q8: What are the typical applications?
It is commonly used in turbines, compressors, pumps, motors, and fans.
Q9: Is it suitable for continuous monitoring?
Yes, it is designed for continuous operation in industrial environments.
Q10: What is the approximate weight of the sensor?
The sensor weighs around 0.297 kg.
