Product Introduction

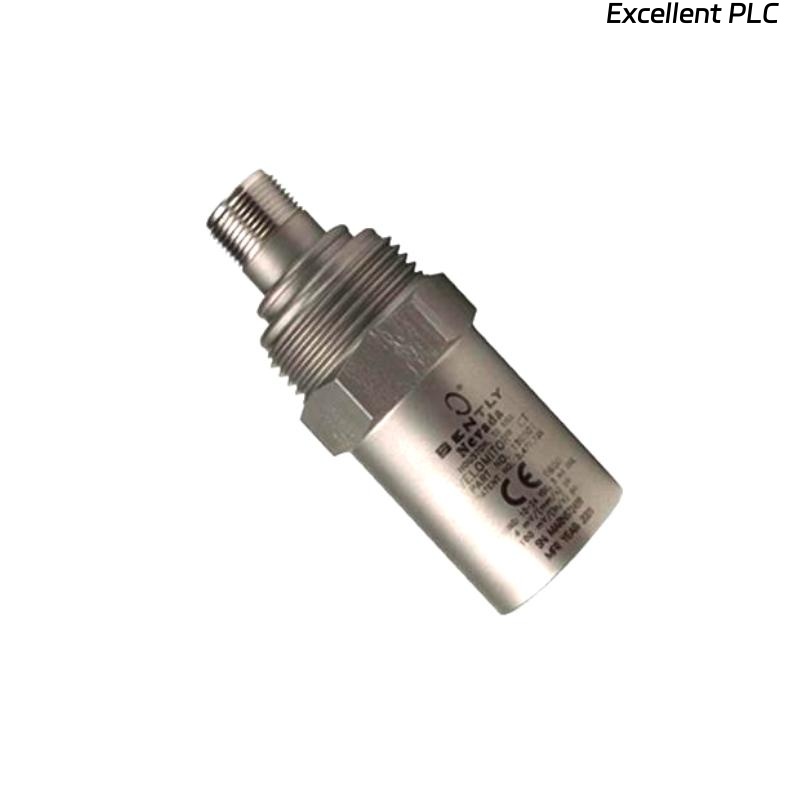

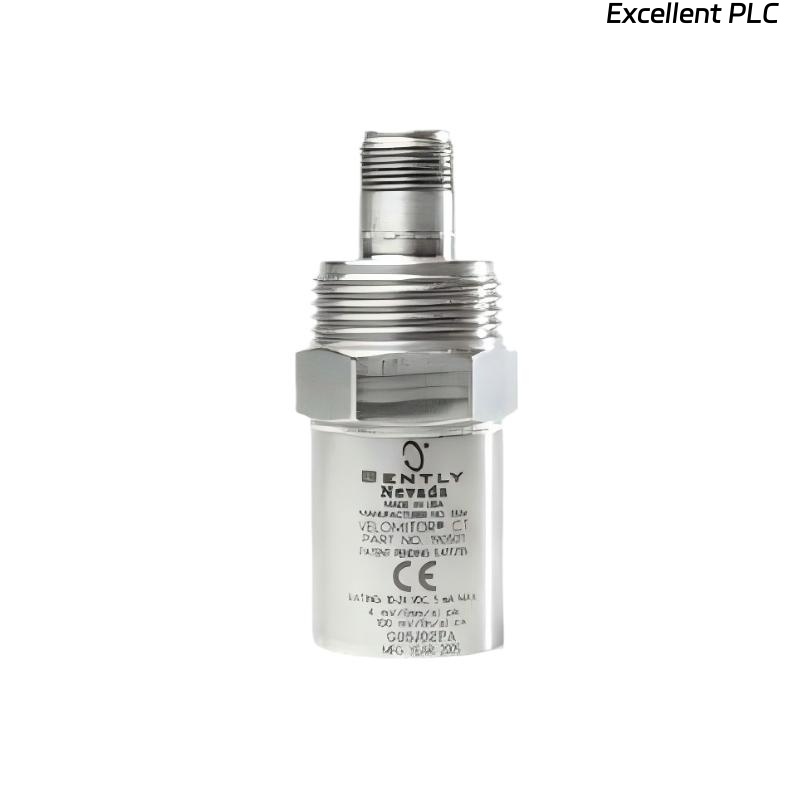

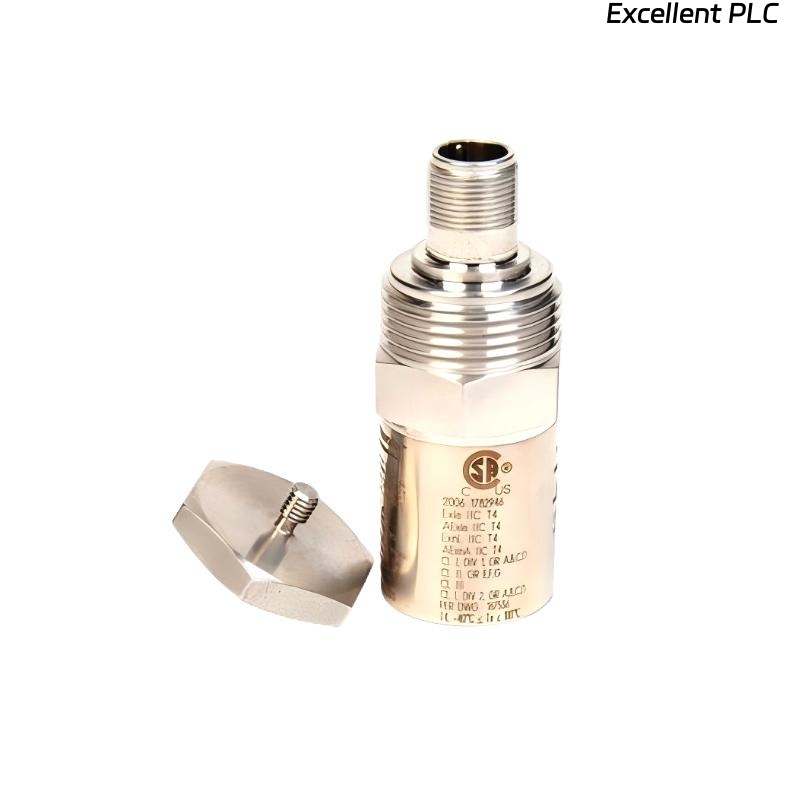

The Bently Nevada 190501-00-00-04 Velomitor CT Speed Sensor is a highly precise and reliable sensor designed to measure rotational speed in machinery and equipment. It is an essential tool in predictive maintenance and condition monitoring applications, providing accurate and real-time speed measurements. This sensor uses advanced technology to deliver exceptional accuracy, which is crucial for detecting mechanical issues such as imbalance, misalignment, and bearing wear.
Designed for industrial environments, the Velomitor CT Speed Sensor features robust construction and advanced signal processing technology, ensuring it operates effectively under harsh conditions. It is suitable for use in a variety of industries, including manufacturing, energy production, and petrochemical, where machinery condition monitoring is critical for preventing downtime and optimizing operational efficiency.
Product Parameters
| Parameter | Specification |
|---|---|
| Sensor Diameter | 33 mm |
| Weight | 0.297 kg |
| Output Signal | Sine Wave (Proportional to Speed) |
| Measurement Range | 0 to 60,000 RPM |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 24 VDC ±10% |
| Signal Output Type | Analog (4-20mA, 0-10V) |
| Mounting Type | Threaded |
| Mounting Hole Diameter | 7 mm |
| Response Time | < 1 ms |
| Protection | IP67 (Ingress Protection) |
Product Applications
The Velomitor CT Speed Sensor is used in a wide range of applications where rotational speed monitoring is essential for system performance and maintenance. These include:
-
Predictive Maintenance: The sensor continuously monitors machine speed and delivers real-time data to condition monitoring systems, enabling predictive maintenance strategies that minimize unexpected downtime.
-
Turbine Monitoring: Used in turbines to measure rotational speed, ensuring that these critical components are operating within their designed parameters.
-
Compressor and Pump Monitoring: In industries that use compressors and pumps, the sensor helps detect changes in speed, which can indicate potential issues such as wear or malfunction.
-
Motor Monitoring: The sensor is commonly used to monitor motor speeds in both industrial and commercial applications, ensuring that motors are running efficiently and without mechanical issues.
-
Process Control Systems: The sensor provides valuable speed data to process control systems, enabling operators to optimize processes based on machine performance.
-
Imbalance Detection: The sensor helps detect imbalance in rotating equipment, which is critical for early intervention and minimizing costly repairs or replacements.
Product Advantages
-
High Measurement Accuracy: The Velomitor CT Speed Sensor provides highly accurate speed measurements, which are essential for diagnosing machine issues early and improving the reliability of equipment.
-
Robust Design: Built to withstand harsh industrial environments, the sensor is designed with a durable construction and IP67-rated protection, ensuring long-lasting performance even in dusty or wet conditions.
-
Wide Operating Range: The sensor can measure speeds from 0 to 60,000 RPM, making it versatile for use in a wide variety of machines and applications.
-
Fast Response Time: With a response time of less than 1 ms, the sensor delivers real-time speed data, allowing for immediate detection of anomalies in machine operation.
-
Flexible Output Options: The sensor provides analog output options (4-20mA or 0-10V), which can be easily integrated into existing monitoring systems for seamless data collection and analysis.
-
Easy Mounting: The sensor features a threaded mounting design and a 7 mm mounting hole diameter, making it easy to install on various machines and equipment.
FAQ
1. What is the output signal type of the Velomitor CT Speed Sensor?
The Velomitor CT Speed Sensor provides a sine wave output signal, which is proportional to the rotational speed of the monitored equipment.
2. What is the measurement range of the Velomitor CT Speed Sensor?
The sensor can measure speeds from 0 to 60,000 RPM, making it suitable for a wide variety of industrial applications.
3. What type of power supply does the Velomitor CT Speed Sensor require?
The sensor operates with a 24 VDC power supply with a ±10% tolerance.
4. What is the response time of the Velomitor CT Speed Sensor?
The Velomitor CT Speed Sensor has a response time of less than 1 ms, ensuring real-time speed data for condition monitoring.
5. Can the Velomitor CT Speed Sensor be used in harsh environments?
Yes, the sensor is designed with an IP67 rating, providing excellent protection against dust, water, and other environmental factors, making it suitable for harsh industrial conditions.
6. What is the diameter of the Velomitor CT Speed Sensor?
The sensor has a diameter of 33 mm, allowing it to fit into tight spaces while still providing precise measurements.
7. How is the Velomitor CT Speed Sensor mounted?
The sensor is designed for threaded mounting, making installation straightforward and secure.
8. What types of output signals does the Velomitor CT Speed Sensor support?
The sensor supports analog output signals, with options for 4-20mA or 0-10V, providing flexibility for integration with various monitoring systems.
9. What is the weight of the Velomitor CT Speed Sensor?
The sensor weighs 0.297 kg, making it lightweight and easy to handle during installation.
10. What temperature range can the Velomitor CT Speed Sensor operate in?
The Velomitor CT Speed Sensor can operate in temperatures ranging from -40°C to +85°C, making it suitable for use in a wide range of industrial environments.
