Product Introduction

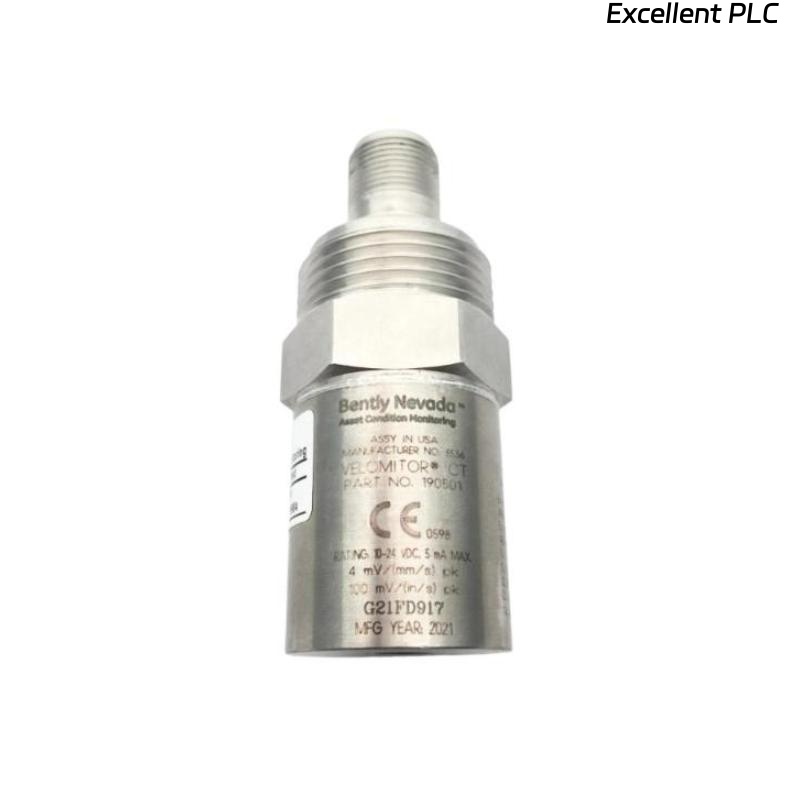

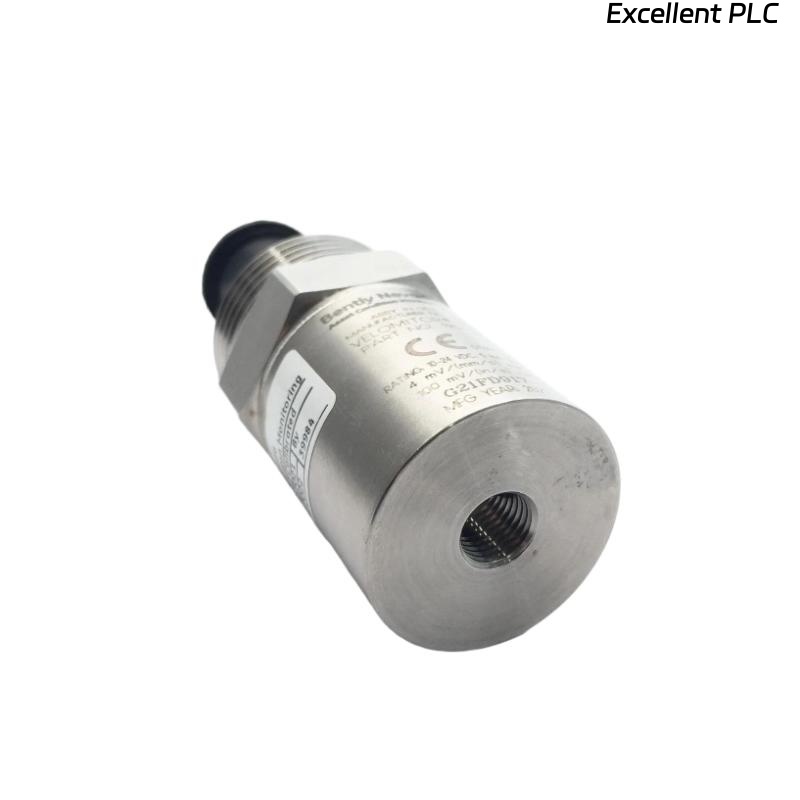

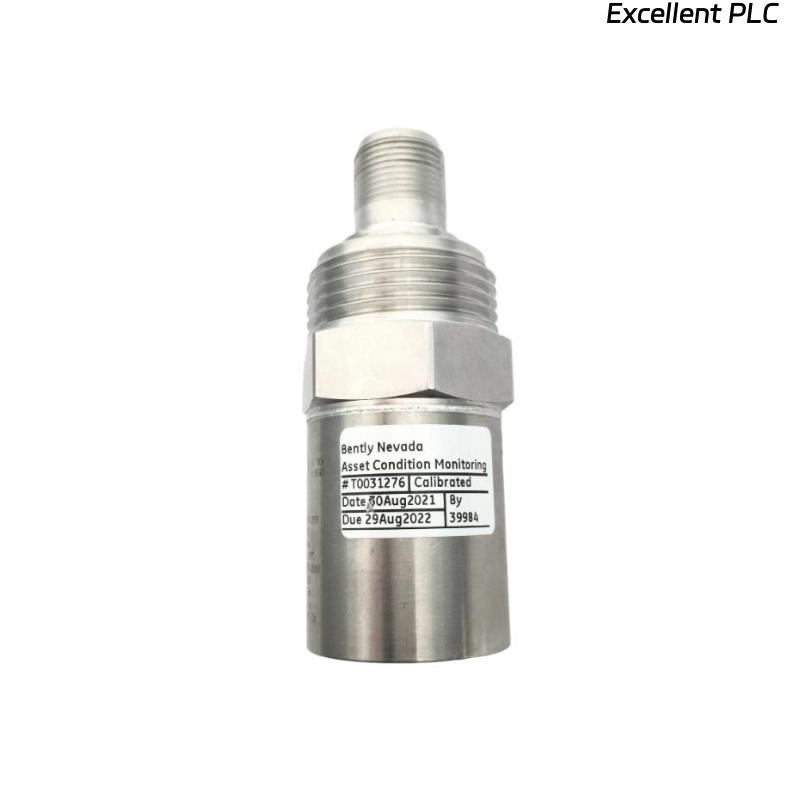

The Bently Nevada 190501-11-00-04 Velomitor CT Speed Sensor is a highly accurate and reliable device designed for monitoring the rotational speed of machinery in industrial applications. It is part of Bently Nevada’s Velomitor CT series, offering precise real-time data that is crucial for predictive maintenance and condition-based monitoring. This sensor helps identify potential issues such as bearing wear, misalignment, imbalance, and other mechanical faults that can lead to costly failures if left undetected.
Engineered for harsh environments, the Velomitor CT Speed Sensor provides exceptional performance even in demanding conditions. It is widely used in a variety of industries, including oil and gas, power generation, and manufacturing, to monitor the health of rotating equipment such as turbines, motors, pumps, and compressors. By continuously monitoring speed, it allows for timely maintenance actions that prevent unexpected downtime and reduce overall operational costs.
Product Parameters
| Parameter | Specification |
|---|---|
| Sensor Diameter | 33 mm |
| Weight | 0.297 kg |
| Output Signal | Sine Wave (Proportional to Speed) |
| Measurement Range | 0 to 60,000 RPM |
| Operating Temperature | -40°C to +85°C |
| Power Supply | 24 VDC ±10% |
| Signal Output Type | Analog (4-20mA, 0-10V) |
| Mounting Type | Threaded |
| Mounting Hole Diameter | 7 mm |
| Response Time | < 1 ms |
| Protection | IP67 (Ingress Protection) |
Product Applications
The Velomitor CT Speed Sensor is widely used for continuous monitoring and measurement of rotational speed in industrial equipment. Its main applications include:
-
Predictive Maintenance: By continuously monitoring the speed of critical machinery, the sensor helps detect mechanical issues before they lead to failures, thus enabling predictive maintenance strategies that reduce unscheduled downtime.
-
Turbine Monitoring: It plays a vital role in monitoring turbine speeds, ensuring they operate within their designed parameters and avoiding damage from over-speed or under-speed conditions.
-
Compressor and Pump Monitoring: Used extensively in compressors and pumps, the sensor ensures these machines run at the correct speeds, preventing performance degradation and costly repairs.
-
Motor Speed Monitoring: In motor-driven systems, the sensor provides essential data to ensure the motors are functioning correctly and efficiently.
-
Process Control Systems: Integrated into automated control systems, the sensor provides real-time speed feedback, which is crucial for maintaining the stability and efficiency of manufacturing and processing systems.
-
Imbalance Detection: The sensor is also used to detect imbalance in rotating machinery, which can lead to excessive vibrations, bearing wear, and reduced equipment lifespan.
Product Advantages
-
Precise and Accurate: The Velomitor CT Speed Sensor delivers high-accuracy speed data, which is essential for monitoring the health of rotating equipment and preventing failures.
-
Rugged Construction: With an IP67 rating, the sensor is designed to withstand dust, moisture, and harsh environments, ensuring long-term reliability even in demanding industrial settings.
-
Wide Speed Measurement Range: The sensor can measure speeds ranging from 0 to 60,000 RPM, making it suitable for a variety of machinery, from low-speed motors to high-speed turbines.
-
Fast Response Time: The sensor features a quick response time of less than 1 ms, ensuring immediate detection of speed fluctuations and anomalies.
-
Flexible Output Options: The sensor supports both 4-20mA and 0-10V analog outputs, offering versatility in how the sensor data can be integrated into monitoring systems.
-
Compact and Lightweight: The sensor has a compact diameter of 33 mm and a weight of only 0.297 kg, making it easy to install in tight spaces without compromising its performance.
FAQ
1. What type of output signal does the Velomitor CT Speed Sensor provide?
The Velomitor CT Speed Sensor provides a sine wave output signal, which is proportional to the rotational speed of the equipment being monitored.
2. What is the maximum speed that the Velomitor CT Speed Sensor can measure?
The sensor can measure speeds ranging from 0 to 60,000 RPM, covering a wide range of machinery types.
3. What is the power supply requirement for the Velomitor CT Speed Sensor?
The sensor operates on a 24 VDC power supply with a ±10% tolerance.
4. How quickly does the Velomitor CT Speed Sensor respond to speed changes?
The sensor has a very fast response time of less than 1 ms, providing real-time monitoring of speed fluctuations.
5. Can the Velomitor CT Speed Sensor be used in harsh industrial environments?
Yes, the sensor is rated IP67, providing full protection against dust and water, making it ideal for use in industrial environments.
6. What is the diameter of the Velomitor CT Speed Sensor?
The sensor has a diameter of 33 mm, allowing for easy installation in confined spaces.
7. How is the Velomitor CT Speed Sensor mounted?
The sensor is designed for threaded mounting, with a 7 mm mounting hole diameter to ensure a secure and stable installation.
8. What types of output signals does the Velomitor CT Speed Sensor support?
The Velomitor CT Speed Sensor supports analog output signals of 4-20mA and 0-10V, which allows for easy integration with various monitoring systems.
9. What is the weight of the Velomitor CT Speed Sensor?
The sensor weighs 0.297 kg, making it lightweight and easy to handle during installation.
10. What is the temperature range for the Velomitor CT Speed Sensor?
The Velomitor CT Speed Sensor operates within a temperature range of -40°C to +85°C, which allows it to function reliably in both cold and hot environments.
