Product Overview

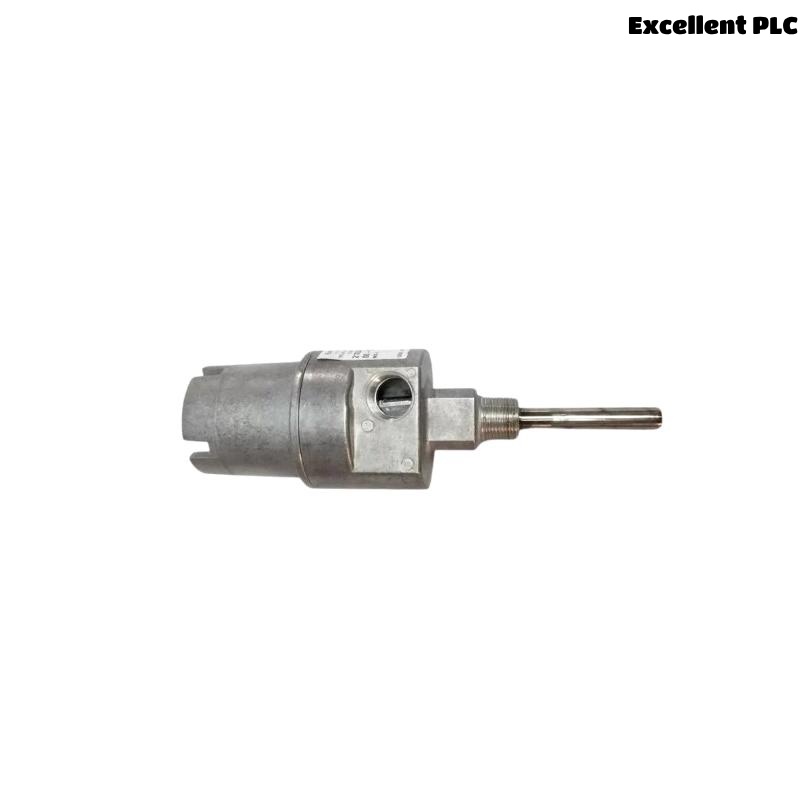

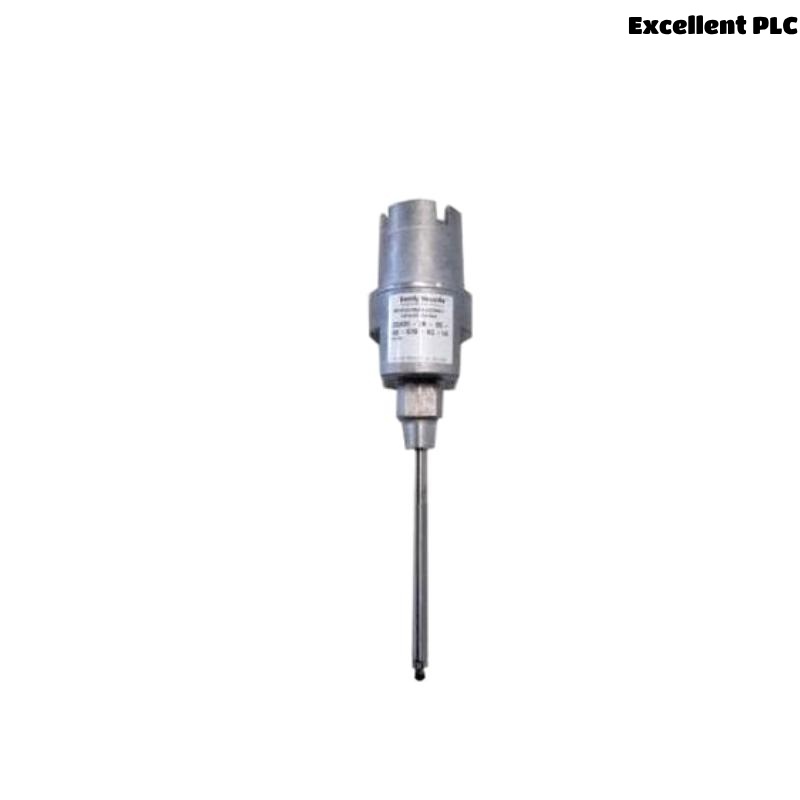

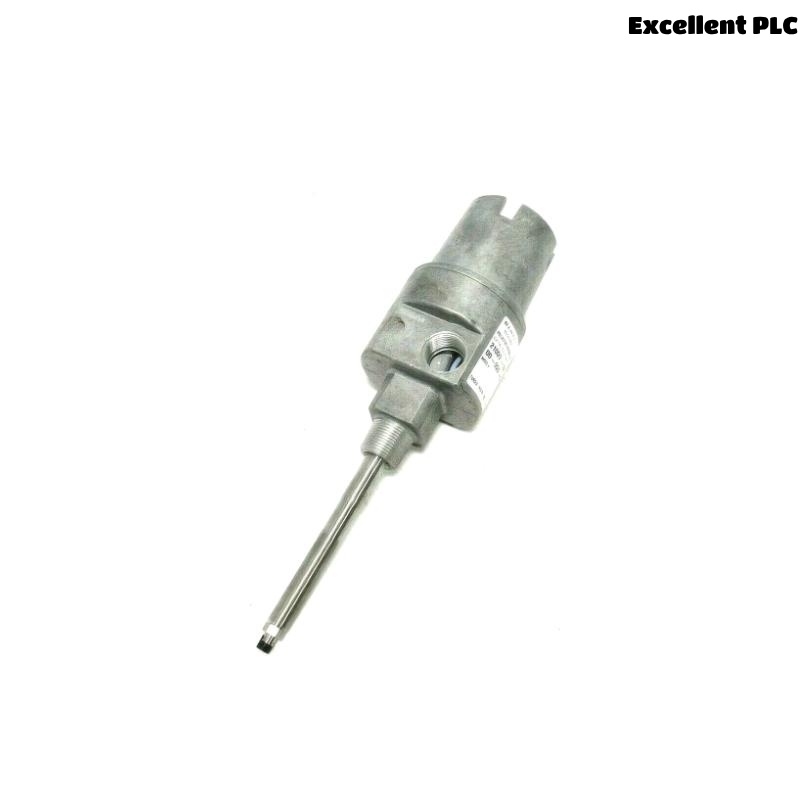

The Bently Nevada 21000-00-00-00-058-04-02 Proximity Probe Housing Assembly is engineered to provide a secure and durable enclosure for proximity probes used in industrial machinery monitoring. This assembly facilitates the external mounting of probes, allowing for accurate vibration and displacement measurements without the need for machine disassembly. Its robust construction and compliance with industry standards make it suitable for use in harsh environments where reliability is paramount.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 21000-00-00-00-058-04-02 |
| Probe Penetration | 5.8 inches (147 mm) |
| Fittings Option | 04 (One 3/4-14 NPT plug only) |
| Mounting Thread | 02 (3/4-14 NPT) |
| Material | Aluminum body with 304 stainless steel sleeve |
| Housing Body Diameter | 83.3 mm |
| Weight | Approximately 1.1 kg (2.4 lbs) |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Ingress Protection | IP65 (Dust tight and water-resistant) |
| Certifications | CSA Type 4, Explosion-Proof, API 670 compliant |
| Country of Origin | USA |
Applications
The 21000-00-00-00-058-04-02 Proximity Probe Housing Assembly is utilized across various industries for machinery condition monitoring, including:
-
Oil and Gas Production: Monitoring compressors and pumps in extraction and processing facilities.
-
Power Generation: Used in turbines and generators to detect shaft vibrations.
-
Petrochemical Industry: Ensures the reliability of rotating equipment in refineries.
-
Manufacturing: Applied in heavy machinery to monitor operational integrity.
-
Water and Wastewater Treatment: Maintains the performance of critical rotating assets.
Its design allows for the external installation of proximity probes, facilitating maintenance and reducing downtime.
Advantages
-
Durable Construction: The aluminum body combined with a 304 stainless steel sleeve offers excellent resistance to corrosion and mechanical wear.
-
Ease of Maintenance: External mounting design permits probe installation and replacement without disassembling machinery, minimizing operational interruptions.
-
Compliance with Standards: Meets CSA Type 4 and API 670 standards, ensuring suitability for hazardous environments and critical applications.
-
Versatility: Compatible with various Bently Nevada proximity probes, providing flexibility in system integration.
-
Environmental Resilience: Designed to operate in a wide temperature range and offers IP65 ingress protection, making it suitable for harsh industrial conditions.
Frequently Asked Questions (FAQ)
-
What is the primary function of this housing assembly?
It provides a secure enclosure for proximity probes, enabling accurate vibration and displacement monitoring of rotating machinery.
-
Is the proximity probe included with the assembly?
No, the model 21000-00-00-00-058-04-02 does not include a proximity probe; it must be ordered separately.
-
Can this housing be used in hazardous environments?
Yes, it is CSA Type 4 certified and explosion-proof, making it suitable for use in hazardous industrial settings.
-
What materials are used in the construction of the housing?
The housing is constructed with an aluminum body and a 304 stainless steel sleeve, offering durability and corrosion resistance.
-
What is the probe penetration length for this model?
The probe penetration length is 5.8 inches (147 mm).
-
What are the weight of the assembly?
The weight is around 1.1 kg.
-
What is the operating temperature range?
The assembly operates effectively within a temperature range of -51°C to +177°C (-60°F to +351°F).
-
Is the housing compatible with all Bently Nevada proximity probes?
It is compatible with various Bently Nevada proximity probes, but compatibility should be confirmed based on specific probe models.
-
Does the housing assembly include any fittings?
Yes, it includes one 3/4-14 NPT plug as part of the fittings option.
-
Where is this product manufactured?
The housing assembly is manufactured in the USA.
