Product Overview

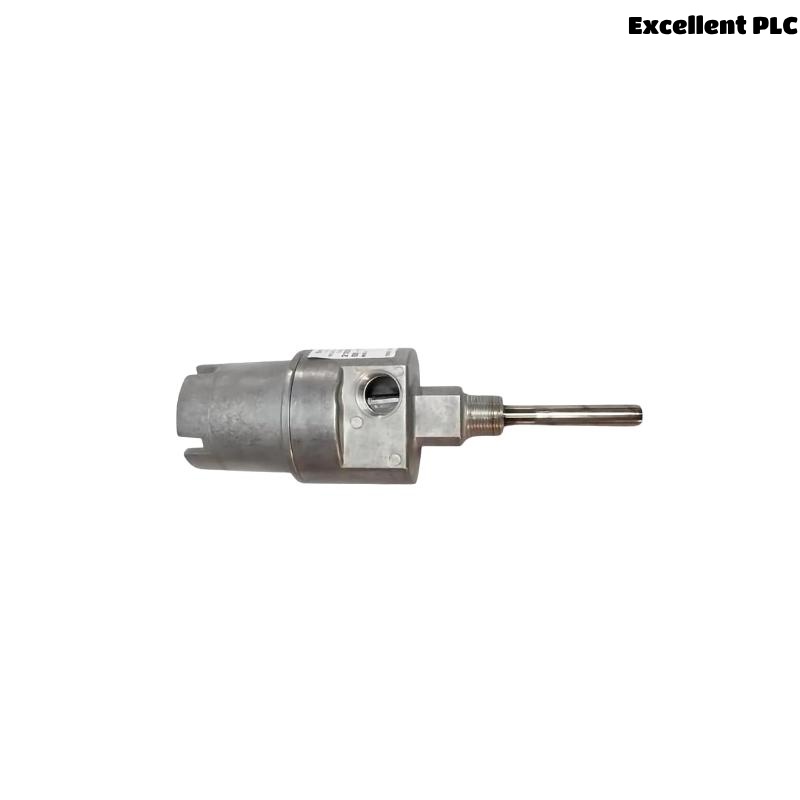

The Bently Nevada 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly is designed to securely house proximity probes used in vibration and displacement monitoring of rotating machinery. It provides a rugged, reliable enclosure that ensures protection of sensitive sensors from environmental and mechanical damage, allowing for precise measurement in demanding industrial environments.
This housing assembly features a 15 mm probe penetration and includes a 3/4-14 NPT threaded mounting interface, which facilitates straightforward installation on machinery components. Its design emphasizes ease of maintenance by allowing probe replacement or inspection without disassembling large portions of equipment, reducing downtime and enhancing operational efficiency.
Constructed with high-quality aluminum and stainless steel components, this assembly withstands harsh environmental conditions including extreme temperatures, moisture, and dust. Its compliance with relevant industrial standards makes it suitable for applications in petrochemical plants, power generation, manufacturing, and other sectors reliant on robust machinery condition monitoring.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 21000-00-00-15-030-04-02 |
| Probe Penetration | 15 mm (0.59 inches) |
| Mounting Thread | 3/4-14 NPT |
| Fittings Option | 04 (One 3/4-14 NPT plug only) |
| Material | Aluminum body with 304 stainless steel sleeve |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Ingress Protection | IP65 (Dust-tight and water-resistant) |
| Certifications | CSA Type 4, Explosion-Proof, API 670 compliant |
| Country of Origin | USA |
Applications
The 21000-00-00-15-030-04-02 Proximity Probe Housing Assembly is widely used for condition monitoring in various industries:
-
Oil & Gas Industry: Monitoring of compressors, pumps, and turbines to detect early signs of wear or imbalance.
-
Power Plants: Ensuring reliable operation of steam and gas turbines through precise shaft displacement measurements.
-
Petrochemical Refineries: Maintaining critical rotating machinery by tracking vibration levels to prevent unexpected failures.
-
Manufacturing Facilities: Applied on high-speed motors and pumps to maintain operational safety and efficiency.
-
Water Treatment Plants: Monitoring pumps and rotating equipment to enhance preventive maintenance programs.
Its robust build and compatibility with Bently Nevada probes make it ideal for environments requiring high reliability and safety.
Advantages
-
Robust Durability: Aluminum and stainless steel construction resists corrosion, impacts, and environmental degradation, extending service life.
-
Ease of Installation and Maintenance: Threaded mounting and external housing design facilitate quick replacement or servicing without disassembly of major equipment parts.
-
Wide Temperature Range: Operates reliably in extreme temperatures, from arctic cold to high-heat industrial conditions.
-
Protection Against Environmental Elements: IP65 rating ensures dust ingress is blocked and the assembly withstands water jets, suitable for outdoor and indoor use.
-
Certified Safety Standards: Compliance with CSA Type 4 and API 670 ensures suitability for hazardous and critical machinery applications.
-
Flexible Compatibility: Works with a variety of Bently Nevada proximity probes, enabling integration into existing monitoring systems.
Frequently Asked Questions (FAQ)
-
Does this housing assembly include the proximity probe?
No, the housing assembly does not include the probe; probes must be ordered separately.
-
What is the length of probe penetration?
The probe penetration for this model is 15 mm (0.59 inches).
-
Can this housing be used in explosive atmospheres?
Yes, it is certified explosion-proof and meets CSA Type 4 requirements.
-
What materials are used in this housing?
The body is made of aluminum with a stainless steel sleeve to ensure durability and corrosion resistance.
-
What are the exact dimensions of this assembly?
Housing body diameter 83.3 mm.
-
How much does the housing weigh?
It weighs about 1.1 kg.
-
Is this assembly weather resistant?
Yes, it has an IP65 rating, protecting against dust and low-pressure water jets.
-
Which mounting thread is used?
The mounting interface uses a 3/4-14 NPT threaded connection.
-
Can I install this housing on any machine?
It is designed for use with rotating machinery that supports a 3/4-14 NPT mounting thread and is compatible with Bently Nevada probes.
-
Where is this product manufactured?
The product is manufactured in the USA.
Related Models
| Model Number | Description |
|---|---|
| 21000-00-00-15-040-04-02 | Housing assembly with 15 mm probe penetration, 4-inch cable length |
| 21000-00-00-30-030-04-02 | Housing assembly with 30 mm probe penetration, 3/4-14 NPT mounting |
| 21000-00-00-15-025-04-02 | Housing assembly with 15 mm probe penetration, 2.5-inch standoff adapter |
| 21000-00-00-10-030-04-02 | Housing assembly with 10 mm probe penetration, 3/4-14 NPT mounting |
| 21000-00-00-15-035-04-02 | Housing assembly with 15 mm probe penetration, 3.5-inch cable length |
| 21000-00-00-20-030-04-02 | Housing assembly with 20 mm probe penetration, 3/4-14 NPT mounting |
