Product Description

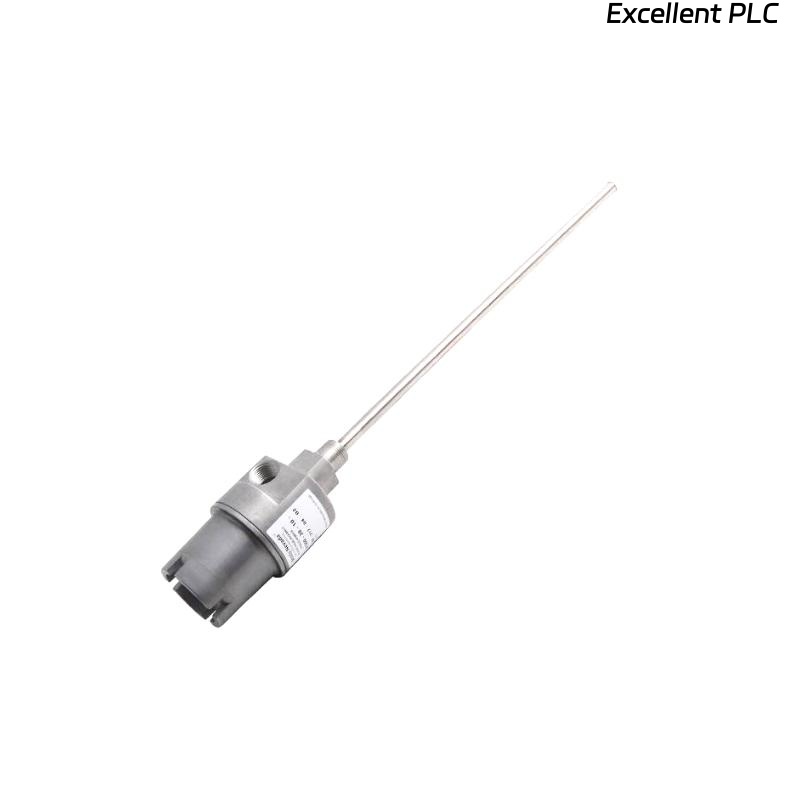

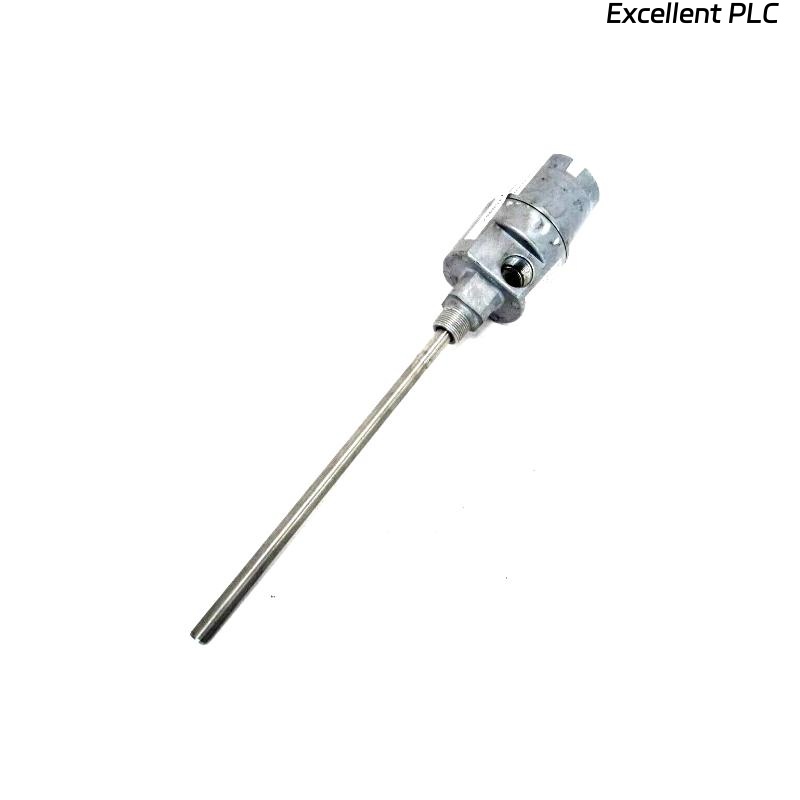

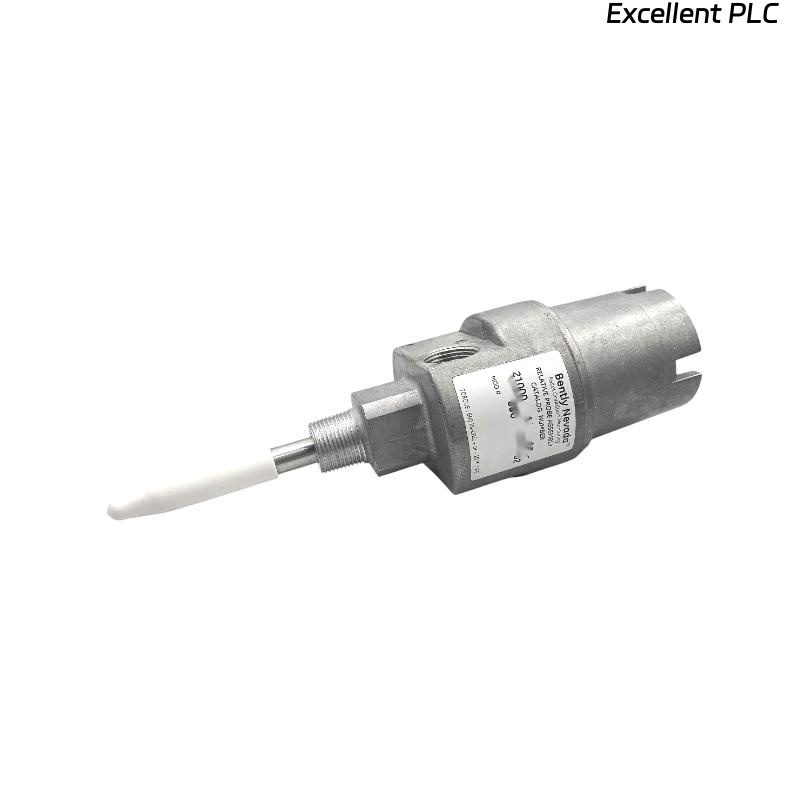

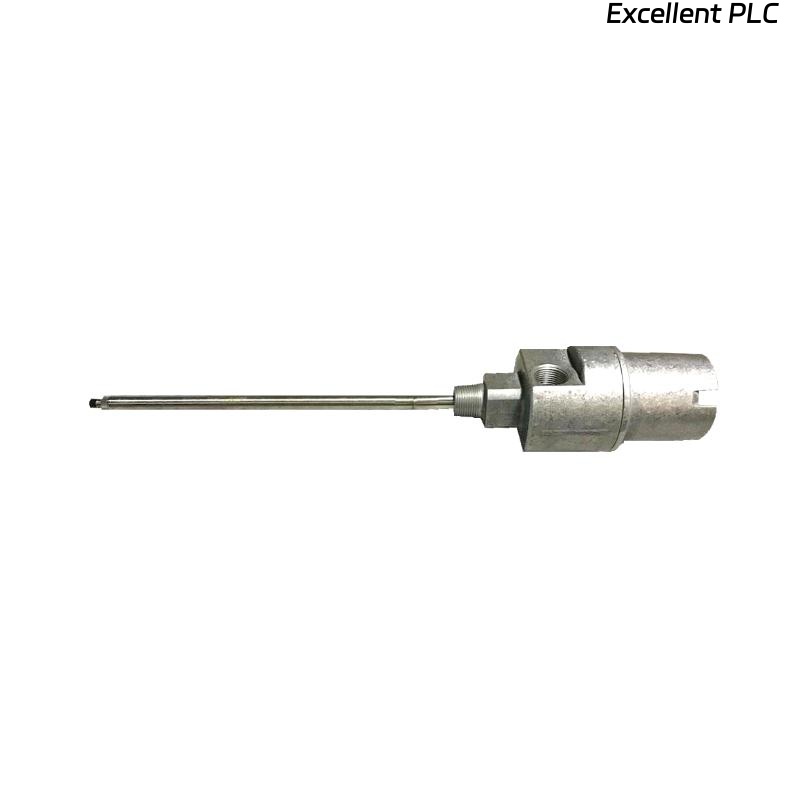

The Bently Nevada 21000-16-05-00-077-03-02 Proximity Probe Housing Assembly is designed for demanding industrial environments where vibration monitoring and proximity sensing are essential. This housing provides robust protection for proximity probes used in machinery health monitoring systems, especially in turbines, compressors, and other rotating equipment. Its sealed and rugged construction ensures reliable operation even under harsh conditions involving dust, moisture, oil, and high temperatures.
Technical Specifications
| Parameter | Value |
|---|---|
| Housing Model | 21000-16-05-00-077-03-02 |
| Type | Proximity Probe Housing Assembly |
| Material | Stainless Steel |
| Sealing Type | Hermetically Sealed |
| Mounting Type | Threaded Mount |
| Probe Compatibility | Bently Nevada 3300 / 3300 XL |
| Max Operating Temperature | +200°C |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Protection Rating | IP66 / NEMA 4X |
| Cable Entry | Single / Dual Options |
Applications
-
Steam and gas turbines
-
Centrifugal and axial compressors
-
Industrial fans and blowers
-
Gearboxes and critical rotating assets
-
Power generation and petrochemical industries
-
OEM machinery equipped with proximity monitoring systems
Product Advantages
-
Durability: Corrosion-resistant stainless steel housing ensures long service life in hostile environments.
-
Sealing: Fully sealed design provides protection against moisture, dust, and oil ingress.
-
Versatility: Compatible with a wide range of Bently Nevada proximity probes.
-
Ease of Installation: Threaded design enables secure and straightforward mounting.
-
Temperature Resilience: Operates effectively at high process temperatures.
-
Operational Safety: Designed to protect critical sensors in hazardous areas.
Frequently Asked Questions (FAQ)
Q1: What probe types are compatible with this housing?
A1: It supports Bently Nevada 3300 and 3300 XL series proximity probes.
Q2: Is the housing suitable for outdoor use?
A2: Yes, the IP66/NEMA 4X rating allows for reliable outdoor installation.
Q3: What is the body diameter of the housing?
A3: The housing has a body diameter of 83.3 mm.
Q4: What is the weight of the housing assembly?
A4: The assembly weighs approximately 1.1 kg.
Q5: Can this housing withstand high temperatures?
A5: Yes, it can operate in environments up to +200°C.
Q6: Is the housing hermetically sealed?
A6: Yes, the unit is designed with hermetic sealing for superior protection.
Q7: What kind of mounting does it support?
A7: It uses a threaded mounting method for secure installation.
Q8: Can the housing be used in hazardous areas?
A8: Yes, it is engineered for use in industrial and hazardous environments.
Q9: Does it include cable entry options?
A9: Yes, it supports both single and dual cable entry configurations.
Q10: What material is the housing made from?
A10: The housing is constructed from stainless steel for enhanced durability.
Related Models in the Same Series
| Model | Description | Diameter | Weight | Material |
|---|---|---|---|---|
| 21000-12-05-00-072-03-02 | Short Probe Housing | 76.2 mm | 0.9 kg | Stainless Steel |
| 21000-14-05-00-075-03-02 | Medium-Length Probe Housing | 80 mm | 1.0 kg | Stainless Steel |
| 21000-18-05-00-078-03-02 | Long Probe Housing | 85 mm | 1.2 kg | Stainless Steel |
| 21000-20-05-00-080-03-02 | Dual Probe Housing Assembly | 90 mm | 1.3 kg | Stainless Steel |
| 21000-22-05-00-082-03-02 | High Temp Probe Housing | 88 mm | 1.4 kg | Stainless Steel |
| 21000-10-05-00-070-03-02 | Compact Housing for Restricted Areas | 70 mm | 0.85 kg | Stainless Steel |
Popular Models from Bently Nevada
| Model | Description | Function | Weight | Application Area |
|---|---|---|---|---|
| 3300 XL 8mm Probe | Proximity Probe | Vibration Monitoring | 0.2 kg | Turbines, Compressors |
| 3300 XL NSv Probe | Narrow Gap Probe | Close-clearance Measurements | 0.18 kg | Small Machinery |
| 3500/42M | Proximitor Seismic Monitor | Vibration & Position Monitor | 0.5 kg | Rotating Equipment |
| 3500/22M | Transient Data Interface Module | Data Collection Interface | 0.7 kg | Machinery Monitoring Systems |
| 3500/33 | Temperature Monitoring Module | Temperature Sensing | 0.6 kg | Thermal Equipment |
| 330130-045-00-05 | Extension Cable for 3300 Series | Signal Transmission | 0.3 kg | Probe to Monitor Connection |
