Product Introduction

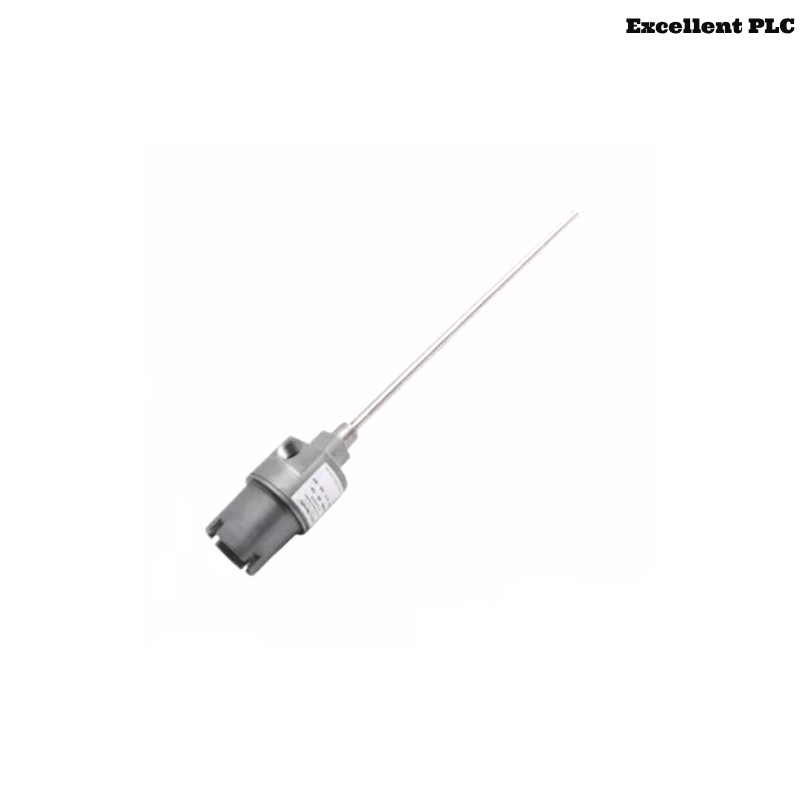

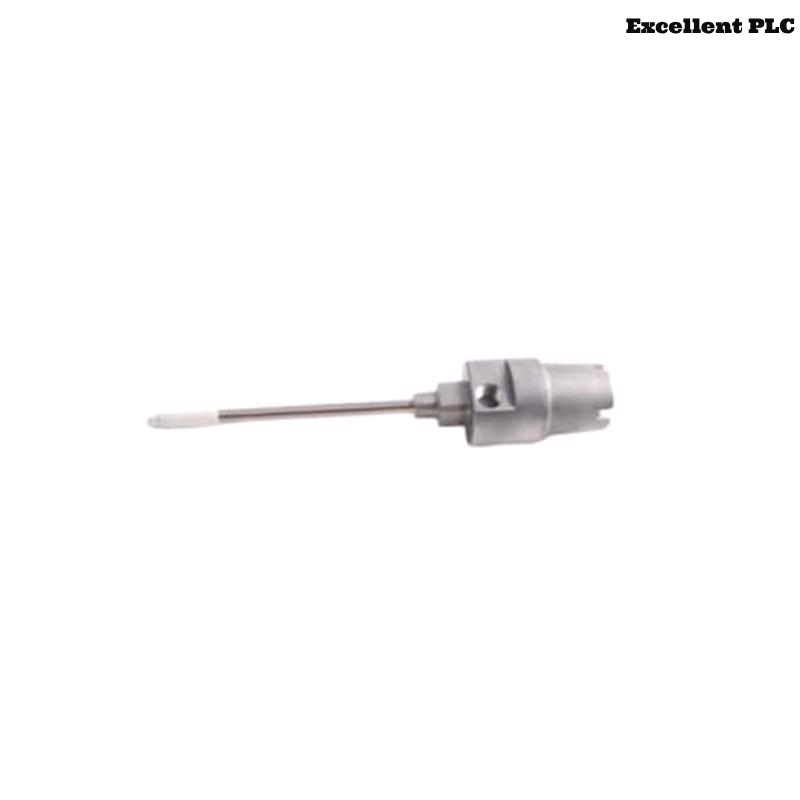

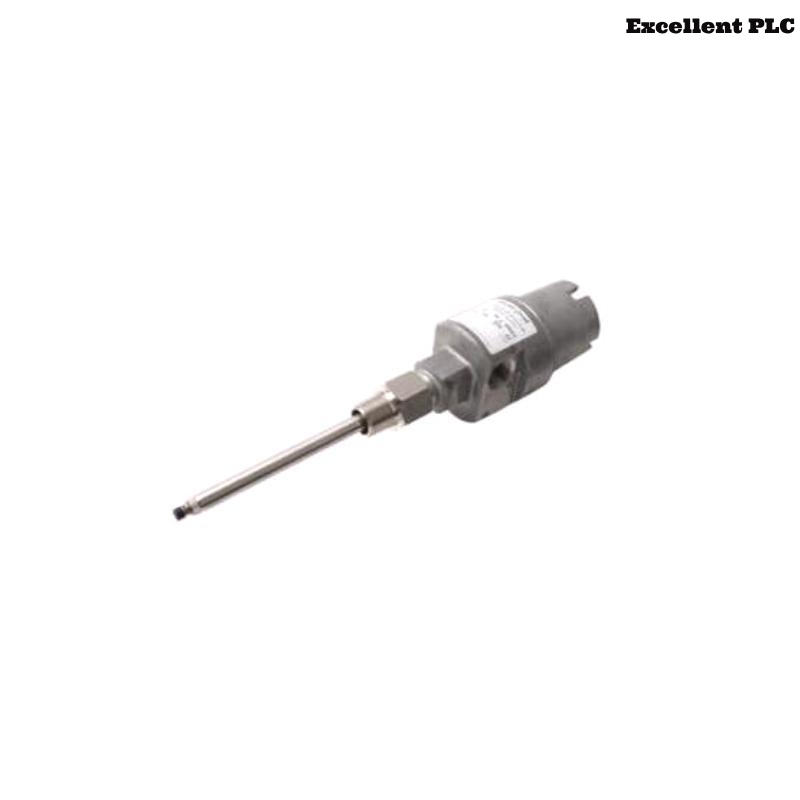

The Bently Nevada 21000-16-10-00-256-13-02 is a robust proximity probe housing assembly designed for external mounting of proximity probes, particularly in hazardous environments. Constructed from durable aluminum, this assembly provides a secure enclosure for proximity probes, ensuring accurate and reliable measurements of shaft vibration and position. It is compatible with Bently Nevada’s 3300 XL 8mm probes and is compliant with CSA Type 4 standards, making it suitable for use in explosion-proof applications.
Product Specifications
| Parameter | Specification |
| Model Number | 21000-16-10-00-256-13-02 |
| Housing Material | Aluminum |
| Compatible Probe | 3300 XL 8mm probe |
| Cable Length | 1.0 meter (39 inches) |
| Probe Penetration Length | 256 mm |
| Fitting Option | -13: One 3/4-14 NPT plug; one 3/4-14 to 1/2-14 NPT reducer; one cable seal grip |
| Standoff Adapter | None |
| Environmental Rating | CSA Type 4 (Explosion-proof for hazardous areas) |
| Operating Temperature Range | –40°C to +85°C (–40°F to +185°F) |
| Weight | 1.1 kg |
Product Applications
The 21000-16-10-00-256-13-02 housing assembly is utilized in various industrial applications where external mounting of proximity probes is required, especially in hazardous environments. Typical applications include:
-
Turbomachinery: Monitoring shaft vibration and position in turbines.
-
Compressors: Ensuring operational integrity by detecting shaft displacement.
-
Pumps: Monitoring for misalignment and mechanical wear.
-
Generators: Detecting rotor position and vibration anomalies.
-
Motors: Ensuring proper alignment and detecting bearing issues.
-
Industrial Fans: Monitoring shaft vibration to prevent mechanical failures.
Product Advantages
-
Robust Construction: Made from durable aluminum, providing protection in harsh environments.
-
Explosion-Proof Design: Compliant with CSA Type 4 standards for use in hazardous areas.
-
Easy Installation: Designed for straightforward external mounting without the need for complex modifications.
-
Compatibility: Works seamlessly with Bently Nevada’s 3300 XL 8mm probes.
-
Reliable Performance: Ensures accurate measurements of shaft vibration and position.
-
Maintenance-Friendly: Allows for easy access to the probe for maintenance and replacement.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 21000-16-10-00-256-13-02 housing assembly?
It provides a secure and protective enclosure for proximity probes, enabling accurate measurement of shaft vibration and position in hazardous environments. -
Which proximity probes are compatible with this housing assembly?
It is designed to be used with Bently Nevada’s 3300 XL 8mm probes. -
Is this housing assembly suitable for hazardous environments?
Yes, it is compliant with CSA Type 4 standards, making it explosion-proof and suitable for hazardous areas. -
What materials are used in the construction of this housing assembly?
The housing is constructed from durable aluminum. -
What is the operating temperature range for this assembly?
It operates effectively within a temperature range of –40°C to +85°C (–40°F to +185°F). -
What are the dimensions and weight of the housing assembly?
Cable length 1.0 meter, and weighs around 1.1 kg. -
Does the assembly include a standoff adapter?
No, this particular model does not include a standoff adapter. -
What is the length of the probe cable included?
The probe cable length is 1.0 meter (39 inches). -
What fitting options are available with this model?
It includes one 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and one cable seal grip. -
Can this housing assembly be used in outdoor applications?
Yes, its robust construction and environmental rating make it suitable for outdoor use in various industrial settings.
Related Models – Same Series or Similar Housing Assemblies
| Model Number | Description | Penetration Length | Material | Compatibility |
| 21000-16-10-00-144-03-02 | Proximity Probe Housing Assembly with medium-length body | 144 mm | Aluminum | 3300 XL 8mm Proximity Probes |
| 21000-16-10-00-102-03-02 | Compact Housing Assembly for limited space installations | 102 mm | Aluminum | 3300 XL 8mm Proximity Probes |
| 21000-16-10-00-067-04-02 | Short Body Housing for small machinery applications | 67 mm | Aluminum | 3300 XL 8mm Proximity Probes |
| 21000-16-10-00-041-04-02 | Ultra-Compact Proximity Probe Housing Assembly | 41 mm | Aluminum | 3300 XL 8mm Proximity Probes |
| 21000-16-10-00-120-04-02 | Medium Housing with alternative NPT fitting configuration | 120 mm | Aluminum | 3300 XL 8mm Proximity Probes |
| 21000-16-10-00-053-03-02 | Short-Length Housing with secure NPT fittings | 53 mm | Aluminum | 3300 XL 8mm Proximity Probes |
