Product Introduction

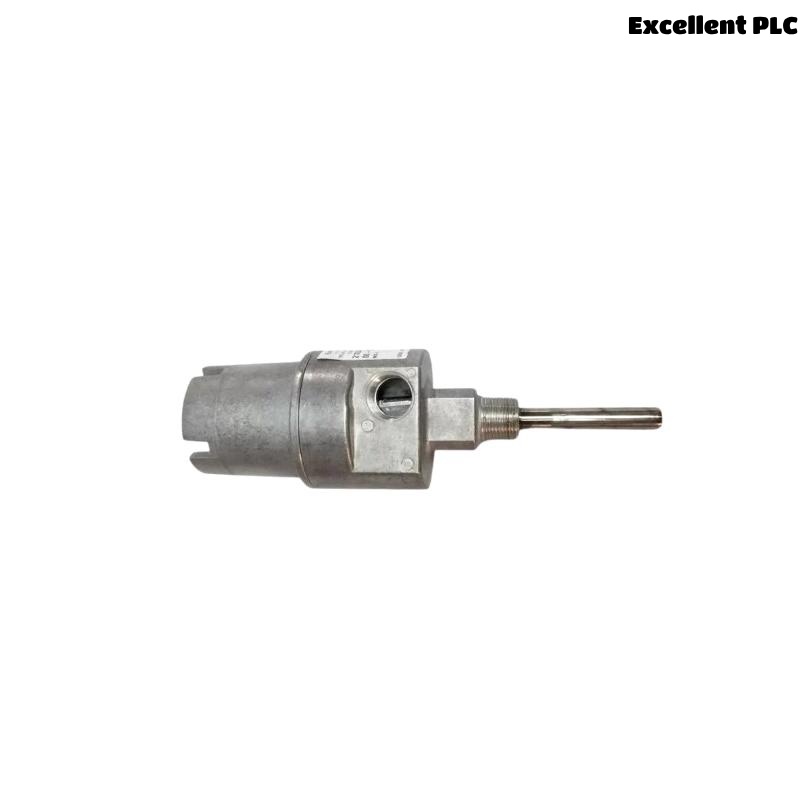

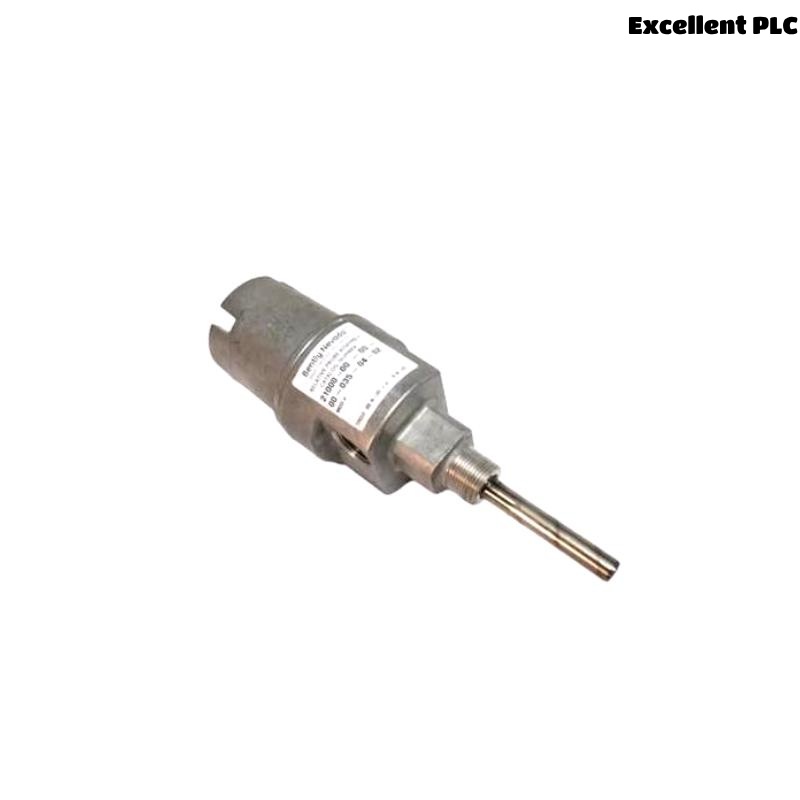

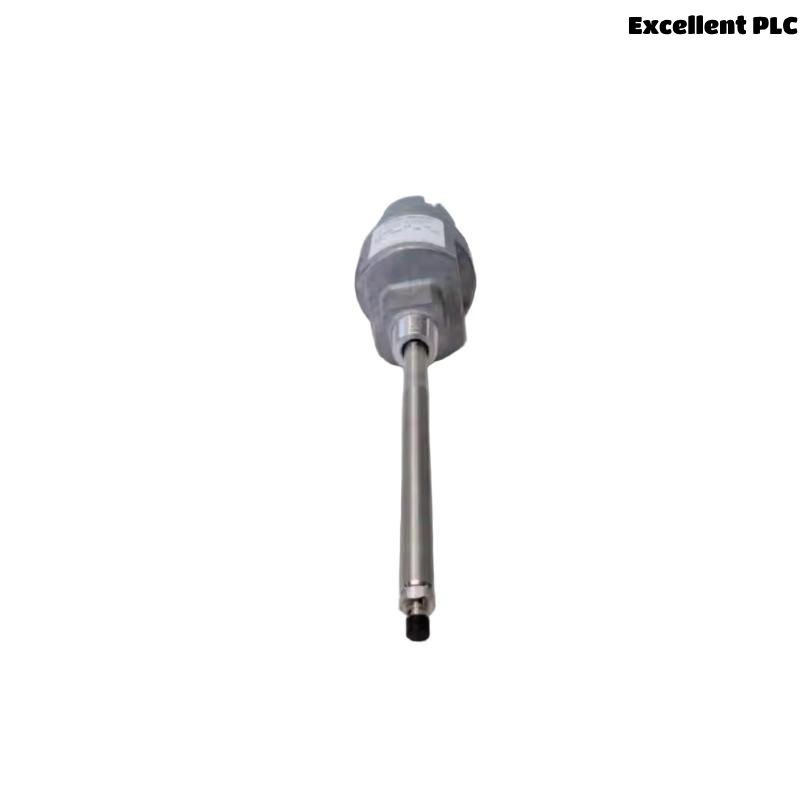

The Bently Nevada 21000-16-10-15-144-03-02 Proximity Probe Housing Assembly is a rugged, high-performance housing solution designed to accommodate proximity probe systems in demanding industrial environments. Built for precision and durability, it is used extensively in machinery protection and condition monitoring systems. Its corrosion-resistant materials, precise machining tolerances, and compatibility with Bently Nevada proximity transducers make it a preferred choice across sectors such as oil & gas, petrochemical, and power generation.
This specific model offers flexible configurations that ensure accurate alignment, secure probe mounting, and consistent measurements. It adheres to stringent industry standards for vibration and proximity monitoring and is engineered to perform reliably in harsh environmental conditions involving heat, moisture, and mechanical stress.
Technical Specifications
| Parameter | Details |
|---|---|
| Model Number | 21000-16-10-15-144-03-02 |
| Type | Proximity Probe Housing Assembly |
| Compatible Probe | Bently Nevada 3300 and 7200 Series |
| Material | Stainless Steel (Grade 316) |
| Mounting Style | Threaded with Locknut |
| Enclosure Rating | IP65 / NEMA 4X |
| Operating Temperature Range | -40°C to +177°C (-40°F to +350°F) |
| Cable Entry | 3/4″ NPT, Side Entry |
| Probe Mount Angle | Adjustable, 0–90 degrees |
| Sealing Options | Hermetically sealed with O-ring |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Compliance | CE, RoHS |
| Accessories | Locknut, Cable Gland, Mounting Bracket (Optional) |
| Shock Resistance | Up to 100 g |
| Vibration Endurance | Up to 20 g, 10–2,000 Hz |
Applications
The 21000-16-10-15-144-03-02 housing assembly is used in conjunction with proximity probes for the following applications:
-
Rotating Machinery Monitoring
Ideal for compressors, turbines, and pumps where shaft vibration and position need constant monitoring. -
Condition-Based Maintenance (CBM)
Enables accurate data collection for predictive maintenance strategies. -
Machinery Protection Systems
Integrated into critical trip systems to shut down machines under unsafe operating conditions. -
Industrial Vibration Measurement
Used in high-vibration environments to ensure structural integrity and safety. -
OEM Integration
Frequently installed by Original Equipment Manufacturers in new rotating equipment builds.
Product Advantages
-
Corrosion-Resistant Build
Made from 316 stainless steel, suitable for aggressive chemical and marine environments. -
Precise Alignment
Engineered tolerances provide stable, repeatable sensor positioning for optimal data capture. -
Environmental Protection
IP65/NEMA 4X-rated housing offers superior resistance to dust, water ingress, and high humidity. -
Customizable Installation
Multiple mounting angles and cable entry options ensure installation flexibility. -
Long-Term Reliability
High resistance to shock and vibration supports years of maintenance-free operation. -
Compatibility
Seamlessly integrates with Bently Nevada’s trusted proximity probe systems for enhanced machinery diagnostics.
Frequently Asked Questions (FAQ)
-
What is the function of the 21000-16-10-15-144-03-02 housing?
It houses and protects proximity probes, allowing for secure and precise mounting in machinery monitoring systems. -
Which probes are compatible with this housing?
It is compatible with Bently Nevada 3300 and 7200 Series proximity probes. -
Can it be used in hazardous environments?
Yes, the housing is constructed from corrosion-resistant materials and supports applications in explosive or chemically aggressive areas when paired with appropriate probes. -
What is the installation method?
It uses threaded mounting with locknut and optional brackets. It supports adjustable probe angles for accurate alignment. -
Is it waterproof?
Yes, it has an IP65/NEMA 4X rating, providing dust and water resistance. -
Does the housing include the probe?
No, the housing assembly is sold separately from the probe and extension cable. -
Can I replace the probe without removing the housing?
Yes, the design allows probe replacement without full disassembly, saving downtime. -
What industries commonly use this housing?
It’s widely used in oil & gas, power generation, refining, and other heavy industrial sectors. -
What is the weight of this housing?
1.1 kg. -
Are there accessories included?
Locknut is typically included. Optional cable glands and mounting brackets may be available depending on the supplier.
Related Models (Same Series or Functional Alternatives)
| Model Number | Description | Key Features |
|---|---|---|
| 21000-16-10-15-144-01-00 | Standard probe housing | Basic configuration, vertical entry |
| 21000-16-10-15-144-03-01 | Enhanced sealing version | High-moisture environments |
| 21000-12-08-10-110-02-02 | Compact housing for tight spaces | Shorter body length, angled cable entry |
| 21000-21-12-20-144-04-00 | Extended-length housing | Suitable for deep shaft installation |
| 21000-18-10-15-120-02-01 | Probe housing with integrated cable strain relief | Enhanced durability |
| 21000-22-14-20-144-03-02 | High-temperature variant | Suitable for +200°C applications |
