Product Introduction

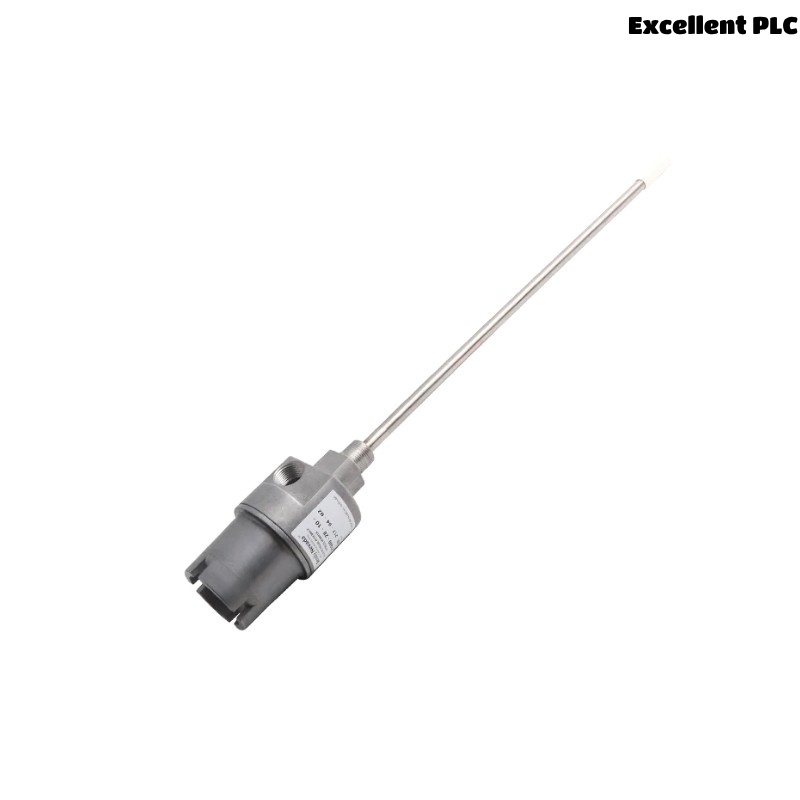

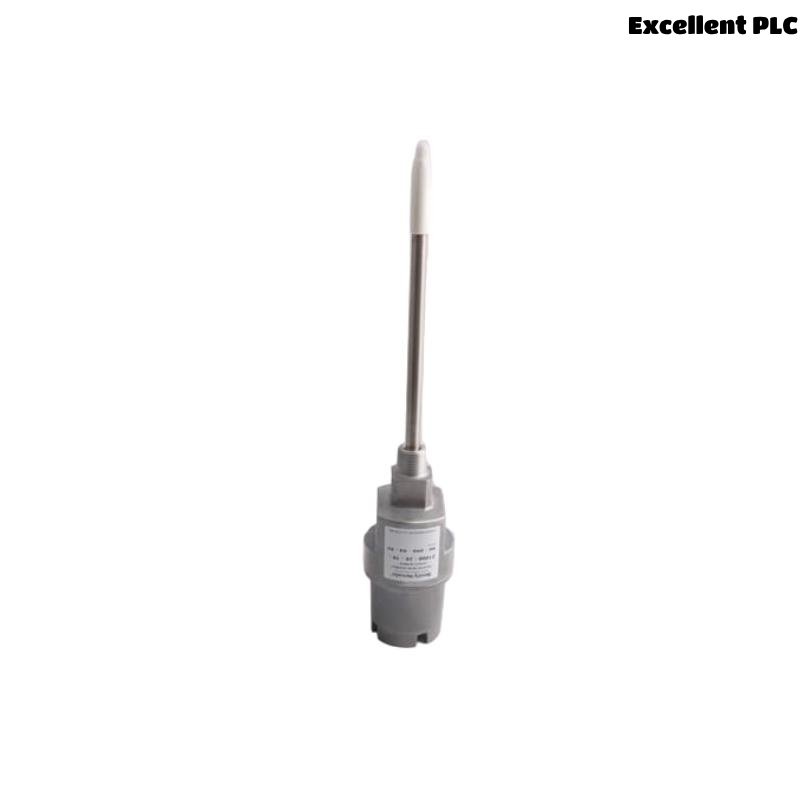

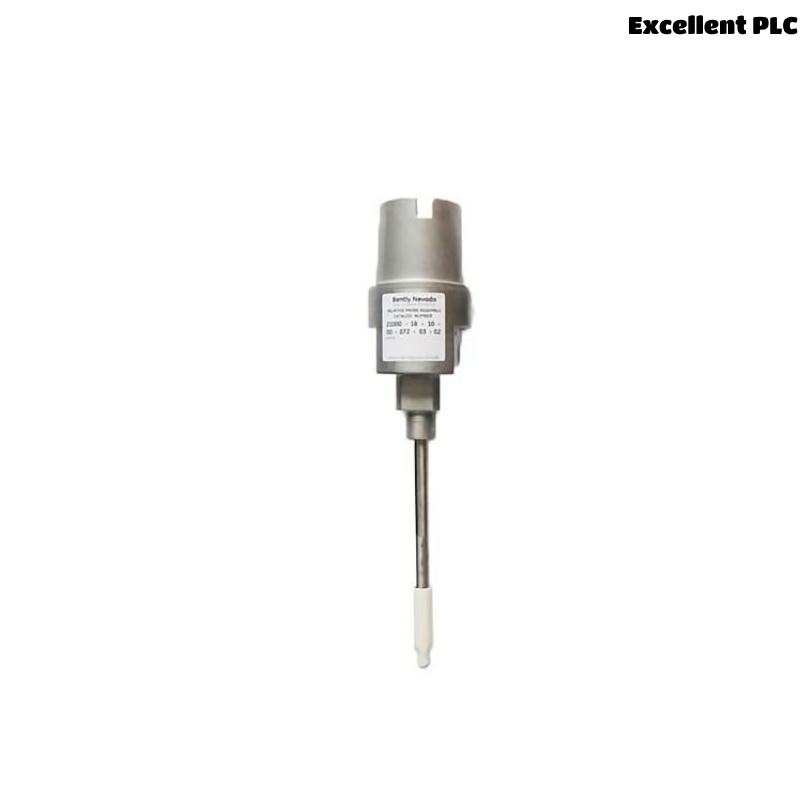

The Bently Nevada 21000-16-10-15-227-03-02 Proximity Probe Housing Assembly is a precision-engineered component used in machinery condition monitoring and protection systems. Designed specifically for the secure installation of Bently Nevada proximity probes, this housing provides mechanical protection, precise alignment, and environmental sealing for sensors deployed in critical rotating equipment.
This housing assembly is widely utilized in high-performance industrial environments such as gas turbines, compressors, and pumps, where accurate and stable measurement of shaft vibration, position, or movement is critical. The robust stainless-steel construction and IP-rated sealing make this model suitable for both indoor and outdoor installations in highly corrosive, dusty, or wet conditions.
The 21000-16-10-15-227-03-02 variant is one of the extended-length models within the 21000 series, offering additional probe depth range and enhanced mechanical protection for applications requiring deeper reach and exposure resistance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | 21000-16-10-15-227-03-02 |
| Series | 21000 Series |
| Product Type | Proximity Probe Housing Assembly |
| Material | 316L Stainless Steel |
| Compatible Probe Types | Bently Nevada 3300 XL, 7200 Series Proximity Probes |
| Mounting Configuration | Threaded with jam nut, locknut included |
| Probe Angle | Adjustable mount, 0° to 90° alignment range |
| Cable Entry Size | ¾” NPT side entry |
| Environmental Rating | IP65 / NEMA 4X |
| Sealing | O-ring and gasket-sealed |
| Temperature Range | -50°C to +177°C (-58°F to +350°F) |
| Shock Resistance | 100 g peak |
| Vibration Endurance | 20 g, 10–2000 Hz |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Electrical Isolation | Electrically isolated body |
| Regulatory Compliance | RoHS, CE |
| Included Accessories | Locknut, sealing hardware (mounting bracket optional) |
Applications
The 21000-16-10-15-227-03-02 housing assembly is deployed in critical industrial monitoring environments where sensor accuracy, mechanical protection, and long-term reliability are essential. Its common applications include:
-
Steam and Gas Turbines
Ensures precise monitoring of axial and radial shaft movements under high temperatures and vibrations. -
Large Compressors and Fans
Enables safe housing for sensors used in the continuous vibration monitoring of rotating assets. -
Oil & Gas Equipment
Used in offshore and refinery installations to support condition-based maintenance programs. -
Power Generation Plants
Integrates into Bently Nevada protection systems for turbines and generators. -
Paper and Steel Mills
Operates in environments with high dust, moisture, and mechanical loads. -
OEM Machine Skids
Incorporated into custom machinery designs by original equipment manufacturers.
Product Advantages
-
Extended Length for Deep Installations
With a 227 mm body, this housing is ideal for installations requiring deeper probe penetration or clearance. -
Superior Corrosion Resistance
Constructed with 316L stainless steel for outstanding durability in harsh, chemically aggressive environments. -
Easy Installation and Adjustability
The adjustable mount design supports fast alignment and repositioning of the proximity probe. -
Enhanced Mechanical Protection
Protects probes from physical impacts, vibration stress, and environmental wear over time. -
Robust Sealing
Offers dependable moisture and dust exclusion, ensuring long service life for internal electronics. -
Compatible with Leading Bently Nevada Sensors
Integrates seamlessly into 3300 XL and 7200 series systems without requiring special adaptors.
Frequently Asked Questions (FAQ)
-
Is the 21000-16-10-15-227-03-02 compatible with the 3300 XL series proximity probes?
Yes, it is specifically designed to house 3300 XL and 7200 series probes from Bently Nevada. -
What is the primary material of construction?
It is made from corrosion-resistant 316L stainless steel, suitable for harsh environments. -
What type of environments is this housing rated for?
It meets IP65 / NEMA 4X standards, suitable for outdoor, wet, dusty, and corrosive conditions. -
Can this housing be used in high-temperature applications?
Yes, it supports operation in environments up to +177°C (+350°F). -
Does the housing come with a mounting bracket?
The mounting bracket is optional and may be ordered separately. -
Is it easy to adjust the probe once installed?
Yes, the adjustable angle mount allows for flexible sensor alignment during and after installation. -
Is this housing sealed against moisture?
Yes, it uses O-ring and gasket sealing to prevent ingress of liquids and contaminants. -
Does it provide electrical isolation?
Yes, it includes internal design features to prevent grounding issues and ensure probe accuracy. -
What industries commonly use this product?
It is widely used in oil & gas, power generation, chemical processing, pulp & paper, and manufacturing industries. -
Can I use this housing for horizontal or vertical installations?
Yes, the design supports both orientations with full angular adjustability.
Related Models (Same Series or Functional Equivalents)
| Model Number | Description | Key Features |
|---|---|---|
| 21000-16-10-15-144-03-02 | Standard Length Housing | 144 mm body, ¾” NPT side entry |
| 21000-12-08-10-110-02-01 | Compact Model | Shorter probe reach for confined spaces |
| 21000-16-10-15-227-04-00 | Dual-Sealed Extended Model | Enhanced sealing for offshore applications |
| 21000-18-10-15-190-03-01 | Medium Reach Variant | 190 mm housing, vertical mount orientation |
| 21000-21-12-20-144-03-02 | Multi-Probe Housing | Accommodates two probe channels |
| 21000-22-14-20-300-03-02 | Ultra-Long Reach Variant | 300 mm body, used in turbines with long casing |
Popular Models from Bently Nevada
| Model Number | Function | Description |
|---|---|---|
| 330103-00-05-10-02-00 | Proximity Probe | 3300 XL 8 mm probe, 5m cable, standard configuration |
| 330180-91-05 | Proximitor Sensor | 3300 XL Proximitor, DIN rail, 5m system length |
| 330130-040-00-00 | Extension Cable | 40 ft extension cable for XL series |
| 3500/22M | Transient Data Interface | Modbus-compatible interface for 3500 system |
| 3500/42M | Vibration Monitor | High-speed dual-channel vibration monitor |
| 190501-00-00 | Seismic Vibration Sensor | Case-mounted seismic transducer for low-frequency signals |
