Product Introduction:

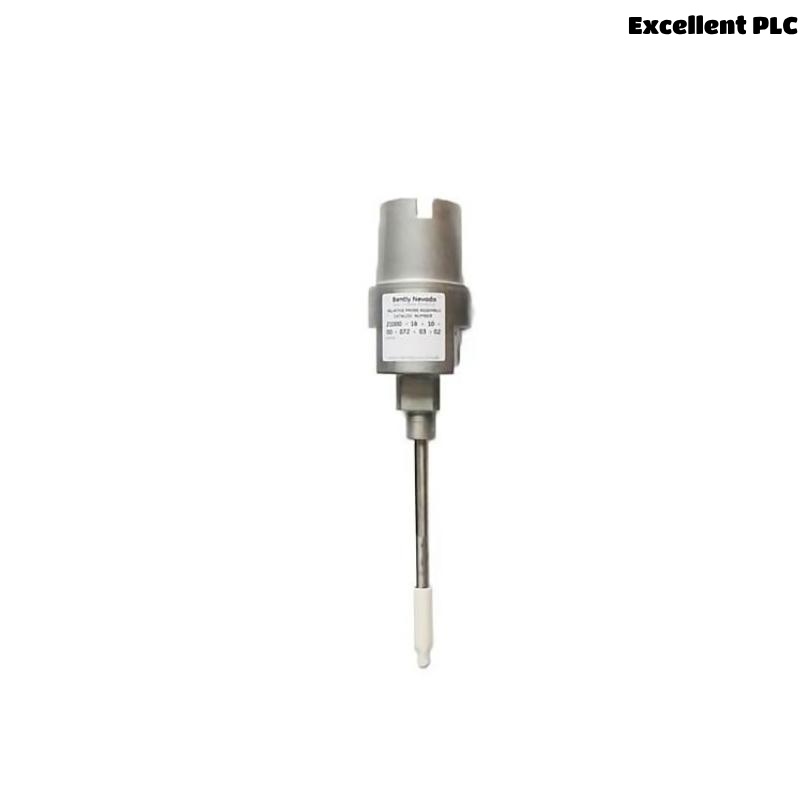

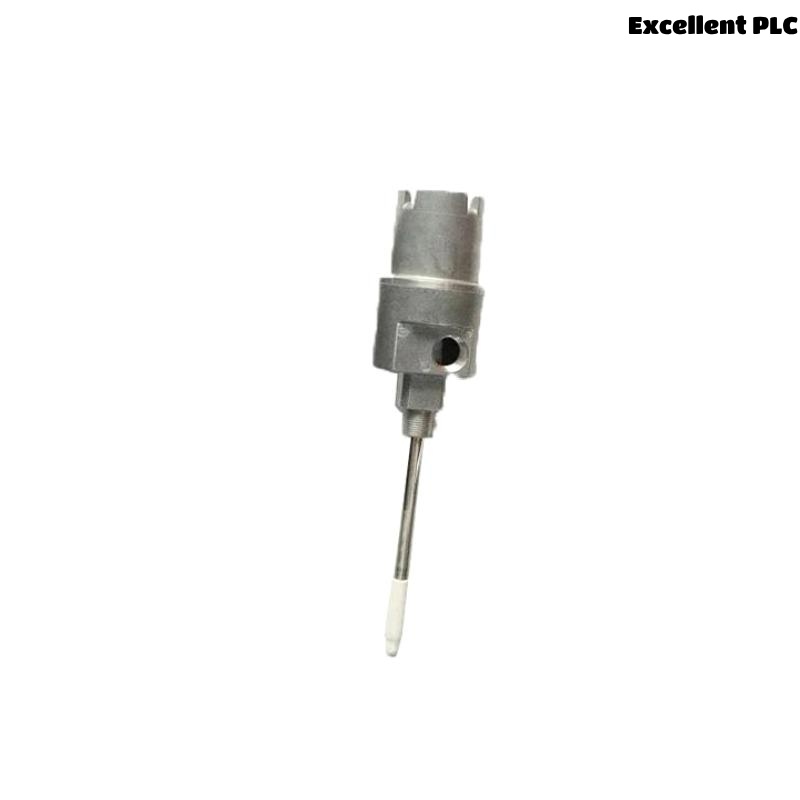

The Bently Nevada 21000-28-10-00-041-04-02 Proximity Probe Housing Assembly is a highly engineered solution designed for the installation and protection of proximity probes used in industrial condition monitoring systems. This housing is part of Bently Nevada’s 21000 series, which is renowned for its reliability and rugged construction, especially in harsh operational environments.
This assembly is built to ensure accurate vibration, displacement, and position measurements in rotating machinery. It supports the optimal installation of Bently Nevada proximity probes, facilitating precise alignment and protection against dust, moisture, mechanical stress, and electromagnetic interference. With robust design features such as corrosion-resistant materials and integrated cable sealing, this housing is suitable for both standard and hazardous area applications.
Whether in refineries, power plants, steel mills, or offshore platforms, the 21000-28-10-00-041-04-02 housing ensures dependable sensor performance over extended service life.
Product Specifications:
| Parameter | Value |
|---|---|
| Product Name | Proximity Probe Housing Assembly |
| Model Number | 21000-28-10-00-041-04-02 |
| Brand | Bently Nevada (A Baker Hughes company) |
| Series | 21000 Series |
| Mounting Type | Weld pad or surface mount with secure clamping |
| Probe Compatibility | Works with 5mm, 8mm, or 11mm Bently Nevada proximity probes |
| Material | Stainless steel, corrosion-resistant |
| Environmental Protection | IP65 (with proper cable gland usage) |
| Cable Entry Type | Gland or conduit fittings |
| Temperature Range | -40°C to +120°C |
| Vibration Resistance | Designed for high-vibration environments |
| Shock Resistance | High mechanical stability |
| Ingress Protection | Weatherproof and dustproof |
| Application Areas | Indoor and outdoor, hazardous and non-hazardous |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Certifications | ATEX, CSA, CE, IECEx (depending on configuration) |
Product Applications:
The Bently Nevada 21000-28-10-00-041-04-02 Proximity Probe Housing Assembly is employed across various sectors where precision vibration monitoring is critical for asset protection:
-
Oil & Gas Refineries: Installed on compressors and turbines to house proximity probes measuring shaft vibration and position.
-
Power Generation: Deployed in steam and gas turbines to ensure reliable probe performance in high-temperature environments.
-
Petrochemical Plants: Facilitates safe and accurate monitoring in potentially explosive areas.
-
Marine and Offshore Platforms: Used in engine rooms and critical rotating machinery exposed to salt-laden atmospheres.
-
Steel and Metal Industries: Protects probes on rolling mills and heavy-duty industrial motors.
-
Pulp & Paper Mills: Ensures long-term operation despite dust, humidity, and high vibration.
Product Advantages:
-
Durability in Harsh Conditions: Built with stainless steel and designed to endure extreme environments.
-
Field-Proven Reliability: Backed by Bently Nevada’s decades-long expertise in machinery protection and condition monitoring.
-
Flexible Mounting Options: Adapts to multiple installation styles including weld pad or direct mounting.
-
Supports Multiple Probe Sizes: Compatible with various probe diameters, offering installation flexibility.
-
Sealed Design: Prevents contamination and moisture ingress for accurate signal transmission.
-
Hazardous Area Certification: Available with global certifications ensuring safety compliance in critical applications.
-
Ease of Maintenance: Modular design enables straightforward installation and probe replacement.
-
Enhanced Probe Performance: Provides stable and secure probe seating for precise gap measurements.
Frequently Asked Questions (FAQ):
-
Q: What distinguishes the 21000-28-10-00-041-04-02 housing from other probe enclosures in the 21000 series?
A: This specific model offers extended internal clearance, making it ideal for applications where probes need additional insertion depth or where routing space is limited. It also includes specific gland fitting options that support use in hazardous areas. -
Q: Can this housing be installed vertically as well as horizontally?
A: Yes. The design is versatile enough to be installed in either orientation, provided proper sealing and probe alignment procedures are followed. -
Q: Is welding required for installation, or are there alternative mounting options?
A: Welding is the preferred method for high-stability applications, but optional clamp brackets and mounting bases are available if non-permanent installation is desired. -
Q: What is the purpose of the internal thread inside the housing tube?
A: The internal thread is used to securely hold the proximity probe sleeve or adapter in place and ensure correct axial positioning during operation. -
Q: Are there recommended torque values for tightening the probe within the housing?
A: Yes. Bently Nevada provides torque specifications in the installation manual to prevent overtightening, which can damage the probe or misalign it. -
Q: Can the housing withstand saltwater or marine environments?
A: Absolutely. It’s constructed from corrosion-resistant stainless steel and, when used with proper sealing glands, is highly resistant to salt spray and marine conditions. -
Q: What’s the maximum cable diameter the gland fitting can support?
A: The standard cable gland accommodates diameters from 6 to 12 mm. Larger or armored cable glands can be specified on request. -
Q: Is it possible to order the housing pre-assembled with a proximity probe?
A: Yes. Many users opt for pre-integrated assemblies with pre-calibrated probes to simplify installation and reduce onsite configuration time. -
Q: How does this housing contribute to measurement accuracy?
A: It ensures stable probe mounting, isolates environmental vibration and thermal expansion effects, and protects the sensing gap from debris or moisture—all of which enhance signal integrity. -
Q: How often should the housing be inspected or maintained after installation?
A: It is generally maintenance-free under normal conditions, but it’s recommended to visually inspect the sealing integrity and cable strain relief during scheduled machine outages.
Related Models (Same Series or Function):
| Model Number | Description | Compatibility | Dimensions (mm) | Weight (g) |
|---|---|---|---|---|
| 21000-25-10-00-041-04-02 | Standard Proximity Probe Housing | 5mm / 8mm / 11mm probes | 140 × 60 × 55 | 700 |
| 21000-26-10-00-041-04-02 | Compact Housing for Tight Spaces | 5mm / 8mm probes | 120 × 50 × 50 | 600 |
| 21000-27-10-00-041-04-02 | Heavy-Duty Probe Housing | 11mm probes | 160 × 70 × 65 | 850 |
| 21000-29-10-00-041-04-02 | Extended Housing for Deep Mounting | 5mm / 8mm probes | 180 × 60 × 60 | 800 |
| 21000-30-10-00-041-04-02 | Dual Probe Housing | Dual 5mm or 8mm probes | 150 × 80 × 60 | 950 |
| 21000-32-10-00-041-04-02 | Right-Angle Probe Housing | 5mm / 8mm | 130 × 60 × 60 | 720 |
Popular Models from Bently Nevada (Same Brand):
| Model Number | Description | Type | Application | Weight (g) |
|---|---|---|---|---|
| 3300 XL 8mm | Proximity Probe | Proximity Sensor | General Vibration Monitoring | 150 |
| 3500/22M | Transient Data Interface Module | Monitoring System Module | Condition Monitoring | 300 |
| 3500/42M | Vibration Monitor | Monitoring System | Machine Protection | 400 |
| 330130-040-00-00 | Extension Cable for Proximity System | Cable Assembly | Probe Extension | 250 |
| 3500/15 | Power Supply Module | System Power Module | 3500 Series Racks | 500 |
| 330180-91-00 | Proximitor Sensor | Signal Conditioning Module | Shaft Position Monitoring | 320 |
