Product Description

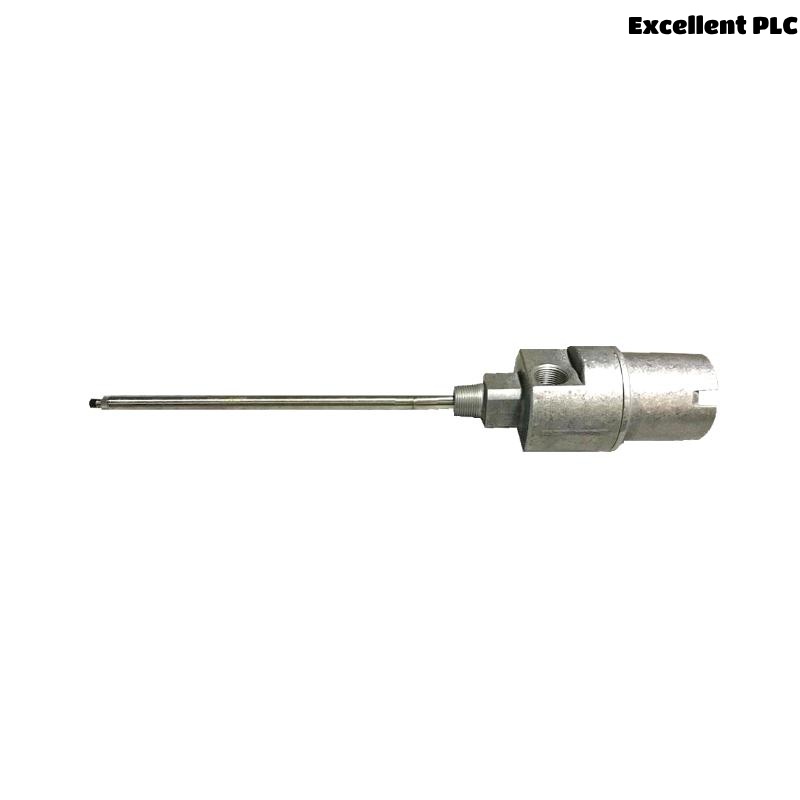

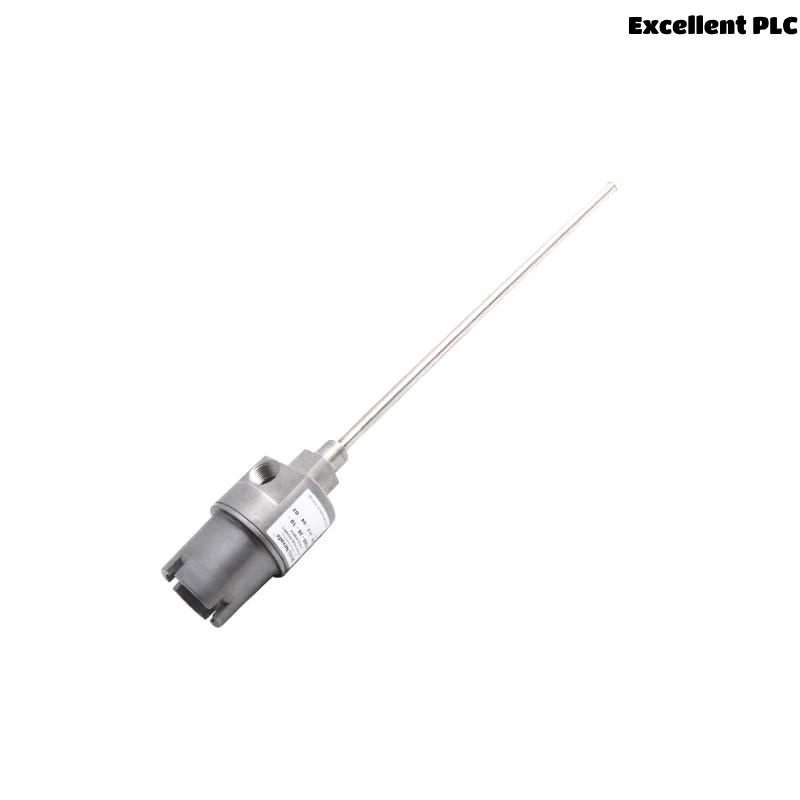

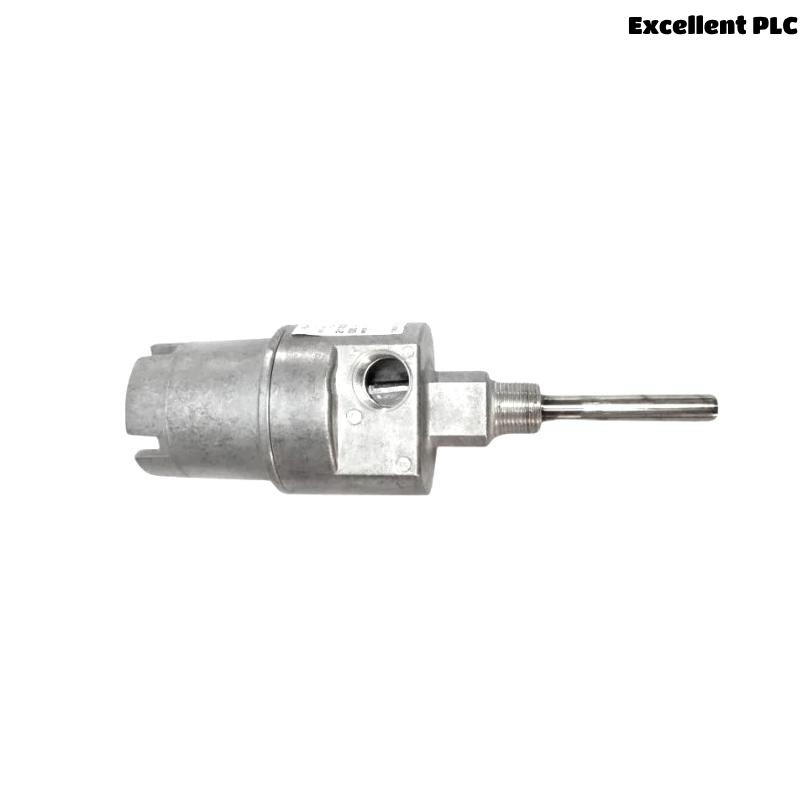

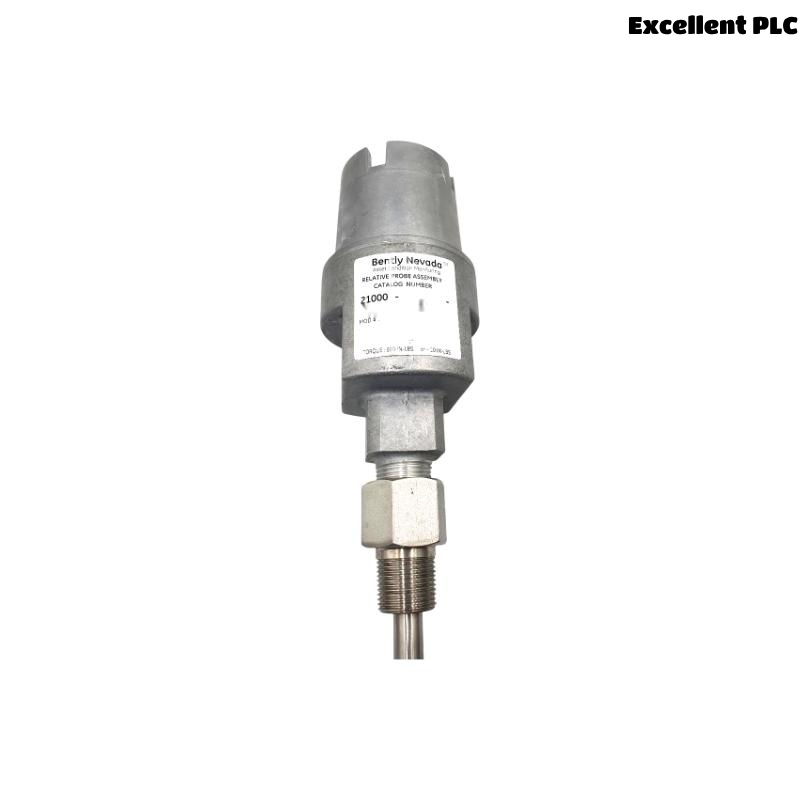

The Bently Nevada 21000-33-10-00-070-04-02 is a robust, externally mounted Proximity Probe Housing Assembly constructed from aluminum with a 304 stainless steel sleeve. Designed for harsh environments, this housing offers a high level of protection and compatibility with a range of proximity probes including the 3300 XL series. It meets API 670 standards and is CSA Type 4 certified for explosion-proof applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Housing Material | Aluminum body with 304 stainless steel sleeve |
| Probe Compatibility | 3300 XL 8mm (with connector protector) |
| Operating Temperature | -51°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Enclosure Rating | CSA Type 4 / Explosion-proof rated |
| Mounting Thread | 3/4-14 NPT |
| Fittings | One 3/4-14 NPT plug and one reducer |
| Sleeve Length | 70 mm |
| Housing Body Diameter | 83.3 mm |
| Weight | 1.1 kg |
| Certifications | CSA (Class I, II, III), RoHS compliant |
Applications
-
Machinery protection systems
-
Turbomachinery monitoring
-
Critical rotating equipment
-
Harsh and hazardous industrial environments
-
Refineries and petrochemical plants
-
Nuclear and power generation facilities
Product Advantages
-
CSA explosion-proof certified for hazardous locations
-
Compliant with API 670 for reliable machinery monitoring
-
Modular options for probe sleeve length and penetration
-
Aluminum construction offers corrosion resistance and reduced weight
-
Compatible with multiple probe types including ceramic and radiation-hardened
-
Flexible configuration for cable length, thread type, and fittings
FAQs
Q1: What probe types are compatible with the 21000 housing?
A1: The housing is compatible with 3300 XL 8mm, NSv, and 11mm probes with or without connector protectors.
Q2: Is the 21000 suitable for hazardous environments?
A2: Yes, it is CSA-certified for explosion-proof use in Class I, II, and III hazardous areas.
Q3: What is the housing material?
A3: It is made of an aluminum body with a 304 stainless steel probe sleeve.
Q4: Can I use this housing in extreme temperatures?
A4: Yes, the operating and storage temperature range is -51°C to +177°C.
Q5: What mounting threads are available?
A5: Options include 3/4-14 NPT, 1-11 1/2 NPT, 1/2-14 BSP, and others.
Q6: Is the 21000 housing compliant with industry standards?
A6: Yes, it meets API 670 requirements and is RoHS compliant.
Q7: What is the weight of the 21000 housing?
A7: It weighs approximately 1.1 kg (2.4 lb) without fittings.
Q8: Can I customize the sleeve length?
A8: Yes, sleeve lengths are available in 0.1-inch increments up to over 300 mm.
Q9: Is there support for long sleeve configurations?
A9: Yes, Bently offers support accessories for sleeves over 304 mm to avoid vibration resonance.
Q10: Does the assembly include the probe?
A10: It depends on the configuration; some versions include probes, others require separate ordering.
Recommended Related Models (Same Series or Function)
| Model Number | Description | Material | Probe Compatibility | Weight |
|---|---|---|---|---|
| 21000-16-10-15-035-03-02 | Standard 3300 XL 8mm probe housing | Aluminum + SS sleeve | 3300 XL 8mm | 1.1 kg |
| CA21000-28-10-20-030-01 | Explosion-proof certified CSA version | Aluminum | 3300 XL 8mm | 1.1 kg |
| 24701-29-10-10-035-03-02 | Stainless steel housing with 11mm probe | 303 SS + 304 SS | 3300 XL 11mm | 1.8 kg |
| CA24701-30-10-15-045-01 | CSA explosion-proof 11mm probe version | 303 SS + 304 SS | 3300 XL 11mm | 1.8 kg |
| 164818-02-20-016-01-01-05 | Compact housing for limited space installs | Stainless steel | 3300 XL 8mm | ~0.8 kg |
| 164818-04-40-292-02-02-10 | Ceramic-capped probe housing (max sleeve) | Stainless steel | 3300 8mm ceramic probe | ~1.0 kg |
