Description

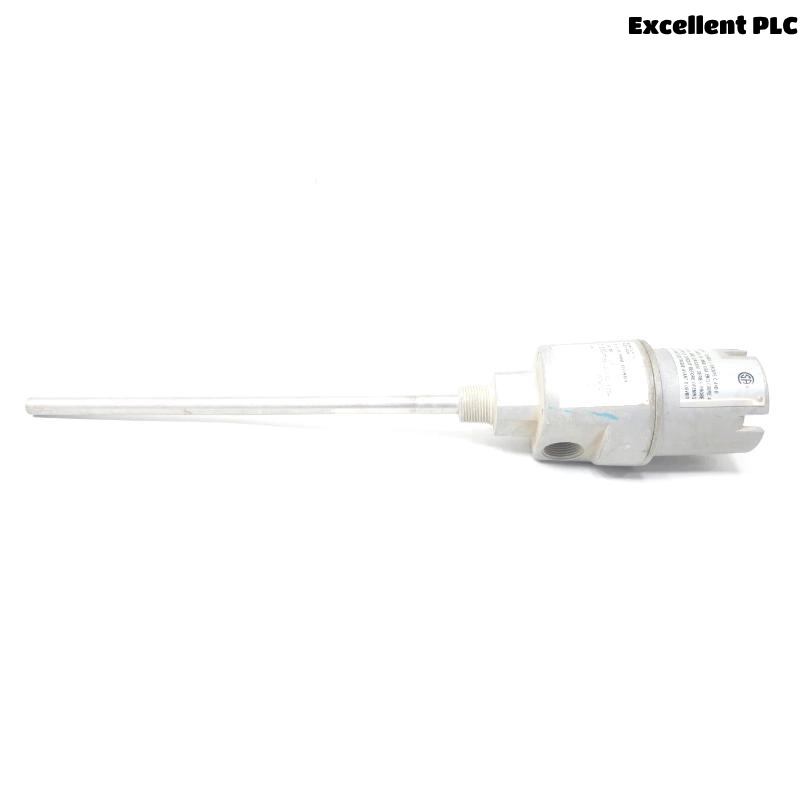

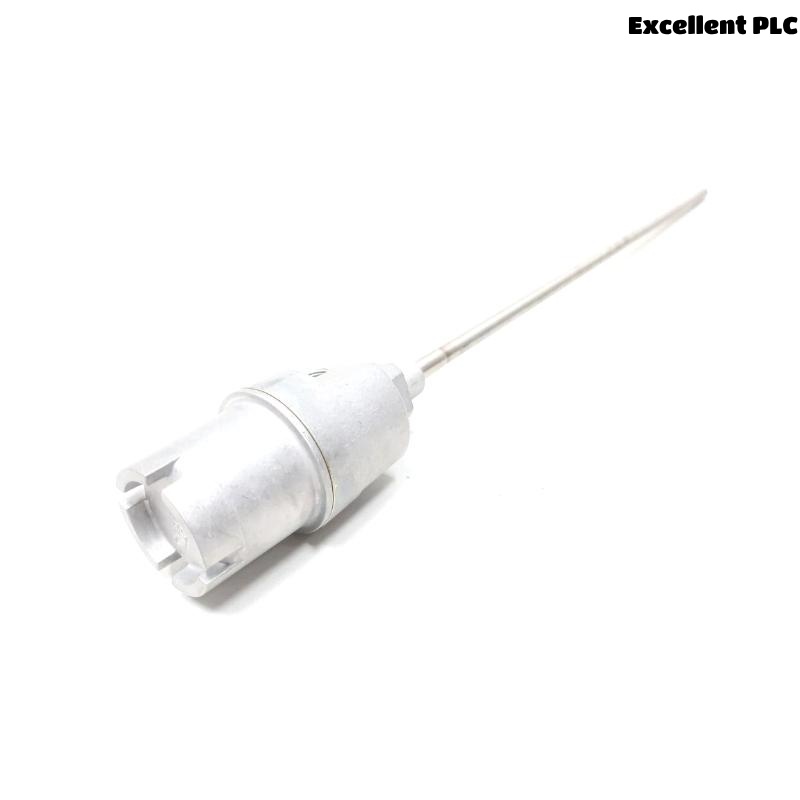

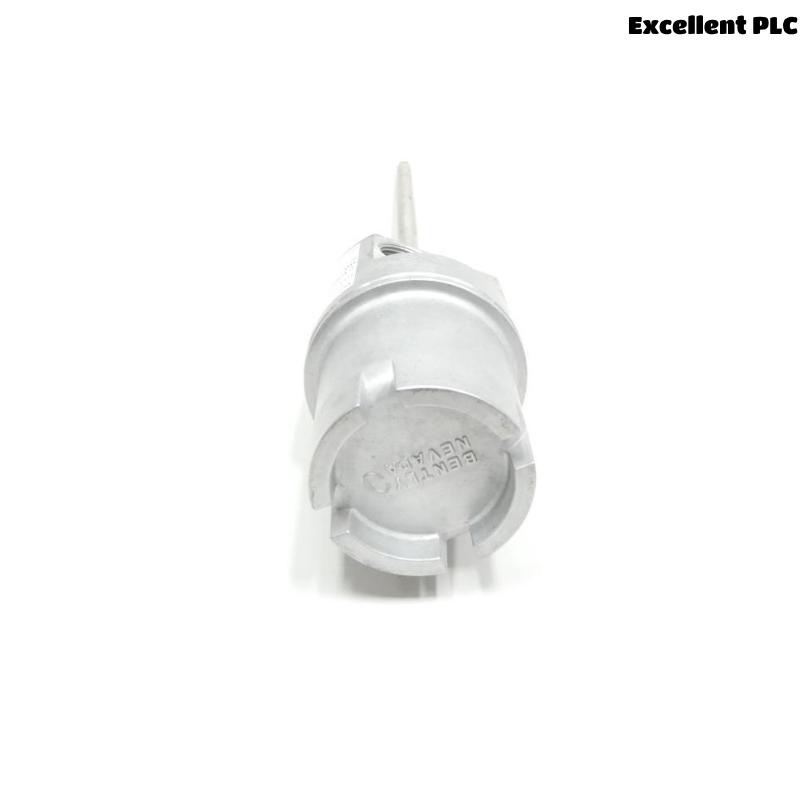

The Bently Nevada 21000-34-10-20-058-04-02 is an all-metal proximity probe housing assembly designed for external mounting of reverse mount proximity probes. Constructed from lightweight aluminum with stainless steel sleeves, it offers robust environmental protection and CSA-certified explosion-proof capabilities for hazardous area applications. It fully complies with API 670 standards for proximity probe housings.
Technical Specifications
| Parameter | Value |
|---|---|
| Housing Body Material | Aluminum |
| Sleeve Material | 304 Stainless Steel |
| Housing Body Diameter | 83.3 mm |
| Housing Body Weight | 1.1 kg (2.4 lbs) |
| Temperature Range (Operation) | -51°C to +177°C (-60°F to +351°F) |
| CSA Rating | Explosion-proof (Class I Div 1 & 2, Grp C, D) |
| Enclosure Rating | Type 4 |
| Mounting Thread | 3/4-14 NPT (Option F:02) |
| Probe Compatibility | 3300 XL 8mm, 11mm, NSv, 420 Nuclear |
| Probe Cable Length Options | 0.5 m, 1.0 m, and custom |
| Probe Penetration Length | Customizable via options C & D |
Applications
-
External mounting of proximity probes in rotating machinery
-
Monitoring shaft vibration and position in turbines, compressors, and motors
-
Hazardous environments requiring CSA explosion-proof certification
-
Machinery conforming to API 670 specifications
Advantages
-
CSA-certified for hazardous area use
-
Constructed from corrosion-resistant materials
-
Compliant with API 670 for critical machine monitoring
-
Modular configuration allows custom probe lengths and adapters
-
Optional standoff adapter and fittings increase installation flexibility
-
Robust performance in extreme temperature conditions
Frequently Asked Questions (FAQs)
Q1: What materials is the 21000 housing made from?
A1: The body is aluminum, and the probe sleeve is stainless steel.
Q2: Is the housing suitable for hazardous areas?
A2: Yes, it is CSA certified as explosion-proof for Class I, II, III hazardous areas.
Q3: What probes are compatible with this housing?
A3: It supports Bently Nevada 3300 XL 8mm, NSv, 11mm, and 420 Nuclear probes.
Q4: Can I customize the probe cable length?
A4: Yes, options from 0.5 to 1.0 meters and custom lengths are available.
Q5: What standards does it comply with?
A5: It complies with API 670 and CSA Type 4 enclosure standards.
Q6: Is it suitable for high-temperature environments?
A6: Yes, it operates from -51°C to +177°C.
Q7: What are the thread mounting options?
A7: Standard option is 3/4-14 NPT (Option F:02), others available per order.
Q8: Can I install it without conduit fittings?
A8: Yes, you can choose to include or exclude conduit fittings.
Q9: Is the housing explosion-proof by default?
A9: Only if ordered with appropriate CSA-certified fittings (e.g., E:00, E:01).
Q10: Does it come with the proximity probe included?
A10: It can be ordered with or without the probe, based on Option A.
