Product Overview

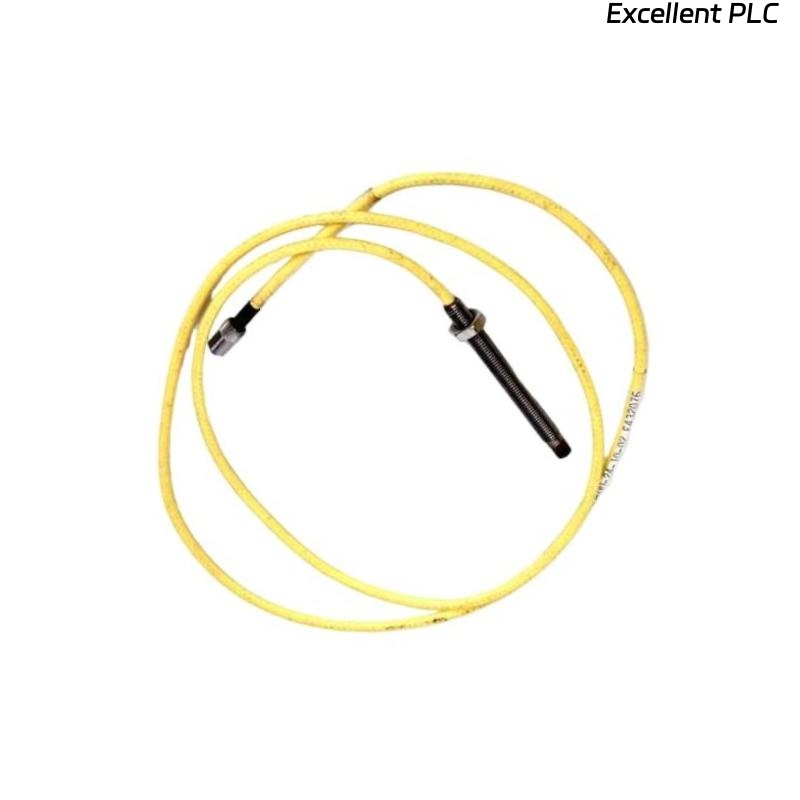

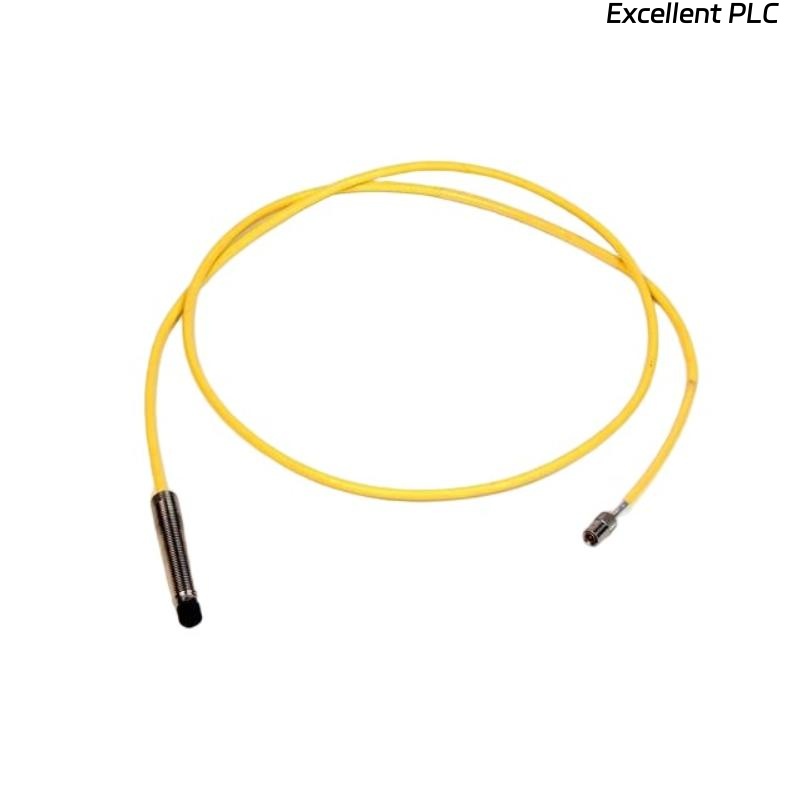

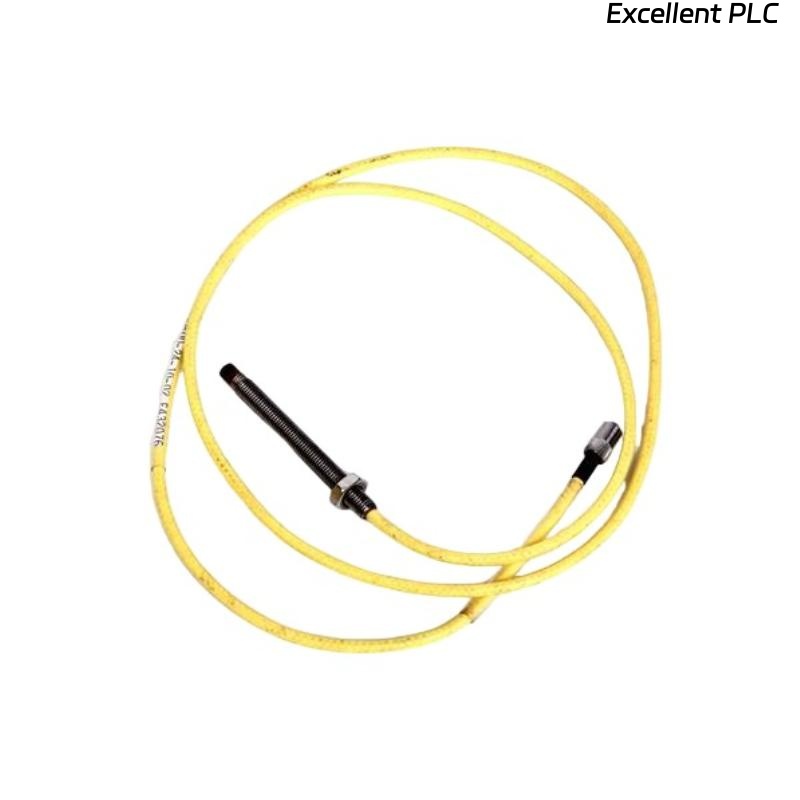

The Bently Nevada 21500-04-02-10-02 7200 5mm Probe is a high-precision proximity transducer designed for accurate measurement of shaft vibration, displacement, and position in critical rotating machinery. As part of the Bently Nevada 7200 Series, it ensures reliable monitoring for machinery protection and condition monitoring systems.
Key Features
-
Part of the Bently Nevada 7200 Proximitor® Monitoring System
-
5 mm tip diameter for precise proximity sensing
-
Designed for shaft vibration, displacement, and phase reference monitoring
-
High accuracy and long-term stability in challenging industrial conditions
-
Compatible with Bently Nevada extension cables and Proximitor® sensors
-
Rugged and durable construction for reliable long-term operation
Technical Specifications
| Item | Specification |
|---|---|
| Model Number | 21500-04-02-10-02 |
| Series | Bently Nevada 7200 |
| Probe Type | Proximity Probe |
| Tip Diameter | 5 mm |
| Sensitivity | System dependent (with matching Proximitor®) |
| Linear Range | Typically 0.25 mm to 2.0 mm (system dependent) |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -40 °C to +200 °C |
| Humidity | 95% RH, non-condensing |
| Dimensions | 5 mm diameter |
| Weight | Shipping weight 3 kg |
| Cable Type | Integral cable (length defined by part number) |
| Mounting | Threaded sleeve or probe holder |
| Compatibility | Bently Nevada 7200 Proximitor® Sensors and Extension Cables |
Industry Applications
-
Power Generation – Turbine vibration and shaft position monitoring
-
Oil & Gas – Compressor and pump protection systems
-
Petrochemical – Condition monitoring of rotating machinery
-
Manufacturing – Monitoring motors and industrial drives
-
Aerospace & Defense – High-reliability machinery monitoring
Advantages
-
Accurate measurement of vibration and displacement for critical machinery
-
Supports predictive maintenance and early fault detection
-
Long service life in demanding industrial environments
-
Fully compatible with Bently Nevada 7200 monitoring systems
-
Reduces unplanned downtime and maintenance costs
Frequently Asked Questions (FAQ)
Q1: What is the primary use of the 21500-04-02-10-02 probe?
It is used for measuring shaft vibration, displacement, and position in rotating machinery.
Q2: What probe diameter does this model have?
It has a 5 mm tip diameter.
Q3: Which system is it compatible with?
It is compatible with the Bently Nevada 7200 Proximitor® Monitoring System.
Q4: What is the typical linear measurement range?
Approximately 0.25 mm to 2.0 mm, depending on the system configuration.
Q5: Can it operate in high-temperature environments?
Yes, it can operate from -35 °C to +177 °C.
Q6: How is the probe mounted?
It is mounted using a threaded sleeve or probe holder.
Q7: Does the probe come with a cable?
Yes, it has an integral cable; the length is defined by the part number.
Q8: What is the typical weight of the probe?
It’s shipping weight 3 kg.
Q9: What industries commonly use this probe?
Oil & gas, power generation, petrochemical, manufacturing, and aerospace.
Q10: Is it compatible with extension cables?
Yes, it is designed for use with matching Bently Nevada extension cables and Proximitor® sensors.
