Product Introduction

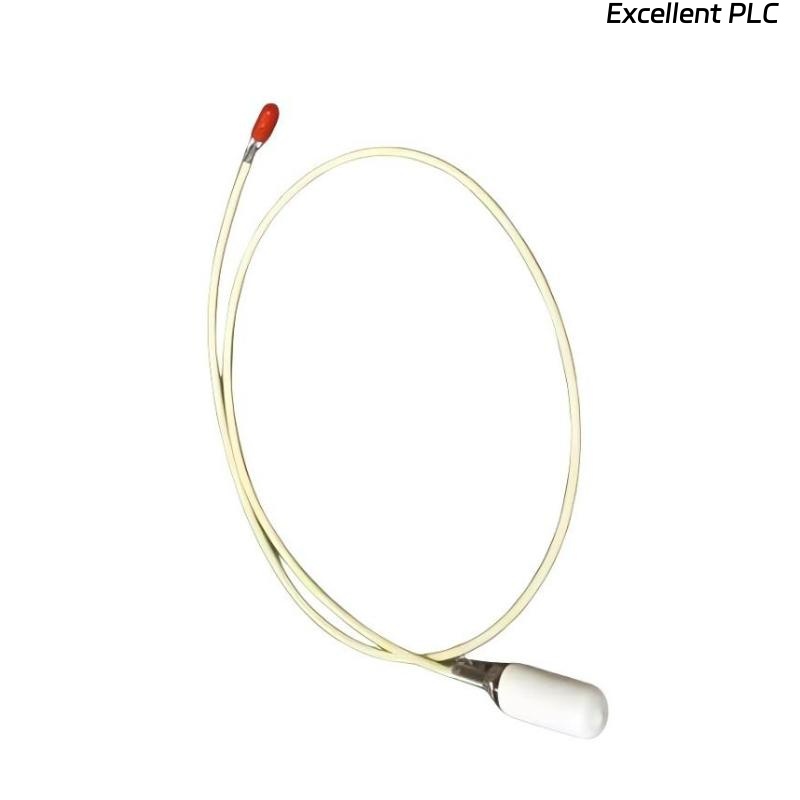

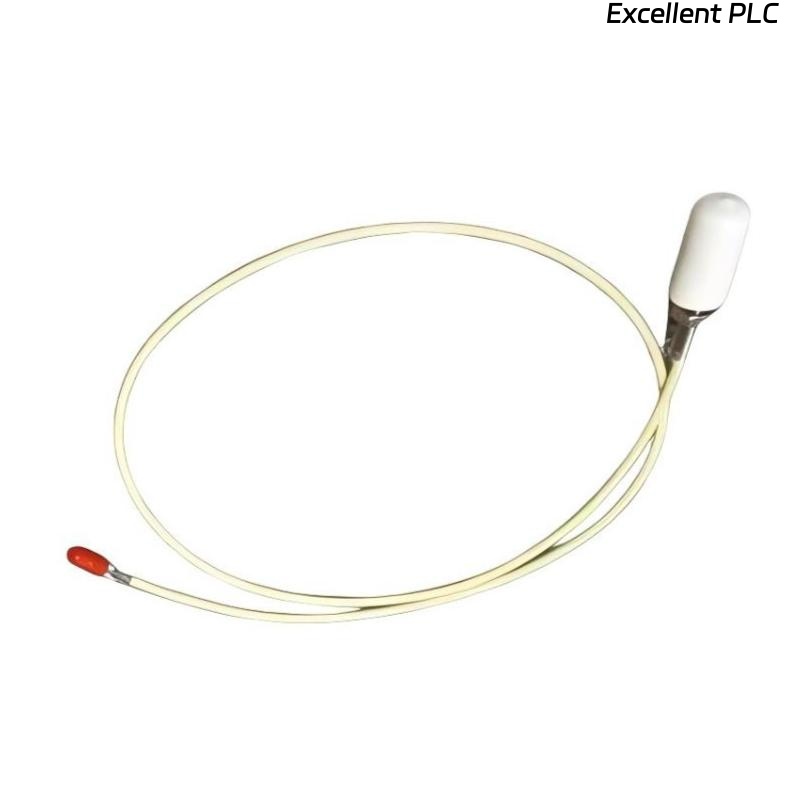

The Bently Nevada 21504-00-24-10-02 7200 8mm Standard Mount Probe is a precision displacement probe designed for industrial machinery monitoring and vibration analysis. As part of the 7200 Series, it provides accurate measurements of shaft vibration and displacement, making it an essential component for machinery protection, condition monitoring, and predictive maintenance programs.

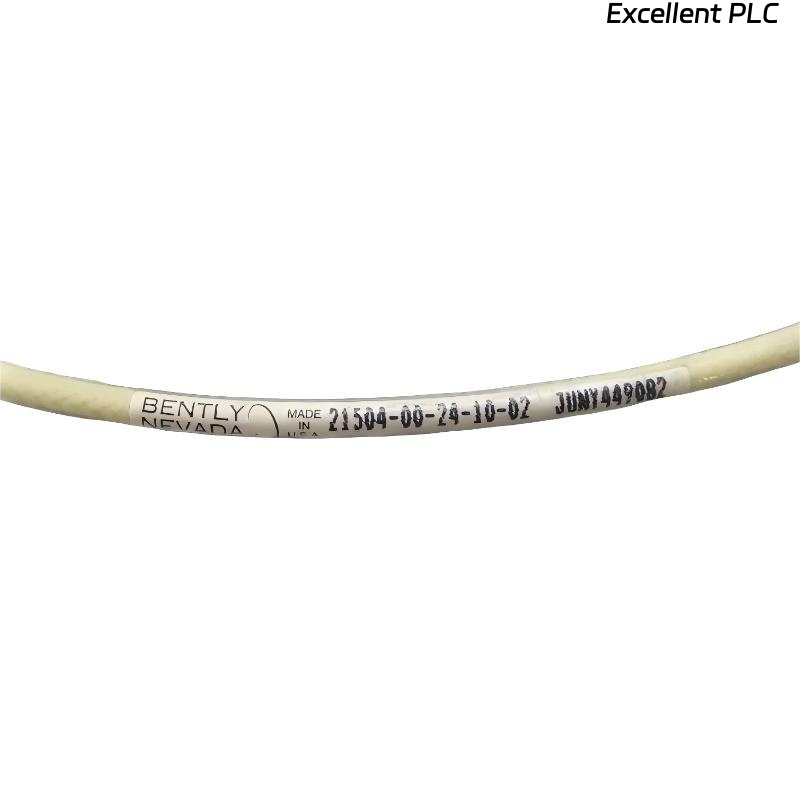

This probe features an 8 mm tip diameter and comes with a 1.0-metre integrated cable, which allows flexible positioning during installation. It is engineered to provide high-fidelity signal transmission, ensuring reliable data collection even in challenging industrial environments with mechanical vibration, electrical noise, and temperature variations.
The 21504-00-24-10-02 probe is commonly used with Bently Nevada 7200 Series monitoring systems in applications including turbines, compressors, pumps, and motors, helping operators detect issues such as misalignment, unbalance, or bearing wear before they escalate into costly failures.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 21504-00-24-10-02 |
| Series | 7200 Series |
| Probe Type | Standard mount displacement probe |
| Tip Diameter | 8 mm |
| Total Length | 1.0 metre |
| Weight | 0.22 kg |
| Cable Type | Shielded for low-noise signal transmission |
| Operating Temperature Range | -40°C to +85°C |
| Material | Stainless steel probe body, durable insulated cable |
| Signal Type | Analog displacement signal for 7200 Series monitors |
| Mounting Style | Standard threaded or clamp mount |
| Frequency Response | Suitable for high-speed rotating machinery |
| Compatibility | Bently Nevada 7200 Series monitoring system |
| Certifications | CE marked, RoHS compliant |
Product Applications
The 21504-00-24-10-02 probe is designed for high-precision machinery monitoring in industrial applications:
-
Rotating Machinery Monitoring: Measures shaft displacement and vibration in turbines, motors, compressors, and pumps.
-
Predictive Maintenance: Enables early detection of mechanical issues to prevent downtime.
-
Vibration Analysis: Provides reliable analog signals for analysis using 7200 Series systems.
-
Industrial Automation: Ensures accurate shaft position monitoring in manufacturing and process industries.
-
Energy Sector: Suitable for hydro, steam, and gas turbine applications.
-
Heavy Industry Applications: Pulp and paper, steel, and mining machinery monitoring.
Product Advantages
-
High Accuracy: Provides precise displacement measurements for critical machinery monitoring.
-
Robust Design: Stainless steel construction with shielded cable ensures durability.
-
Flexible Installation: 1.0-metre cable allows versatile mounting options.
-
Standard Mounting: 8 mm tip fits threaded or clamp mounts for easy integration.
-
Low-Noise Transmission: Shielded cable reduces EMI for accurate signal transmission.
-
Predictive Maintenance Support: Enables continuous monitoring for early detection of faults.
-
Wide Temperature Range: Reliable operation from -40°C to +85°C.
-
Vibration Resistant: Maintains accuracy under high-speed machinery vibration.
-
System Compatibility: Works seamlessly with Bently Nevada 7200 Series monitors.
-
Ease of Integration: Simplified installation for existing monitoring setups.
FAQ
1. What is the tip diameter of the 21504-00-24-10-02 probe?
It has an 8 mm tip diameter, compatible with standard 7200 Series mounting systems.
2. What is the total cable length of this probe?
The probe includes a 1.0-metre cable, allowing flexible installation and sensor placement.
3. Is the cable shielded to prevent interference?
Yes, it features a shielded cable to minimize electromagnetic interference and maintain signal fidelity.
4. What type of signal does the probe output?
It produces an analog displacement signal, compatible with 7200 Series monitoring systems.
5. What is the operating temperature range for this probe?
The probe operates between -40°C and +85°C, suitable for industrial environments.
6. Can this probe be used with high-speed rotating machinery?
Yes, it is designed for high-speed turbines, motors, compressors, and pumps, maintaining signal accuracy under vibration.
7. How can this probe be mounted?
It supports threaded or clamp mounting, enabling flexible installation options.
8. Is this probe compatible with Bently Nevada 7200 Series monitors?
Yes, it is fully compatible with all 7200 Series monitoring systems.
9. Can this probe be used for predictive maintenance programs?
Yes, it provides continuous displacement data to support predictive maintenance and early fault detection.
10. Does this probe maintain accuracy in environments with electrical noise?
Yes, the shielded cable design ensures reliable and accurate signal transmission even in high EMI conditions.
Related Models (Same Series)
| Model | Description |
|---|---|
| 21504-00-24-10-01 | 7200 Series standard mount probe with shorter cable |
| 21504-00-24-10-03 | 7200 Series standard mount probe with longer cable |
| 21504-00-24-12-02 | Probe with 12 mm tip diameter for larger shafts |
| 21504-00-24-08-05 | Flexible mount probe for tight installation areas |
| 21504-00-24-10-05 | High-temperature 7200 Series probe |
| 21504-00-24-10-06 | Probe with reinforced shielding for EMI-prone areas |
