Product Introduction

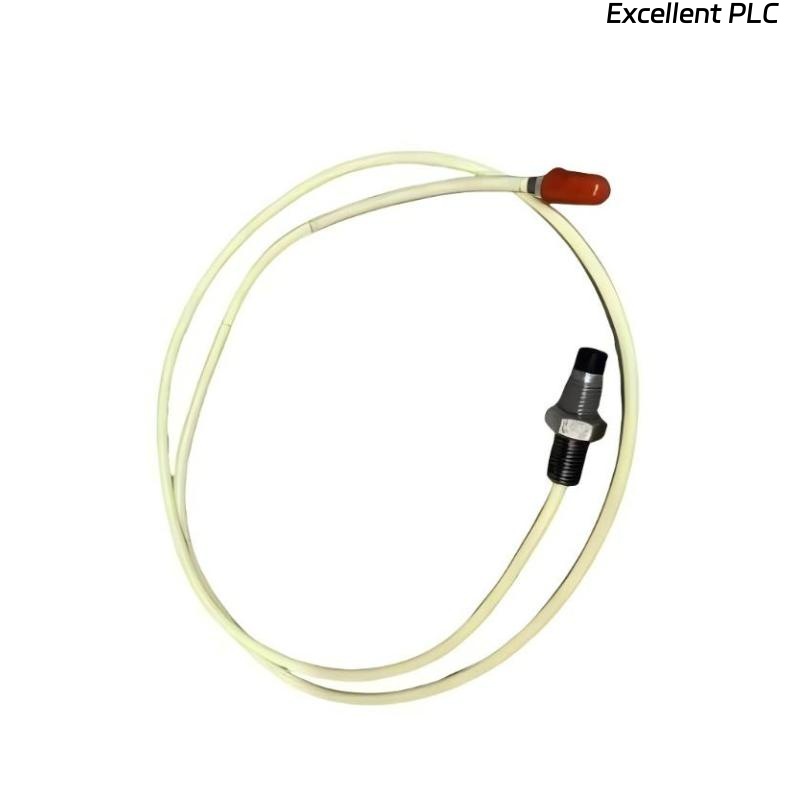

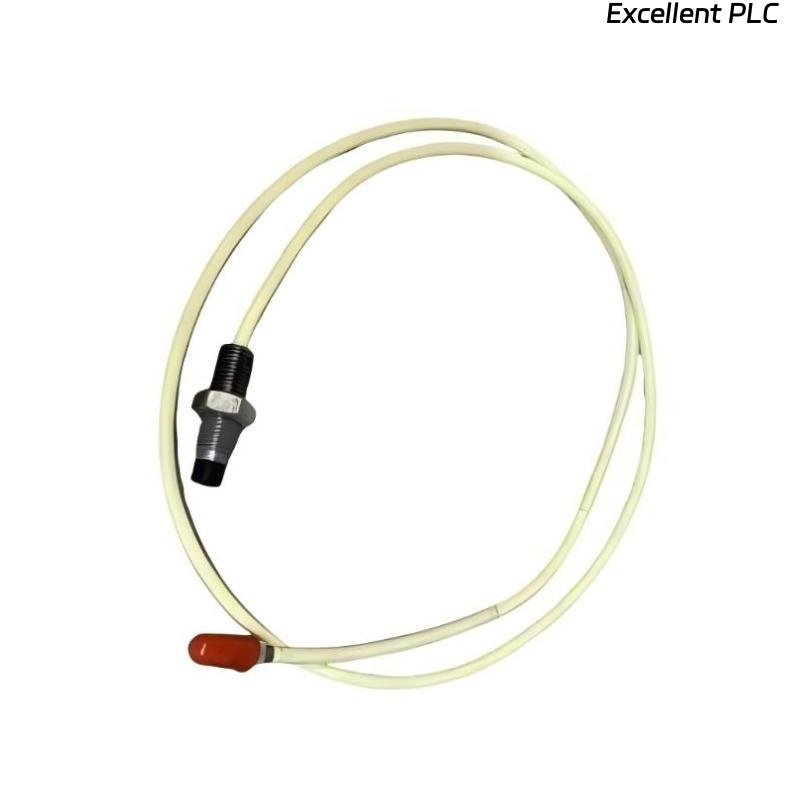

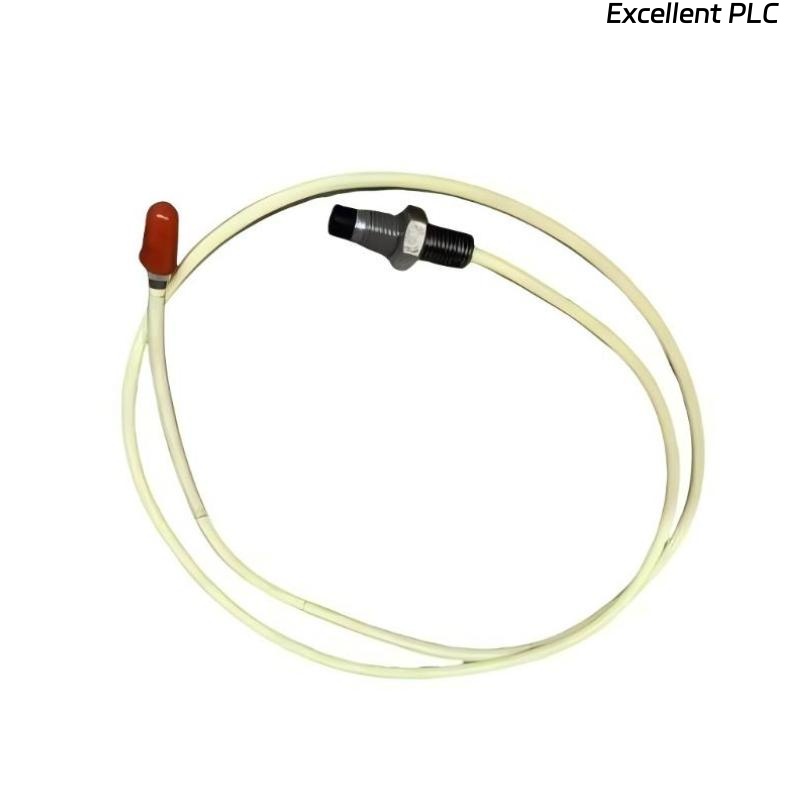

The Bently Nevada 21504-00-48-10-00 7200 8mm Standard Mount Probe is a high-precision displacement probe designed for industrial machinery monitoring and vibration analysis. As part of the 7200 Series, it provides reliable measurements of shaft vibration and displacement, which are critical for predictive maintenance, condition monitoring, and machinery protection programs.
Featuring an 8 mm tip diameter, this probe ensures accurate displacement measurement and integrates seamlessly with Bently Nevada 7200 Series monitoring systems. Its construction is designed to withstand the demands of harsh industrial environments, including mechanical vibration, electrical noise, and temperature variations, while maintaining high signal fidelity.
The 21504-00-48-10-00 probe is used extensively in turbines, compressors, pumps, motors, and other rotating machinery to detect early signs of mechanical faults such as unbalance, misalignment, or bearing wear, enabling operators to implement proactive maintenance strategies.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 21504-00-48-10-00 |
| Series | 7200 Series |
| Probe Type | Standard mount displacement probe |
| Tip Diameter | 8 mm |
| Total Length | 1.0 metre |
| Weight | 0.22 kg |
| Cable Type | Shielded for low-noise signal transmission |
| Operating Temperature Range | -40°C to +85°C |
| Material | Stainless steel probe body, durable insulated cable |
| Signal Type | Analog displacement signal compatible with 7200 Series monitors |
| Mounting Style | Standard threaded or clamp mount |
| Frequency Response | Suitable for high-speed rotating machinery |
| Compatibility | Bently Nevada 7200 Series monitoring system |
| Certifications | CE marked, RoHS compliant |
Product Applications
The 21504-00-48-10-00 probe is suitable for a wide range of industrial applications, including:
-
Rotating Machinery Monitoring: Accurate measurement of shaft displacement and vibration in turbines, motors, compressors, and pumps.
-
Predictive Maintenance Programs: Continuous monitoring enables early detection of mechanical issues to prevent downtime.
-
Vibration Analysis: Provides reliable analog signals for real-time analysis with 7200 Series monitoring systems.
-
Industrial Automation: Ensures precise shaft position monitoring in manufacturing and process industries.
-
Energy Sector Applications: Ideal for hydro, steam, and gas turbine machinery monitoring.
-
Heavy Industry: Monitoring of machinery in steel, mining, and pulp and paper industries for operational safety and efficiency.
Product Advantages
-
High Precision: Delivers accurate displacement measurements for critical machinery.
-
Robust Industrial Design: Stainless steel probe body and shielded cable ensure durability in harsh environments.
-
Standard Mount Compatibility: 8 mm tip fits threaded or clamp mounts for easy integration.
-
Low-Noise Signal Transmission: Shielded cable minimizes electromagnetic interference for reliable data.
-
Predictive Maintenance Support: Enables continuous monitoring for early fault detection.
-
Wide Temperature Range: Operates effectively from -40°C to +85°C.
-
Vibration Resistant: Maintains signal accuracy under high-speed rotating machinery vibration.
-
System Compatibility: Fully compatible with Bently Nevada 7200 Series monitors.
-
Ease of Installation: Supports flexible mounting configurations.
-
Industrial Reliability: Built to withstand challenging operational conditions without degradation of performance.
FAQ
1. What is the tip diameter of the 21504-00-48-10-00 probe?
It features an 8 mm tip diameter, compatible with standard 7200 Series mounting systems.
2. What type of signal does this probe produce?
It outputs an analog displacement signal, suitable for use with Bently Nevada 7200 Series monitors.
3. Is the cable shielded to prevent interference?
Yes, the probe uses a shielded cable, ensuring accurate signal transmission in environments with electrical noise.
4. What is the operating temperature range of this probe?
The probe operates between -40°C and +85°C, making it suitable for harsh industrial conditions.
5. Can this probe be used with high-speed rotating machinery?
Yes, it is designed to maintain signal integrity under high-speed vibration conditions common in turbines, motors, and compressors.
6. How is this probe mounted on machinery?
The probe supports standard threaded or clamp mounting, allowing versatile installation.
7. Is this probe compatible with Bently Nevada 7200 Series monitors?
Yes, it is fully compatible with 7200 Series monitoring systems for displacement and vibration measurements.
8. Can this probe be used in predictive maintenance programs?
Yes, it provides continuous data for predictive maintenance and early fault detection.
9. Does this probe perform reliably in electrically noisy environments?
Yes, the shielded cable and robust construction maintain accuracy even under high EMI conditions.
10. What types of machinery are suitable for this probe?
It is suitable for turbines, compressors, pumps, motors, and other rotating machinery where shaft displacement and vibration monitoring are required.
Related Models (Same Series)
| Model | Description |
|---|---|
| 21504-00-48-10-01 | 7200 Series standard mount probe with alternate tip configuration |
| 21504-00-48-10-03 | 7200 Series standard mount probe with extended cable option |
| 21504-00-48-12-02 | Probe with 12 mm tip diameter for larger shafts |
| 21504-00-48-08-05 | Flexible mount probe for tight installation spaces |
| 21504-00-48-10-05 | High-temperature 7200 Series probe |
| 21504-00-48-10-06 | EMI-shielded probe for high-noise environments |
