Product Introduction

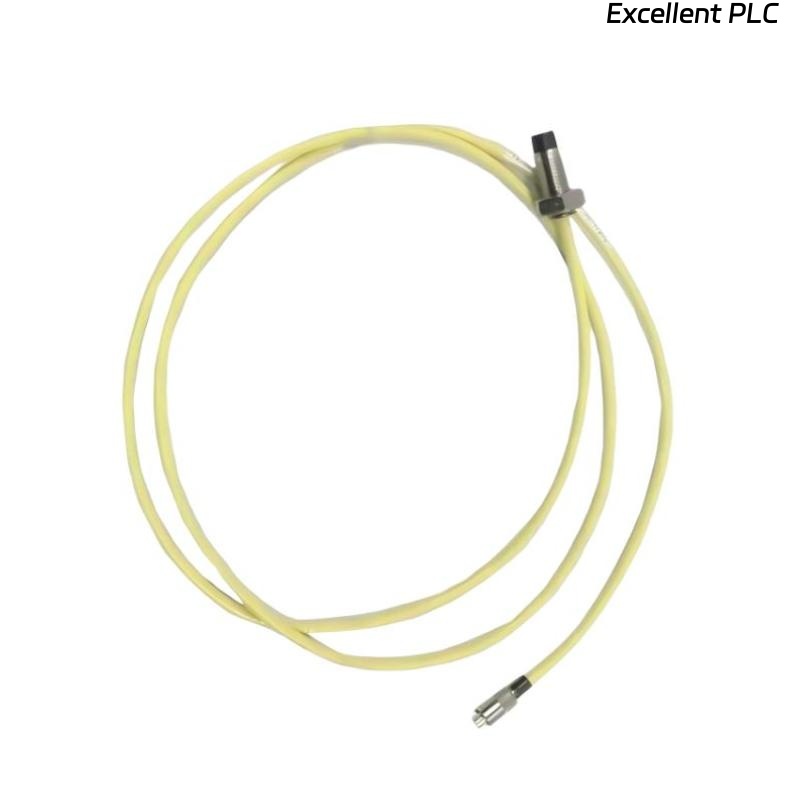

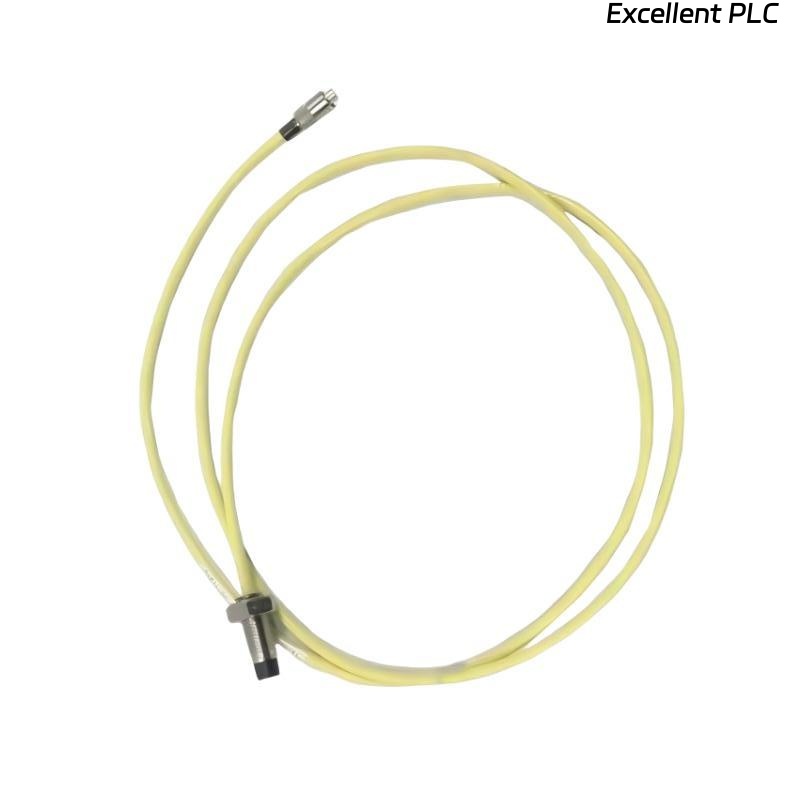

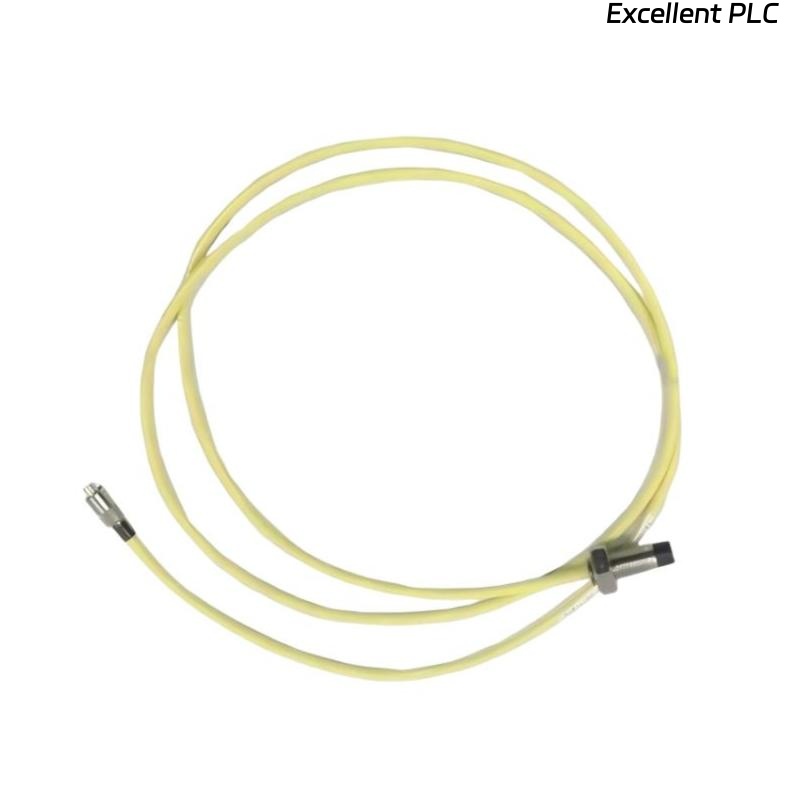

The Bently Nevada 21504-000-024-10-02 7200 8mm Standard Mount Probe is a precision displacement probe designed for rotating machinery monitoring and vibration analysis. It is part of the 7200 Series, widely used in industrial environments to provide reliable, high-fidelity measurements of shaft vibration and position.
This probe features an 8 mm tip diameter for standard mounting and is equipped with a 1.0-metre cable for flexible installation in machinery control systems. It is engineered to maintain accurate signal transmission, ensuring that displacement measurements are precise and stable under varying operational conditions. The 21504-000-024-10-02 probe is compatible with Bently Nevada 7200 monitoring systems, making it suitable for machinery protection, predictive maintenance, and condition monitoring applications.
Its robust construction allows operation in industrial environments with electrical noise, temperature variations, and mechanical stress, ensuring reliable performance over long-term use.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | Bently Nevada 21504-000-024-10-02 |
| Series | 7200 Series |
| Probe Type | Standard mount displacement probe |
| Tip Diameter | 8 mm |
| Total Length | 1.0 metre |
| Weight | 0.22 kg |
| Cable Type | Shielded for low-noise signal transmission |
| Operating Temperature Range | -40°C to +85°C |
| Material | Stainless steel probe body, durable insulation cable |
| Signal Type | Analog displacement signal compatible with 7200 Series monitors |
| Mounting Style | Standard threaded or clamp mount |
| Frequency Response | Suitable for high-speed rotating machinery vibrations |
| Compatibility | Bently Nevada 7200 Series monitoring system |
| Certification | CE marked, RoHS compliant |
Product Applications
The 21504-000-024-10-02 probe is widely used for industrial machinery vibration monitoring and condition assessment:
-
Rotating Machinery Monitoring: Turbines, compressors, motors, and pumps for detecting unbalance, misalignment, and bearing issues.
-
Predictive Maintenance: Provides continuous displacement data to anticipate equipment failures.
-
Vibration Analysis: Works with Bently Nevada 7200 Series systems to monitor shaft position and vibration.
-
Industrial Automation: Ensures accurate measurement of rotating equipment in chemical, manufacturing, and power generation industries.
-
Energy Sector: Used in hydroelectric, gas, and steam turbine monitoring.
-
Pulp and Paper Industry: Monitors high-speed rotating machinery for operational safety and efficiency.
Product Advantages
-
High Precision: Provides accurate displacement measurements for critical machinery.
-
Robust Design: Stainless steel probe and shielded cable for reliable performance in harsh industrial environments.
-
Flexible Installation: 1.0-metre cable allows versatile mounting options.
-
Standard Mount Compatibility: 8 mm tip fits standard mounting systems for easy integration.
-
Low-Noise Signal Transmission: Shielded cable reduces electromagnetic interference.
-
Predictive Maintenance Support: Enables continuous monitoring for early detection of equipment issues.
-
Wide Temperature Range: Operates reliably from -40°C to +85°C.
-
Industrial Reliability: Designed for vibration and rotational monitoring in heavy-duty environments.
-
System Compatibility: Fully compatible with Bently Nevada 7200 Series monitors.
-
Ease of Integration: Threaded or clamp mount allows straightforward installation in existing systems.
FAQ
1. What is the tip diameter of this probe?
The probe features an 8 mm tip diameter, suitable for standard mounting applications.
2. What is the total length of the probe cable?
It comes with a 1.0-metre cable, providing flexibility for installation and sensor placement.
3. Is the cable shielded against electrical interference?
Yes, the cable is shielded to minimize noise and ensure high-fidelity signal transmission.
4. What type of signal does the probe generate?
The probe produces an analog displacement signal, compatible with Bently Nevada 7200 Series monitors.
5. What is the operating temperature range of the probe?
It operates reliably in temperatures from -40°C to +85°C, suitable for industrial environments.
6. Can this probe be used on all rotating machinery?
Yes, it is suitable for turbines, compressors, motors, and pumps where shaft vibration monitoring is required.
7. What mounting options are available for this probe?
The probe supports threaded or clamp mounting, allowing versatile integration into machinery.
8. Is this probe compatible with Bently Nevada 7200 Series monitors?
Yes, it is fully compatible with all 7200 Series monitoring systems.
9. Does this probe provide reliable performance in high-vibration environments?
Yes, it is designed for high-speed rotating machinery, maintaining stable and accurate measurements under vibration.
10. Can this probe be used for predictive maintenance programs?
Absolutely. It enables continuous monitoring of machinery vibration and shaft displacement, supporting predictive maintenance and early fault detection.
Related Models (Same Series)
| Model | Description |
|---|---|
| 21504-000-024-10-01 | 7200 Series standard mount probe, shorter cable |
| 21504-000-024-10-03 | 7200 Series standard mount probe with longer cable |
| 21504-000-024-12-02 | Probe with 12 mm tip diameter for larger shaft clearance |
| 21504-000-024-08-05 | Flexible mount probe for tight installation spaces |
| 21504-000-024-10-05 | High-temperature 7200 Series probe |
| 21504-000-024-10-06 | Probe with reinforced shield for EMI protection |
