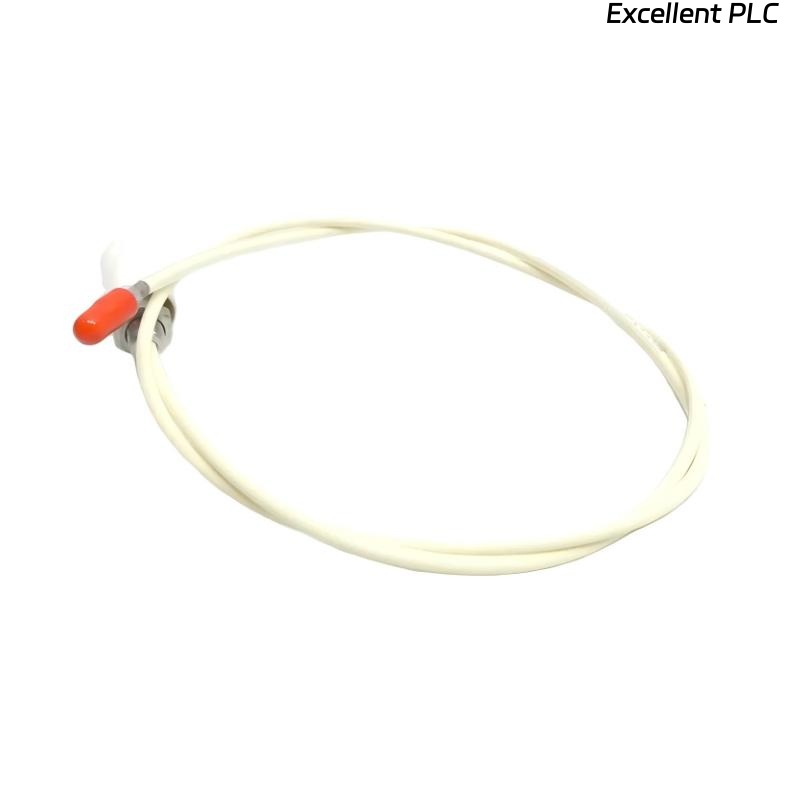

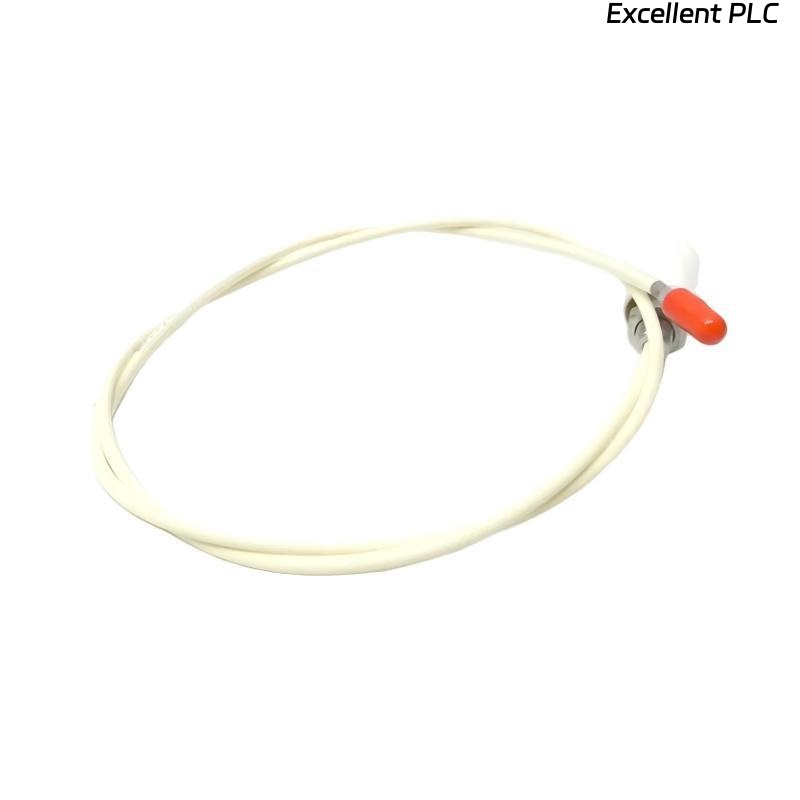

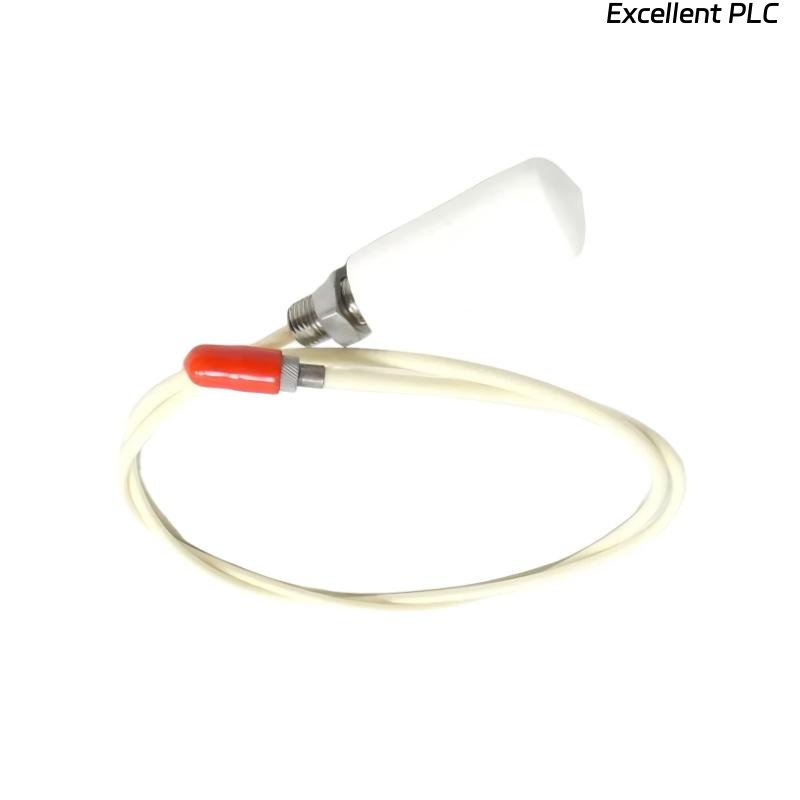

The Bently Nevada 21504-04-36-10-02 7200 8mm Standard Mount Probe is a high-precision proximity sensor designed for accurate, stable, and long-term displacement and vibration measurement in rotating machinery. It belongs to the well-established 7200 Proximity Transducer System family developed by Bently Nevada, which has set the industry standard for machinery protection and condition monitoring.

This probe functions based on the eddy current principle, detecting the distance between the probe tip and a conductive target surface—typically a rotating shaft. The resulting signal is proportional to the gap distance, allowing for precise vibration and position monitoring. With its 8mm sensing tip, 1-meter total length, and rugged stainless-steel construction, the 21504-04-36-10-02 probe offers an ideal balance between measurement sensitivity, mechanical durability, and installation flexibility.

The probe is engineered for reliable operation in demanding industrial environments such as power generation, oil and gas, and petrochemical facilities. Its corrosion-resistant body and sealed design ensure consistent performance even in the presence of oil, moisture, and vibration. When paired with compatible proximitor and extension cables, it forms part of a complete proximity transducer system capable of delivering continuous and real-time machine diagnostics.

---

Product Parameters

---

Product Applications

The Bently Nevada 21504-04-36-10-02 8mm Standard Mount Probe is engineered for use in critical machinery monitoring and protection systems. It is widely adopted in industrial sectors that rely on continuous, real-time vibration and position measurement. Common applications include:

• Steam and Gas Turbines: Used for radial vibration and axial thrust position monitoring, preventing rotor instability and bearing wear.

• Compressors: Provides precise measurement of shaft motion and vibration, crucial for maintaining compressor efficiency and safety.

• Electric Motors and Generators: Detects shaft displacement, misalignment, and unbalance conditions to reduce mechanical failures.

• Gearboxes: Monitors dynamic shaft motion for identifying mechanical wear, gear mesh faults, or imbalance.

• Pumps and Fans: Measures vibration levels to identify early signs of cavitation, misalignment, or bearing degradation.

• Condition Monitoring Systems: Seamlessly integrates with Bently Nevada’s 7200 and 3300 systems for continuous predictive maintenance and data acquisition.

---

Product Advantages

The Bently Nevada 21504-04-36-10-02 8mm Probe stands out for its precision, rugged construction, and long-term stability, ensuring reliable performance even in harsh industrial environments. Its major advantages include:

• High Accuracy and Stability: Provides linear and repeatable displacement measurements across the specified range.

• Robust Construction: Stainless steel housing and durable PEEK insulation withstand mechanical stress and corrosive media.

• Wide Operating Temperature Range: Performs reliably in high-temperature and dynamic conditions up to +177°C.

• Superior EMI/RFI Shielding: Dual-shielded cable design minimizes interference from surrounding electrical equipment.

• Compatibility with Multiple Systems: Fully compatible with Bently Nevada 7200 and 3300 proximitor modules, ensuring flexible integration.

• Long Cable Flexibility: The 1-meter integral cable allows for versatile routing and easy installation in confined machinery areas.

• Resistant to Harsh Environments: Sealed against oil and moisture, ensuring uninterrupted signal transmission.

• Proven Industrial Reliability: Used worldwide in power generation, petrochemical, and manufacturing sectors for decades.

• Maintenance-Free Operation: Designed for long-term reliability without recalibration under normal operating conditions.

• Enhanced Signal Integrity: Maintains high signal-to-noise ratio for precise machinery diagnostics.

---

FAQ

1. Which monitoring systems are compatible with the 21504-04-36-10-02 probe?
   It is fully compatible with Bently Nevada 7200, 3300, and 3300 XL series proximitor systems.

2. What is the measurement range of this probe?
   The probe has a linear range of approximately 2.0 mm (80 mils), depending on the system calibration.

3. What is the typical sensitivity of the 8mm probe?
   It delivers a sensitivity of 7.87 V/mm (200 mV/mil).

4. Can this probe operate at high temperatures?
   Yes, it can continuously operate up to +177°C and withstand short-term higher temperatures.

5. What material is the probe calibrated against?
   The standard calibration target is 4140 steel, consistent with Bently Nevada’s factory standards.

6. Does the probe require a specific proximitor module?
   It is designed for use with the 7200 and 3300 proximitor modules that match the 8mm probe specifications.

7. Is the probe suitable for measuring both radial and axial motion?
   Yes, it can measure both radial vibration and axial displacement.

8. How does the probe handle electromagnetic interference?
   The double-shielded cable construction ensures effective EMI and RFI rejection.

9. Can the probe operate in oily or humid environments?
   Absolutely. It is fully sealed and resistant to oil, moisture, and most industrial contaminants.

10. How does this probe differ from smaller or larger diameter probes?
    The 8mm probe offers a balance between sensitivity and mechanical durability, making it ideal for most standard machinery applications.

---
