Product Overview

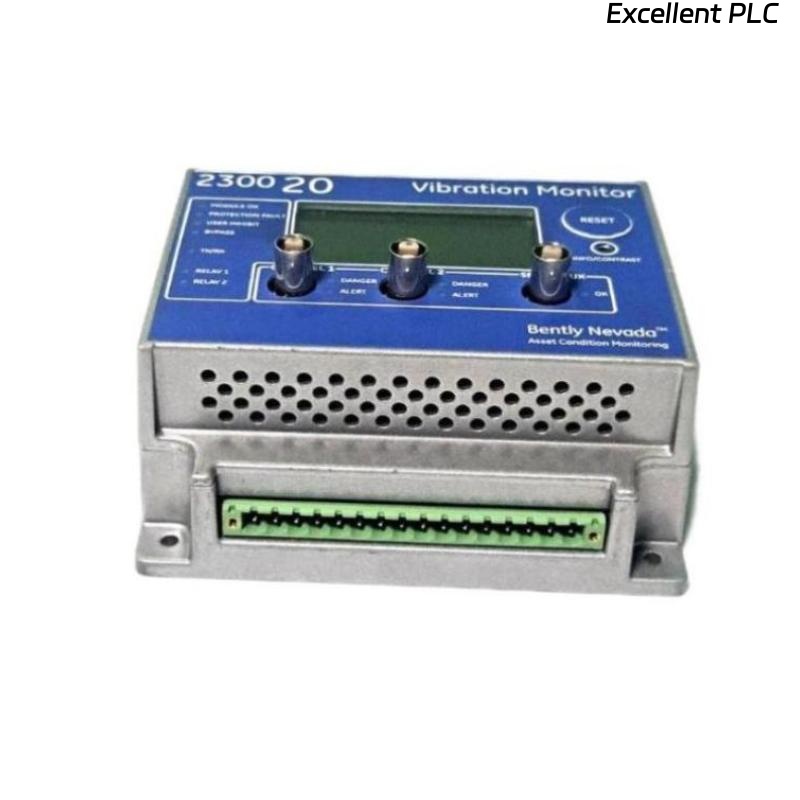

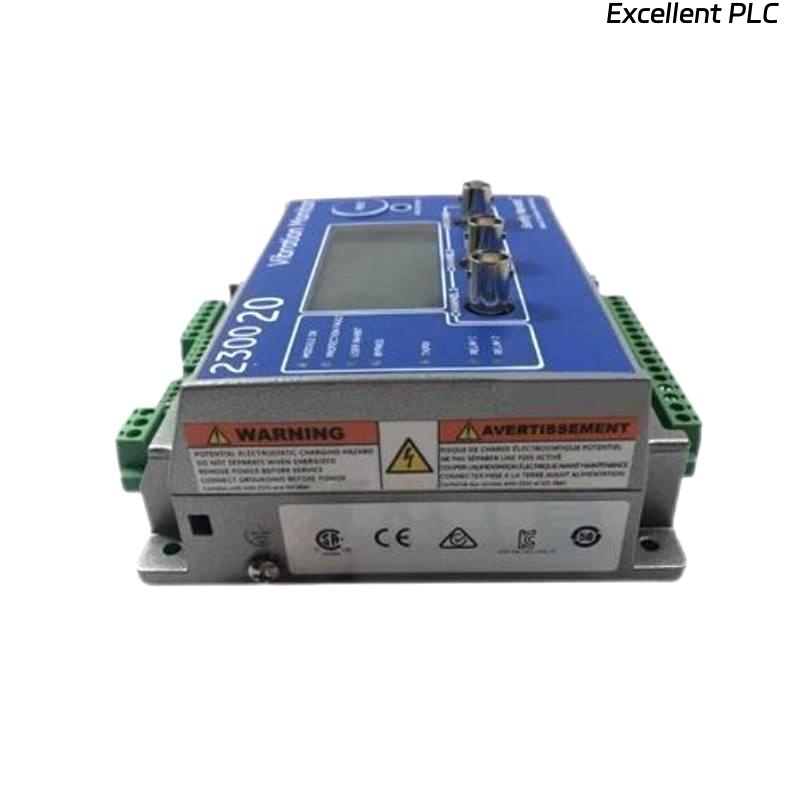

The Bently Nevada 2300/20-00-00 Vibration Monitor is an advanced machinery protection and condition monitoring device designed to safeguard critical rotating equipment. Part of the trusted Bently Nevada 2300 Series, this monitor delivers reliable vibration detection, early fault identification, and continuous data recording. It is specifically engineered for smaller and less complex machines that still require dependable protection, such as pumps, compressors, fans, and gearboxes.
Key Features
-
Continuous monitoring of vibration and shaft condition
-
Dual-channel design for comprehensive machine protection
-
Configurable alarm setpoints for proactive fault detection
-
Direct integration with DCS, PLCs, and SCADA systems
-
Compact and rugged design suitable for harsh environments
-
Real-time data acquisition with Modbus/TCP support
-
Event logging and trending capabilities
-
Cost-effective solution for smaller critical assets
Technical Specifications
General Specifications
| Item | Specification |
|---|---|
| Model Number | 2300/20-00-00 |
| Series | Bently Nevada 2300 Series |
| Function | Vibration monitoring and machine protection |
| Channels | Dual-channel (vibration, speed, or position) |
| Power Supply | 24 V DC nominal |
| Communication | Modbus/TCP, relay outputs |
| Alarm Relays | Configurable, latched or unlatched |
| Mounting | Panel or DIN-rail |
| Operating Temperature | -20 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Certifications | CE, UL, CSA, ATEX (varies by region) |
| Dimensions | 27 x 127 x 76.2 mm |
| Weight | 1.03 kg |
Industry Applications
-
Pumps – Protection against cavitation and imbalance
-
Compressors – Early fault detection for critical equipment
-
Fans & Blowers – Prevent excessive vibration and bearing wear
-
Gearboxes – Monitor shaft vibration for wear detection
-
Industrial Motors – Safeguard against misalignment and imbalance
-
Turbomachinery – Cost-effective monitoring for smaller assets
FAQ (Frequently Asked Questions)
Q1: What type of machinery is the Bently Nevada 2300/20-00-00 best suited for?
It is ideal for pumps, compressors, fans, motors, and gearboxes that require dependable vibration monitoring.
Q2: How many channels does the device support?
It features two independent monitoring channels for vibration, speed, or position measurements.
Q3: Can this monitor integrate with control systems?
Yes, it supports Modbus/TCP for seamless integration with DCS, PLC, and SCADA systems.
Q4: What alarm functions are available?
It includes configurable alarm relays with options for latched or unlatched operation.
Q5: Is the 2300/20-00-00 suitable for hazardous areas?
Certain versions are available with ATEX, UL, and CSA certifications for hazardous environments.
Q6: Does it support condition monitoring as well as protection?
Yes, it provides both protection and condition monitoring through real-time data and event logging.
Q7: What is the power supply requirement?
The monitor operates on a 24 V DC power supply.
Q8: Can the device log historical data?
Yes, it supports event logging and trending capabilities.
Q9: How is the unit installed?
It can be mounted on DIN-rail or directly on a control panel.
Q10: What makes it cost-effective compared to larger systems?
It offers essential monitoring and protection features at a lower cost, making it ideal for smaller critical machines.
