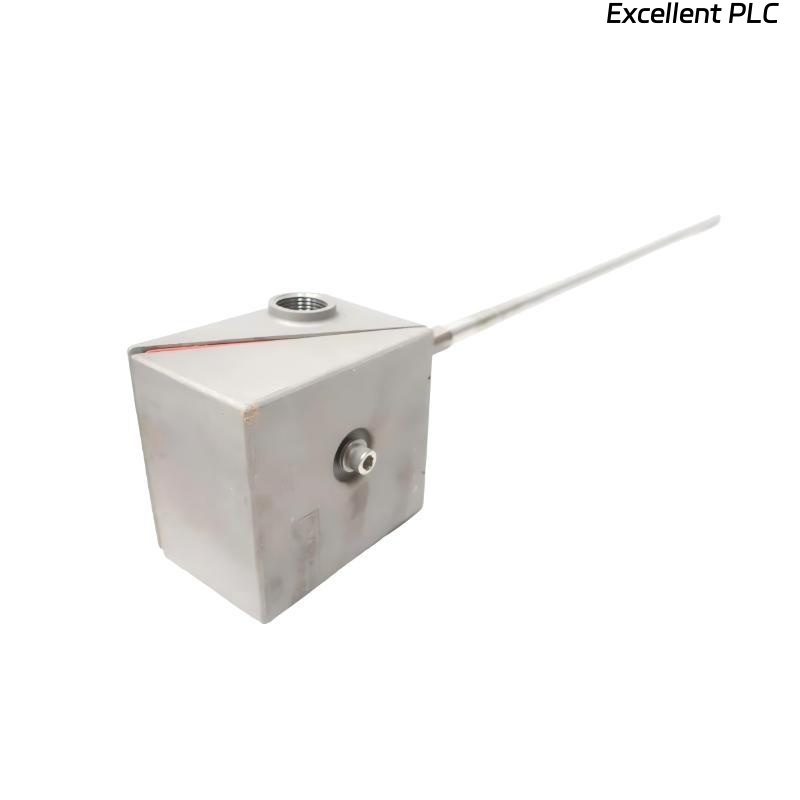

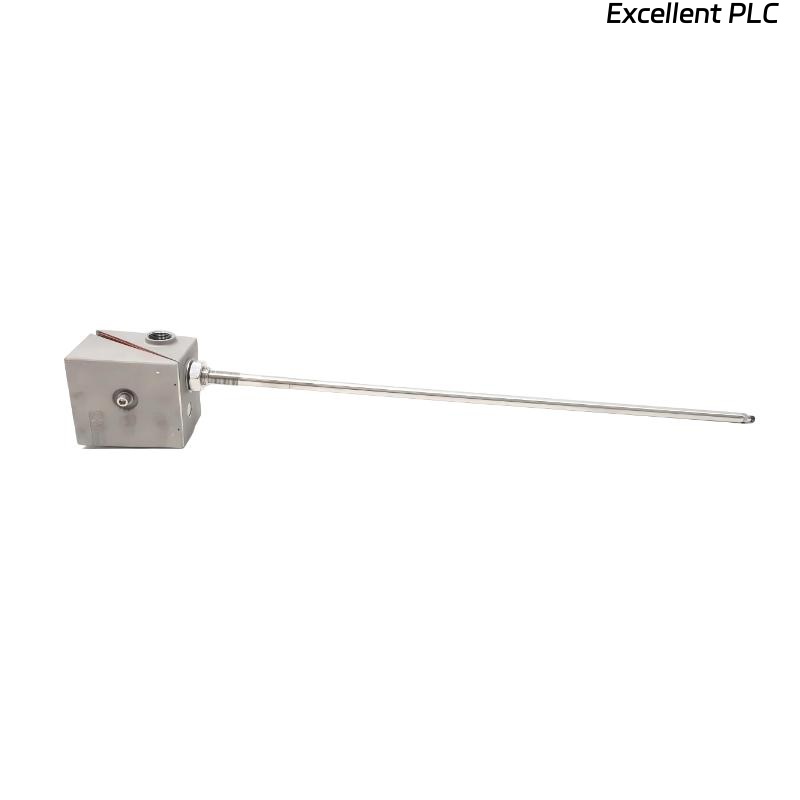

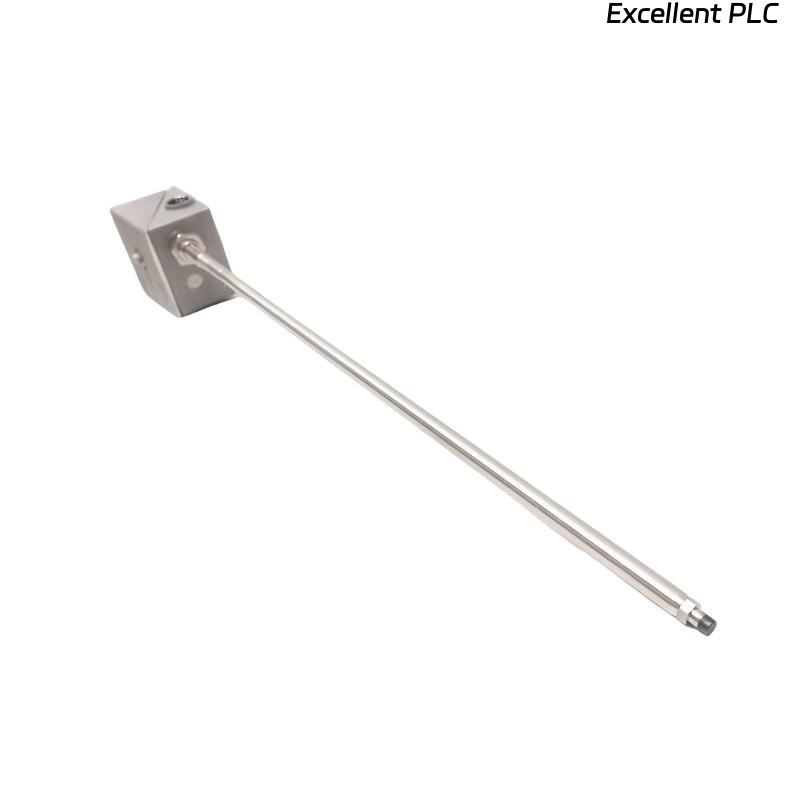

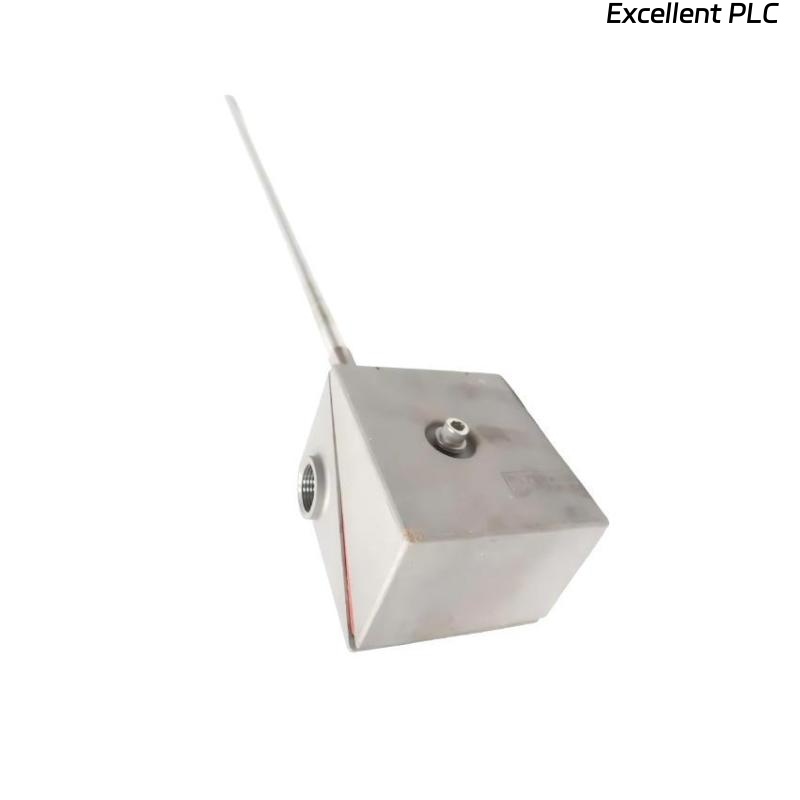

Bently Nevada 26530-12-10-03-018-159-22-04-00 Dual Probe Transducer System

Product Introduction

The Bently Nevada 26530-12-10-03-018-159-22-04-00 Dual Probe Transducer System is a high-precision monitoring device designed for industrial machinery vibration and shaft position measurement. This dual-probe configuration provides redundant sensing to ensure reliable operation, critical for machinery protection and condition monitoring systems.

The transducer system incorporates two independent probes, enabling accurate detection of shaft displacement, vibration amplitude, and phase information. It is widely used in turbine, generator, and high-speed rotating equipment monitoring. The system is engineered for extreme industrial environments, offering high immunity to electrical noise, temperature variations, and mechanical vibration.

Bently Nevada’s robust design ensures continuous operation and provides reliable data to protection and control systems, minimizing the risk of machinery damage and unplanned downtime. With a 1.0-meter probe lead, the system allows flexible installation and integration into a variety of machinery setups.

Technical Specifications

Applications

The 26530-12-10-03-018-159-22-04-00 Dual Probe Transducer System is used in:

• Turbine and generator vibration monitoring systems

• High-speed industrial compressor shaft position monitoring

• Critical pumps and motors in petrochemical and power plants

• Rotating machinery condition monitoring for predictive maintenance

• Integration with Bently Nevada 3300 series monitoring systems

• Industrial facilities requiring redundancy and high measurement accuracy

Advantages

• Dual Probe Configuration: Provides redundancy for critical monitoring applications.

• High Accuracy: Detects small shaft displacements and vibration amplitudes with high precision.

• Robust Industrial Design: Resistant to electrical noise, mechanical vibration, and temperature extremes.

• Flexible Installation: 1.0-meter probe lead allows easy placement and alignment.

• Wide Frequency Response: Captures DC to 10 kHz signals for both slow and fast machine movements.

• Reliable Power Consumption: Low power requirements reduce heat generation and improve efficiency.

• Seamless Integration: Compatible with Bently Nevada 3300 series and other protection/monitoring systems.

• Continuous Monitoring: Provides real-time data for machinery protection and predictive maintenance.

FAQ

1. What type of signal output does the dual probe system provide?
   It provides a differential voltage output suitable for connection to monitoring and protection systems.

2. Can the transducer system measure both vibration and shaft displacement?
   Yes, it provides accurate measurements of both vibration amplitude and shaft position.

3. What is the frequency response of the system?
   The system supports DC to 10 kHz frequency response, capturing both slow and high-speed machine movements.

4. What is the typical probe tip clearance?
   The probe tip clearance typically ranges from 0.25 to 0.5 mm depending on installation.

5. What is the operating temperature range?
   It operates reliably from -40°C to +120°C, with storage capability up to +125°C.

6. What is the recommended probe lead length?
   The standard probe lead length is 1.0 meter for flexible installation.

7. Is the transducer system compatible with Bently Nevada 3300 series monitors?
   Yes, it is fully compatible and commonly integrated into 3300 series monitoring systems.

8. What is the power requirement for the dual probe system?
   It requires 24 V DC and typically consumes 2 W of power.

9. How does the dual probe design enhance reliability?
   The dual probe design provides redundancy, ensuring continued operation if one probe fails or signals are inconsistent.

10. Can the system be used in harsh industrial environments?
    Yes, the housing is IP65 rated and resistant to vibration, electrical noise, and temperature extremes.
