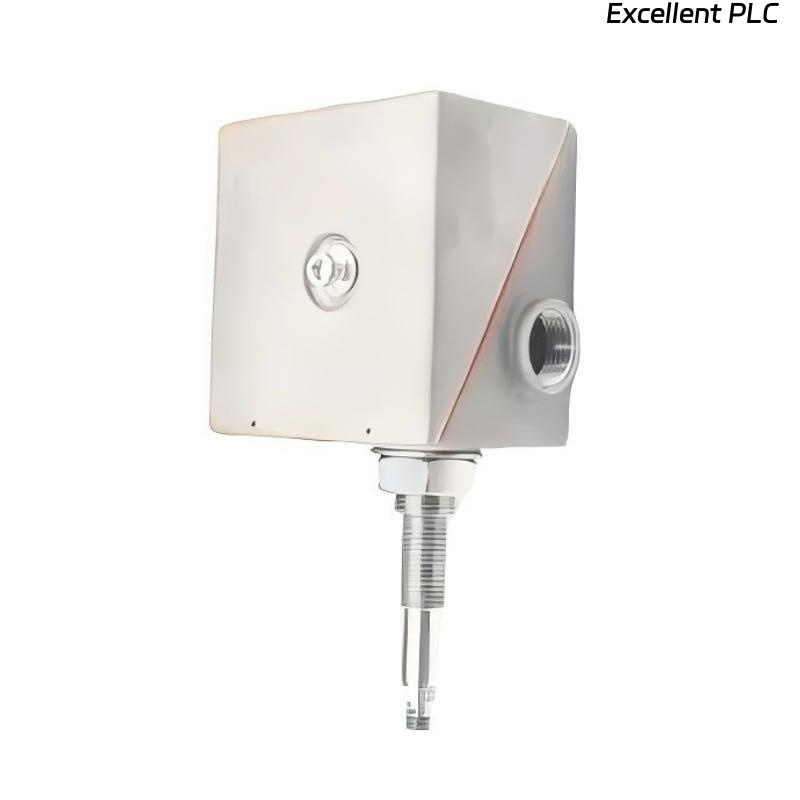

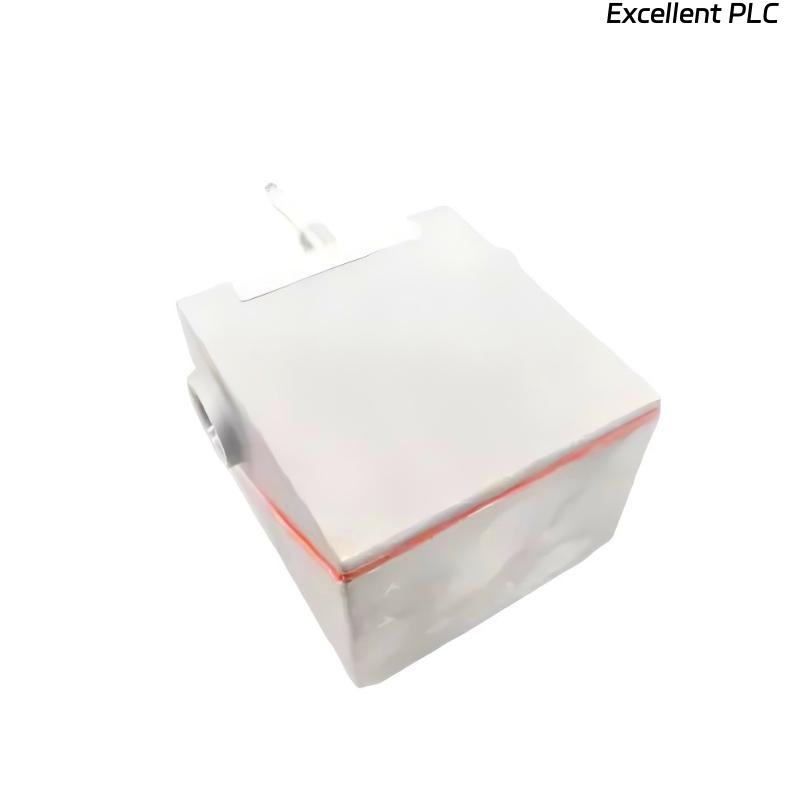

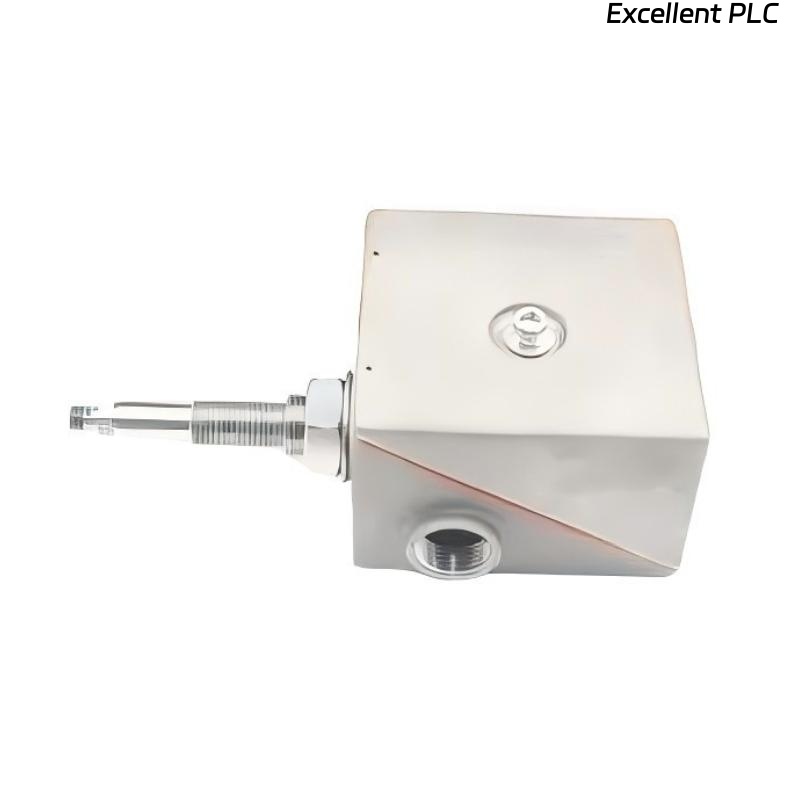

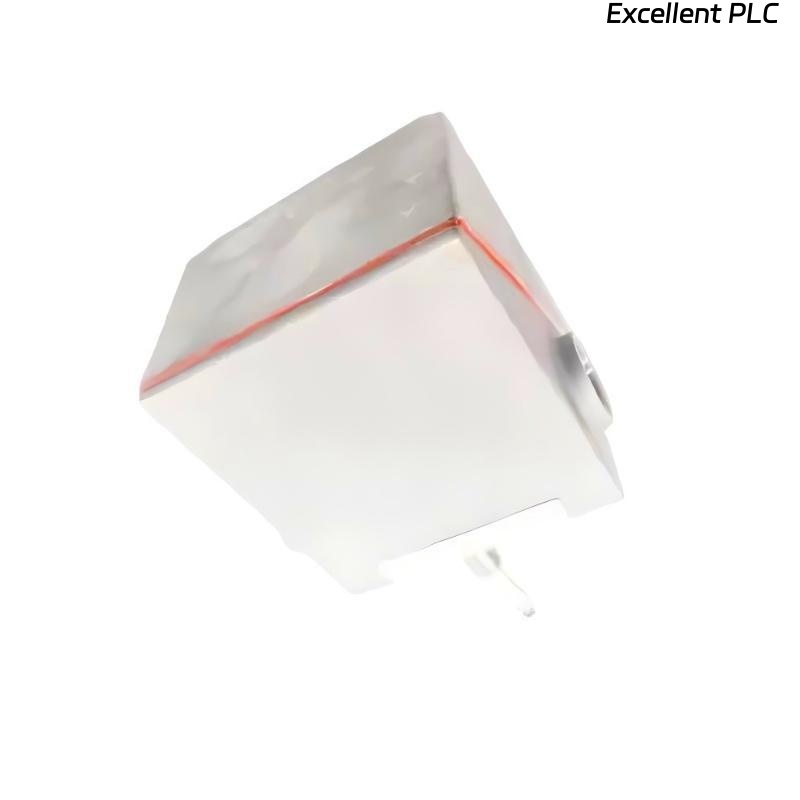

Bently Nevada 26530-12-10-03-018-191-22-04-00 Dual Probe Transducer System

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 26530-12-10-03-018-191-22-04-00 Dual Probe Transducer System is a high-precision industrial monitoring solution designed for critical rotating machinery applications. This dual-probe configuration is engineered to measure shaft vibration and displacement with exceptional accuracy and stability. By combining two probes into a single transducer system, it delivers redundant measurement capability, ensuring continuous and reliable operation in safety-critical environments.

The system is specifically designed to interface with Bently Nevada’s machinery protection and condition monitoring systems, such as the 3300 and 3500 Series. It is capable of detecting minute changes in shaft position, vibration amplitude, and dynamic motion, providing engineers with real-time insights into machine health.

Constructed with rugged industrial materials and featuring advanced electromagnetic shielding, the system is resistant to electrical noise, temperature variation, and oil contamination. Its compact design and 1.0-meter probe lead allow easy installation in confined areas around turbines, compressors, or pumps.

This model represents Bently Nevada’s long-standing expertise in vibration sensing technology—delivering consistent accuracy, superior signal fidelity, and long-term reliability in mission-critical machinery monitoring.

---

Technical Specifications

---

Applications

The 26530-12-10-03-018-191-22-04-00 Dual Probe Transducer System is widely deployed in heavy industrial machinery environments where accurate vibration and displacement monitoring are critical.

It is used in:

• Steam and gas turbines for shaft vibration and eccentricity monitoring

• Compressors and pumps to detect imbalance and misalignment

• Generators and motors for shaft movement and bearing wear detection

• Industrial rotating equipment in petrochemical, refining, and power generation plants

• Predictive maintenance systems to detect early faults before catastrophic failure

Its design allows for seamless integration with machinery protection systems, enabling engineers to implement advanced condition-based maintenance strategies.

---

Advantages

• High-accuracy dual measurement for redundancy and improved reliability in critical operations.

• Broad frequency response from DC to 10 kHz allows accurate detection of both low-speed and high-speed dynamic changes.

• Industrial durability ensures reliable performance under vibration, oil exposure, and temperature variations.

• Compact and easy installation with a 1.0-meter probe lead providing flexibility in confined equipment layouts.

• Stable and low-noise signal output through differential voltage design for better electromagnetic immunity.

• Long-term stability due to superior materials and mechanical robustness.

• Fully compatible with Bently Nevada 3300/3500 monitoring systems and existing transducer networks.

• IP65 protection for operation in harsh environments, ensuring minimal maintenance needs.

• Supports predictive maintenance programs, reducing unplanned downtime and extending equipment life.

---

FAQ

1. What type of measurement does the 26530-12-10-03-018-191-22-04-00 perform?
   It measures shaft vibration amplitude and radial displacement for rotating machinery.

2. What is the output format of this transducer system?
   It provides a differential voltage output suitable for direct connection to Bently Nevada monitoring modules.

3. Can it interface directly with the 3500 Series Monitoring System?
   Yes, it is fully compatible with both 3300 and 3500 Series systems.

4. What is the nominal sensitivity of the probe system?
   The standard sensitivity is approximately 50 mV/mil, depending on the calibration.

5. How is electrical interference minimized?
   It uses a shielded cable design and differential output to reject electrical noise.

6. Can this system operate continuously in high-temperature environments?
   Yes, it operates reliably between -40°C and +120°C.

7. What type of targets is it designed to monitor?
   It is typically used to monitor ferromagnetic shaft materials common in turbines, motors, and compressors.

8. What power supply does the system require?
   It operates from a +24 VDC power source with approximately 2 W consumption.

9. How does the dual probe design improve measurement reliability?
   The redundant probe configuration ensures continuous operation even if one probe fails or is misaligned.

10. Is the transducer suitable for hazardous or industrial environments?
    Yes, it features IP65 protection, making it suitable for harsh industrial conditions.

---
