Product Introduction

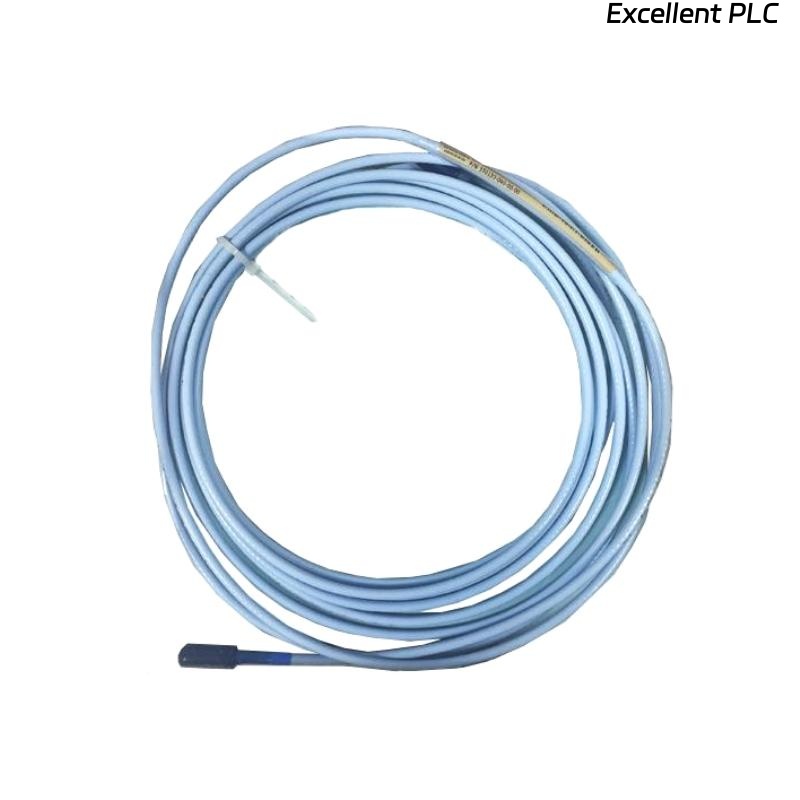

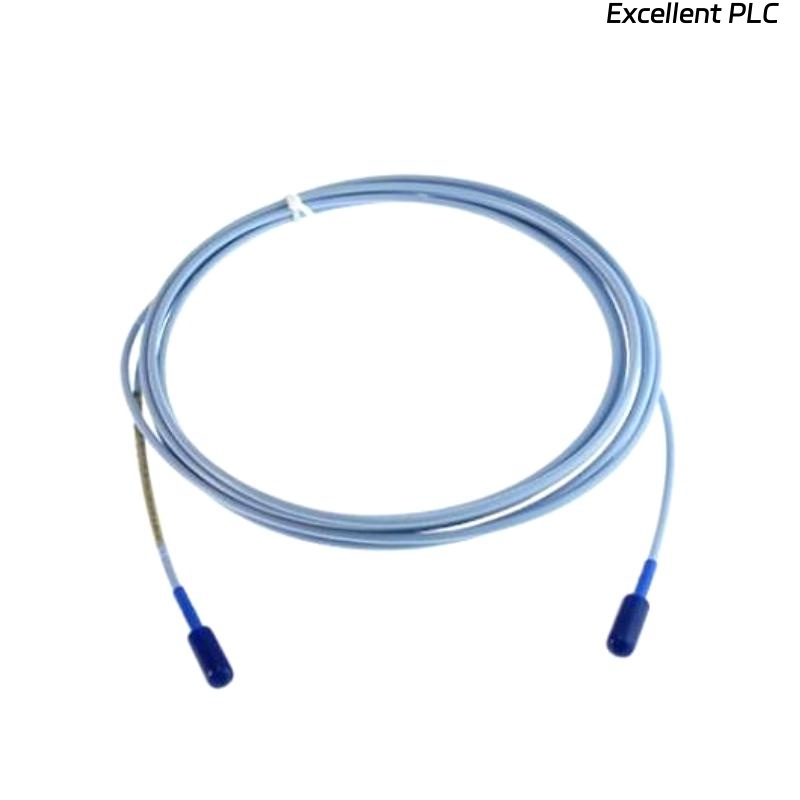

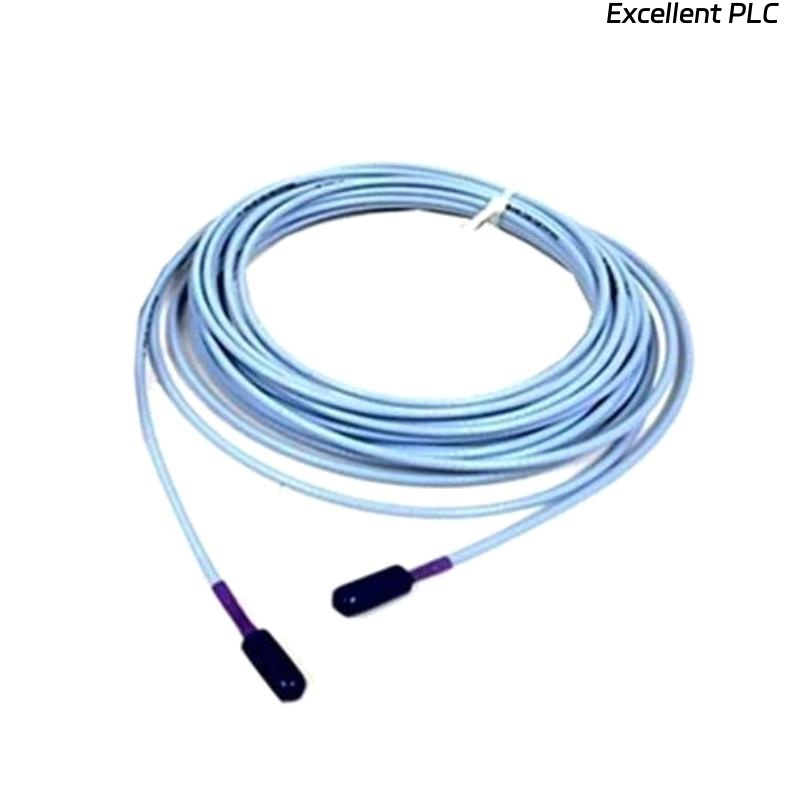

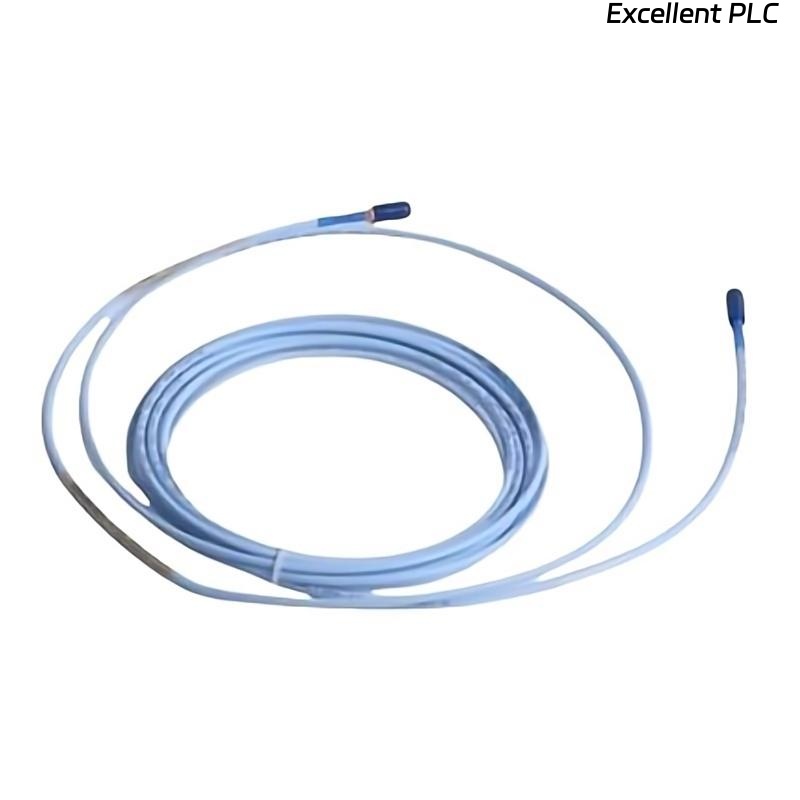

The Bently Nevada 30000-00-30-18-02 Probe Vibration Sensor is a premium proximity probe designed for continuous vibration and displacement monitoring of rotating equipment. This sensor is widely recognized for its precision, durability, and compatibility with Bently Nevada monitoring systems. It is engineered to operate in demanding industrial environments such as oil and gas plants, power generation facilities, and manufacturing units. By providing real-time data on machine health, the sensor enables predictive maintenance strategies, reducing unplanned downtime and improving operational efficiency.
Product Specifications
| Parameter | Details |
|---|---|
| Model | Bently Nevada 30000-00-30-18-02 |
| Sensor Type | Proximity Probe Vibration Sensor |
| Measurement Range | 0 to 80 mils (0 to 2 mm) |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Frequency Response | 0 to 10 kHz |
| Output Signal | Proportional to vibration displacement |
| Power Supply | Supplied through Proximitor module |
| Probe Tip Material | High-strength stainless steel |
| Cable Length | Optional |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -50°C to +200°C |
| Humidity | 95% non-condensing |
| Protection Class | IP65 |
| Dimensions | Optional |
| Shipping Weight | 3 kg |
| Certifications | CE, ISO 9001 |
Applications
-
Turbines – For shaft displacement and vibration detection.
-
Compressors – Early fault detection for misalignment and bearing wear.
-
Pumps – Monitoring for cavitation and imbalance issues.
-
Gearboxes – Identifying mechanical looseness and gear wear.
-
Power Generation – Critical asset protection in high-speed machinery.
-
Oil & Gas Facilities – Safe and reliable monitoring in harsh conditions.
Product Advantages
-
High Measurement Accuracy for precise vibration analysis.
-
Rugged Design withstands severe operating environments.
-
Wide Temperature Range ensures operational stability.
-
Customizable Cable Options for flexible installation.
-
Seamless Integration with Bently Nevada monitoring systems.
-
Enhanced Reliability for reducing unexpected downtime.
FAQ
1. How does the Bently Nevada 30000-00-30-18-02 measure vibration?
It operates on the eddy current principle, detecting changes in the magnetic field caused by the target shaft, converting displacement into a proportional voltage signal.
2. What is the required driver module for this probe?
It must be used with a compatible Bently Nevada proximitor (driver) module, such as 3300 XL Proximitor or similar.
3. Does cable length affect calibration accuracy?
Yes, cable length is factory-matched to the proximitor. Any change in cable length requires recalibration to maintain accuracy.
4. What is the probe’s frequency response range?
The sensor supports a frequency response from 0 to 10 kHz, suitable for most rotating machinery applications.
5. How is electrical noise minimized in the installation?
Proper grounding and shielded cables must be used, and the probe should be routed away from high-voltage lines.
6. Can this probe operate in hazardous environments?
Yes, with proper certifications and installation using approved barriers, it can be used in hazardous zones.
7. How does temperature variation affect the probe performance?
It is designed to compensate for thermal changes within the specified range (-35°C to +180°C) without significant accuracy loss.
8. What is the output signal type of the probe?
The output is an analog voltage signal proportional to shaft displacement and vibration.
9. How does the probe handle axial and radial vibration?
It measures displacement in one direction, typically radial to the shaft, but can be installed for axial measurement if required.
10. What steps are needed for recalibration after replacing the probe?
Ensure the probe and cable length match the driver specifications, then follow Bently Nevada calibration procedures using calibration tools and gap measurements.
Related Models from the Same Series
| Model | Description | Key Feature |
|---|---|---|
| 30000-00-30-18-01 | Standard vibration probe | Basic configuration |
| 30000-00-30-18-03 | Extended temperature range version | High-temp operation |
| 30000-00-30-18-04 | High-sensitivity probe | Greater accuracy |
| 30000-00-30-18-05 | Compact design probe | For tight spaces |
| 30000-00-30-18-06 | Long cable variant | Remote monitoring capability |
| 30000-00-30-18-07 | Corrosion-resistant coating | Harsh environment durability |
