Product Description

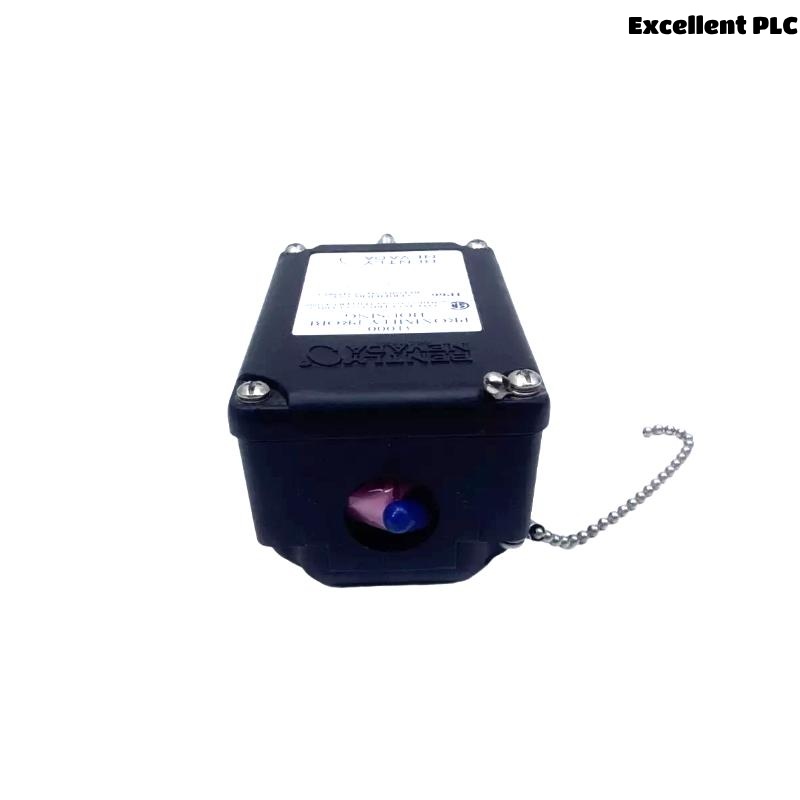

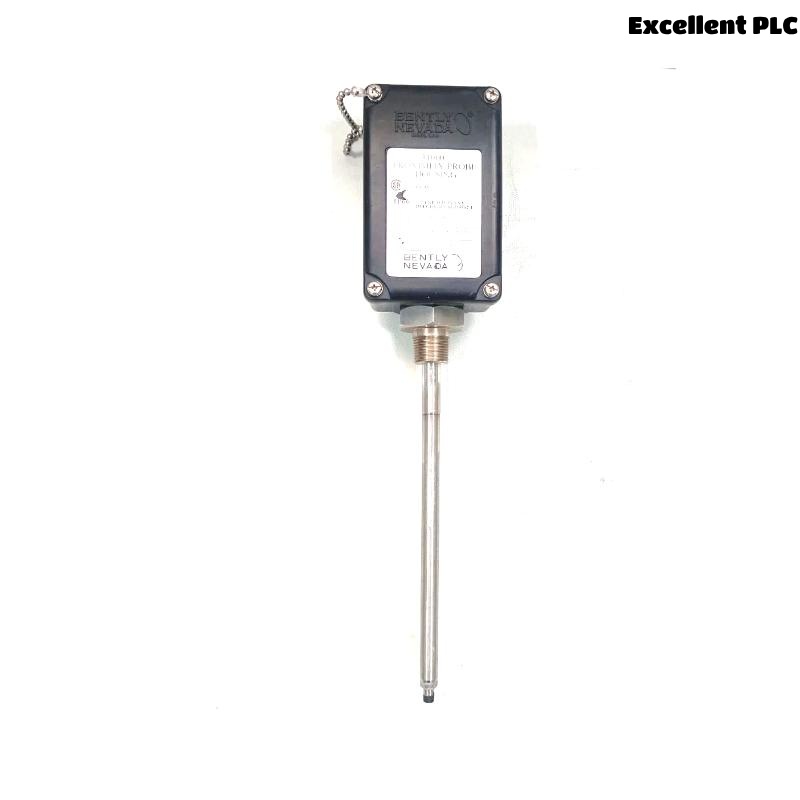

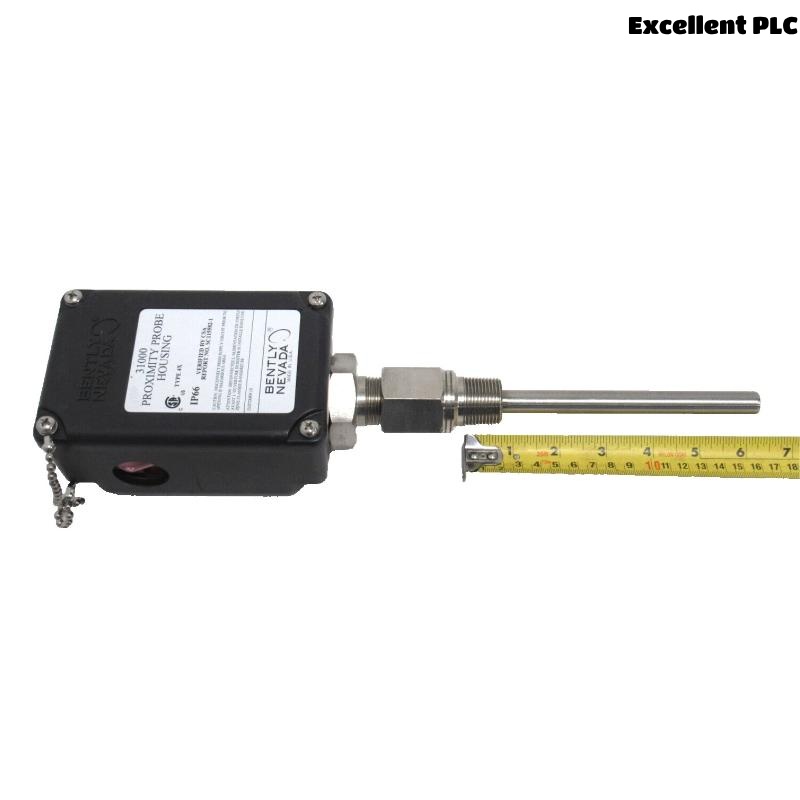

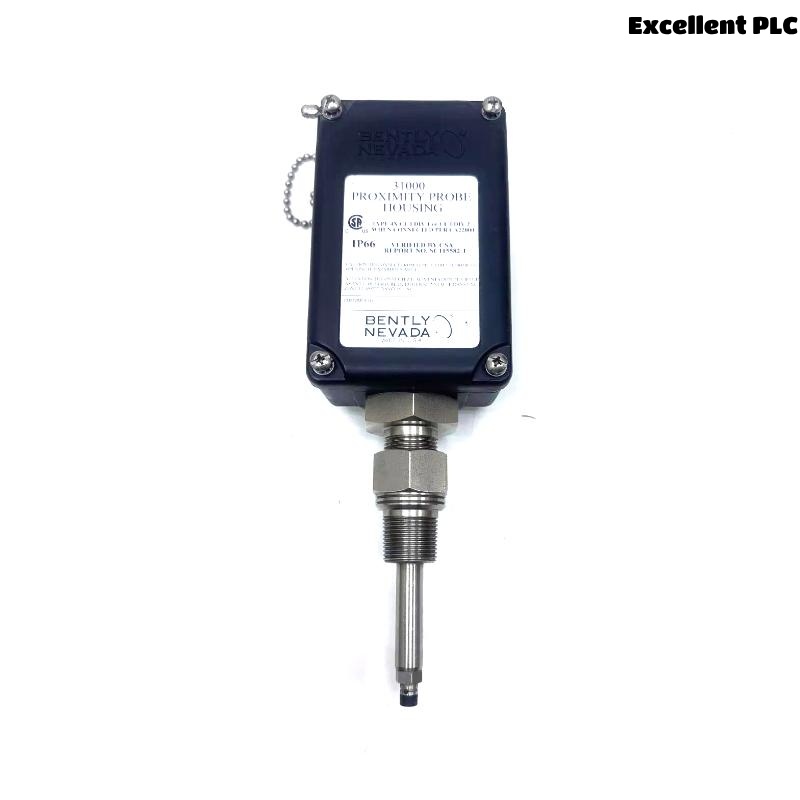

The Bently Nevada 31000-16-05-00-047-03-02 is part of the 31000/32000 Proximity Probe Housing Assembly series. It is engineered for mounting proximity probes through the machine case to enable radial vibration or Keyphasor® measurements. Made of high-strength, corrosion-resistant PPS thermoplastic and stainless steel, it permits external access for probe gap adjustments or replacement without dismantling the machine.
Product Applications
-
Radial vibration monitoring in rotating machinery
-
Keyphasor® signal detection
-
Mechanical protection in high-temperature or corrosive environments
-
Oil and gas, petrochemical, and power generation industries
-
External access point for probe calibration and maintenance
Product Advantages
-
Made from PPS thermoplastic and stainless steel for high durability
-
Compliant with API 670 for externally mounted proximity housings
-
NEMA 4X / IP66 protection rating
-
Allows gap adjustment without disassembling the machine
-
Compatible with multiple 3300 XL probe types
-
Certified for use in intrinsically safe hazardous locations
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Type | 3300 XL 8 mm |
| Probe Cable Length | 0.5 meter |
| Cable Visibility Outside Sleeve | 64 mm (2.5 in) |
| Material – Housing | Glass-filled PPS with conductive fibers |
| Material – Sleeve & Chain | AISI 304 Stainless Steel |
| Material – Outer Sleeve/Screws | AISI 303 Stainless Steel |
| Material – O-Rings | Neoprene (sleeve/housing), Viton (internal) |
| Mounting Thread Option | 3/4-14 NPT (Threaded Adapter) |
| Seal Rating | NEMA 4X, IP66 |
| Operating Temp Range | -51°C to +177°C |
| Storage Temp Range | -51°C to +177°C |
| Impact Resistance | 4–7 Joules (certified by BASEEFA and CSA) |
| Weight | 1.2 kg (2.6 lb) |
| Max “C” + “D” Option Length | 394 mm (15.5 in) |
FAQ
1. What is the primary use of the 31000 Proximity Probe Housing?
It is used to house proximity probes for radial vibration and Keyphasor® signal monitoring through machine casing.
2. Is the 31000 housing explosion-proof?
No, it provides environmental protection but is not explosion-proof. Use CA21000 for explosion-proof requirements.
3. What material is the housing made of?
The housing is made of glass-reinforced polyphenylene sulfide (PPS) with stainless steel components.
4. Can this housing be used in hazardous locations?
Yes, it can be used in intrinsically safe hazardous areas when used with approved transducer systems and barriers.
5. Is the probe gap adjustable without dismantling the housing?
Yes, the housing allows external access for probe adjustment and replacement.
6. What certifications does the housing meet?
It complies with API 670 and is rated NEMA 4X and IP66 for environmental protection.
7. What probe types are compatible with the 31000 housing?
Compatible with 3300 XL 8 mm, 11 mm, and NSv proximity probes.
8. Can it handle high temperatures?
Yes, it operates in environments up to 177°C (351°F).
9. Is the product pressure rated?
It seals against hose-directed water but is not rated for internal/external pressure.
10. Does the product come with conduit fittings?
It depends on the ordering option. This unit includes one 3/4-14 NPT fitting.
