Product Overview

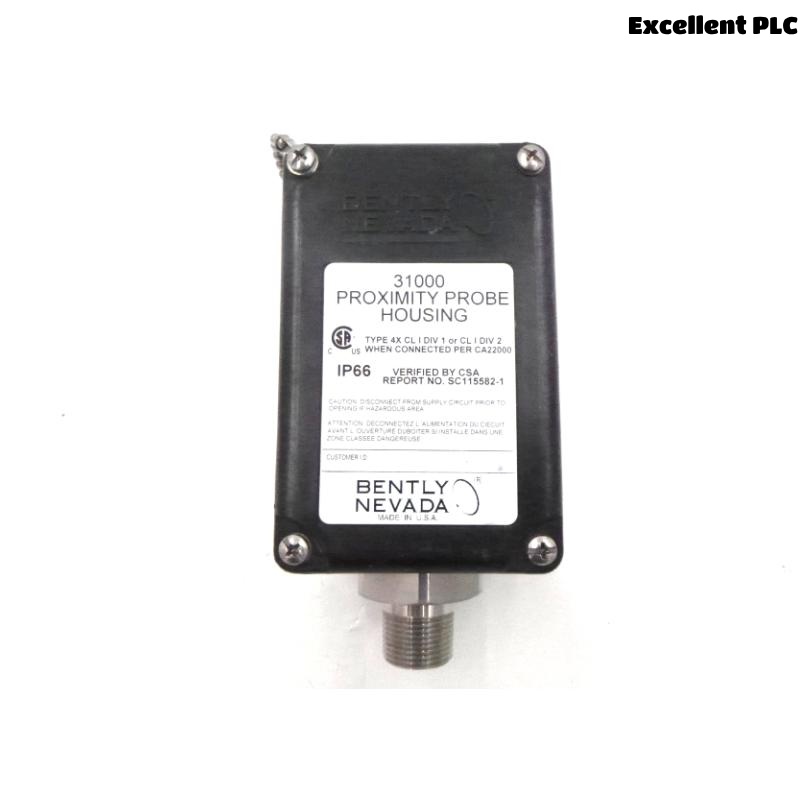

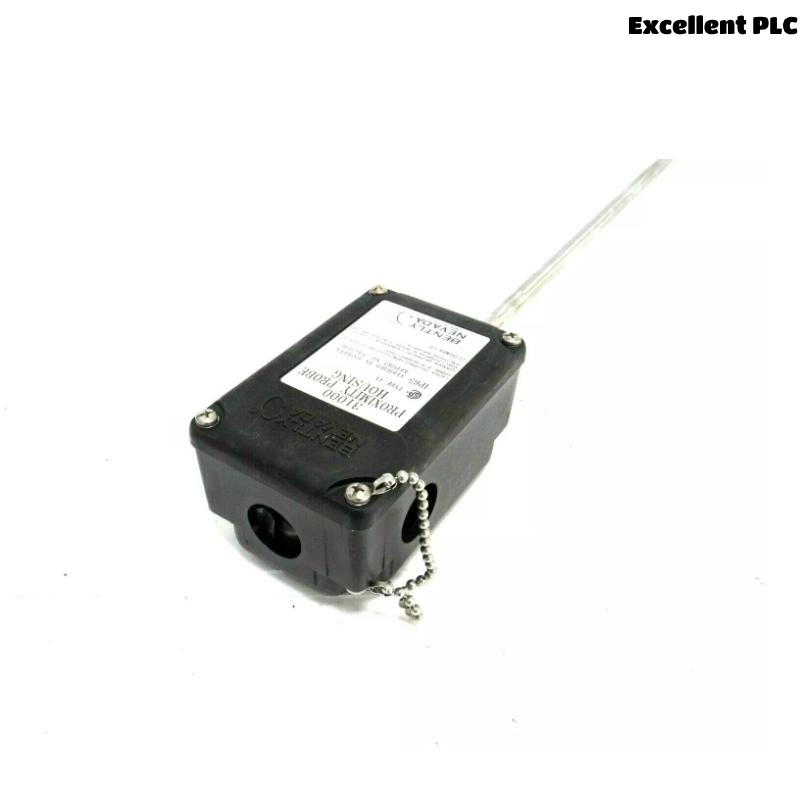

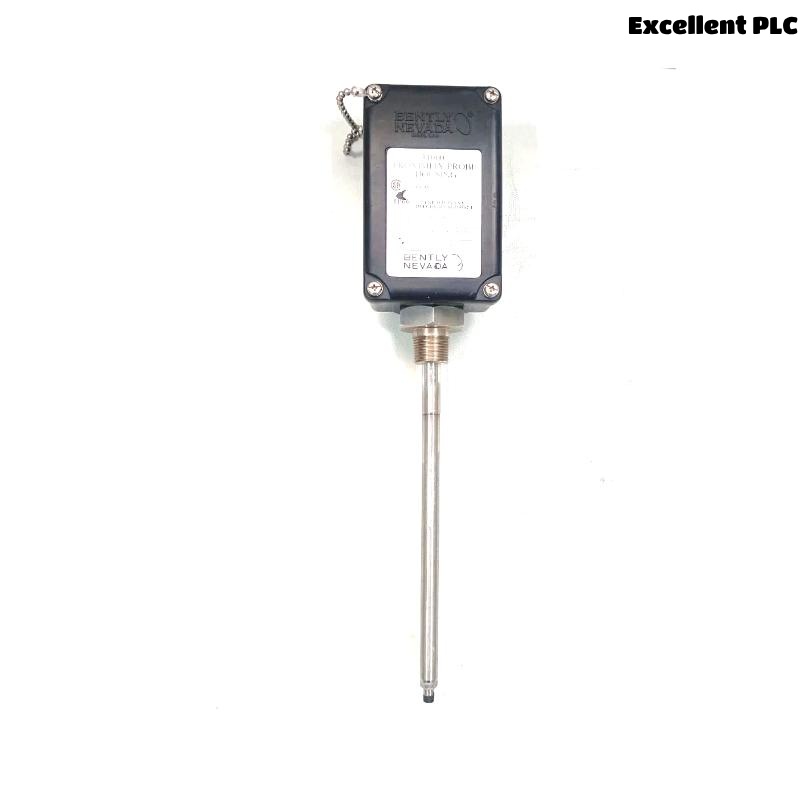

The Bently Nevada 31000-16-05-00-100-03-02 is a proximity probe housing assembly designed to support radially mounted transducers, such as vibration and Keyphasor® probes. It provides a secure and environmentally protected mounting solution for proximity probes and cables without needing to disassemble machinery for maintenance or adjustments.
Applications
This housing is commonly used in:
-
Rotating machinery for radial vibration monitoring
-
Keyphasor® measurements
-
Situations requiring probe access without opening machine casing
-
Environments requiring NEMA 4X/IP66 protection
-
Installations complying with API 670 standards
Product Advantages
-
Enables external probe adjustment or replacement
-
Sealed for water ingress protection (IP66, NEMA 4X)
-
Constructed with corrosion-resistant stainless steel and PPS plastic
-
Complies with API 670 standard
-
Suitable for hazardous areas with proper system integration
-
Supports quick installation with various configuration options
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm |
| Cable Length | 0.5 meter |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Ingress Protection | NEMA 4X / IP66 |
| Housing Material | Glass-filled PPS with conductive fibers |
| Sleeve & Screws Material | AISI 303 / 304 stainless steel |
| O-Ring Material | Neoprene and Viton |
| Recommended Torque | 29.4 N·m (260 in·lb) |
| Impact Resistance | 4–7 Joule (BASEEFA/CSA Certified) |
| Pressure Sealing | Not designed for internal/external pressure |
| Dimensions (Max length) | 394 mm (15.5 in) |
| Weight | 1.2 kg (typical) |
Frequently Asked Questions (FAQ)
Q1: What probes are compatible with this housing?
A1: The 31000 housing supports 3300 XL 8 mm, NSv, and 11 mm probes.
Q2: Can the probe be adjusted without disassembling machinery?
A2: Yes, the design allows external probe gap adjustment and replacement.
Q3: Is this housing explosion-proof?
A3: No. For explosion-proof applications, use CA21000 or CA24701 housings.
Q4: What certifications does this housing meet?
A4: It meets API 670, CSA Type 4X, and IP66 standards.
Q5: What is the maximum cable length for this configuration?
A5: The cable length for this model is 0.5 meters.
Q6: Can this housing be used in high-humidity environments?
A6: Yes, it’s certified to IP66 and NEMA 4X for water-tight protection.
Q7: Is there pressure testing done before shipment?
A7: No, pressure testing is not performed prior to shipment.
Q8: What material is used for the housing body?
A8: The body is made of glass-reinforced PPS thermoplastic.
Q9: Can it be used for axial measurements?
A9: No, for axial shaft position measurement, use housing 21022.
Q10: What torque is recommended for installation?
A10: 29.4 N·m (260 in·lb) is the recommended torque for the retaining nut.
Related Models (Same Series or Compatible)
| Model Number | Description | Probe Type | Cable Length | Weight |
|---|---|---|---|---|
| 31000-16-10-15-035-03-02 | Standard 8 mm probe with 1 m cable | 3300 XL 8 mm | 1.0 m | 1.4 kg |
| 31000-27-10-20-035-03-02 | NSv probe version with multiple approvals | 3300 XL NSv | 1.0 m | 1.3 kg |
| 31000-33-10-30-113-01-02 | 11 mm probe with deeper penetration | 3300 XL 11 mm | 1.0 m | 1.5 kg |
| 32000-16-10-08-205-03-02 | Metric version with long standoff adapter | 3300 XL 8 mm | 1.0 m | 1.5 kg |
| 31000-28-10-15-035-06-02 | 8 mm probe, multiple approvals, reducer fitting | 3300 XL 8 mm | 1.0 m | 1.4 kg |
| 31000-36-10-20-057-01-02 | 11 mm probe, connector protector | 3300 XL 11 mm | 1.0 m | 1.5 kg |
Popular Models from Bently Nevada
| Model Number | Description | Application | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Standard vibration monitoring | 0.3 kg |
| 3300 XL 5 mm | Proximity probe system | Tight clearance applications | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Shaft vibration and position | 1.1 kg |
| 3500/22M | Transient Data Interface Module | Condition monitoring interface | 1.2 kg |
| 3500/15 | Power Supply Module | System power supply | 1.0 kg |
| 330106-05-30-10-02-05 | 8 mm Reverse Mount Probe, M10 Thread | Machinery health monitoring | 0.3 kg |
