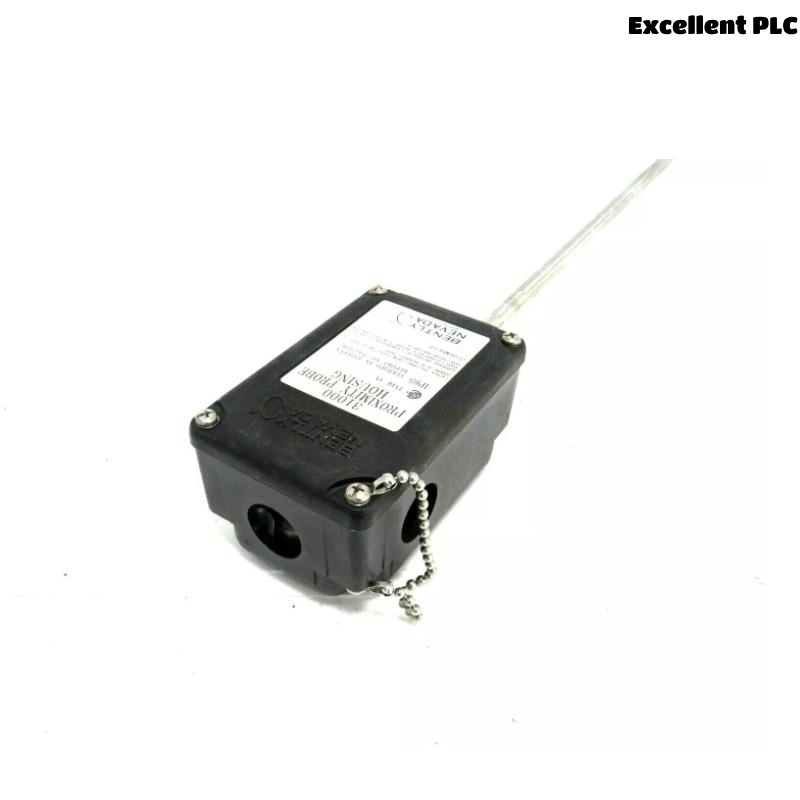

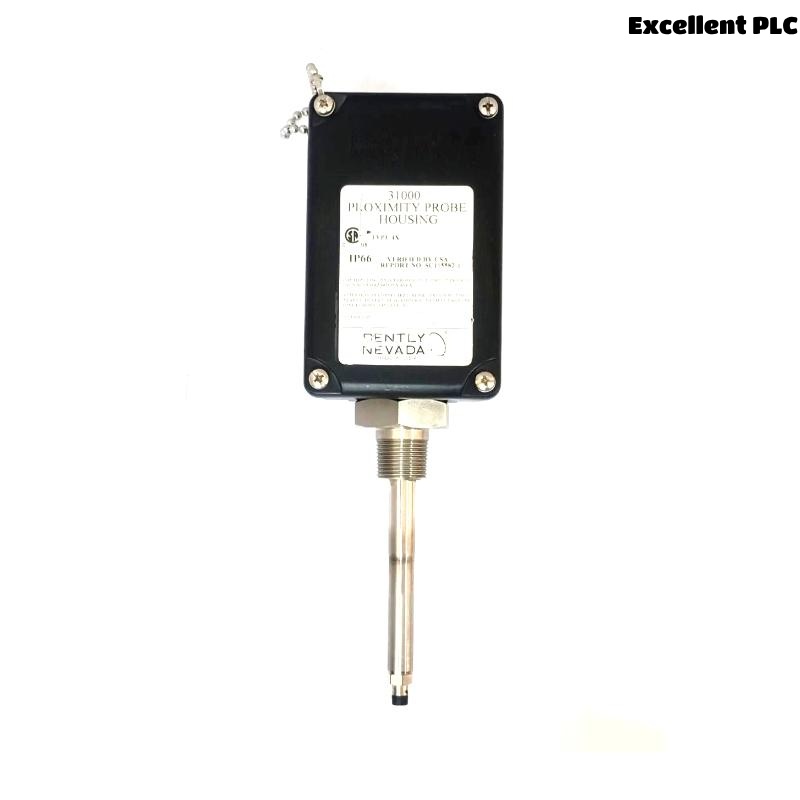

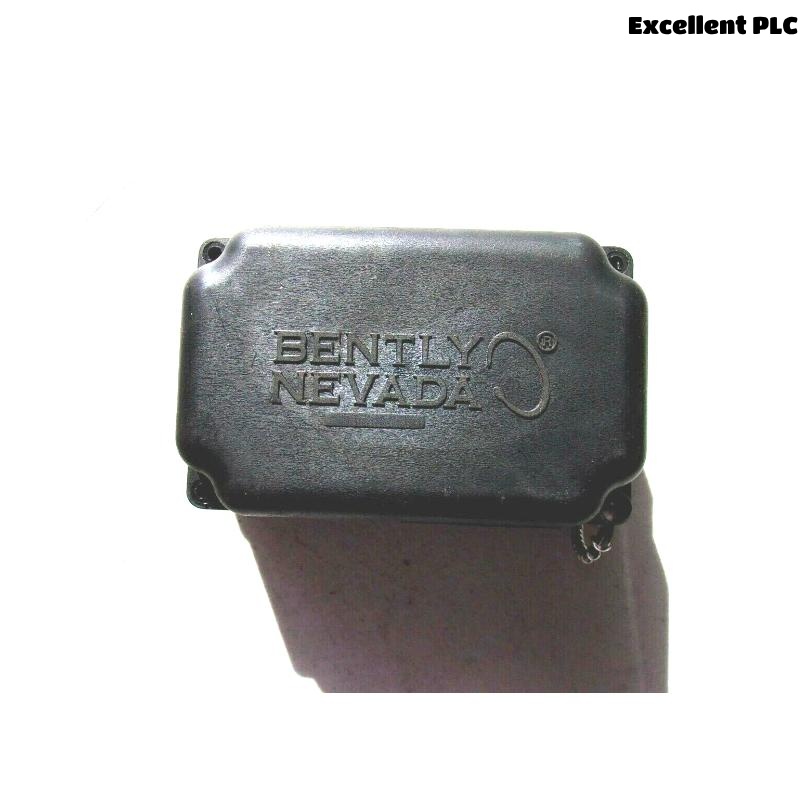

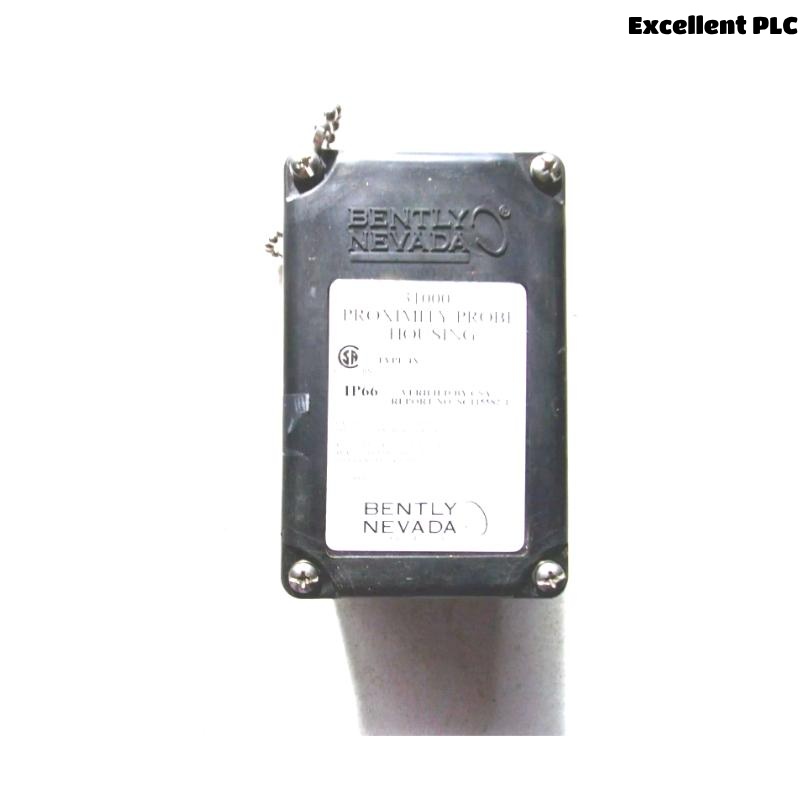

Bently Nevada 31000-16-10-00-050-03-02 Proximity Probe Housing
The Bently Nevada 31000-16-10-00-050-03-02 is a robust proximity probe housing designed to safeguard vibration probes in demanding industrial environments. It ensures optimal sensor positioning, shielding from contaminants, and reliable operation in high-temperature or high-vibration areas.
Product Applications
This probe housing is widely used in:
-
Turbine and compressor monitoring
-
Gearbox vibration measurements
-
Bearing and shaft position tracking
-
Critical rotating machinery installations
-
Hazardous industrial zones where protection is essential
Product Advantages
-
Provides reliable mechanical protection for proximity probes
-
High compatibility with Bently Nevada 3300 and 3300 XL probes
-
Durable stainless-steel construction
-
Easy mounting and cable routing
-
Designed for harsh industrial environments
-
Ensures accurate sensor positioning
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 31000-16-10-00-050-03-02 |
| Product Type | Proximity Probe Housing |
| Material | Stainless Steel |
| Operating Temperature | -40°C to +125°C |
| Environmental Protection | IP65 |
| Mounting Type | Threaded or Flanged |
| Compatible Probes | Bently Nevada 3300 / 3300 XL |
| Cable Entry Type | Sealed Gland or Conduit |
| Probe Cable Length | 1.0 meter |
| Weight | 1.2 kg |
| Dimensions (L x Ø) | Approx. 160 mm x 30 mm |
Frequently Asked Questions (FAQ)
Q1: What probe models are compatible with the 31000-16-10-00-050-03-02 housing?
A1: It is compatible with Bently Nevada 3300 and 3300 XL proximity probes.
Q2: Can the housing be used in hazardous environments?
A2: Yes, it is IP65-rated and suitable for harsh industrial conditions.
Q3: What is the material of construction?
A3: It is constructed from high-grade stainless steel for durability.
Q4: Is the probe cable replaceable?
A4: The cable is pre-installed but can be replaced if necessary.
Q5: What is the length of the probe cable?
A5: The standard model includes a 1.0-meter probe cable.
Q6: Can this housing be used with non-Bently probes?
A6: It is optimized for Bently Nevada probes; third-party compatibility is not guaranteed.
Q7: How is the housing mounted?
A7: It supports both threaded and flanged mounting options.
Q8: What industries typically use this housing?
A8: It is used in oil & gas, power generation, chemical, and manufacturing industries.
Q9: What temperature range can it withstand?
A9: The operating temperature range is -40°C to +125°C.
Q10: Does it come with mounting hardware?
A10: Mounting hardware is typically supplied separately.
Related Models from the Same Series
| Model Number | Description | Probe Cable Length | Weight |
|---|---|---|---|
| 31000-12-10-00-050-01-02 | Short housing variant | 0.5 meter | 1.1 kg |
| 31000-16-10-00-050-01-02 | Standard housing with flange mount | 1.0 meter | 1.2 kg |
| 31000-14-10-00-050-03-02 | Compact housing with sealed gland | 0.8 meter | 1.15 kg |
| 31000-18-10-00-050-03-02 | Extended housing for deep access | 1.5 meter | 1.4 kg |
| 31000-10-10-00-050-01-02 | Basic model for enclosed installations | 0.7 meter | 1.0 kg |
| 31000-20-10-00-050-03-02 | High-temp variant | 1.0 meter | 1.25 kg |
Popular Bently Nevada Models
| Model Number | Description | Type | Weight |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | Proximity Sensor | 0.8 kg |
| 330180-91-CN | XL Proximitor Sensor | Signal Conditioner | 0.6 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Monitoring Module | 1.5 kg |
| 3500/22M | Transient Data Interface Module | Communication Module | 1.3 kg |
| 3300 XL NSv Probe | Narrow-body Proximity Probe | Proximity Sensor | 0.75 kg |
| 3500/15 | Power Supply Module | Power Supply | 2.0 kg |
