Product Overview

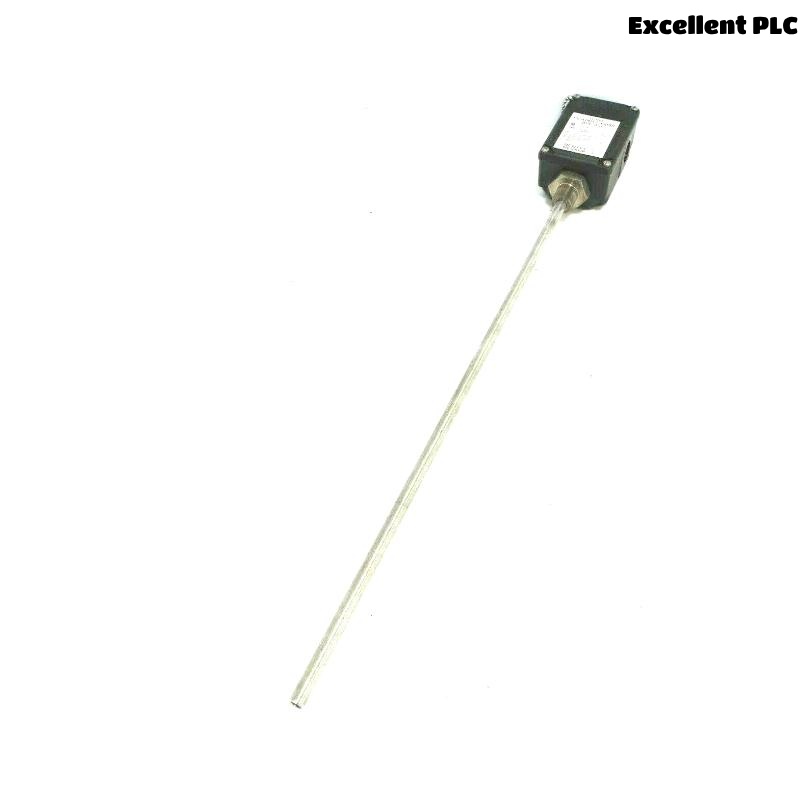

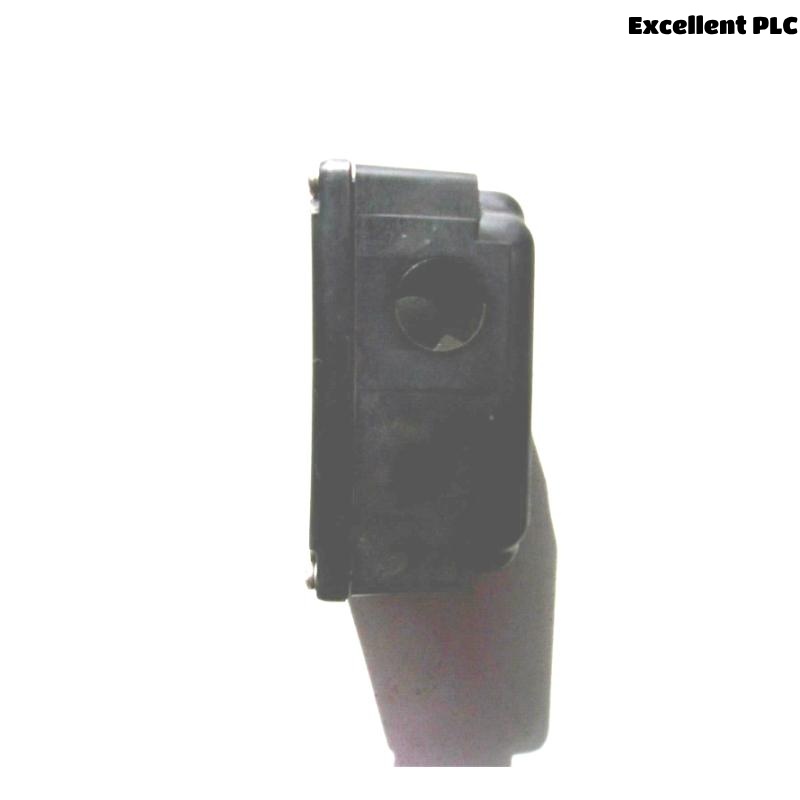

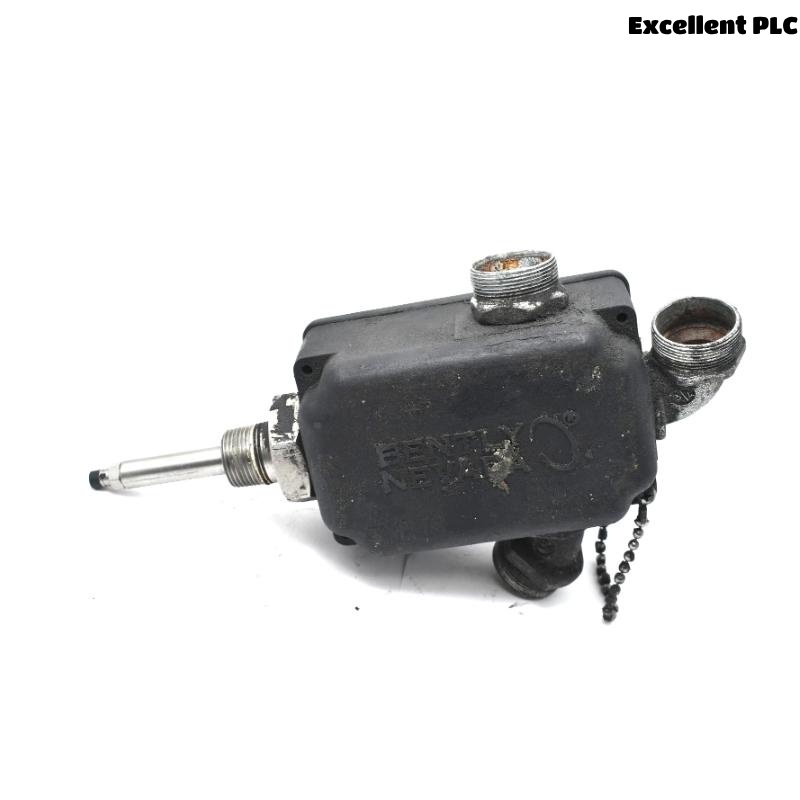

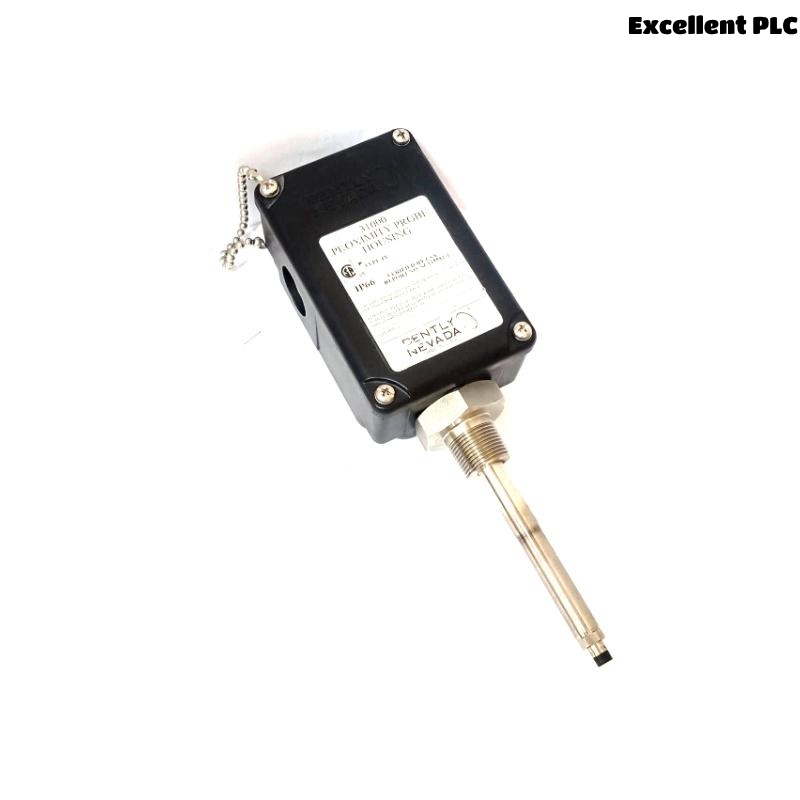

The Bently Nevada 31000-16-10-00-119-03-02 Proximity Probe Housing is a robust and field-proven solution designed to protect and mount proximity probes in demanding industrial environments. Engineered for reliable operation in vibration monitoring and rotating machinery applications, it ensures accurate sensor positioning and secure installation.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 31000-16-10-00-119-03-02 |
| Product Type | Proximity Probe Housing |
| Material | Stainless Steel |
| Environmental Rating | IP65 |
| Mounting Style | Threaded Mount |
| Compatible Probes | 3300 XL Series, 7200 Series |
| Operating Temperature | -35°C to +120°C |
| Cable Entry | Conduit with Strain Relief |
| Probe Cable Length | 1.0 meter |
| Weight | 1.2 kg |
| Dimensions | 160 mm (L) × 45 mm (D) × 40 mm (H) |
Applications
-
Turbine and compressor shaft vibration monitoring
-
Gearbox and bearing housing installations
-
Critical rotating machinery in power generation, petrochemical, and oil & gas industries
-
Industrial environments requiring secure sensor mounting
-
Monitoring proximity signals in high-vibration zones
Advantages
-
Precision-machined housing for consistent probe alignment
-
Corrosion-resistant stainless steel construction
-
Enhanced environmental protection with IP65 rating
-
Compatible with multiple Bently Nevada probe types
-
Reliable performance in harsh industrial conditions
-
Easy installation and maintenance
Frequently Asked Questions (FAQ)
1. What type of probes are compatible with this housing?
It is compatible with Bently Nevada 3300 XL and 7200 Series proximity probes.
2. What is the housing made of?
The housing is made of corrosion-resistant stainless steel for durability.
3. Can this housing be used in high-temperature environments?
Yes, it supports temperatures from -35°C to +120°C.
4. What is the environmental protection rating?
It has an IP65 rating, providing protection against dust and water jets.
5. Is the probe cable included?
Yes, it comes with a 1.0-meter probe cable.
6. What is the weight of the unit?
The total weight is approximately 1.2 kg.
7. How is the probe mounted within the housing?
The probe is mounted using a threaded mechanism for stability and alignment.
8. Can it be used in hazardous areas?
Use in hazardous areas depends on the installation and specific certification of the associated system.
9. Does it include strain relief for the cable?
Yes, the cable entry has a built-in strain relief mechanism.
10. What maintenance is required for this housing?
Periodic inspection and cleaning to ensure environmental sealing is recommended.
Related Models (Same Series or Function)
| Model Number | Description | Cable Length | Weight |
|---|---|---|---|
| 31000-12-00-00-00-01-02 | Probe Housing for 7200 Series | 0.5 meter | 1.1 kg |
| 31000-14-00-00-10-01-02 | Adjustable Probe Mount | 1.0 meter | 1.3 kg |
| 31000-16-10-00-110-03-02 | Proximity Probe Housing with Shielding | 1.0 meter | 1.2 kg |
| 31000-18-10-00-119-03-02 | Side-Entry Probe Housing | 1.2 meter | 1.4 kg |
| 31000-15-10-00-119-01-02 | Short Housing for Compact Areas | 0.3 meter | 1.0 kg |
| 31000-17-10-00-119-03-02 | Extended Probe Housing | 1.5 meter | 1.5 kg |
