Product Introduction

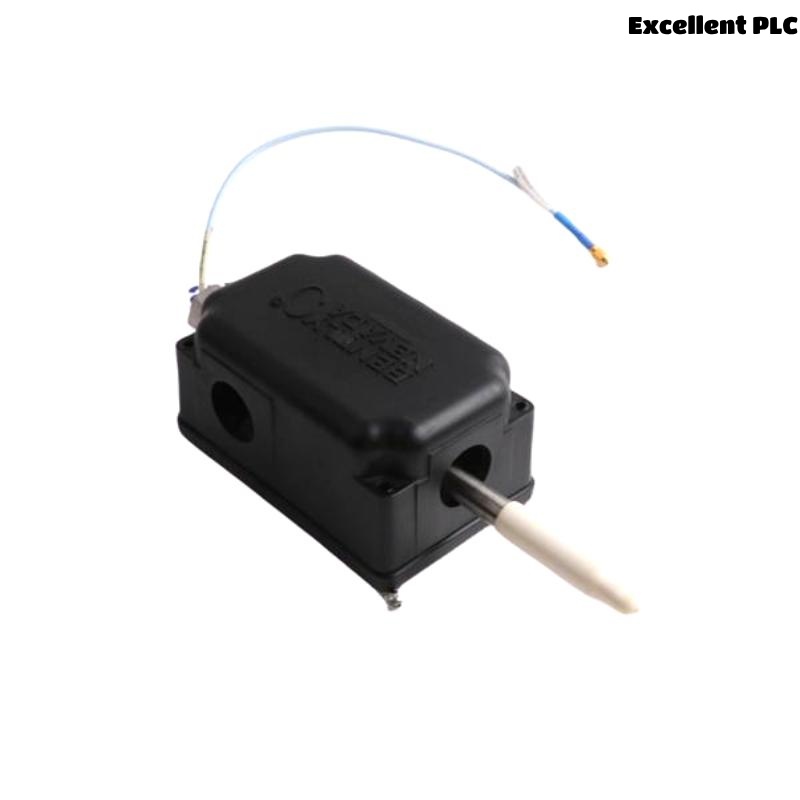

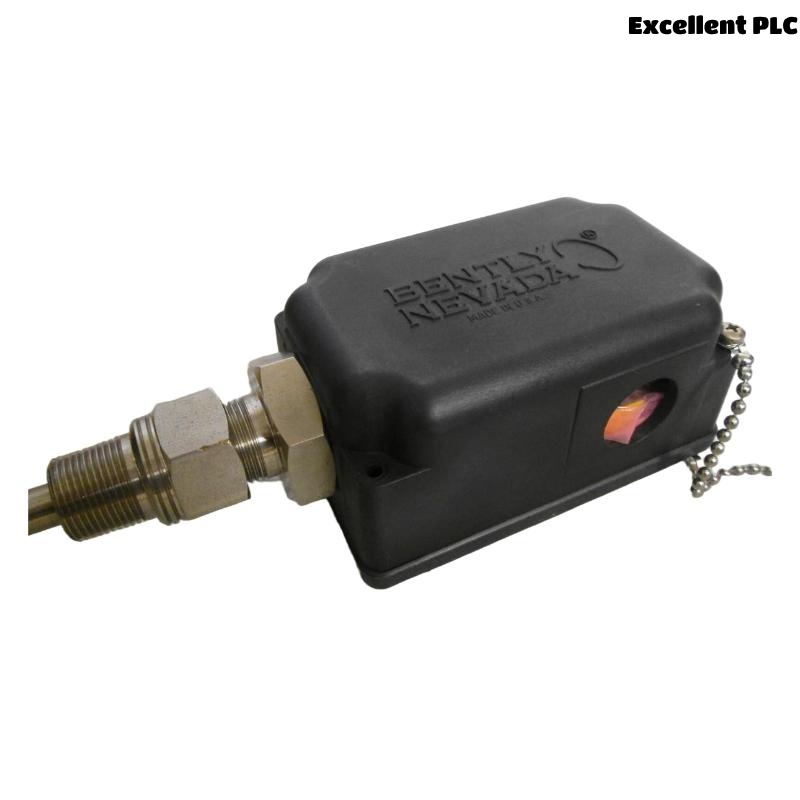

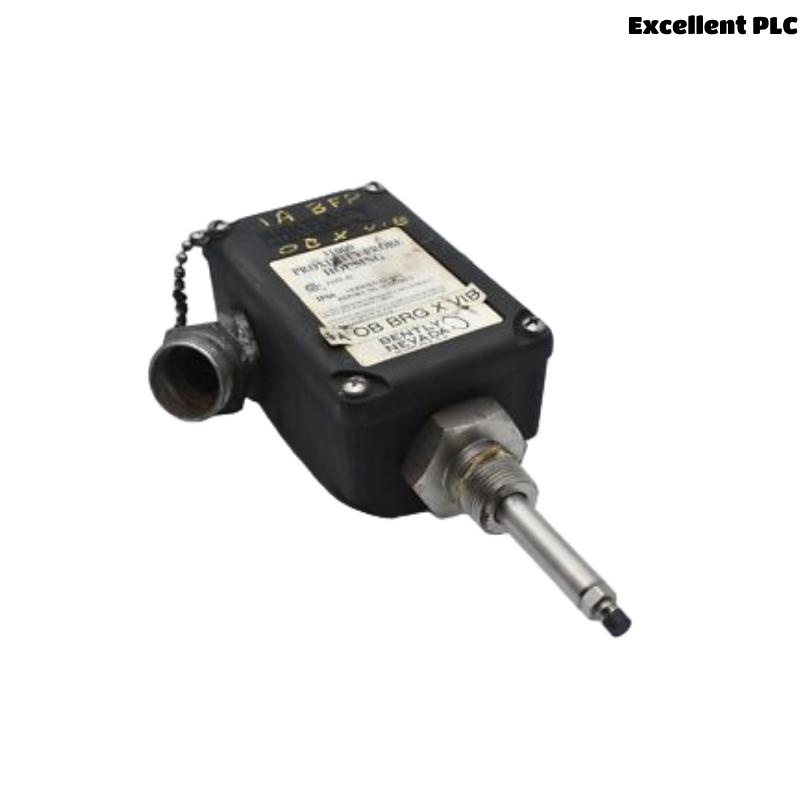

The Bently Nevada 31000-16-10-15-040-03-02 is a precision-engineered vibration monitoring probe from Bently Nevada’s trusted 31000 series. Built to deliver highly accurate displacement measurements in demanding industrial environments, this probe helps protect critical rotating machinery, turbines, compressors, and other large assets by providing real-time monitoring and reliable feedback. With a robust design and proven performance, it stands as an essential part of predictive maintenance strategies worldwide.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | 31000-16-10-15-040-03-02 |
| Type | Non-contact eddy current proximity probe |
| Sensing Range | 0–2 mm (80 mils) |
| Cable Length | 5 meters (customizable on request) |
| Probe Length | 100 mm (approx.) |
| Frequency Response | 0–10 kHz |
| Operating Temperature | -35 °C to +175 °C |
| Output Signal | -200 mV/mil (±5%) |
| Material | Stainless steel body, hermetically sealed |
| Dimensions | 91.4x 144.8mm |
| Weight | 1.2 kg |
| Voltage Supply | -24 VDC to -28 VDC |
| Connector Type | MIL-style or integral connector |
Product Applications
-
Continuous vibration monitoring of critical rotating machinery
-
Overspeed detection systems for turbines and compressors
-
Axial displacement measurement for thrust bearing wear detection
-
Rotor shaft position and dynamic runout measurement
-
Condition monitoring in refineries, petrochemical plants, and power stations
-
Integrates with Bently Nevada 3500 and 3300 monitoring systems for advanced diagnostics
Product Advantages
-
High Precision: Provides stable and repeatable measurements even in harsh industrial environments.
-
Robust Design: Stainless steel construction ensures excellent resistance to corrosion and mechanical wear.
-
Wide Compatibility: Seamlessly integrates with Bently Nevada 3500, 3300, and similar systems.
-
Temperature Tolerance: Performs reliably across a wide operating temperature range.
-
Flexible Installation: Customizable cable lengths and probe options allow installation on various machine sizes.
-
Proven Reliability: Trusted by industries worldwide for decades in mission-critical applications.
FAQs
Q1: What machines are best suited for the 31000-16-10-15-040-03-02?
A1: Ideal for large rotating equipment such as turbines, compressors, pumps, and motors.
Q2: Can I use it with a Bently Nevada 3500 rack?
A2: Yes, it is fully compatible with the 3500 Series monitoring and protection systems.
Q3: Is the probe length fixed or customizable?
A3: The standard length is 1 m, but Bently Nevada offers custom lengths on request.
Q4: What is the expected service life?
A4: Under proper installation and normal conditions, service life can exceed 5 years.
Q5: Does it withstand vibration and shock?
A5: Yes, it is designed for industrial environments where vibration and occasional shock are common.
Q6: Can it operate outdoors?
A6: Yes, the stainless steel housing and sealing protect against moisture and contaminants.
Q7: Is calibration required?
A7: Factory calibrated; field calibration may be required after major maintenance.
Q8: Does it support high-speed applications?
A8: Yes, its frequency response is suitable for high-speed rotating machinery.
Q9: What is the output signal specification?
A9: Standard output is -200 mV/mil with ±5% accuracy.
Q10: How do I clean the probe?
A10: Gently wipe with a lint-free cloth; avoid solvents that could damage seals.
