Product Description

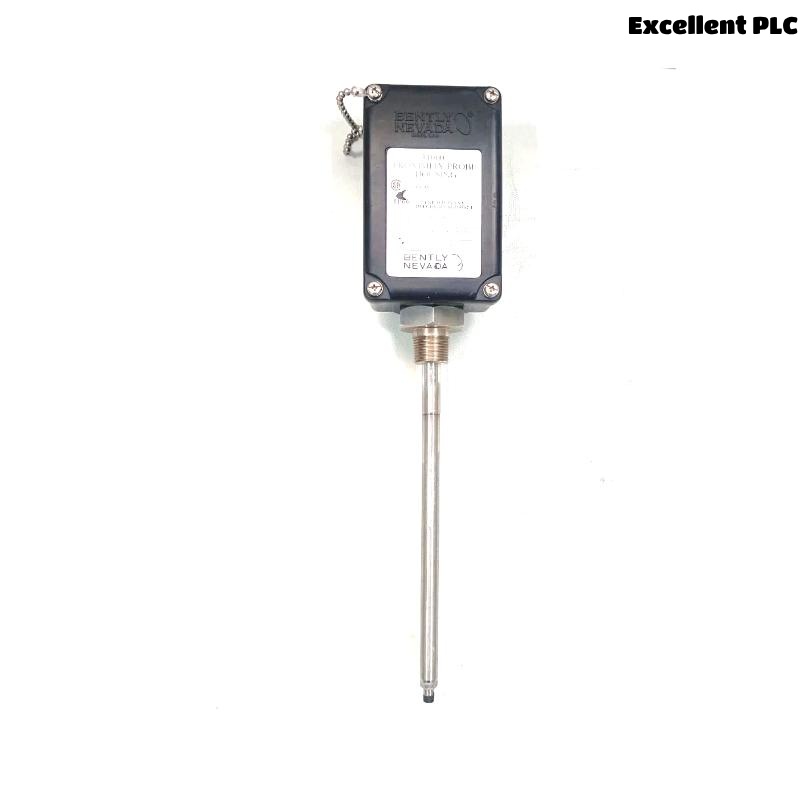

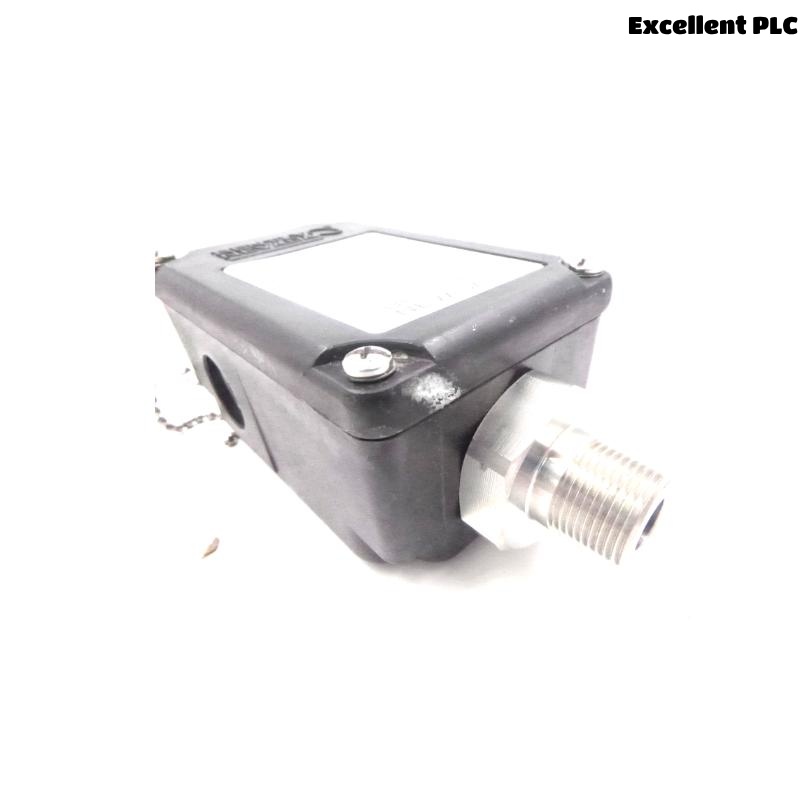

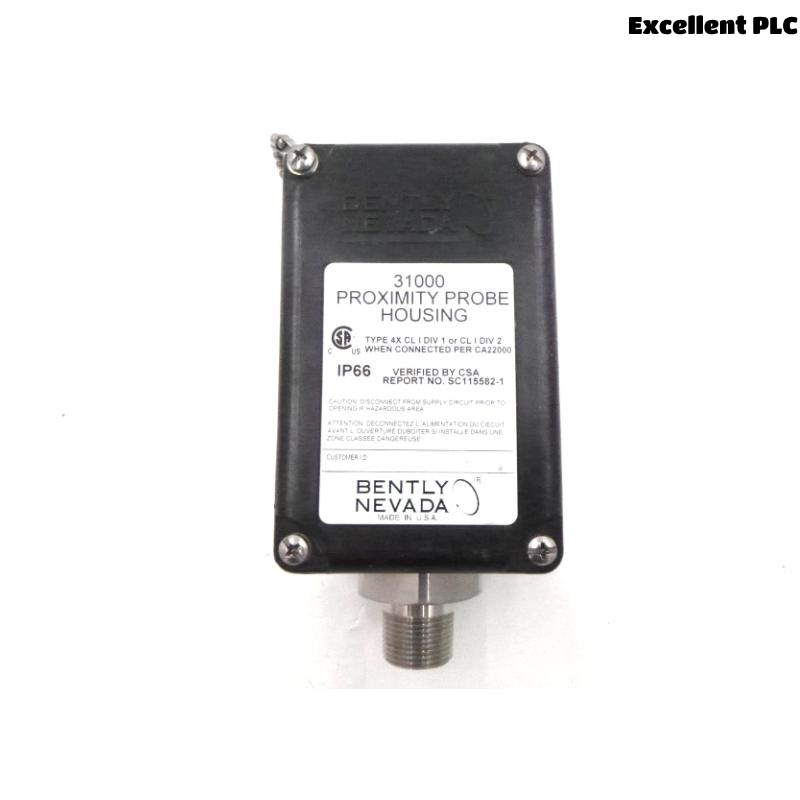

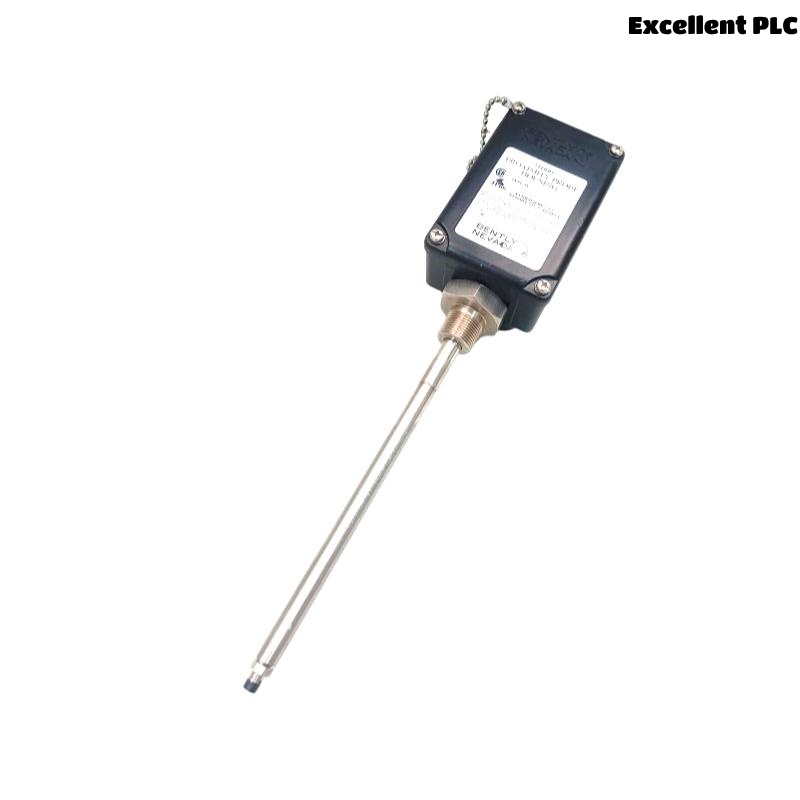

The Bently Nevada 31000-28-10-00-015-03-02 is a high-performance Proximity Probe Housing Assembly designed for radial vibration or Keyphasor® measurements in rotating machinery. It provides mechanical and environmental protection for proximity probes installed through the machine case. The housing allows for easy external probe access, gap adjustment, or replacement without disturbing the machine assembly. Constructed from corrosion-resistant PPS thermoplastic and stainless steel, it meets API 670 standards and supports hazardous area installations when used with certified transducer systems.
Applications
-
Turbine and compressor radial vibration monitoring
-
Keyphasor® speed and phase reference signal measurement
-
Machinery condition monitoring in petrochemical plants
-
High-temperature rotating machinery
-
Installation in hazardous or wet environments with IP66/NEMA 4X protection
Advantages
-
External probe access for maintenance without disassembly
-
Compliant with API 670 standards
-
PPS housing with high strength and corrosion resistance
-
Intrinsically safe when used with certified transducer/barrier combinations
-
High-impact durability and pressure sealing
-
Multiple configuration options with standoff adapters and probe lengths
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm, with multiple agency approvals |
| Probe Cable Length | 1.0 meter |
| Weight | 1.2 kg (2.6 lb) |
| Operating Temperature Range | -51°C to +177°C (-60°F to +351°F) |
| Housing Material | Glass-reinforced PPS thermoplastic with conductive fibers |
| Sleeve/Chain Material | AISI 304 stainless steel |
| Outer Screws/Outer Sleeve | AISI 303 stainless steel |
| O-Ring Material | Neoprene (housing), Viton (internal sealing) |
| IP Rating | IP66 (verified), NEMA Type 4X |
| Impact Resistance | Up to 7 Joules (CSA certified) |
| Mounting Thread Option | 3/4-14 NPT |
| Probe Penetration Depth | 3.5 in (89 mm) typical |
| Standoff Adapter Length | 1.5 in (38 mm) |
Frequently Asked Questions (FAQ)
Q1: What type of probes are compatible with the 31000 housing?
A1: It supports Bently Nevada 3300 XL 8 mm, 11 mm, and NSv probes with multiple agency approvals.
Q2: Is this housing explosion-proof?
A2: No. The 31000 is designed for intrinsic safety but not explosion-proof use. For explosion-proof models, use CA21000 or CA24701.
Q3: Can the probe be accessed without disassembling the machine?
A3: Yes, the housing allows for external probe access, gap adjustment, or replacement.
Q4: What material is used for the housing?
A4: The housing is made of PPS (Polyphenylene Sulfide) with stainless steel components.
Q5: Is the housing suitable for steam or hot water environments?
A5: Short-term exposure (up to 1 week at 95°C) is acceptable, but long-term exposure may degrade strength.
Q6: Does it comply with API standards?
A6: Yes, it is fully compliant with API 670 for externally mounted proximity probe housings.
Q7: What environmental protection ratings does it have?
A7: It has IP66 and NEMA Type 4X ratings for dust and water resistance.
Q8: Can this housing be used in hazardous areas?
A8: Yes, when installed with approved transducer systems and intrinsic safety barriers.
Q9: What is the impact resistance certification?
A9: It can withstand up to 7 Joules impact per CSA and BASEEFA certification.
Q10: How is the probe cable connected within the housing?
A10: The probe cable is connected internally and protected via stainless steel fittings and sealing components.
Related Models in the Same Series
| Model Number | Probe Type | Cable Length | Weight | Mounting Thread |
|---|---|---|---|---|
| 31000-28-05-00-015-03-02 | 3300 XL 8 mm | 0.5 m | 1.1 kg | 3/4-14 NPT |
| 31000-28-10-00-075-03-02 | 3300 XL 8 mm | 1.0 m | 1.3 kg | 3/4-14 NPT |
| 31000-27-10-00-015-03-02 | 3300 XL NSv | 1.0 m | 1.2 kg | 3/4-14 NPT |
| 31000-33-10-00-015-03-02 | 3300 XL 11 mm | 1.0 m | 1.2 kg | 3/4-14 NPT |
| 31000-26-05-00-015-03-02 | 3300 XL NSv | 0.5 m | 1.1 kg | 3/4-14 NPT |
| 31000-34-10-00-075-03-02 | 3300 XL 11 mm | 1.0 m | 1.3 kg | 3/4-14 NPT |
