Product Description

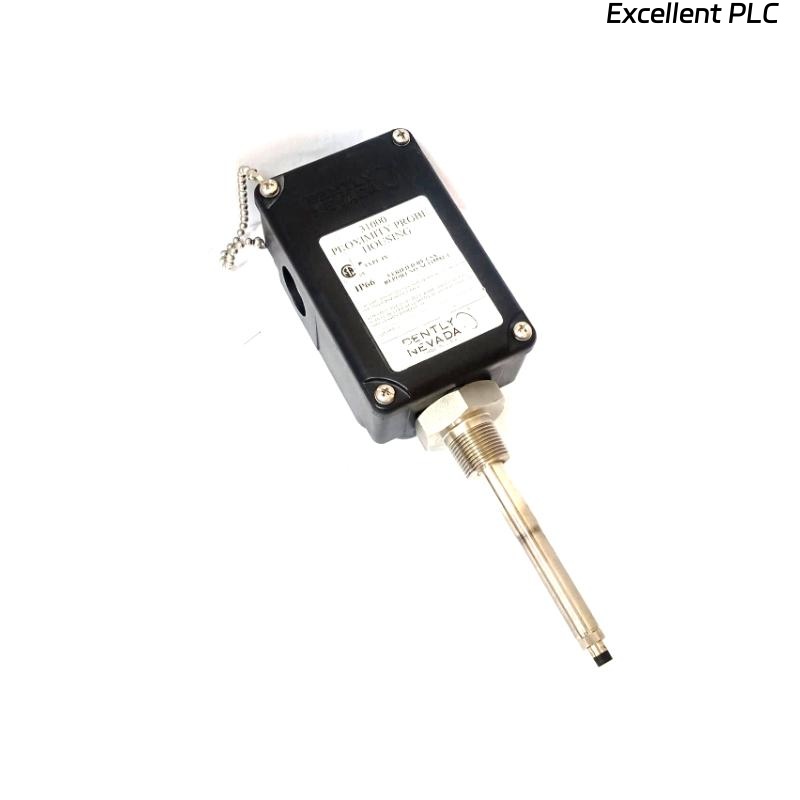

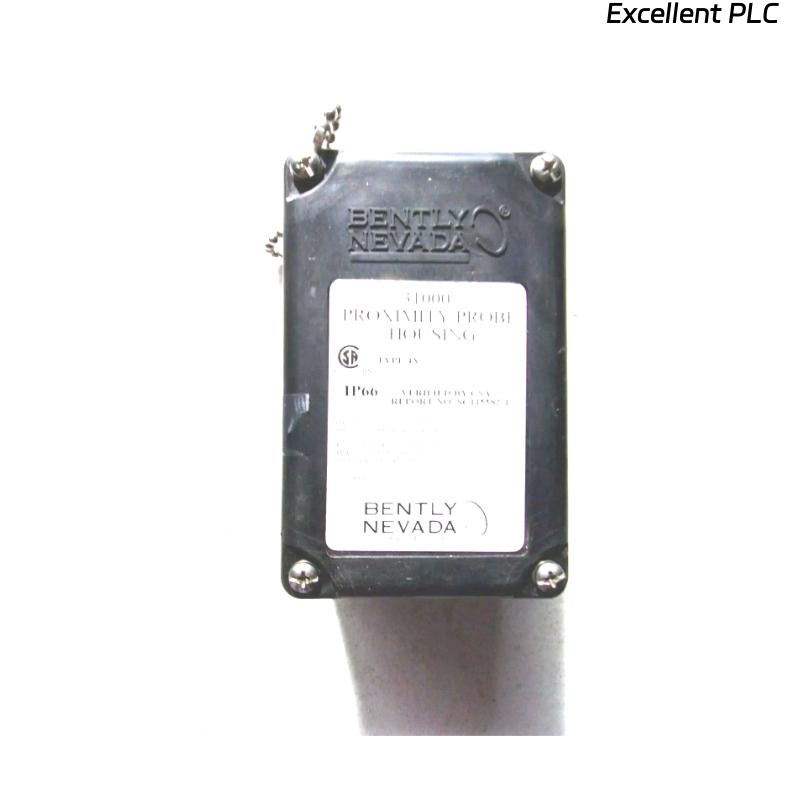

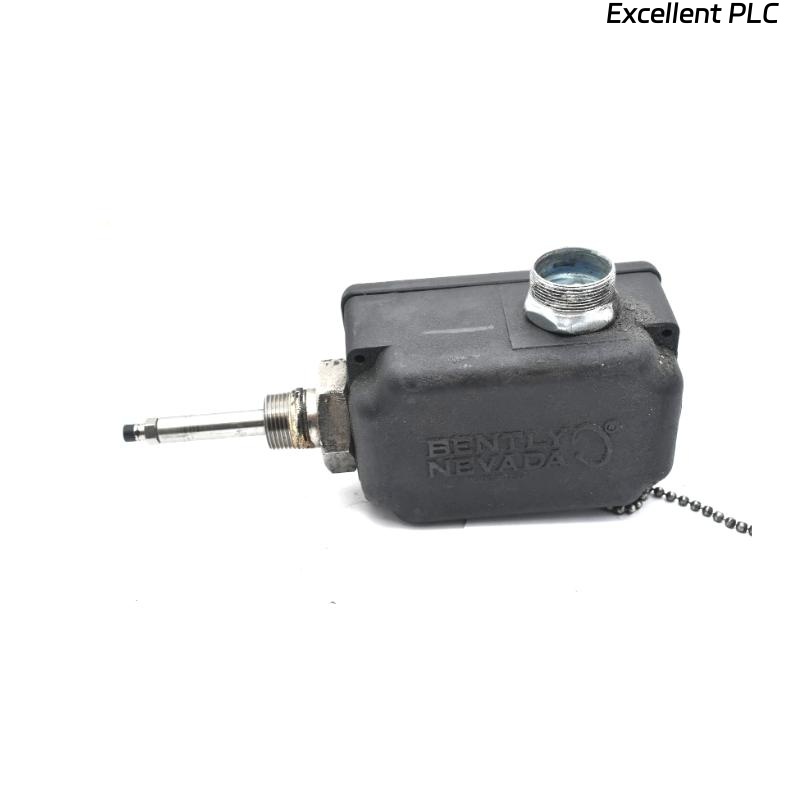

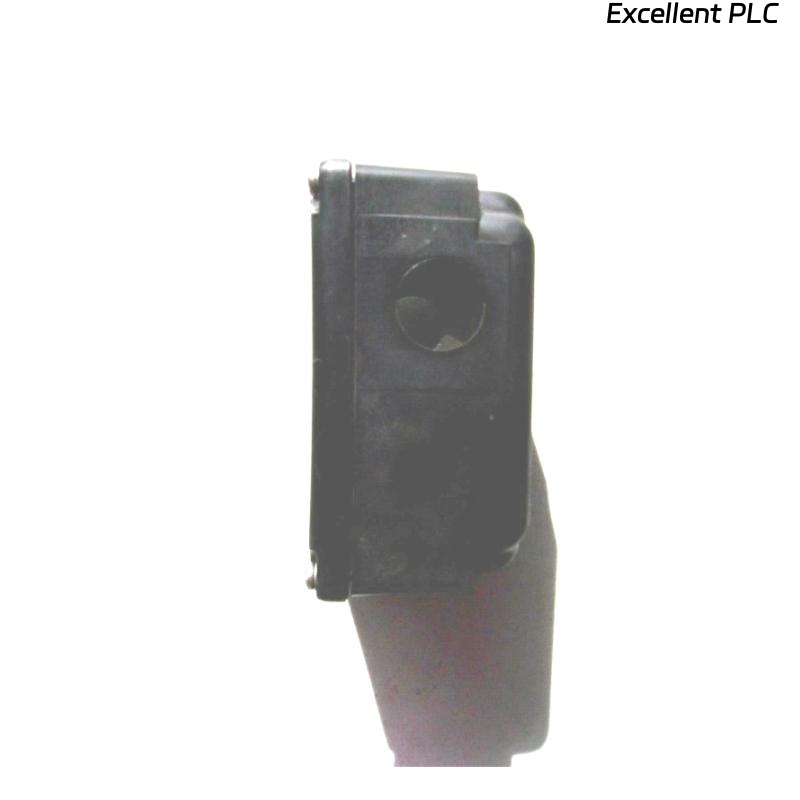

The Bently Nevada 31000-29-05-00-090-01-02 Proximity Probe Housing is designed for radially mounted proximity probes used in vibration and Keyphasor measurements. It offers robust mechanical and environmental protection for the probe system and enables easy gap adjustment and replacement without removing the machine casing. This model includes a 3300 XL 8 mm probe, 0.5-meter cable, and PPS housing compliant with API 670.
Product Applications
-
Radial vibration monitoring on rotating machinery
-
Shaft position detection in turbines and compressors
-
Keyphasor signal detection for phase referencing
-
Use in hazardous and industrial environments
-
Suitable for external probe mounting in confined machine installations
Product Advantages
-
External probe access allows quick maintenance
-
PPS thermoplastic housing offers excellent corrosion resistance
-
Compliant with API 670 standards
-
IP66 and NEMA 4X rated for environmental protection
-
Certified impact resistance for rugged conditions
-
Simplifies probe replacement and gap adjustment
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm with connector protector |
| Probe Cable Length | 0.5 meter |
| Operating Temperature | -51°C to +177°C (-60°F to +351°F) |
| Storage Temperature | -51°C to +177°C (-60°F to +351°F) |
| Housing Material | Glass-reinforced PPS with conductive fibers |
| Sleeve/Chain Material | AISI 304 Stainless Steel |
| External Screws Material | AISI 303 Stainless Steel |
| O-Ring Material | Neoprene & Viton |
| Enclosure Rating | IP66, Type 4X |
| Impact Strength | 7 Joules (CSA Certified) |
| Pressure Rating | NEMA 4X and IP66 (external sealing only) |
| Compliance | API 670 |
| Dimensions (approx.) | C+D Option: 394 mm max (0.5 m cable) |
| Weight | 1.2 kg (2.6 lbs) |
Frequently Asked Questions (FAQ)
Q1: What is the main function of the 31000-29-05-00-090-01-02 housing?
A1: It protects the proximity probe and allows external access for gap adjustment and probe replacement.
Q2: Is this housing compliant with industrial standards?
A2: Yes, it meets API 670 and is rated IP66/NEMA 4X for environmental protection.
Q3: Can this housing be used in hazardous areas?
A3: Yes, when paired with an approved transducer system and I.S. barriers.
Q4: What material is used in the construction?
A4: The housing is made from glass-reinforced polyphenylene sulfide (PPS), with stainless steel components.
Q5: What is the temperature range?
A5: -51°C to +177°C for both operation and storage.
Q6: Does it support Keyphasor measurements?
A6: Yes, it is suitable for Keyphasor and radial vibration transducers.
Q7: What kind of probe does this model include?
A7: A 3300 XL 8 mm proximity probe with connector protector.
Q8: How long is the probe cable in this configuration?
A8: 0.5 meters (20 inches).
Q9: What type of environmental sealing does it provide?
A9: It is sealed against hose-directed water and offers IP66 protection.
Q10: Is it explosion-proof?
A10: No, for explosion-proof needs, use models like CA21000 or CA24701.
Related Models in the Same Series
| Model Number | Probe Type | Cable Length | Weight | Notes |
|---|---|---|---|---|
| 31000-28-05-00-060-01-02 | 3300 XL 8 mm | 0.5 m | 1.2 kg | With multiple approvals |
| 31000-29-10-00-120-01-02 | 3300 XL 8 mm | 1.0 m | 1.3 kg | With connector protector |
| 31000-30-10-00-120-01-02 | 3300 XL 8 mm | 1.0 m | 1.3 kg | With multiple approvals + CP |
| 31000-26-05-00-060-01-02 | 3300 XL NSv | 0.5 m | 1.2 kg | For small targets |
| 31000-33-05-00-100-01-02 | 3300 XL 11 mm | 0.5 m | 1.2 kg | Larger tip for long gaps |
| 31000-36-10-00-150-01-02 | 3300 XL 11 mm | 1.0 m | 1.3 kg | Multiple approvals + CP |
