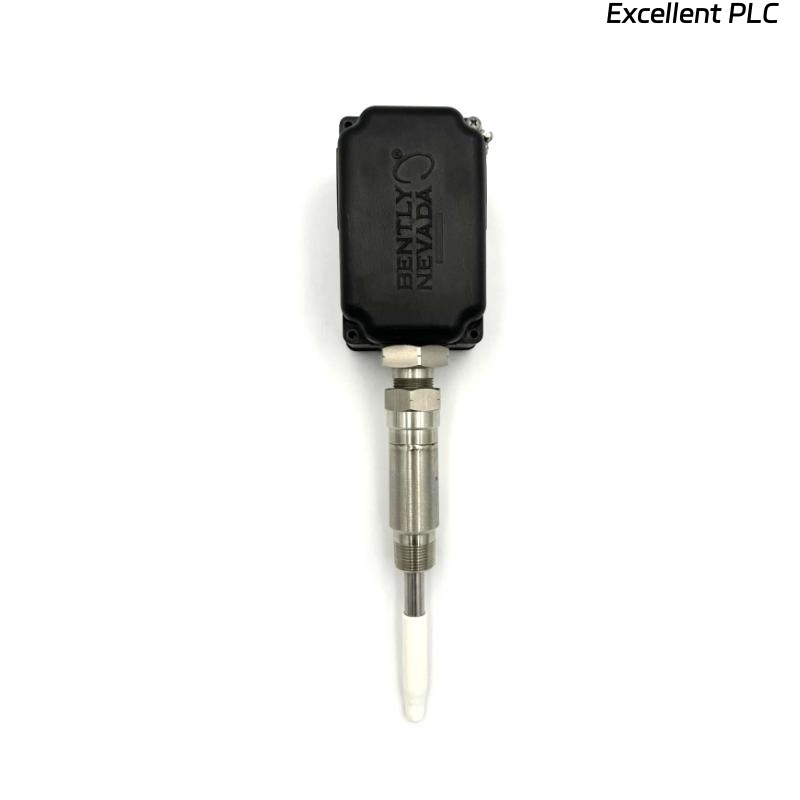

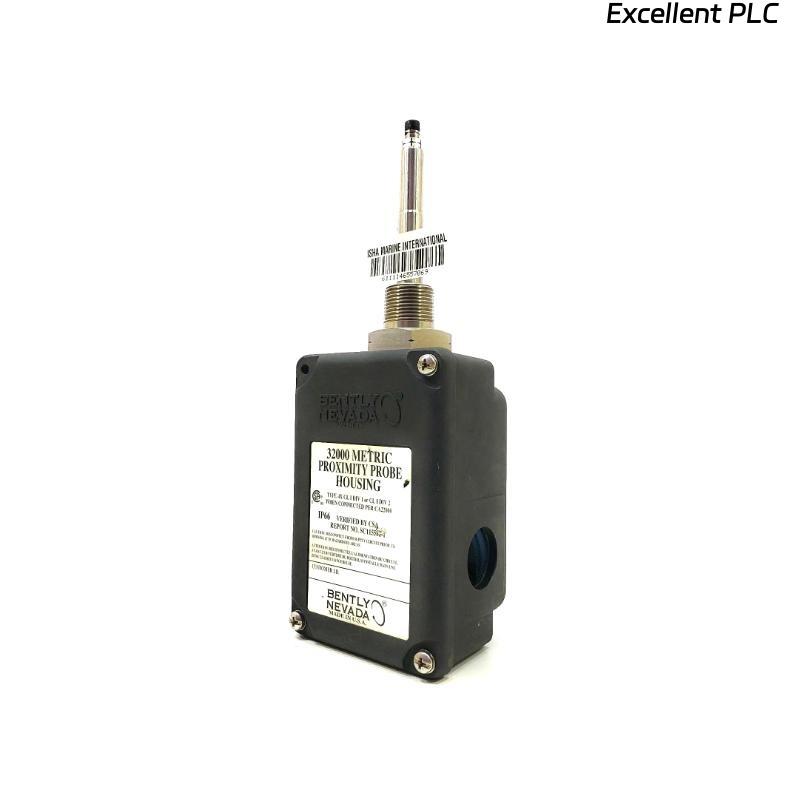

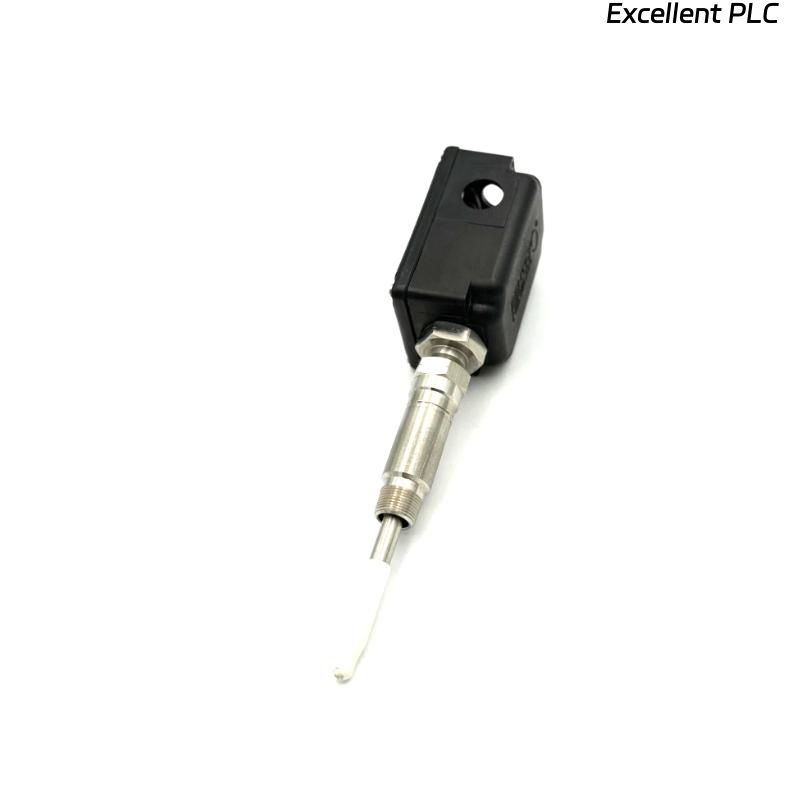

Bently Nevada 32000-16-05-05-080-03-02 Proximity Probe Housing
The Bently Nevada 32000-16-05-05-080-03-02 is a rugged and precisely engineered proximity probe housing designed to safeguard and accurately position proximity probes in demanding industrial monitoring environments. It ensures optimal signal integrity and long-term reliability for machinery condition monitoring systems.
Product Applications
This probe housing is used across various industries, including:
-
Power generation
-
Oil & gas
-
Petrochemical plants
-
Steel and mining industries
-
Water treatment facilities
Its primary function is to securely mount proximity probes on rotating equipment such as turbines, compressors, and pumps.
Product Advantages
-
Durable Construction: Built to withstand harsh environments and mechanical vibrations
-
Precise Alignment: Ensures correct probe positioning for accurate signal detection
-
Environmental Protection: Sealed to resist dust, moisture, and contaminants
-
Standardized Design: Compatible with multiple Bently Nevada probe models
-
Reliable Signal Transmission: Maintains probe sensitivity by minimizing electromagnetic interference
Technical Specifications
| Parameter | Description |
|---|---|
| Model | 32000-16-05-05-080-03-02 |
| Product Type | Proximity Probe Housing |
| Mounting Configuration | Flange mount |
| Material | Stainless steel |
| Cable Entry | 1/2” NPT conduit port |
| Compatible Probes | 3300 XL 8 mm series |
| Operating Temperature | -40°C to +177°C |
| Protection Rating | IP66 |
| Dimensions (W x H) | 91.4 mm x 144.8 mm |
| Weight | 1.2 kg |
Frequently Asked Questions (FAQ)
Q1: What is the main purpose of this housing?
A1: It protects and positions proximity probes for accurate vibration monitoring.
Q2: Which probe series is it compatible with?
A2: It is primarily compatible with the 3300 XL 8 mm proximity probe series.
Q3: Is this housing suitable for hazardous environments?
A3: Yes, it’s built for industrial-grade environments with rugged sealing.
Q4: What material is the housing made from?
A4: It is made from corrosion-resistant stainless steel.
Q5: Can it be used in high-temperature areas?
A5: Yes, it supports operations from -40°C to +177°C.
Q6: Does it include a conduit for cable protection?
A6: Yes, it features a 1/2” NPT conduit port for cable entry.
Q7: How is the housing mounted?
A7: It uses a flange-mount design for secure installation.
Q8: What level of ingress protection does it offer?
A8: It offers IP66 protection against dust and strong water jets.
Q9: Is alignment adjustable after installation?
A9: The design allows precise alignment during installation but is fixed afterward.
Q10: Is this housing available in different lengths?
A10: Yes, the 32000 series includes multiple length and configuration variants.
Related or Same-Series Models
| Model Number | Compatible Probe | Housing Type | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| 32000-16-05-05-060-03-02 | 3300 XL 8 mm | Flange Mount | 91.4 x 144.8 | 1.2 |
| 32000-16-05-05-100-03-02 | 3300 XL 8 mm | Flange Mount | 91.4 x 150.0 | 1.3 |
| 32000-16-05-05-080-05-02 | 3300 XL 8 mm | Flange Mount | 91.4 x 144.8 | 1.2 |
| 32000-14-05-05-080-03-02 | 3300 XL 11 mm | Flange Mount | 95.0 x 145.0 | 1.3 |
| 32000-10-05-05-080-03-02 | 7200 Series | Flange Mount | 91.4 x 144.8 | 1.1 |
| 32000-18-05-05-080-03-02 | 3300 XL 5 mm | Flange Mount | 90.0 x 140.0 | 1.0 |
