Product Introduction

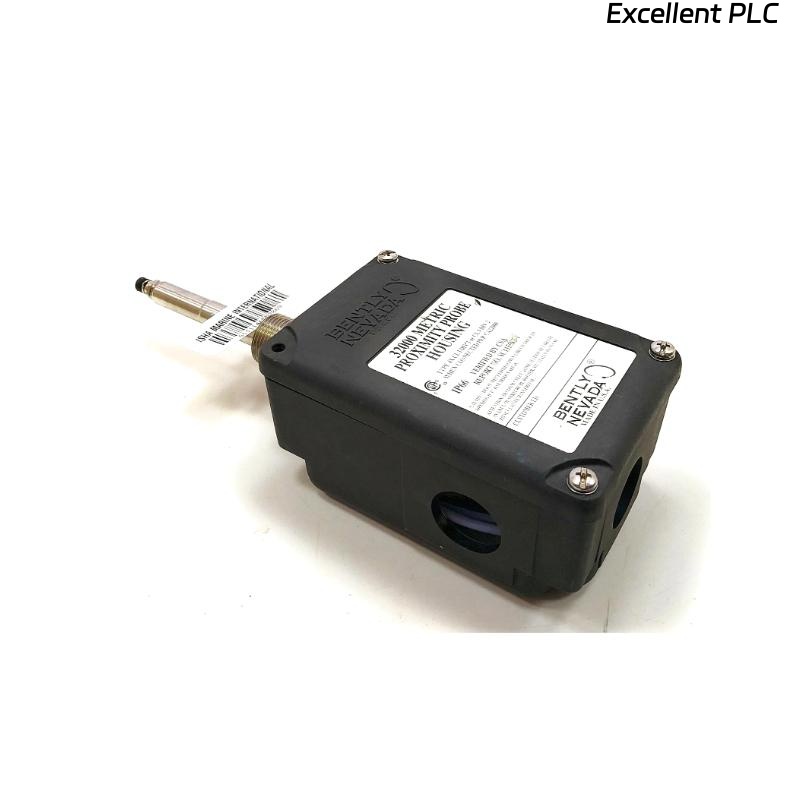

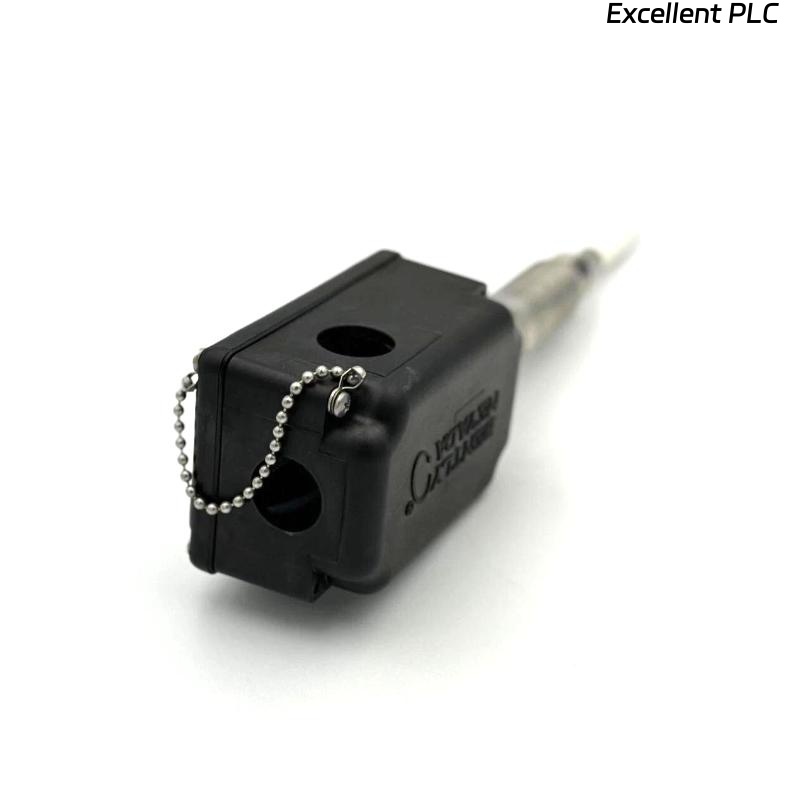

The Bently Nevada 32000-28-05-00-100-03-02 is a robust proximity probe housing assembly, designed to ensure precise vibration and displacement measurement in rotating machinery. This housing provides a secure and durable environment for the 3300 XL 8 mm probe, offering reliability in harsh industrial conditions. It complies with API 670 standards for probe housing assemblies, ensuring compatibility with critical monitoring applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Part Number | 32000-28-05-00-100-03-02 |
| Probe Type | 3300 XL 8 mm with connector |
| Probe Cable Length | 0.5 meter |
| Probe Penetration Depth | 100 mm |
| Housing Material | PPS body with stainless steel components |
| Mounting Thread | ¾-14 NPT |
| Fittings | Two plugs, one M20 fitting, cable seal grip with armored cable grommets |
| Environmental Compliance | API 670 compliant; intrinsically safe with approved barriers |
| Explosion-proof Capability | Not explosion-proof |
| Dimensions (L x D) | 160 mm × 40 mm |
| Weight | 1.2 kg |
Applications
The 32000-28-05-00-100-03-02 housing is used in critical machinery monitoring systems where proximity probes are required for accurate radial or axial vibration measurement. Typical applications include:
-
Steam and gas turbines
-
Compressors
-
Industrial pumps
-
Large motors and generators
-
Gearboxes in high-speed rotating systems
Advantages
-
Durability: Constructed from corrosion-resistant PPS and stainless steel for long-term operation.
-
Accurate Installation: Provides stable positioning of proximity probes, ensuring consistent measurement accuracy.
-
Ease of Maintenance: Allows probe replacement or adjustment without dismantling machine casings.
-
API 670 Compliance: Meets industry standards for probe housing assemblies.
-
Intrinsic Safety: Compatible with intrinsically safe installations when used with appropriate barriers.
-
Compact Design: Optimized for through-case installation, reducing space requirements.
FAQ
Q1: What probe type is included with this housing?
A1: It includes the 3300 XL 8 mm probe with a connector.
Q2: Can this housing be used in hazardous environments?
A2: It can be used in intrinsically safe hazardous areas but is not explosion-proof.
Q3: What is the cable length provided with the probe?
A3: The assembly comes with a 0.5-meter probe cable.
Q4: What industry standard does this housing comply with?
A4: It complies with API 670 standards for proximity probe housings.
Q5: How heavy is the complete assembly?
A5: The weight of the housing assembly is 1.2 kg.
Q6: What is the penetration depth of the probe?
A6: The probe penetration depth is 100 mm.
Q7: What materials are used in this housing?
A7: It is constructed from PPS (polyphenylene sulfide) with stainless steel components.
Q8: What is the mounting thread specification?
A8: The housing uses a ¾-14 NPT mounting thread.
Q9: Can probes be adjusted or replaced without removing the housing?
A9: Yes, the design allows easy probe adjustment or replacement without removing the housing.
Q10: What typical machines use this probe housing?
A10: It is commonly used in turbines, compressors, pumps, gearboxes, and large industrial motors.
Related Models in the Same Series
| Model Number | Probe Type | Cable Length | Penetration Depth | Weight |
|---|---|---|---|---|
| 32000-28-05-00-060-03-02 | 8 mm | 0.5 m | 60 mm | 1.1 kg |
| 32000-28-05-00-080-03-02 | 8 mm | 0.5 m | 80 mm | 1.15 kg |
| 32000-28-05-00-120-03-02 | 8 mm | 0.5 m | 120 mm | 1.25 kg |
| 32000-28-05-00-150-03-02 | 8 mm | 0.5 m | 150 mm | 1.3 kg |
| 32000-28-05-00-200-03-02 | 8 mm | 0.5 m | 200 mm | 1.4 kg |
| 32000-29-05-00-100-03-02 | 11 mm | 0.5 m | 100 mm | 1.3 kg |
