Product Introduction

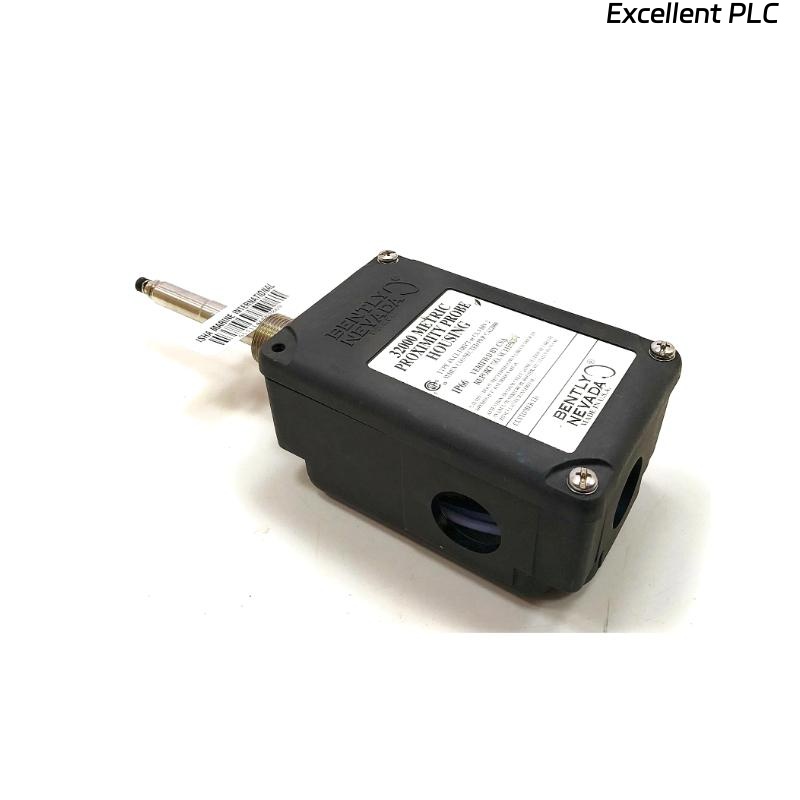

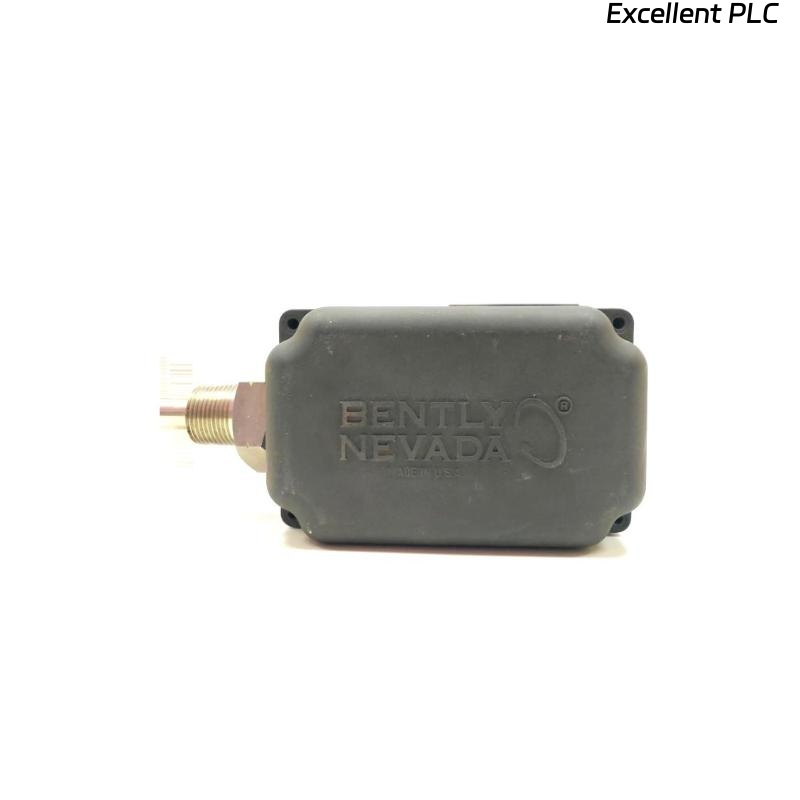

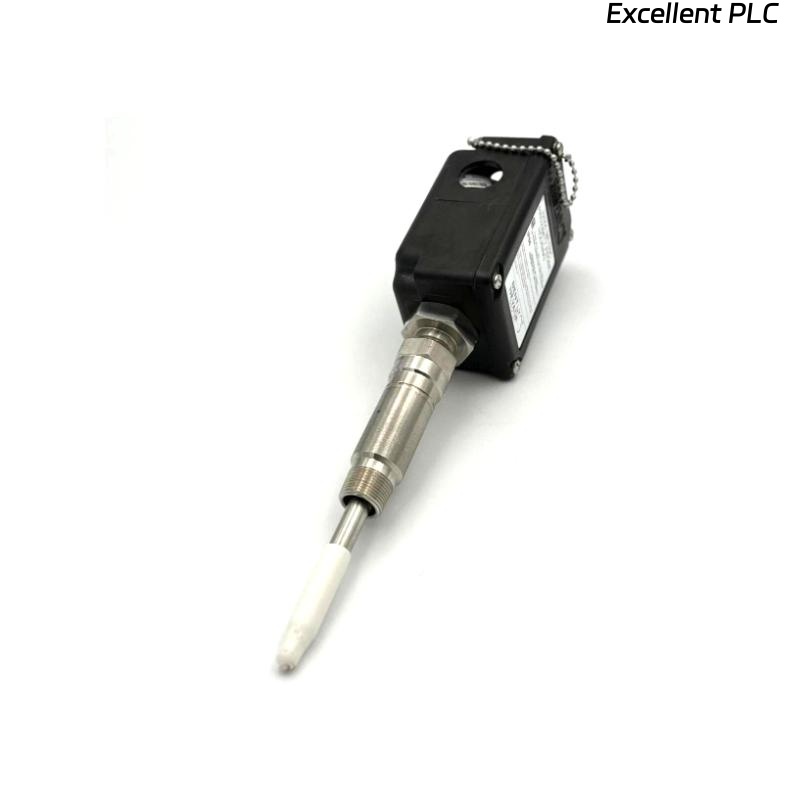

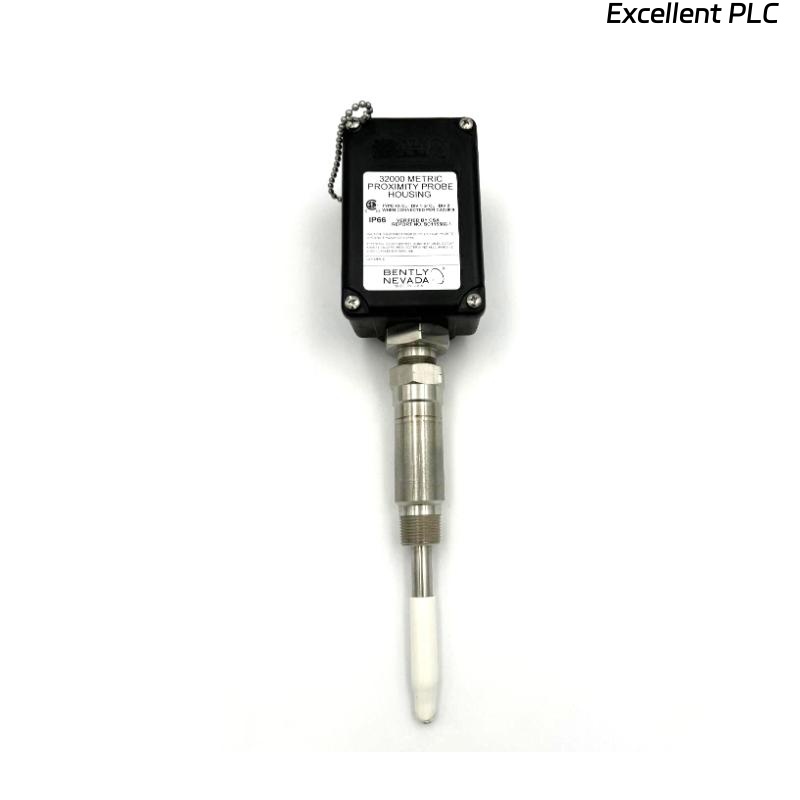

The Bently Nevada 32000-28-05-04-085-03-02 Proximity Probe Housing is a precision-engineered assembly designed to protect and mount the 3300 XL 8 mm proximity probes in demanding industrial environments. It ensures reliable shaft vibration and position measurements while maintaining environmental and mechanical protection standards. The housing is compliant with API 670 and offers convenient probe access for maintenance without requiring machine disassembly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Compatible Probe | 3300 XL 8 mm proximity probe with connector |
| Probe Cable Length | 0.5 m (20 in) |
| Standoff Adapter | 40 mm |
| Probe Penetration | 85 mm |
| Fittings | 2 plugs, 1 × M20 fitting, cable seal grip with grommets |
| Mounting Thread | ¾-14 NPT |
| Housing Material | Glass-reinforced Polyphenylene Sulfide (PPS) with conductive fibers |
| Metal Components | AISI 304 stainless steel (sleeve & chain), AISI 303 stainless steel (screws) |
| O-Ring Material | Neoprene® |
| Impact Resistance | 4 J impact at −39 °C and +115 °C; 7 J impact at room temperature |
| Temperature Range | −51 °C to +105 °C (−60 °F to +221 °F) |
| Protection Rating | Type 4X (CSA), IP66, EN50014 electrostatic dissipation |
| Compliance | API 670, suitable for hazardous areas with approved barriers |
| Dimensions | Cable length 0.5 m, penetration 85 mm, standoff 40 mm |
| Weight | 1.2 kg |
Product Applications
This probe housing is widely applied in:
-
Steam turbines, gas turbines, and compressors
-
Pumps, motors, and rotating machinery in petrochemical plants
-
Critical process equipment requiring API 670 compliance
-
Environments requiring IP66 and Type 4X protection against dust, water, and corrosion
-
Hazardous area installations with intrinsically safe certified systems
Product Advantages
-
External Probe Access – Enables gap adjustment and probe replacement without opening the machine.
-
High Environmental Protection – IP66 and Type 4X ensure resistance to dust, water, and corrosion.
-
Impact & Temperature Durability – Certified resistance to harsh industrial impacts and temperatures.
-
API 670 Compliance – Meets global standards for machine protection systems.
-
Hazardous Area Compatibility – Designed for use in intrinsically safe systems.
-
Robust Construction – PPS housing with stainless steel components ensures long-term reliability.
FAQ
Q1: What type of probe is supported by this housing?
A1: It is designed for use with the 3300 XL 8 mm proximity probe.
Q2: Can the probe be adjusted without disassembling the machine?
A2: Yes, external access allows adjustment and replacement without disturbing machinery.
Q3: What is the probe penetration length?
A3: The penetration dimension is 85 mm.
Q4: Is this housing compliant with API 670 standards?
A4: Yes, it fully meets API 670 requirements for externally mounted probe housings.
Q5: What environmental protection does it provide?
A5: It is rated IP66 and Type 4X, ensuring resistance to dust, water jets, and corrosion.
Q6: Can it be used in hazardous areas?
A6: Yes, when installed with approved intrinsic safety barriers and certified systems.
Q7: What is the operating temperature range?
A7: −51 °C to +105 °C (−60 °F to +221 °F).
Q8: What materials are used in construction?
A8: Housing is PPS with conductive fibers; fittings and sleeves are stainless steel; O-ring is Neoprene®.
Q9: What mounting thread is available?
A9: The mounting thread is ¾-14 NPT.
Q10: What is the weight of the assembly?
A10: The total weight is approximately 1.2 kg.
Related Models in the Same Series
| Model Number | Probe Cable Length | Penetration | Standoff | Thread Type | Weight |
|---|---|---|---|---|---|
| 32000-28-05-04-085-03-02 (this model) | 0.5 m | 85 mm | 40 mm | ¾-14 NPT | 1.2 kg |
| 32000-28-05-05-110-03-02 | 0.5 m | 110 mm | 50 mm | ¾-14 NPT | 1.3 kg |
| 32000-16-05-00-080-03-02 | 0.5 m | 80 mm | No | ¾-14 NPT | 1.1 kg |
| 32000-25-05-03-100-03-02 | 0.5 m | 100 mm | 30 mm | ¾-14 NPT | 1.25 kg |
| 32000-26-05-02-090-03-02 | 0.5 m | 90 mm | 20 mm | ¾-14 NPT | 1.2 kg |
| 32000-27-05-06-120-03-02 | 0.5 m | 120 mm | 60 mm | ¾-14 NPT | 1.35 kg |
