Product Introduction

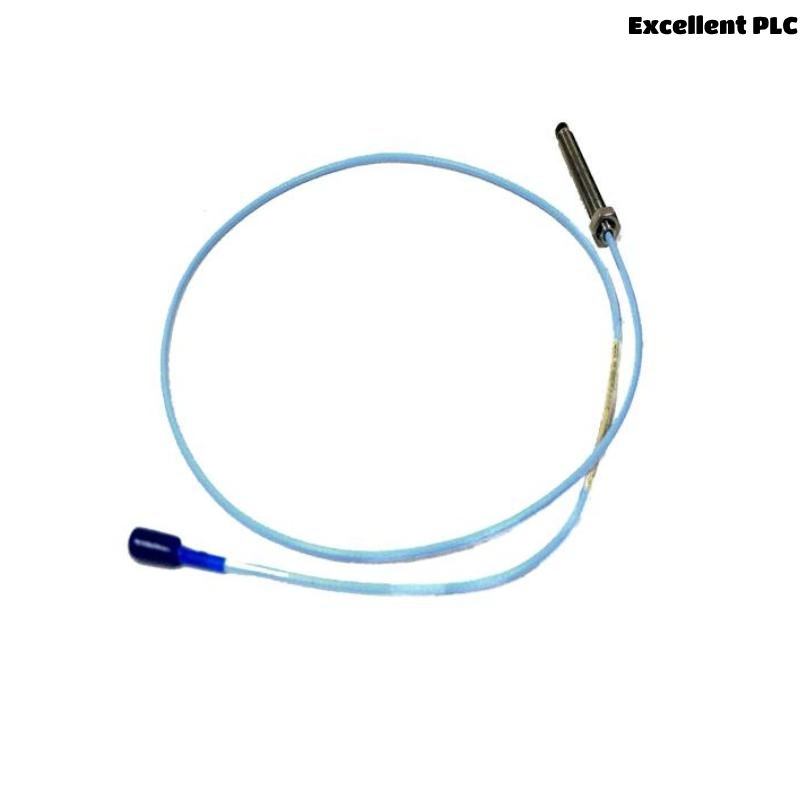

The Bently Nevada 3300 XL 8 mm Proximity Probe is an advanced sensor designed for vibration monitoring in critical industrial machinery. It is part of the 3300 XL series, which is widely known for its high precision and reliability in monitoring rotating equipment like motors, pumps, turbines, and compressors. These probes are crucial in maintaining equipment health and preventing unexpected failures by continuously measuring the displacement and vibration of the machinery.
This 8 mm probe is engineered to provide highly accurate proximity measurements, essential for assessing the condition of bearings and shafts in a variety of industrial settings. Its construction is designed to withstand the rigors of demanding environments, ensuring that it continues to perform even in harsh conditions.
Product Parameters
| Specification | Details |
|---|---|
| Model | 330101-00-08-10-02-00 |
| Series | 3300 XL |
| Probe Type | 8 mm Proximity Probe |
| Measuring Range | ±0.2 mm |
| Sensitivity | 5 µm |
| Diameter of Probe | 8 mm |
| Cable Length | 1 meter |
| Output | AC or DC (depending on configuration) |
| Operating Temperature | -40°C to 100°C |
| Weight | 0.323 kg |
| Mounting Type | Flanged or threaded |
| Material | Stainless Steel |
Applications
The Bently Nevada 3300 XL 8 mm Proximity Probe is widely used in industries that require continuous monitoring of rotating equipment. Its applications include:
-
Turbines: The probe helps monitor the shaft movement and ensures that the turbine operates within safe tolerances.
-
Motors: By monitoring shaft displacement, the probe detects any misalignments, imbalance, or other anomalies.
-
Compressors: The probe ensures that compressor components are in optimal condition, preventing mechanical failures.
-
Pumps: The proximity probe helps detect excessive vibration in pump shafts, which can be a sign of bearing wear or misalignment.
-
Generators: The probe monitors the shaft alignment and vibration, crucial for maintaining the health of the generator and preventing downtime.
-
Wind Turbines: Used for monitoring vibration and displacement in the blades and rotor shafts.
-
General Industrial Applications: It can be used in any rotating machinery where vibration monitoring is critical.
Advantages
-
High Accuracy and Reliability: The 3300 XL probes are renowned for their precision, providing accurate displacement measurements with minimal error. This allows for better diagnostics and predictive maintenance.
-
Rugged Construction: Made from high-quality stainless steel, the probe is built to withstand extreme conditions. Its durability ensures it performs well in harsh environments such as high humidity, temperature fluctuations, and industrial vibrations.
-
Ease of Installation: The probe’s design allows for easy installation in most machines with either a flanged or threaded mounting option, ensuring compatibility with a wide range of systems.
-
Long Service Life: With robust materials and a well-engineered design, these probes have a long service life, reducing maintenance costs and downtime.
-
Wide Temperature Range: The 3300 XL probe operates effectively in a broad temperature range (-40°C to 100°C), making it suitable for both extremely hot and cold environments.
-
Versatile Output Options: With both AC and DC outputs available, the probe is adaptable to different monitoring and control systems, ensuring seamless integration into existing setups.
-
Minimal Calibration Requirements: The probe requires minimal calibration and is ready to use after installation, reducing setup time and operational complexity.
FAQ
-
What is the measuring range of the Bently Nevada 3300 XL 8 mm Proximity Probe?
-
The measuring range is ±0.2 mm, providing accurate proximity measurements for precise diagnostics.
-
-
Can the 3300 XL probe be used in both AC and DC systems?
-
Yes, the probe supports both AC and DC outputs, making it versatile for different monitoring systems.
-
-
What is the operating temperature range of the 3300 XL probe?
-
The probe operates effectively in a temperature range of -40°C to 100°C.
-
-
How do I install the 3300 XL proximity probe?
-
The probe can be installed using either a flanged or threaded mounting option, depending on your equipment.
-
-
Is the 3300 XL probe compatible with all types of rotating machinery?
-
Yes, it is compatible with a wide range of rotating equipment such as turbines, pumps, motors, and compressors.
-
-
What material is the probe made of?
-
The probe is constructed from high-quality stainless steel, ensuring durability and corrosion resistance.
-
-
How long is the cable on the 3300 XL proximity probe?
-
The standard cable length is 1 meter, although longer cables can be ordered if needed.
-
-
What is the weight of the Bently Nevada 3300 XL 8 mm Proximity Probe?
-
The probe weighs 0.323 kg.
-
-
Can I use the probe in harsh industrial environments?
-
Yes, the probe is built to withstand tough environments, including exposure to vibrations, humidity, and extreme temperatures.
-
-
What is the accuracy of the Bently Nevada 3300 XL 8 mm Proximity Probe?
-
The probe provides a sensitivity of 5 µm, ensuring high accuracy in proximity measurements.
-
Recommended Related Models
| Model | Description | Measuring Range | Sensitivity | Output Type |
|---|---|---|---|---|
| 330101-00-08-10-01-00 | 3300 XL 8 mm Proximity Probe (shorter cable) | ±0.2 mm | 5 µm | AC/DC |
| 330101-00-08-10-03-00 | 3300 XL 8 mm Proximity Probe (longer cable) | ±0.2 mm | 5 µm | AC/DC |
| 330104-00-08-10-02-00 | 3300 XL 5 mm Proximity Probe | ±0.2 mm | 5 µm | AC/DC |
| 330200-00-08-10-00-00 | 3300 XL 4 mm Proximity Probe | ±0.2 mm | 5 µm | AC/DC |
| 330101-00-12-10-02-00 | 3300 XL 12 mm Proximity Probe | ±0.5 mm | 5 µm | AC/DC |
| 330301-00-08-10-02-00 | 3300 XL 8 mm Proximity Probe with extended cable | ±0.2 mm | 5 µm | AC/DC |
Popular Models from Bently Nevada
| Model | Description | Measuring Range | Sensitivity | Output Type |
|---|---|---|---|---|
| 330104-00-08-10-02-00 | 3300 XL 5 mm Proximity Probe | ±0.2 mm | 5 µm | AC/DC |
| 330200-00-08-10-00-00 | 3300 XL 4 mm Proximity Probe | ±0.2 mm | 5 µm | AC/DC |
| 330500-00-08-10-02-00 | 3300 XL 5 mm Proximity Probe (Heavy Duty) | ±0.5 mm | 5 µm | AC/DC |
| 3300/05/XL | 3300 XL Monitoring System | ±0.2 mm | 5 µm | AC/DC |
| 350100-00-08-10-01-00 | 3500 XL Proximity Transducer | ±0.2 mm | 5 µm | AC/DC |
| 330900-00-08-10-02-00 | 3300 XL Dual Probe | ±0.5 mm | 5 µm | AC/DC |
