Product Description

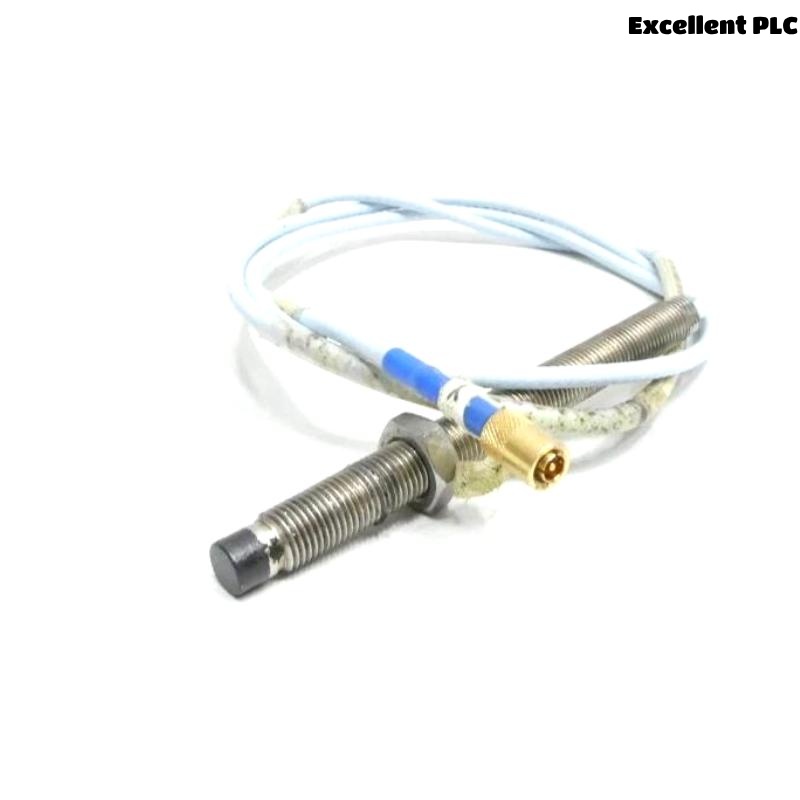

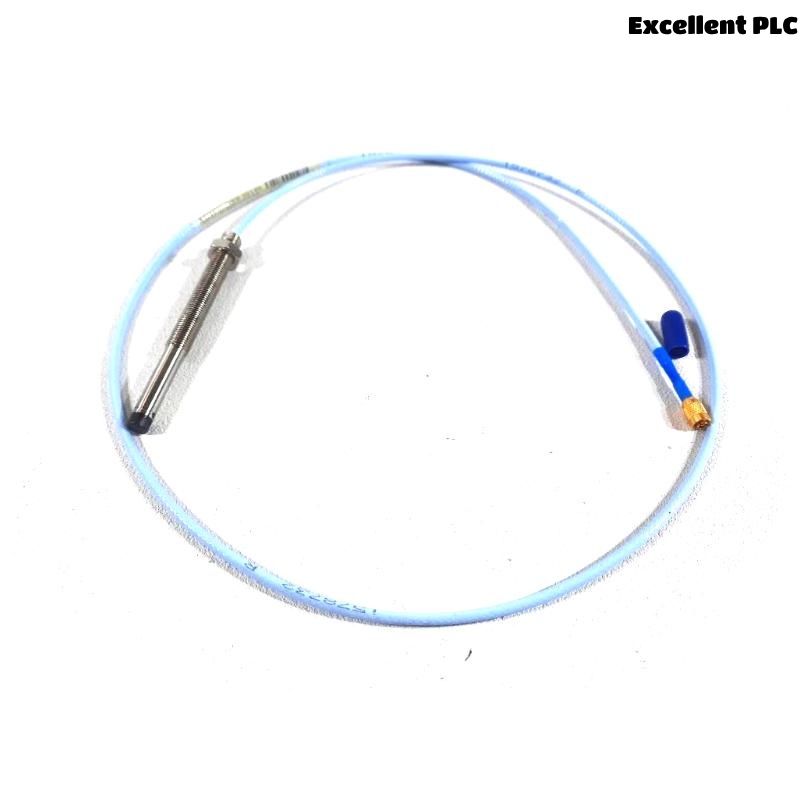

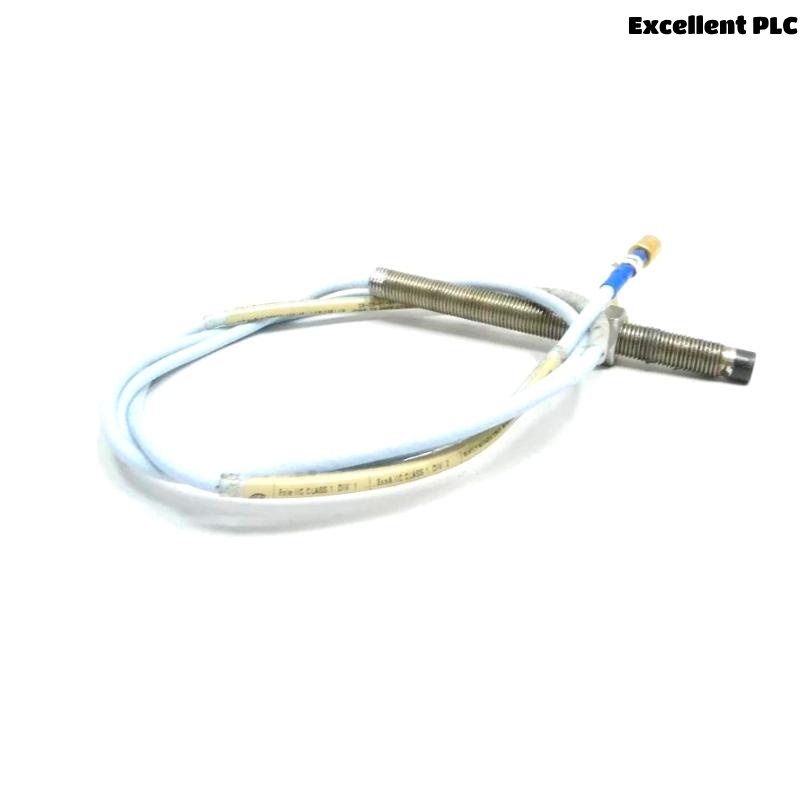

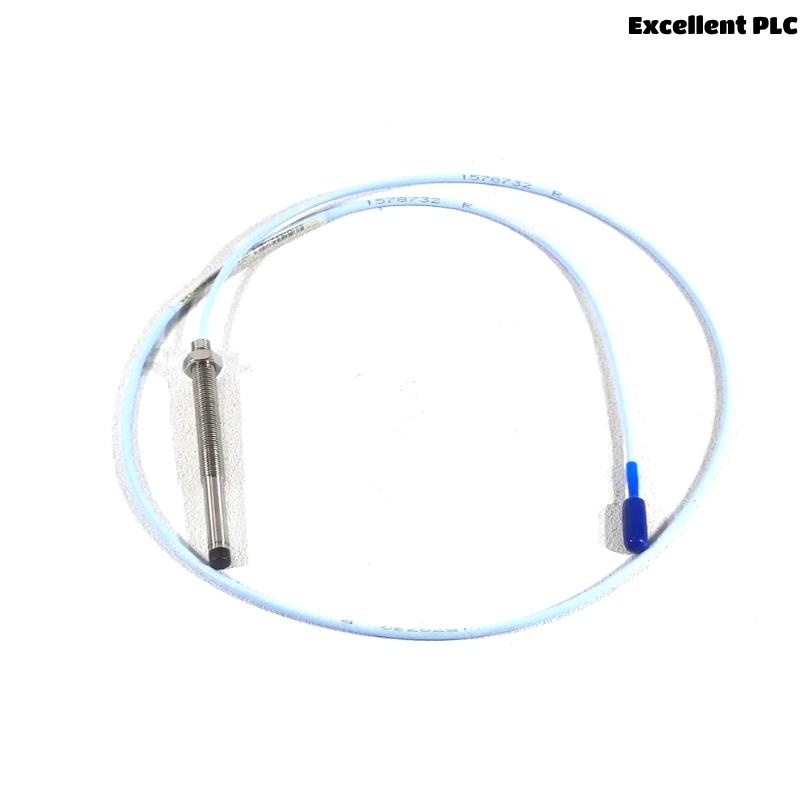

The Bently Nevada 330101-00-10-10-12-05 3300 XL 8 mm Proximity Probe is a highly reliable eddy-current sensor designed for vibration and position monitoring in rotating machinery. It provides a precise voltage output proportional to the distance between the probe tip and the conductive surface. It is part of the 3300 XL transducer system, fully compliant with API 670 standards and backward compatible with earlier 3300 series components.
Applications
-
Vibration monitoring on fluid-film bearing machines
-
Shaft position and Keyphasor speed measurements
-
Overspeed protection and radial/axial displacement detection
Advantages
-
Fully compliant with API 670 standard
-
Backward compatible and interchangeable
-
Rugged construction with TipLoc and CableLoc enhancements
-
Optional FluidLoc cable prevents oil leakage
-
Excellent immunity to RFI/EMI for reliable operation
-
Easy installation with ClickLoc connectors
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Case Material | AISI 303/304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Length | Total length: 1.0 meter |
| Weight | Approx. 0.323 kg |
| Operating Temperature | -52°C to +177°C (standard probe) |
| Linear Range | 0.25–2.3 mm |
| Frequency Response | 0–10 kHz |
| Recommended Shaft Diameter | ≥76.2 mm |
| Minimum Target Diameter | 15.2 mm |
| Connector Type | Miniature coaxial ClickLoc |
FAQ
Q1: What is the primary use of the 330101-00-10-10-12-05 probe?
A1: It is mainly used for vibration and position monitoring on rotating machinery.
Q2: Is it compatible with older 3300 series systems?
A2: Yes, it is fully backward compatible and interchangeable with 3300 5 mm and 8 mm components.
Q3: Does it comply with API standards?
A3: Yes, it meets the API 670 standard for mechanical configuration and accuracy.
Q4: What is the typical operating temperature range?
A4: Standard probe operation is from -52°C to +177°C.
Q5: How is the connector secured?
A5: The ClickLoc connector clicks into place and resists loosening without special tools.
Q6: What is the recommended gap setting?
A6: Approximately 1.27 mm (50 mils), corresponding to a -9 Vdc output.
Q7: Can it withstand high vibration environments?
A7: Yes, its robust construction and superior encapsulation ensure durability.
Q8: Is the cable oil-resistant?
A8: Optional FluidLoc cables are available to prevent oil leaks through the cable.
Q9: What is the minimum target diameter?
A9: The minimum recommended flat target diameter is 15.2 mm.
Q10: Does it require calibration?
A10: It comes factory-calibrated to AISI 4140 steel; calibration for other materials is available on request.
