Product Introduction

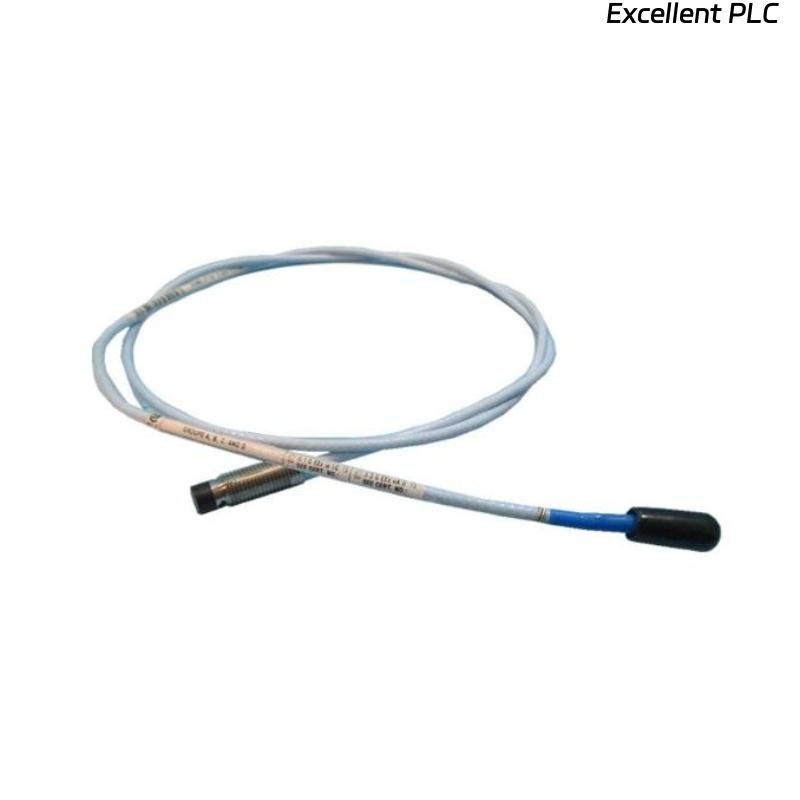

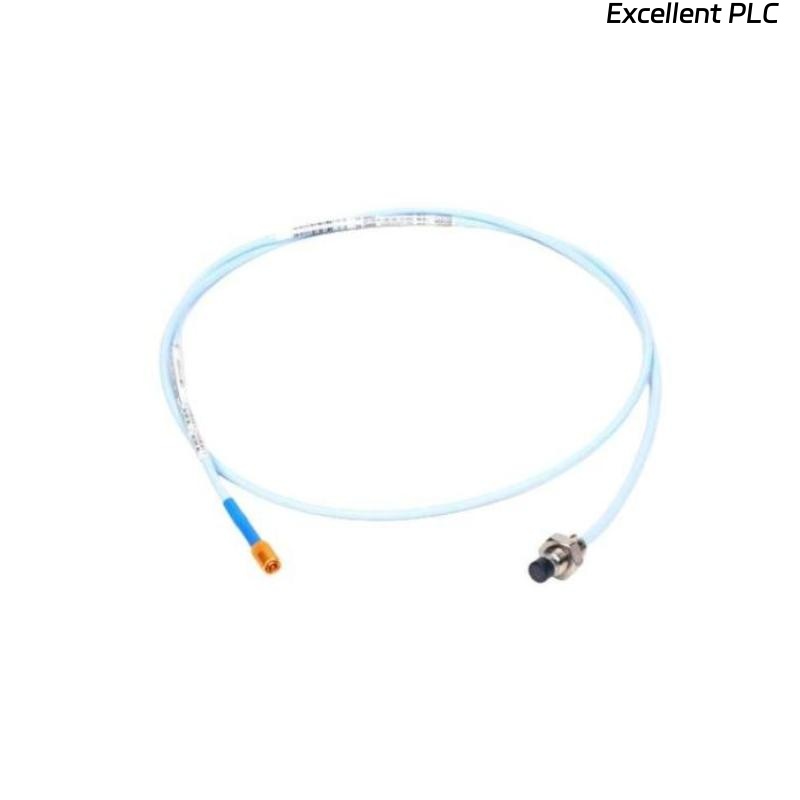

The Bently Nevada 330101-00-10-15-02-05 3300 XL 8 mm Proximity Probe is a high-performance displacement sensor used for accurately measuring the radial position of rotating machinery components. With its robust construction and high sensitivity, this proximity probe plays an integral role in ensuring the health of machinery by enabling precise vibration and displacement measurements. It is specifically designed for high-end machinery condition monitoring, allowing predictive maintenance and early fault detection to avoid unplanned downtime and costly repairs.
This model, part of the renowned 3300 XL series, is ideal for industries that demand accuracy and reliability, including power generation, oil & gas, chemical processing, and industrial manufacturing.
Product Parameters
| Parameter | Specification |
|---|---|
| Total Length | 1.5 meter |
| Weight | 0.485 kg |
| Probe Tip Diameter | 8 mm |
| Output Type | Linear DC Voltage |
| Measurement Range | ±10 mm |
| Sensitivity | 10 V/mil (0.4 μm/mV) |
| Probe Material | Stainless Steel |
| Operating Temperature | -40°C to +120°C |
| Connector Type | 5-pin, shielded |
Product Applications
The 3300 XL 8 mm Proximity Probe is suitable for a variety of critical applications, particularly in industries requiring precise monitoring of machinery health. Some of its key applications include:
-
Turbine Vibration Monitoring: Used in turbines to measure radial displacement, which helps in the early detection of misalignment or imbalance.
-
Pump and Motor Condition Monitoring: Offers reliable displacement data for pumps, motors, and compressors, improving overall performance and uptime.
-
Predictive Maintenance: Early detection of displacement anomalies helps prevent costly equipment failure through proactive maintenance planning.
-
Machine Health Monitoring: Ideal for continuous monitoring of machinery in heavy-duty industrial settings, including power plants, oil rigs, and petrochemical industries.
-
Bearing Wear Detection: Used to measure displacements that can help detect bearing wear and misalignments, which can lead to machinery failure if left unaddressed.
-
Critical Machinery Monitoring: Monitors high-precision machinery where accuracy in displacement measurement is crucial to avoiding operational disruptions.
Product Advantages
-
High Sensitivity: The probe has a sensitivity of 10 V/mil (0.4 μm/mV), making it capable of detecting even the slightest mechanical displacement, which is crucial for identifying early signs of failure.
-
Durable Stainless Steel Construction: The stainless steel body of the probe ensures long-term reliability, even in harsh industrial environments.
-
Wide Operating Temperature Range: The probe operates effectively from -40°C to +120°C, providing versatility for use in both cold and hot environments.
-
Linear DC Output: The probe provides a linear DC voltage output, which is compatible with a wide range of condition monitoring systems, enabling seamless integration.
-
Accurate and Precise Measurement: With an impressive ±10 mm measurement range, this probe delivers accurate radial displacement data, essential for real-time condition monitoring.
-
Seamless Integration: It integrates effortlessly into Bently Nevada and third-party monitoring systems, facilitating streamlined monitoring and diagnostics.
FAQ
1. What is the measurement range of the 3300 XL 8 mm proximity probe?
The 3300 XL 8 mm proximity probe has a measurement range of ±10 mm, suitable for measuring small and large displacements with high accuracy.
2. What type of output does the probe generate?
The probe provides a linear DC voltage output, which is ideal for monitoring and integrating with vibration and displacement monitoring systems.
3. What is the sensitivity of this proximity probe?
The 3300 XL 8 mm proximity probe has a sensitivity of 10 V/mil (0.4 μm/mV), ensuring highly precise displacement measurements.
4. What material is the probe made of?
The probe is constructed from stainless steel, making it durable and resistant to wear in industrial settings.
5. What is the operating temperature range of the probe?
The 3300 XL 8 mm proximity probe is designed to operate in environments with temperatures ranging from -40°C to +120°C.
6. How does the probe support predictive maintenance?
The probe provides precise displacement data, which helps in identifying issues like misalignment, imbalance, or bearing wear, facilitating early intervention and minimizing downtime.
7. Can the 3300 XL 8 mm proximity probe be used for both large and small machinery?
Yes, this probe is suitable for both large and small machinery across various applications, providing accurate measurements regardless of the machine size.
8. Can this probe be used with third-party monitoring systems?
Yes, the 3300 XL 8 mm proximity probe is designed to integrate easily with Bently Nevada systems as well as other third-party monitoring equipment.
9. What types of equipment is the 3300 XL 8 mm probe suitable for?
The 3300 XL 8 mm proximity probe is ideal for use in turbines, compressors, pumps, motors, and other rotating machinery.
10. How is the probe installed?
The 3300 XL 8 mm proximity probe can be easily installed into most machinery configurations, providing reliable data for continuous monitoring.
