Product Introduction

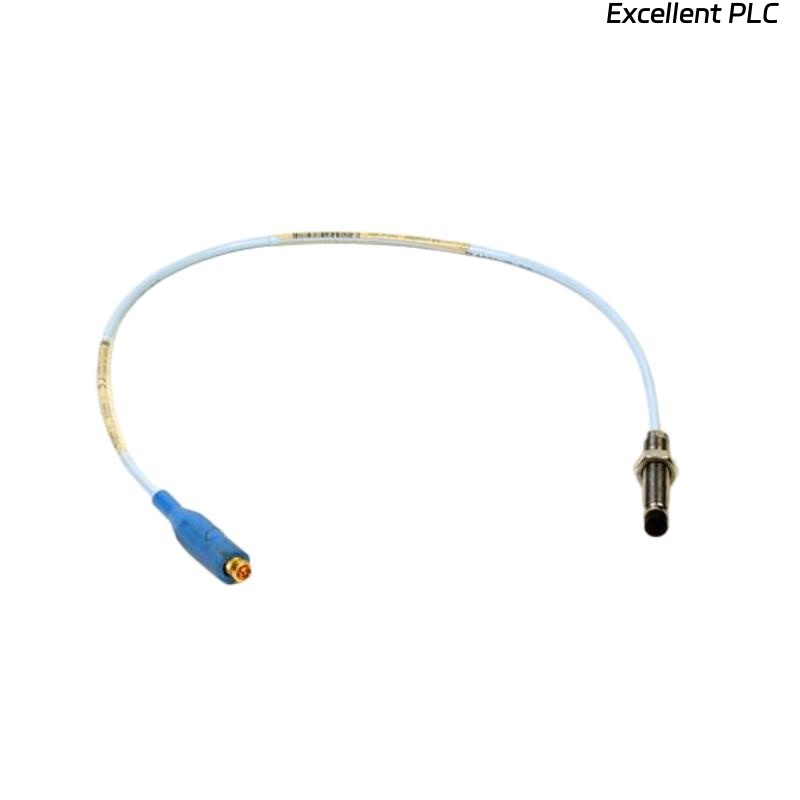

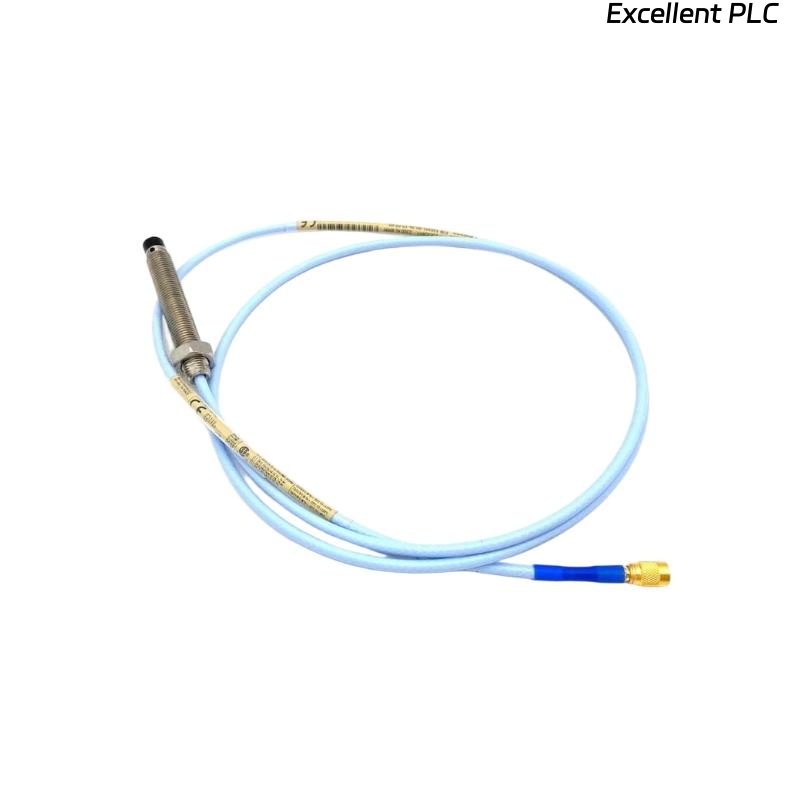

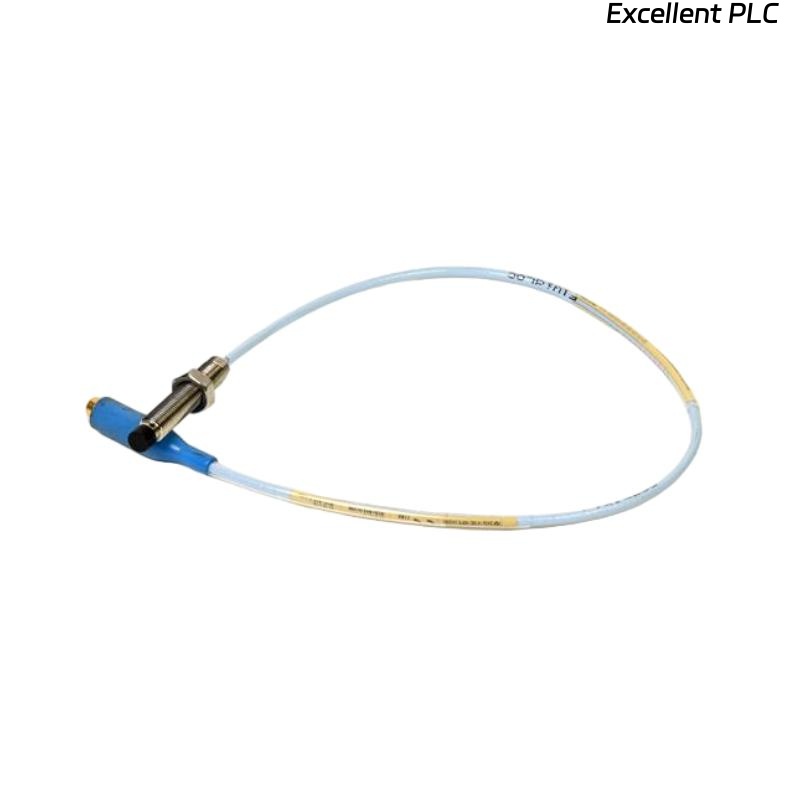

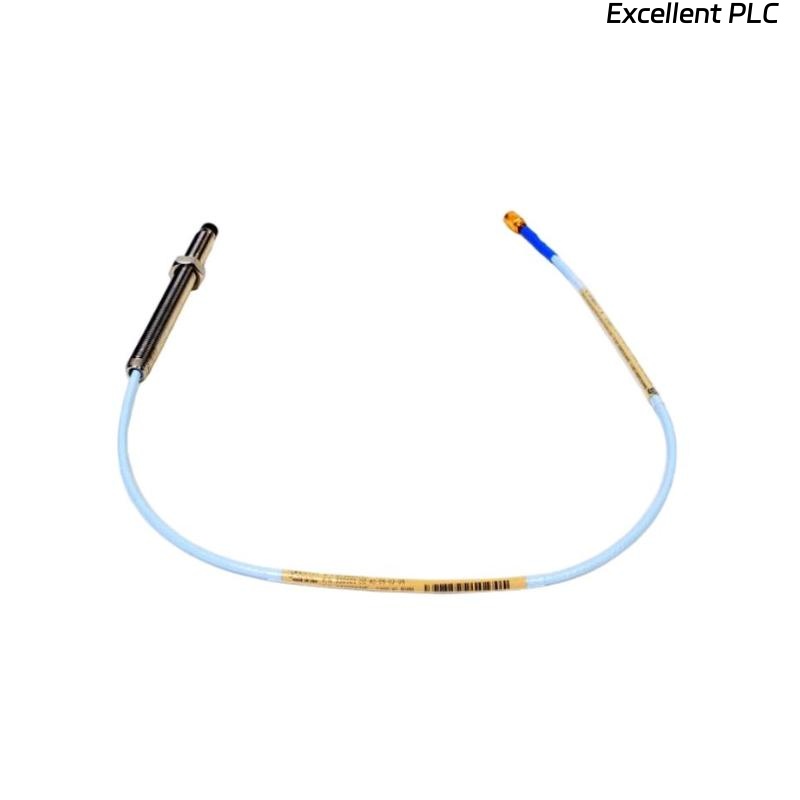

The Bently Nevada 330101-00-11-15-02-05 3300 XL 8 mm Proximity Probe is an advanced measurement device designed for high-precision monitoring of rotating equipment. This probe is part of the 3300 XL series, renowned for its reliability, durability, and accurate measurement capabilities in harsh industrial environments. It uses 8 mm technology to detect minute displacement and vibration of machinery, which helps to identify early signs of failure such as misalignment or imbalance.
The probe’s primary function is to measure the radial displacement of machines, which is crucial for maintaining the health of critical rotating equipment. It is commonly used in power generation, petrochemical, mining, oil & gas, and heavy industrial applications. This model provides robust performance and high sensitivity, even in the most demanding environments.
Product Parameters
| Parameter | Specification |
|---|---|
| Total Length | 1.5 meters |
| Weight | 0.485 kg |
| Probe Tip Diameter | 8 mm |
| Output Type | Linear DC Voltage |
| Measurement Range | ±10 mm |
| Sensitivity | 10 V/mil (0.4 μm/mV) |
| Operating Temperature | -40°C to +120°C |
| Probe Material | Stainless Steel |
| Connector Type | 5-pin, shielded |
Product Applications
The 3300 XL 8 mm Proximity Probe is highly versatile and finds applications in a wide variety of industries. Some common applications include:
-
Turbine Monitoring: Essential for detecting vibration or displacement in turbines, ensuring that they operate at peak efficiency and remain free from damage.
-
Pump & Motor Health Monitoring: Detects issues such as misalignment or bearing wear early, enabling predictive maintenance to prevent costly repairs and downtime.
-
Predictive Maintenance: The probe’s high sensitivity and precision allow for early detection of mechanical faults, contributing to reduced downtime and improved maintenance scheduling.
-
Compressor & Fan Monitoring: Used to monitor compressors and fans in critical operations, detecting any abnormal vibrations or displacements that may indicate an issue.
-
Power Generation: Widely used in power plants to monitor the condition of turbines, motors, and other rotating equipment, ensuring their continued safe operation.
-
Critical Machinery Protection: Monitors displacement to detect abnormal movements, preventing damage and extending equipment lifespan.
Product Advantages
-
High Sensitivity: The probe provides precise measurements with a sensitivity of 10 V/mil (0.4 μm/mV), allowing it to detect even the smallest displacements in rotating machinery.
-
Durable Design: The stainless steel probe is built to withstand harsh industrial environments, ensuring it remains functional in extreme conditions.
-
Wide Operating Temperature Range: Operating in temperatures from -40°C to +120°C, the probe is versatile and suitable for various industrial settings.
-
Accurate Measurement: The probe has a ±10 mm measurement range, offering highly accurate readings that can be integrated into predictive maintenance systems.
-
Linear DC Output: The probe’s linear DC voltage output ensures compatibility with most monitoring systems and simplifies integration into existing machinery health monitoring systems.
-
Simple Installation: The probe can be installed with ease into various machinery setups, making it a convenient solution for both new and existing systems.
FAQ
1. What is the sensitivity of the 3300 XL 8 mm proximity probe?
The 3300 XL 8 mm proximity probe has a sensitivity of 10 V/mil (0.4 μm/mV), allowing it to detect even the smallest displacements in machinery.
2. What is the measurement range of the 3300 XL 8 mm probe?
The 3300 XL 8 mm probe has a measurement range of ±10 mm, offering precise displacement measurements.
3. What is the operating temperature range of this probe?
The probe operates effectively in temperatures ranging from -40°C to +120°C, ensuring it can be used in a wide range of industrial environments.
4. What material is the probe made from?
The 3300 XL 8 mm proximity probe is made from stainless steel, providing durability and resistance to environmental wear and tear.
5. How is the probe outputting data?
The probe generates a linear DC voltage output, which is suitable for most monitoring and control systems.
6. What types of applications is the probe used in?
This probe is widely used in turbine monitoring, pump and motor health monitoring, predictive maintenance, and critical machinery protection.
7. How accurate is the measurement provided by this probe?
The probe provides highly accurate displacement measurements, with a sensitivity of 10 V/mil (0.4 μm/mV) and a measurement range of ±10 mm.
8. Can this probe be used for predictive maintenance?
Yes, the 3300 XL 8 mm proximity probe is ideal for predictive maintenance as it helps detect small signs of wear or misalignment before they lead to failures.
9. How is the probe installed in machinery?
The 3300 XL 8 mm proximity probe is designed for easy installation in most machinery setups, making it compatible with both existing and new systems.
10. Can the 3300 XL probe detect misalignment or bearing wear?
Yes, this probe’s high sensitivity allows it to detect issues like misalignment, bearing wear, and other mechanical faults in rotating machinery.
