Product Introduction

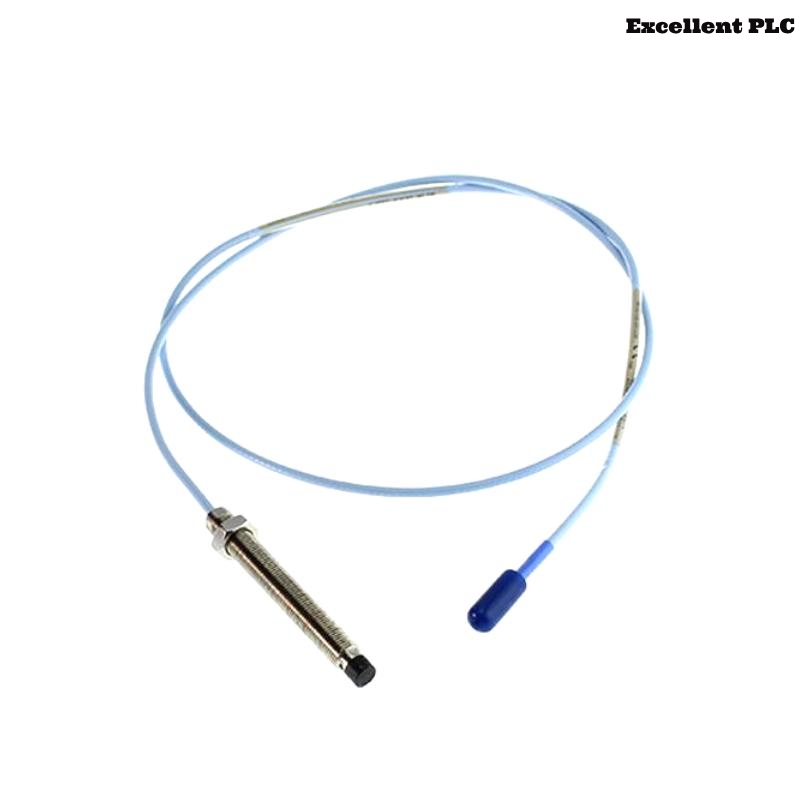

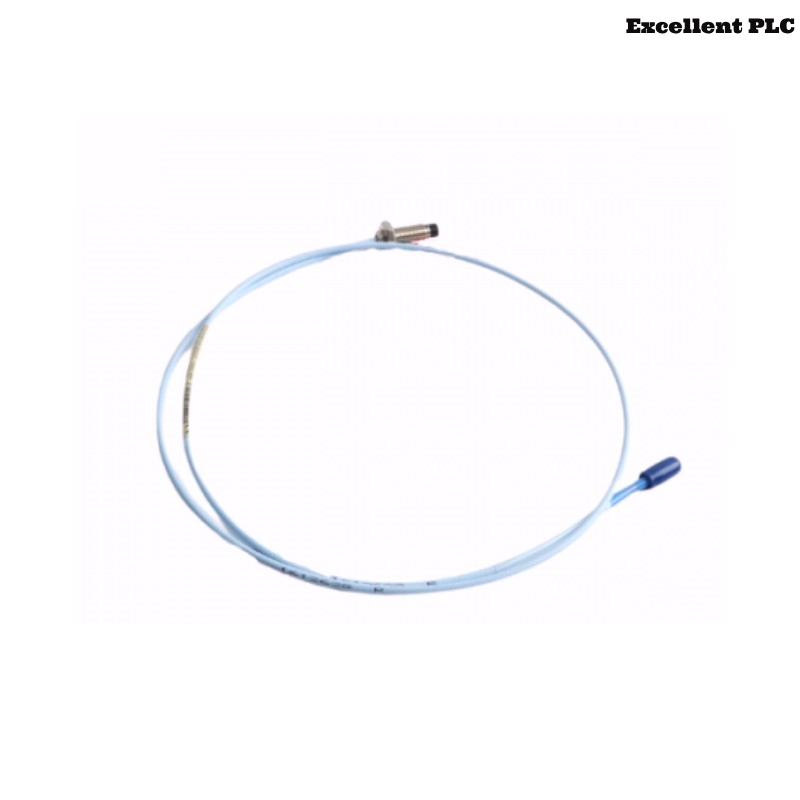

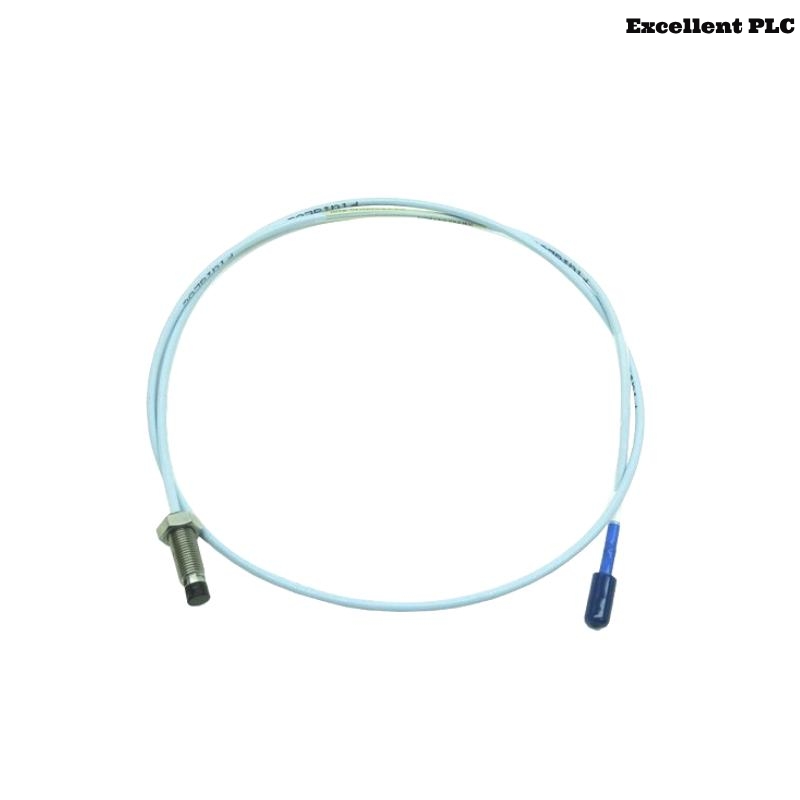

The Bently Nevada 330101-00-12-10-02-00 is part of the 3300 XL 8 mm Proximity Transducer System, a trusted and field-proven solution used extensively for machinery condition monitoring and protection. This particular model is a proximity probe designed to measure the distance between the probe tip and the observed surface, typically a rotating shaft. The system operates based on eddy current technology, delivering reliable non-contact measurement of shaft position and vibration in industrial rotating machinery.
The 3300 XL series offers robust construction, improved immunity to electrical noise, and extended durability in harsh industrial environments. The probe is compatible with other 3300 XL series components such as extension cables and Proximitor® sensors, and is typically used with monitoring systems for critical equipment such as turbines, compressors, pumps, and motors.
This specific part number — 330101-00-12-10-02-00 — denotes a standard unarmored 8 mm probe with 12 ft cable length, a 10 ft extension cable, and a 3300 XL Proximitor sensor calibrated to a -24 Vdc power supply.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Part Number | 330101-00-12-10-02-00 |
| Sensing Technology | Eddy Current (Non-contact) |
| Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Overall Length | 1.0 meter |
| Proximitor Sensor | 3300 XL, -24 Vdc |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.127 mm (±5 mils) or better over linear range |
| Frequency Response | Up to 10 kHz |
| Operating Temperature | -35°C to +177°C (Probe and Cable) |
| Storage Temperature | -51°C to +177°C |
| Humidity | 100% condensing, non-submersible |
| Vibration Limit | 50 g pk, 10-2000 Hz |
| Shock Limit | 5000 g, 1 ms half-sine pulse |
| Weight | 0.323 kg |
| Probe Body Material | AISI 303 Stainless Steel |
| Cable Type | Coaxial, Teflon-insulated, unarmored |
| Connector Type | Miniature coaxial (MIL-C-39012 compliant) |
Applications
The Bently Nevada 330101-00-12-10-02-00 probe is suitable for a wide range of industrial and critical applications, including:
-
Turbomachinery Monitoring: Used to measure radial and axial shaft position in turbines, ensuring optimal rotor alignment and safety.
-
Compressor Vibration Analysis: Provides real-time monitoring of shaft vibration to prevent failure and downtime.
-
Pump Health Monitoring: Detects shaft misalignment, imbalance, or looseness that could lead to premature wear.
-
Electric Motor Diagnostics: Ensures rotor shaft behavior remains within design parameters.
-
Gearbox Condition Monitoring: Used to detect abnormalities in gear meshing through shaft movement detection.
-
Bearing Protection Systems: Monitors shaft displacement relative to bearings to identify potential wear or damage.
Product Advantages
-
Field-Proven Durability: Designed for continuous operation in harsh and high-temperature environments.
-
Enhanced Noise Immunity: Superior shielding and grounding reduce susceptibility to electrical interference.
-
High Accuracy: Provides consistent and repeatable measurement across a wide frequency range.
-
Modular Design: Interchangeable with other 3300 XL system components for easy maintenance and upgrades.
-
Backward Compatibility: Fully compatible with earlier Bently Nevada systems and monitoring hardware.
-
Global Standardization: Widely adopted across oil & gas, power generation, and petrochemical industries.
Frequently Asked Questions (FAQ)
-
What is the primary function of the 330101-00-12-10-02-00 proximity probe?
It measures the distance between a rotating shaft and the probe tip using non-contact eddy current technology. -
Can this probe be used in high-temperature environments?
Yes, the probe is rated for operation in temperatures up to 177°C. -
Is the cable armored?
No, this specific model features an unarmored cable. -
Can the probe be used with older Bently Nevada systems?
Yes, it is backward compatible with many older proximity monitoring systems. -
What is the linear range of the probe?
It offers a linear range of 2 mm (80 mils) from the probe tip. -
What is the standard calibration target?
The system is calibrated with a 4140 steel target, per API 670 standards. -
Can I replace just the probe without changing the Proximitor?
Yes, as long as the replacement matches the system specifications. -
Is the probe submersible?
No, while it is humidity resistant, it is not designed to be submerged in liquid. -
How is the probe installed?
It is threaded and mounts via a 3/8-24 UNF thread into a matching housing or bracket. -
Is it suitable for shaft vibration monitoring on high-speed machinery?
Absolutely; the probe supports frequency responses suitable for high-speed shaft monitoring.
Related Models (Same Series or Functionality)
| Model Number | Description | Cable Length | Extension Cable | Notes |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, 8 ft cable | 8 ft | 10 ft | Standard -24 Vdc version |
| 330101-00-18-10-02-00 | 3300 XL 8 mm Probe, 18 ft cable | 18 ft | 10 ft | Long cable for remote setups |
| 330104-00-12-10-02-00 | 3300 XL 11 mm Probe, 12 ft cable | 12 ft | 10 ft | Larger tip diameter |
| 330130-040-00 | Extension Cable for 3300 XL probes | 40 ft | N/A | High-temperature application |
| 330180-91-00 | Proximitor Sensor for 3300 XL | N/A | N/A | DIN rail mountable |
| 330106-05-30-10-02-00 | 8 mm Armored Probe, 5 m cable | 16.4 ft | 10 ft | For rugged environments |
