Product Introduction

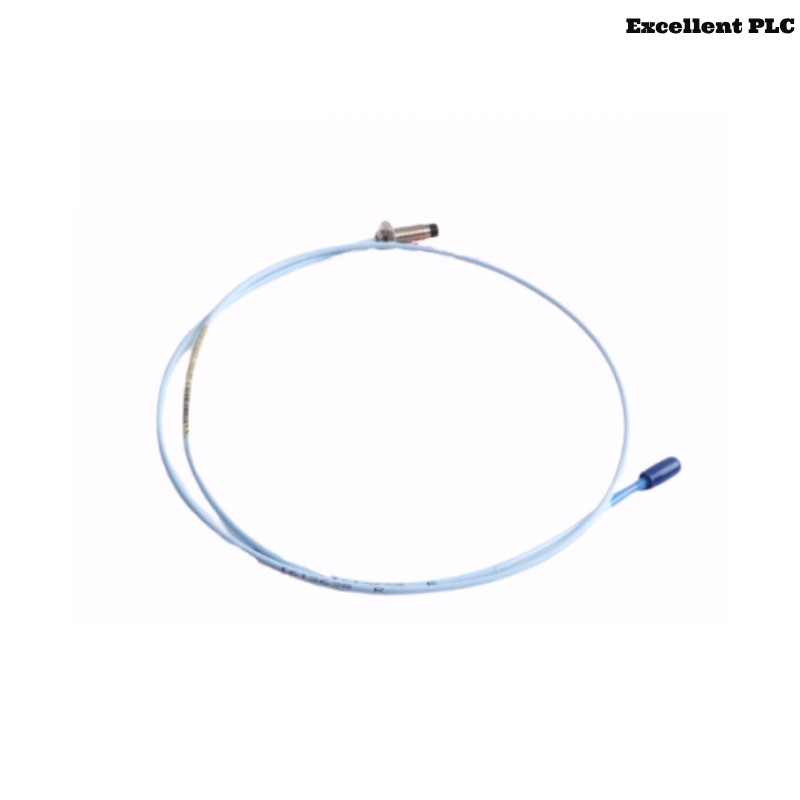

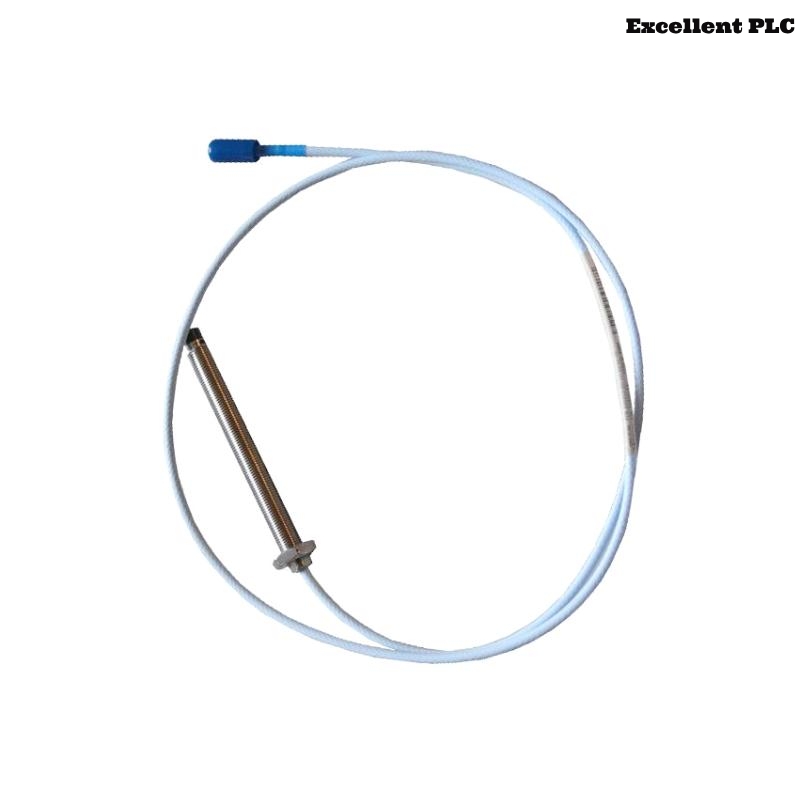

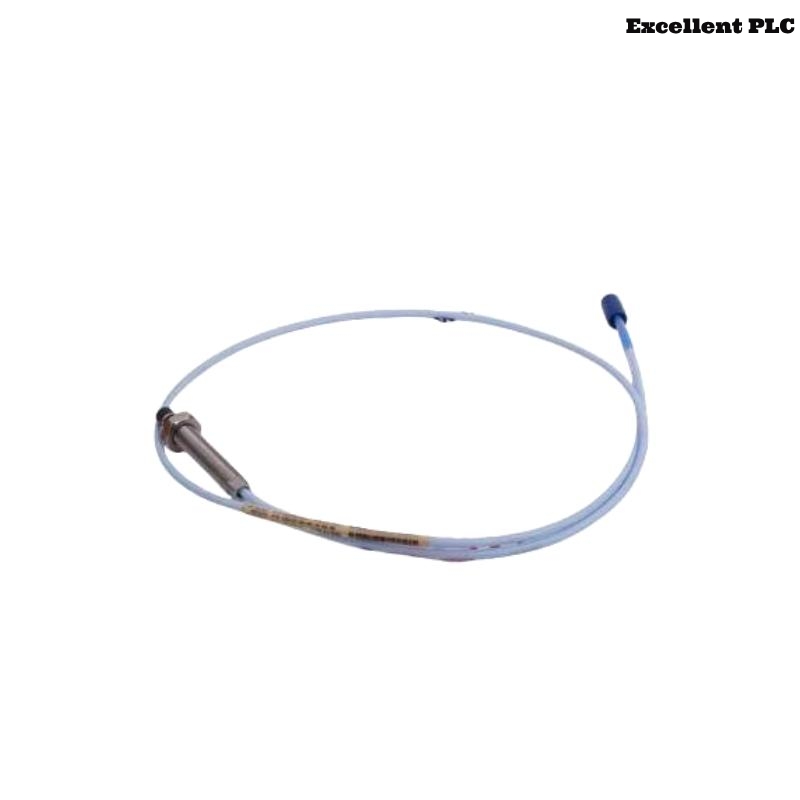

The Bently Nevada 330101-00-12-10-02-CN belongs to the 3300 XL 8 mm Proximity Transducer System, a high-precision, non-contact sensing solution trusted by the global rotating machinery industry. This specific model is part of the probe family used extensively in monitoring the dynamic behavior of critical machinery, such as turbines, compressors, motors, and pumps.
The “-CN” suffix indicates that the product is manufactured or calibrated to Chinese standards, or distributed within the Chinese region under specific local requirements, but functionally it maintains full compatibility with the global 3300 XL series system. It is designed to provide accurate shaft position and vibration measurements, delivering early indications of mechanical failures, misalignment, and imbalance.
With a robust stainless steel design, wide temperature tolerance, and immunity to electrical noise, the 3300 XL 8 mm system remains one of the most reliable proximity sensing systems in industrial environments.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-12-10-02-CN |
| Series | 3300 XL Proximity Transducer System |
| Probe Tip Diameter | 8 mm |
| Thread Size | 3/8-24 UNF |
| Thread Length | 0.5 in (12.7 mm) |
| Total Length | 1.0 meter |
| Proximitor Sensor | 3300 XL Proximitor (-24 Vdc operation) |
| Calibration Target | AISI 4140 steel per API 670 standard |
| Sensing Principle | Eddy Current (non-contact displacement sensing) |
| Linear Range | 2 mm (80 mils) |
| System Accuracy | ±0.127 mm (±5 mils) or better |
| Frequency Response | DC to 10 kHz typical |
| Operating Temp (Probe) | -35°C to +177°C |
| Operating Temp (Sensor) | -35°C to +65°C |
| Storage Temperature | -51°C to +177°C |
| Humidity Tolerance | 100% condensing (non-submersible) |
| Vibration Tolerance | 50 g peak, 10–2000 Hz |
| Shock Resistance | 5000 g, 1 ms half-sine pulse |
| Weight | 0.323 kg |
| Material (Probe Housing) | AISI 303 Stainless Steel |
| Connector Type | MIL-C-39012 compliant miniature coaxial |
| Cable Type | Teflon-insulated coaxial (Unarmored) |
Applications
The Bently Nevada 330101-00-12-10-02-CN is engineered for high-performance condition monitoring and machinery protection in a wide range of industrial sectors:
-
Gas & Steam Turbines: Measures radial shaft vibration and axial thrust position for safety and efficiency.
-
Centrifugal Compressors: Detects early imbalance, bearing wear, or rotor instability.
-
Electric Motors: Provides real-time shaft displacement data to avoid unplanned failures.
-
Pumps: Monitors misalignment and cavitation-related vibrations.
-
Industrial Fans & Blowers: Identifies shaft wobble and mechanical looseness.
-
Gearboxes: Detects subtle changes in shaft movement indicative of gear wear or failure.
Product Advantages
-
Precision Monitoring: Highly accurate non-contact measurement, essential for early fault detection.
-
Harsh Environment Durability: Built to operate reliably in high-temperature and vibration-prone settings.
-
Fully Interchangeable: Compatible with other 3300 XL probes, cables, and proximitor modules.
-
Field-Proven Design: Tens of thousands of installations worldwide across power, oil & gas, and chemical industries.
-
Electrical Noise Immunity: Coaxial design minimizes signal interference and ensures stable output.
-
Standards Compliance: Calibrated per API 670, ensuring consistency in safety-critical applications.
Frequently Asked Questions (FAQ)
-
What does the “CN” at the end of the part number indicate?
It refers to China-specific configuration or compliance, often for local delivery or regional calibration standards. -
Is the probe suitable for use in API 670-compliant systems?
Yes, the probe and the entire 3300 XL system are designed in compliance with API 670 standards. -
Can I use this probe with other 3300 XL extension cables?
Yes, as long as the total system length remains within allowable limits and the components are matched. -
How is the probe tip mounted?
It uses a threaded 3/8-24 UNF design for secure mounting into brackets or bearing housings. -
Is this probe compatible with legacy Bently Nevada monitoring systems?
It is backward compatible with many older systems, though verification of electrical matching is recommended. -
What kind of calibration is used for this probe?
It is calibrated using a 4140 steel target, per standard industry practice. -
Does the proximity probe require grounding?
Yes, proper grounding practices must be followed for noise immunity and accurate signal transmission. -
Can this product be used in hazardous or explosive zones?
The probe itself is not intrinsically safe. Intrinsically safe barriers or certified enclosures must be used. -
What are the maintenance requirements?
Regular inspection of mounting, cable integrity, and signal calibration is recommended during machine shutdowns. -
Can I extend the cable length beyond 22 ft?
It is not recommended without recalibration, as system linearity and signal integrity may be affected.
Related Models (Same Series or Functional Category)
| Model Number | Description | Cable Length | Sensor Type | Notes |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8 mm Probe, 8 ft cable | 8 ft | Standard Proximitor | Shorter cable, same system compatibility |
| 330101-00-18-10-02-00 | 3300 XL 8 mm Probe, 18 ft cable | 18 ft | Standard Proximitor | Long cable for remote probes |
| 330104-00-12-10-02-00 | 3300 XL 11 mm Probe, 12 ft cable | 12 ft | 11 mm tip size | Larger tip for recessed mounting |
| 330106-05-30-10-02-00 | Armored 8 mm Probe, 5 m cable | 5 m | Industrial-grade armor | Rugged for harsh environments |
| 330130-040-00 | Extension Cable, 40 ft | 40 ft | N/A | For custom installations |
| 330180-91-00 | 3300 XL Proximitor Sensor, DIN Mount | N/A | DIN rail sensor | For panel or cabinet installation |
Popular Bently Nevada Models
| Model Number | Description | Application | Remarks |
|---|---|---|---|
| 3500/42M | 4-Channel Proximitor Monitor | Shaft vibration/position | Used in 3500 rack systems |
| 3500/22M | Transient Data Interface Module | Data acquisition and comms | Ethernet & serial connectivity |
| 3500/05 | System Rack for 3500 Series | Monitoring chassis | Houses up to 14 modules |
| 330104-00-05-10-02-00 | 11 mm Probe, 5 ft cable | Large diameter shaft monitoring | Short cable variant |
| 330730-040-00-00 | Accelerometer-based Radial Vibration Sensor | Turbines, compressors, fans | Piezoelectric-based, compact design |
| 7200 Series Monitor | Legacy Vibration Monitoring System | Older machinery installations | Still used in legacy systems |
