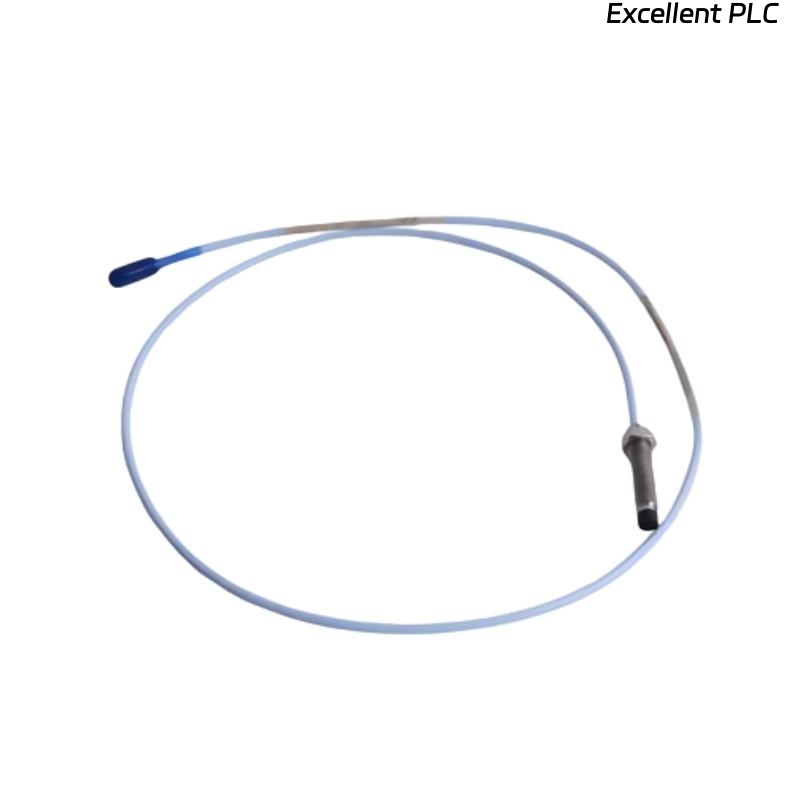

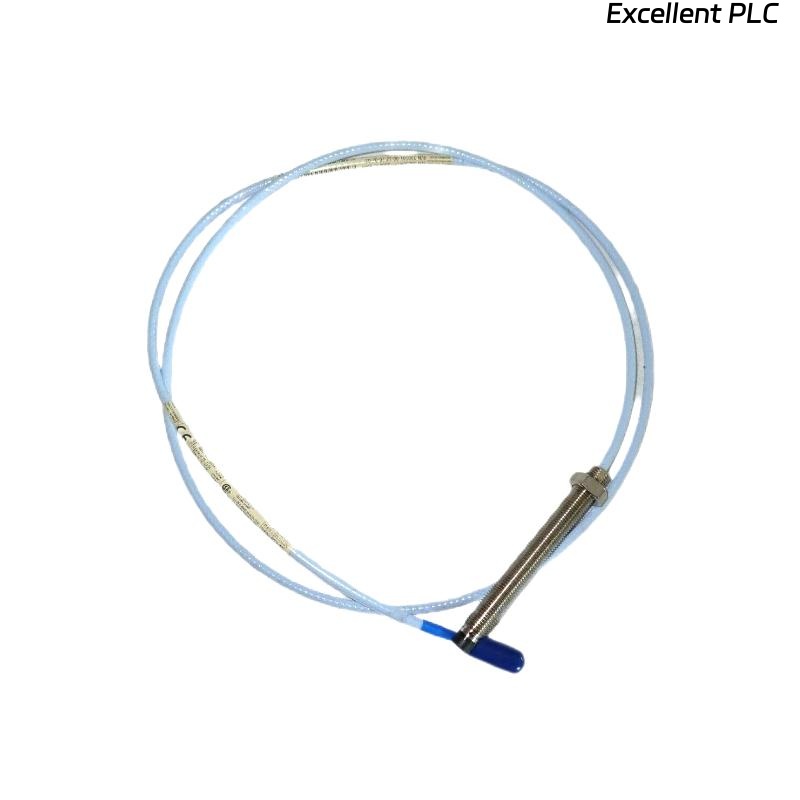

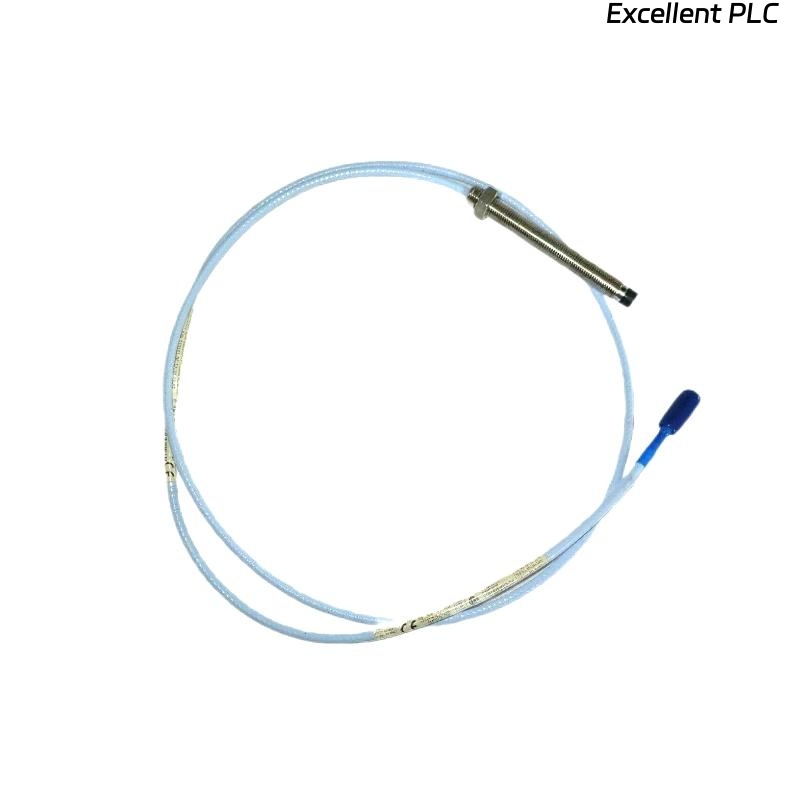

Bently Nevada 330101-00-12-50-01-05 3300 XL 8mm Proximity Probes

Company Information
E-mail		[email protected]
Mobile		+8613666033393
Whatsapp		+8613666033393
WeChat		13666033393
Add		Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Bently Nevada 330101-00-12-50-01-05 3300 XL 8 mm Proximity Probe is a high-performance non-contact displacement transducer designed to measure the vibration and shaft position of rotating machinery. It is part of Bently Nevada’s world-renowned 3300 XL proximity transducer system, which is widely recognized for its precision, stability, and reliability in harsh industrial environments.

This model offers a total system length of 5.0 meters, combining a probe, extension cable, and Proximitor sensor. The 3300 XL 8 mm system provides accurate linear output over a standard range of 2 mm (80 mils) and is compatible with a wide variety of rotating machines such as turbines, compressors, pumps, motors, and gearboxes.

Built with robust materials and advanced shielding, this probe ensures immunity to electromagnetic interference and provides long-term stability even under high temperature and vibration conditions. Its design meets or exceeds API 670 standards for machinery protection and monitoring.

---

Technical Specifications

---

Applications

The Bently Nevada 330101-00-12-50-01-05 Proximity Probe is a core component in condition monitoring and protection systems for critical rotating equipment. It is extensively used across industries where accurate vibration, shaft displacement, and phase measurements are essential for predictive maintenance and safety.

Typical applications include:

• Steam and Gas Turbines: Continuous monitoring of shaft vibration and thrust position.

• Compressors: Detection of shaft displacement, imbalance, and rotor instability.

• Pumps and Motors: Measurement of radial vibration and misalignment detection.

• Gearboxes: Monitoring of gear mesh vibration and bearing wear.

• Fans and Blowers: Real-time detection of imbalance and mechanical looseness.

• Hydraulic Turbines and Generators: Measuring dynamic shaft movement to prevent mechanical failure.

---

Advantages

• High Measurement Accuracy: Provides stable and linear output across a wide displacement range, meeting API 670 standards.

• Superior Temperature Stability: Designed for consistent performance from –35 °C to +177 °C without recalibration.

• Enhanced EMI Resistance: Advanced shielding ensures signal integrity in high electrical noise environments.

• Long System Length Flexibility: 5-meter configuration supports versatile installation across large machinery.

• Robust Mechanical Design: Stainless steel body and hermetically sealed construction provide long service life.

• Easy Integration: Fully compatible with Bently Nevada 3300, 3309, and 3500 systems.

• High Vibration Tolerance: Engineered to withstand up to 50 g peak vibration without loss of calibration.

• Reliable Environmental Protection: IP68 sealing ensures protection against oil, dust, and water ingress.

• API 670 Compliant: Meets global standards for machinery protection instrumentation.

• Proven Industrial Reliability: Used worldwide in critical process plants for over three decades.

---

FAQ

1. What is the total system length of the 330101-00-12-50-01-05 model?
   The total system length is 5.0 meters, including the probe, extension cable, and Proximitor sensor.

2. What is the sensitivity of this proximity probe?
   It provides a sensitivity of 200 mV/mil (7.87 mV/µm).

3. What is the linear measurement range of this probe?
   The linear range is 2.0 mm (80 mils) with consistent accuracy across the range.

4. What probe systems are compatible with this model?
   It is compatible with Bently Nevada 3300, 3309, and 3500 proximity transducer systems.

5. What type of thread is used for probe mounting?
   The probe uses a standard M10 × 1.0 threaded mounting configuration.

6. Can the probe operate under high temperature conditions?
   Yes, it is rated for operation between –35 °C and +177 °C.

7. What is the environmental protection rating of the probe?
   It is rated IP68 for full protection against dust and immersion in liquids.

8. Does the probe comply with industrial protection standards?
   Yes, it meets the API 670 standard for vibration and displacement measurement systems.

9. What frequency range can the probe accurately measure?
   It operates from 0 to 10 kHz (–3 dB), suitable for high-speed rotating machinery.

10. Is the probe electrically isolated from the machine surface?
    Yes, both the probe tip and case are fully electrically isolated to prevent ground loops.

---
